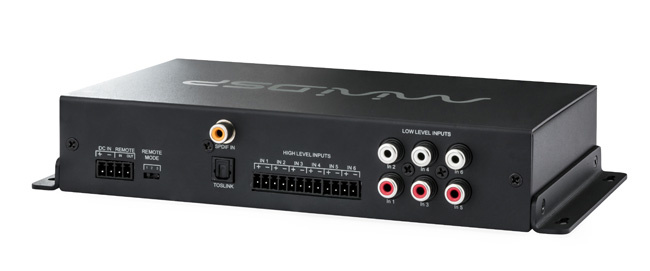

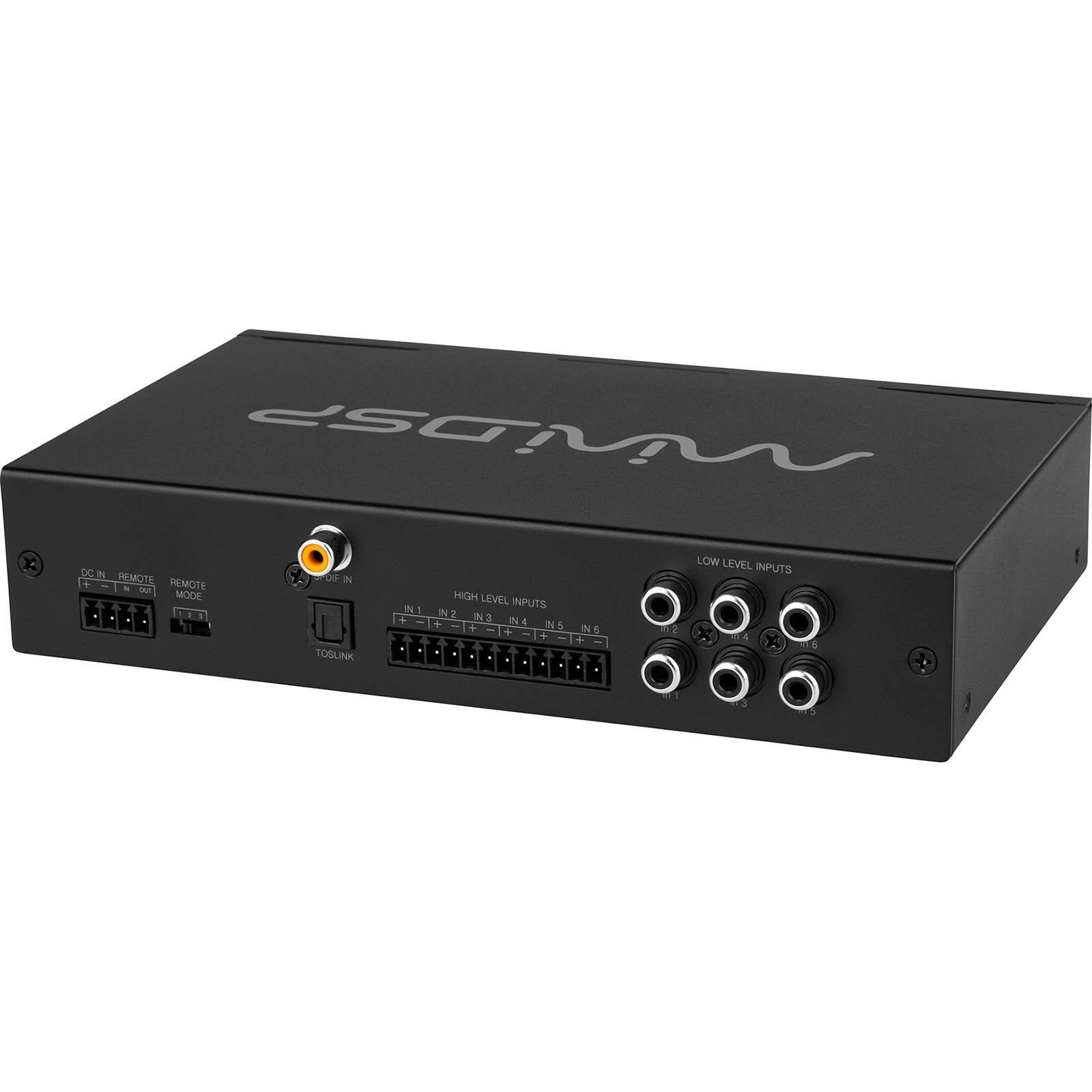

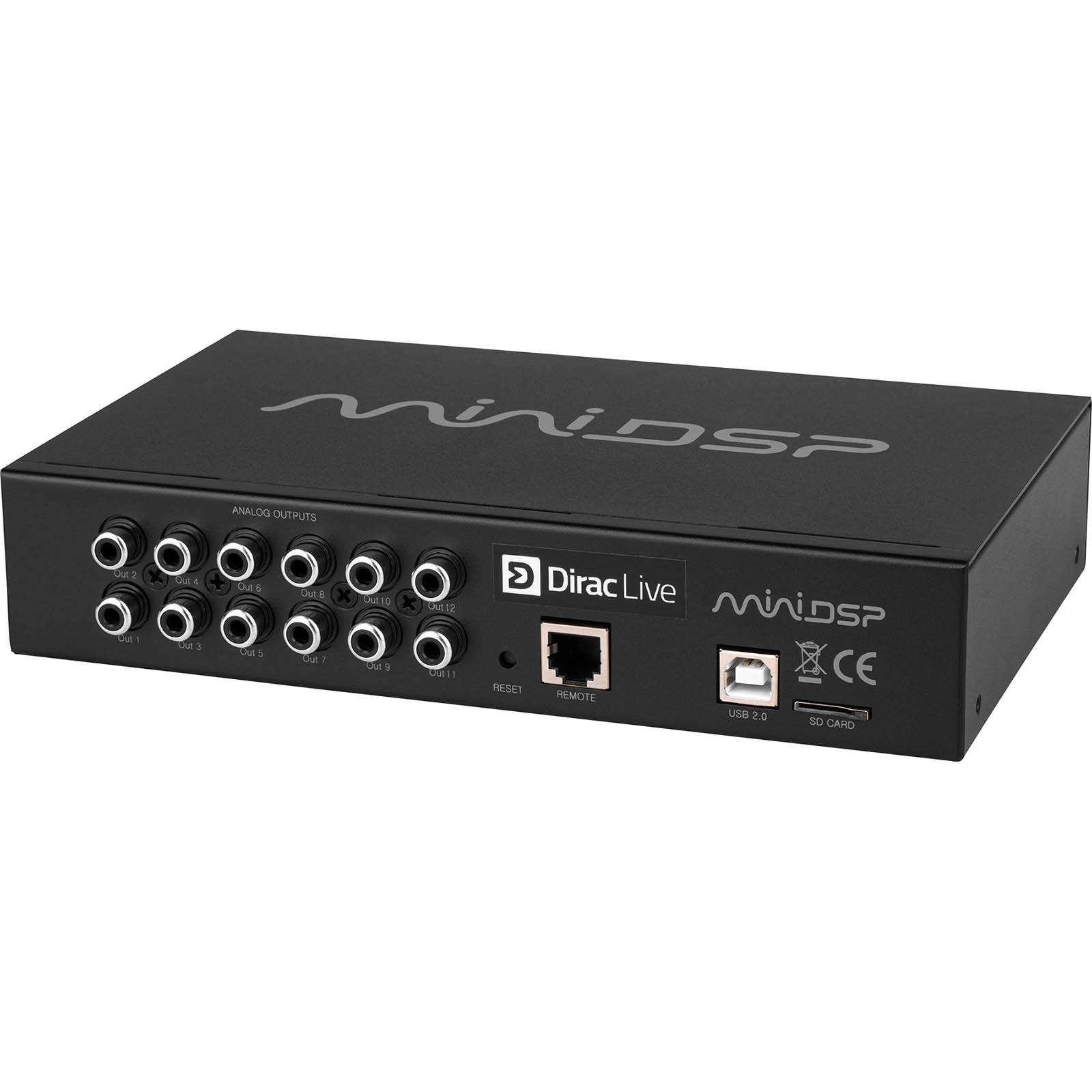

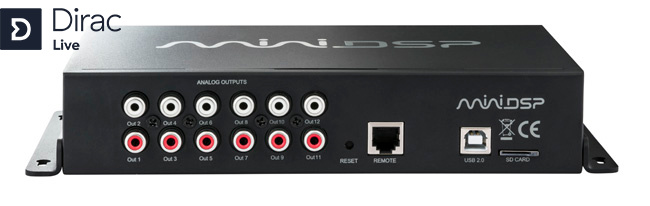

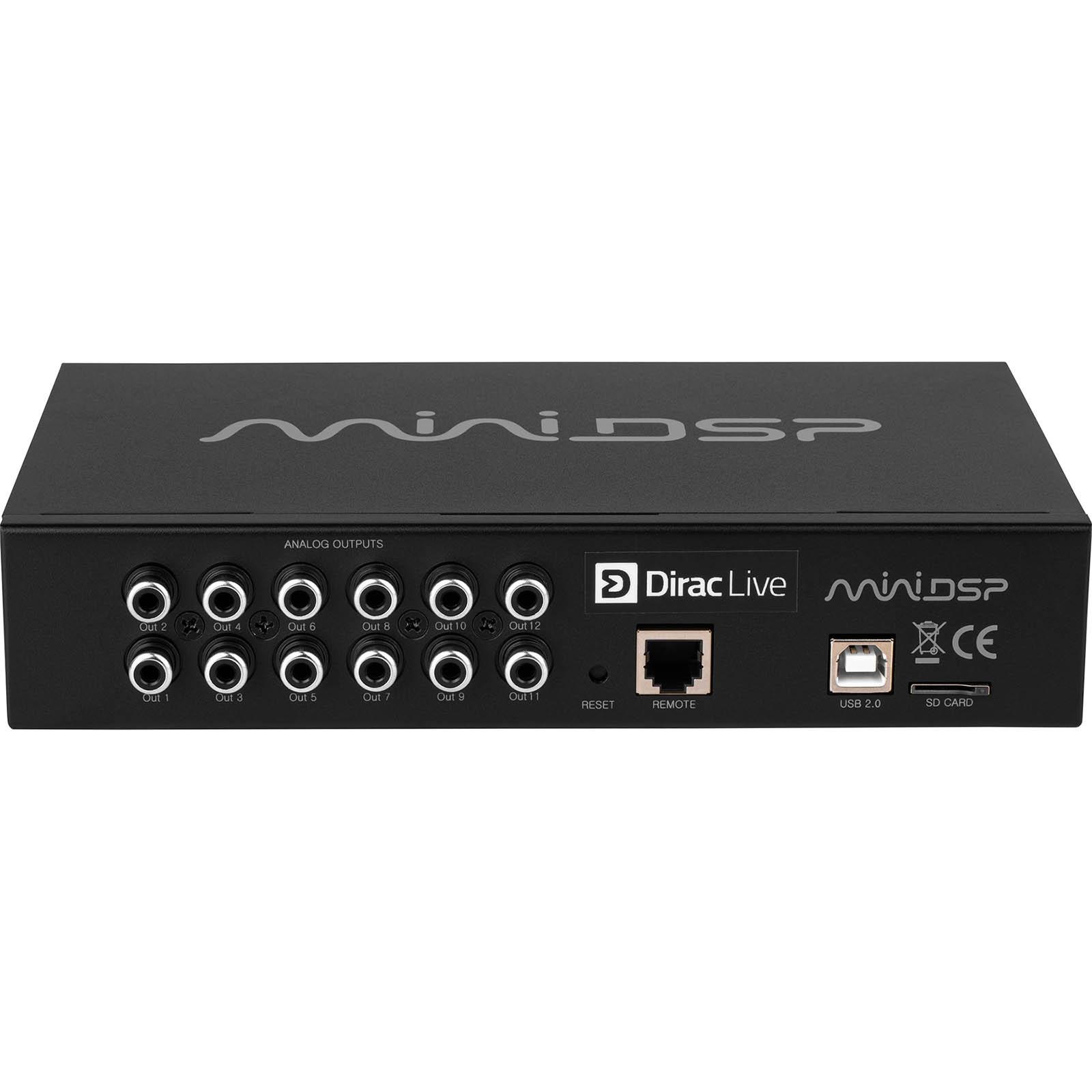

    miniDSP miniDSP C-DSP 8x12 DL in-car digital audio processor

    € 1.199,95 Niet op voorraad: binnen 1 week leverbaar
    miniDSP is proud to introduce the new flagship C-DSP 8x12 DL in-car digital audio processor. Dirac Live® room correction, a 400 MHz SHARC floatingpoint processor and 32-bit AKM converters with –107 dB THD+N specification deliver pristine high-resolution a... Toon meer
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    miniDSP is proud to introduce the new flagship C-DSP 8x12 DL in-car digital audio processor. Dirac Live® room correction, a 400 MHz SHARC floatingpoint processor and 32-bit AKM converters with –107 dB THD+N specification deliver pristine high-resolution audio in any cabin environment. Comprehensive I/O includes six differential low-level analog inputs for low noise pickup, high-level inputs for connection to head units with power amplification, and stereo SPDIF and TOSLINK digital inputs. On the output side, 12 RCA outputs combined with a full eight channels of Dirac Live processing make the C-DSP 8x12 DL adaptable for active crossover systems as well as multichannel/surround installations with subwoofer integration.



    Hightlights

    • 400MHz 32bit Sharc Floating point processor
    • Dirac Live technology helps tune your cabin environment
    • 32bit DAC/ADC chipsets
    • THD+N 0.0007%, 115dB SNR
    • Digital and analog inputs (Low/High levels), 12 analog outputs
    • Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
    • Fully differential balanced inputs
    • Windows/Mac compatible GUI
    • Remote control or preset/master & sub volume control



    Product Specifications

    miniDSP C-DSP 8x12 DL in-car digital audio processor

    Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

    miniDSP is proud to introduce the new flagship C-DSP 8x12 DL in-car digital audio processor. Dirac Live® room correction, a 400 MHz SHARC floatingpoint processor and 32-bit AKM converters with –107 dB THD+N specification deliver pristine high-resolution audio in any cabin environment. Comprehensive I/O includes six differential low-level analog inputs for low noise pickup, high-level inputs for connection to head units with power amplification, and stereo SPDIF and TOSLINK digital inputs. On the output side, 12 RCA outputs combined with a full eight channels of Dirac Live processing make the C-DSP 8x12 DL adaptable for active crossover systems as well as multichannel/surround installations with subwoofer integration.



    Also included is miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability. Four complete configurations are stored in flash memory for recall with a wired or infrared remote. Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting and a microSD card slot for offline configuration.



    What's in the box?

    • 1 x C-DSP 8x12 DL processor
    • 1 x USB cable

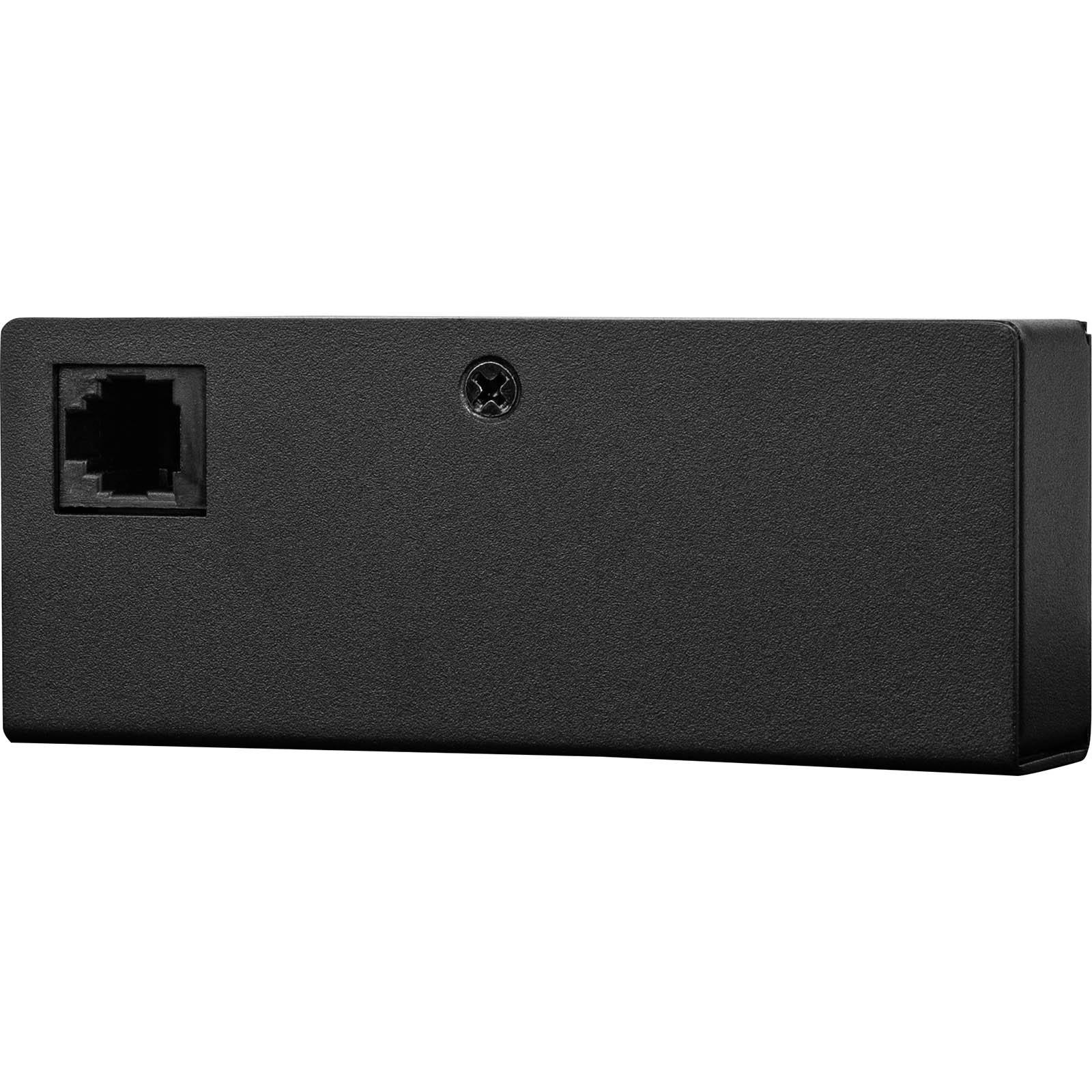

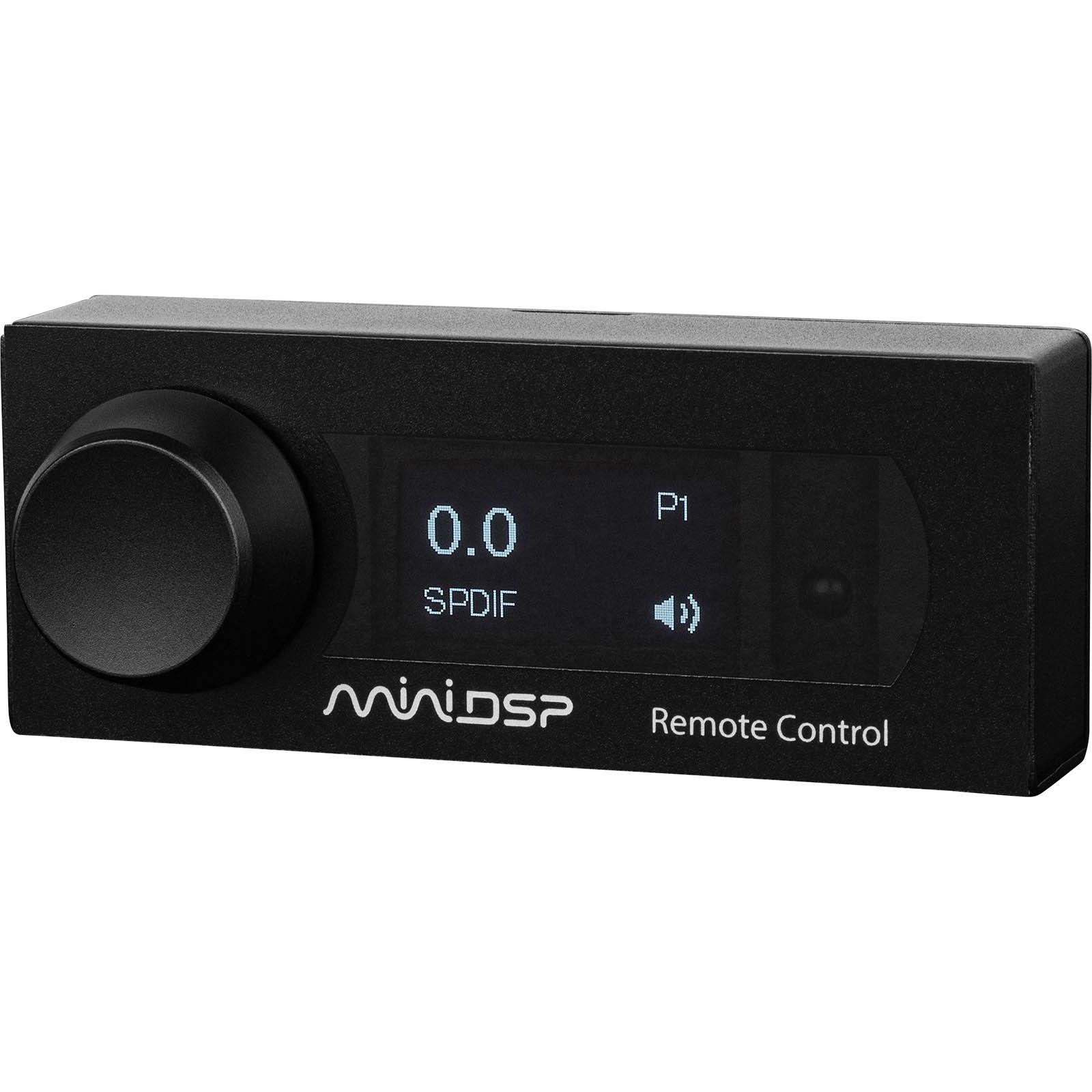

    • 1 x remote unit
    • 1 x 5m long remote cable
    • 1 x Coupon code for miniDSP plugin download and Dirac Live license
    • harness for I2S In/Out interfacing

    Specificaties

    Artikelnummer
    C-DSP 8x12 DL
    Device type
    Boxed
    Device serie
    Car Audio DSP
    DSP chip
    Analog Devices ADSP21489
    Internal processing resolution & sample rate
    32 bit / 48 kHz
    Input / ouput configuration
    8 / 12
    Audio input connectivity
    High level (terminal block), low level (RCA), Toslink, SPDIF (RCA)
    Audio output connectivity
    RCA
    Max input level
    8 / 12 Vrms (high level)</br>2 /4 Vrms (low level)
    Max output level
    6 Vrms
    Input impedance
    68 ohms (high level / 10k ohms (low level)
    Output impedance
    560 ohms
    Calibration software
    miniDSP C-DSP 8x12 plug-in
    IIR
    check
    FIR
    check
    Dirac Live®
    check
    DSP presets
    4
    Impulse response correction
    check
    Infrared remote learning
    check
    Windows / Mac compatible
    check/check
    UMIK-1 included
    -
    Room EQ wizard support
    check
    Dimensions
    205 x 122 x 41 mm
    Power
    Isolated DC-DC conversion for 12V Car Audio environment
