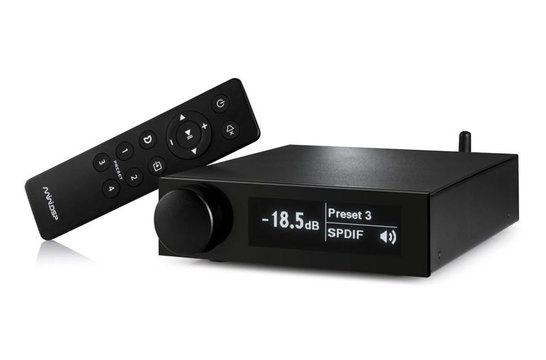

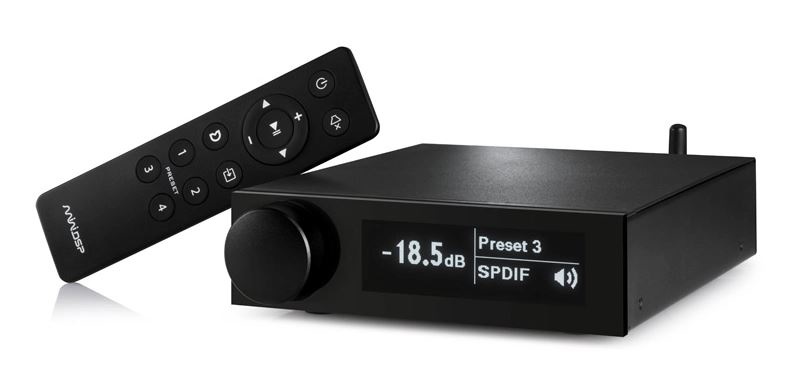

      miniDSP 2x4 FLEX digitale signaalprocessor | Balanced (TRS)

      € 619,79€ 749,95 Niet op voorraad3 verwacht op 09-02-2023

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Nu besteld, morgen bezorgd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      miniDSP Flex, 400MHz Sharc DSP audio processor, toolbox for subwoofer or multiway speaker tuning, Optional Dirac Live license for room correction (available via miniDSP), Bluetooth LDAC/APTX/AAC streaming, Flexible I/O versions for unbalanced/balanced/digital connectivity Array.



      Highlights

      • Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP
      • Multi-Core USB Audio processor (XMOS)
      • Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC
      • Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz)
      • Audiophile performance: [email protected](A), THD+N @ -110dB (0.0003%)
      • Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA)
      • Balanced (TRS)
      • USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl)

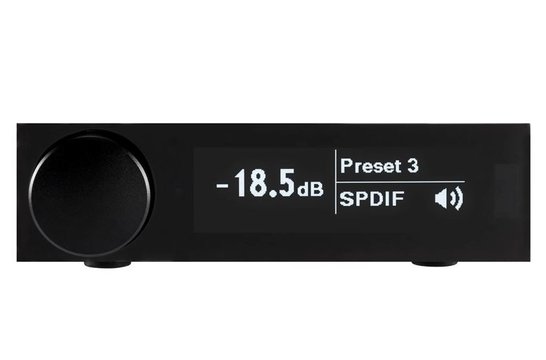

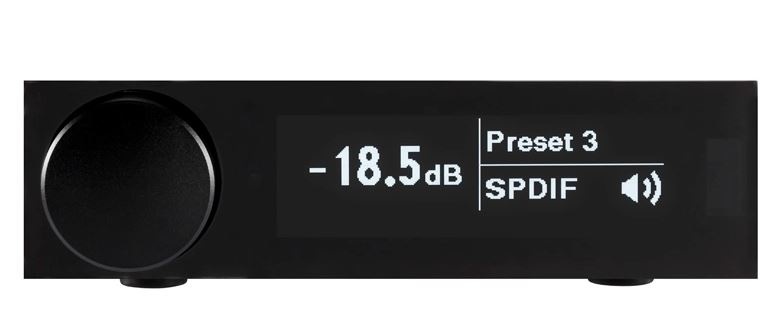

      • White/Black OLED front panel controller with IR control



      Product details

      2x4 FLEX DSP audio processor | Balanced (TRS)



      The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment.



      All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning.



      The miniDSP Flex will find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest!

      Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.



      What's in the box?

      • Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration
      • IR remote v2
      • 12V univeral power supply (UK/EU/US/AU plugs)
      • USB cable

      Toon meer

      Specificaties

      Artikelnummer
      2x4 Flex (TRS)
      Apparaattype
      DSP audio processor
      Apparaatserie
      FLEX
      DSP-chip
      DSP SHARC ADSP21489 @ 400MHZ
      Verwerkingsresolutie & sample rate
      32 bit/96 kHz (32bit/48 kHz with Dirac Live® license)
      ingangs- / uitgangsconfiguratie
      2 channels in / 4 channels out

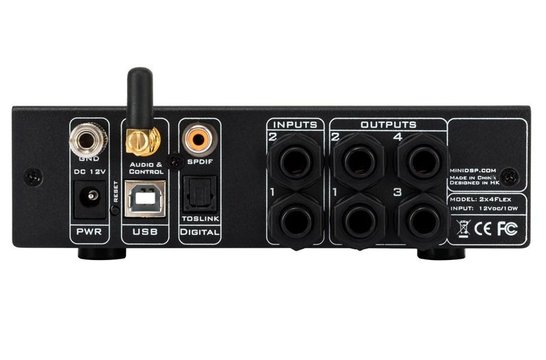

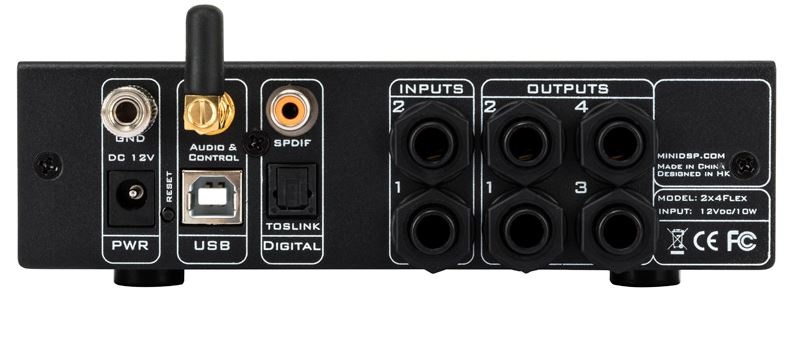

      Ingangsconnectie
      2 x balanced 6.35 mm TRS jack (as XLR)
      Uitgangsconnectie
      4 x balanced 6.35 mm TRS jack (as XLR)
      Maximaal ingangsignaal
      4 V RMS
      Maximaal uitgangsignaal
      4 V RMS
      Ingangsimpedantie
      200 kΩ
      Uitgangsimpedantie
      200 Ω
      FIR
      Dirac Live®
      Not included
      DSP-presets
      Up to 4 presets
      Infrarood
      UMIK-1 inbegrepen
      Nee
      Afmetingen
      150x180x41 mm

      Toon meer
