        PLUVIA-7HD Chrome Full-range Woofer

        PLUVIA-7HD Chrome Full-range Woofer

        €52,45

        Markaudio PLUVIA-7HD Chrome Full-range Woofer

        2 reviews
        5 van 5
        2 reviews
        5 sterren
        50%
        4 sterren
        50%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Markaudio
        € 43,35€ 52,45 10+ Op voorraad
        • -5% Bestel 4 voor slechts € 49,83 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        The second-generation Pluvia 7HD is designed to supersede our original Alpair 7 series drive units. It employs many of the same components, and has a very similar balance of frequency response and Thiele / Small values to the old Alpair model, packaged in the more efficient and convenient Pluvia frame.



        Highlights

        • Vintage Gold 4’’ magnesium alloy cone
        • Operating range to 30KHz - very linear response
        • Very shallow multiform cone profile – very broad directivity pattern
        • Advanced low-distortion motor design
        • Long-stroke suspension with arrestor and progressive-rate spider
        • Low-profile surface-mount reinforced polymer basket



        Product details

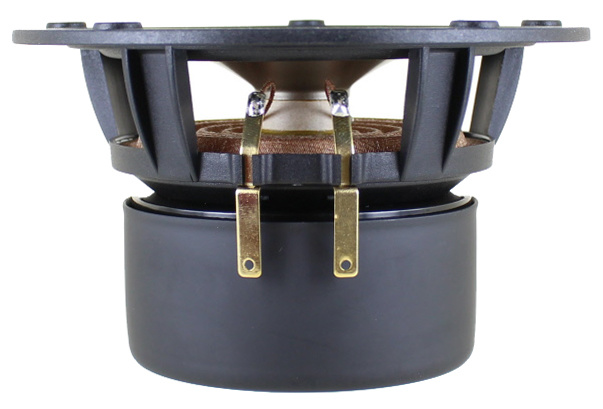

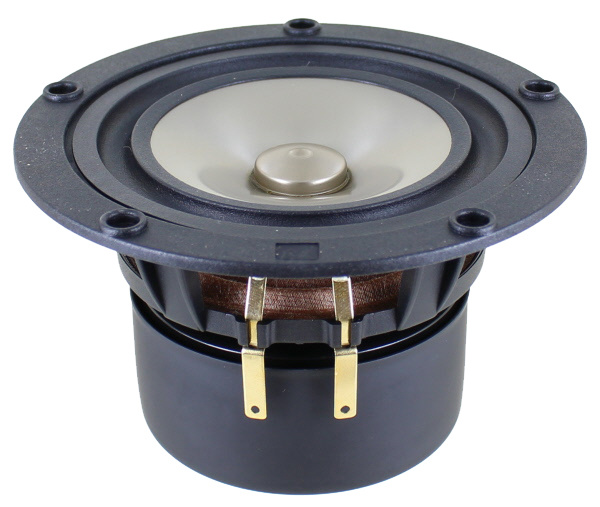

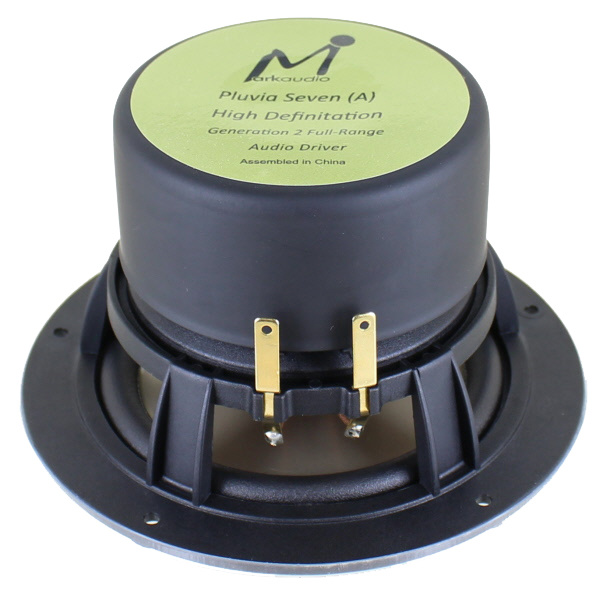

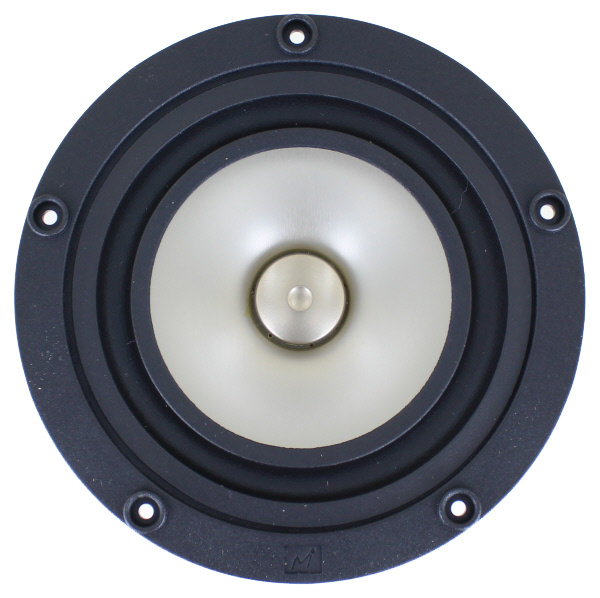

        Markaudio Pluvia 7 HD Chrome Full-range Woofer



        The second-generation Pluvia 7HD is designed to supersede our original Alpair 7 series drive units. It employs many of the same components and has a very similar balance of frequency response and Thiele / Small values to the old Alpair model, packaged in the more efficient and convenient Pluvia frame. With a mounting depth of less than 4mm, the Pluvia may be surface or flush-mounted, and the design of the mounting legs is very open, allowing good airflow to the rear.



        The low-mass coil, suspension, and shallow-profile cone are highly efficient. Frequency response extends beyond 30KHz, and the generous 4mm (1-way) Xmax and conveniently balanced T/S parameters allow 40Hz bass output in suitable enclosure designs. The sound character is neutral and highly detailed, with excellent off-axis performance. It is an extremely flexible drive unit for music, small HT and commercial AV applications, and offers exceptional performance at an affordable price point.

        Toon meer

        Specificaties

        Artikelnummer
        PLUVIA-7HD Chrome
        Woofer series
        Pluvia series
        Woofer type
        Full-Range Woofer
        Nominale diameter
        4''
        Belastbaarheid (RMS)
        20 Watts
        Impedantie (Z)
        8 Ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        85.74 dB
        Frequentierespons
        20 - 40,000 Hz
        Gelijkstroomweerstand (Re)
        5.4000 Ohms
        Spreekspoelinductie (Le)
        0.1652 mH
        Resonantiefrequentie (Fs)
        72.5 Hz
        Mechanische Q (Qms)
        3.1446
        Elektrische Q (Qes)
        0.7173
        Totale Q (Qts)
        0.584
        Bewegende massa (Mms)
        3.8390 g
        Moving Mass Of Diaphragm (Mmd)
        3.6373 g
        Compliantie van de ophanging (Cms)
        1.2536 mm/N
        Effectief oppervlak (Sd)
        0.0050 m2
        Krachtsfactor (BL)
        3.6297
        Equivalentvolume (Vas)
        4.4227 L
        Maximale excursie (Xmax)
        4 mm
        Cone / Diaphragm Material
        Magnesium alloy
        Surroundmateriaal
        Rubber
        Mand- /framemateriaal
        Polymer
        Magneetmateriaal
        Ferrite
        Totale buitendiameter
        122.3 mm
        Totale diepte
        71.5 mm
        Montagegatdiameter
        100 mm
        Bolt Circle Diameter
        112 mm
        # Bevestigingsgaten
        5
        Diameter bevestigingsgaten
        5 - 3.1 mm

        Toon meer

        4 van 5
        Gut.
        Door Alfredo A. on 4 Juli 2020
        5 van 5
        Wie alle Markaudio-Treiber sind auch diese Breitbänder excellent und fast auf gleichem Niveau wie die Alpairs, welche geringsfügig feiner/sauberer auflösen. Die Unterschiede sind aber wirklich nur marginal...wer also etwas Geld sparen möchte, liegt hier genau richtig !
        Door Kai L. on 27 Januari 2020
