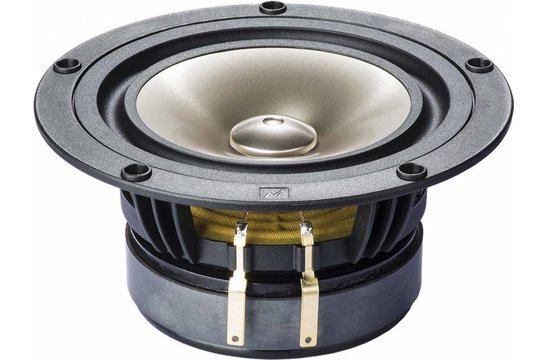

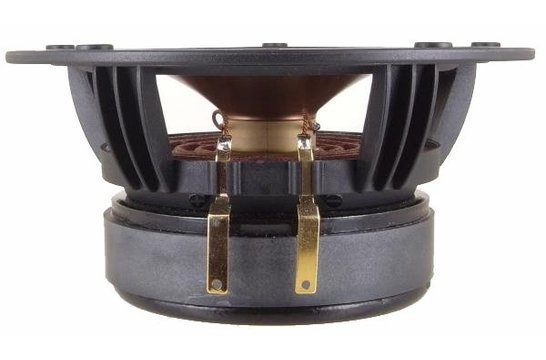

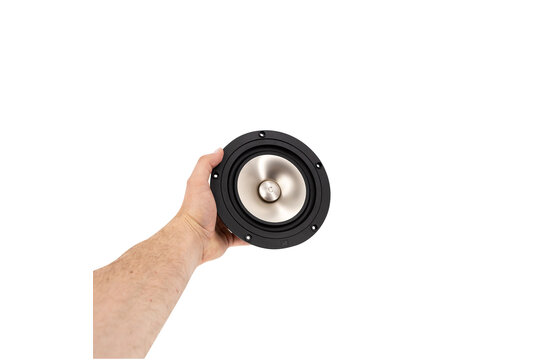

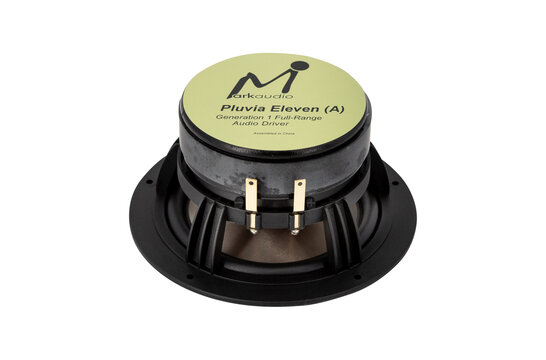

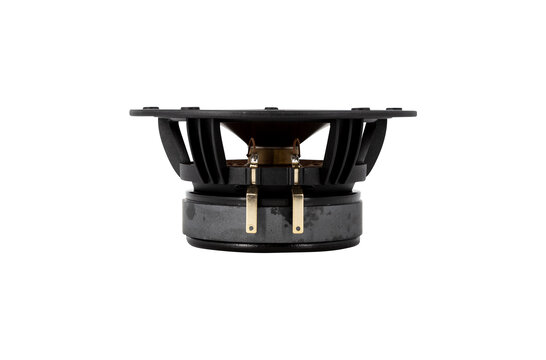

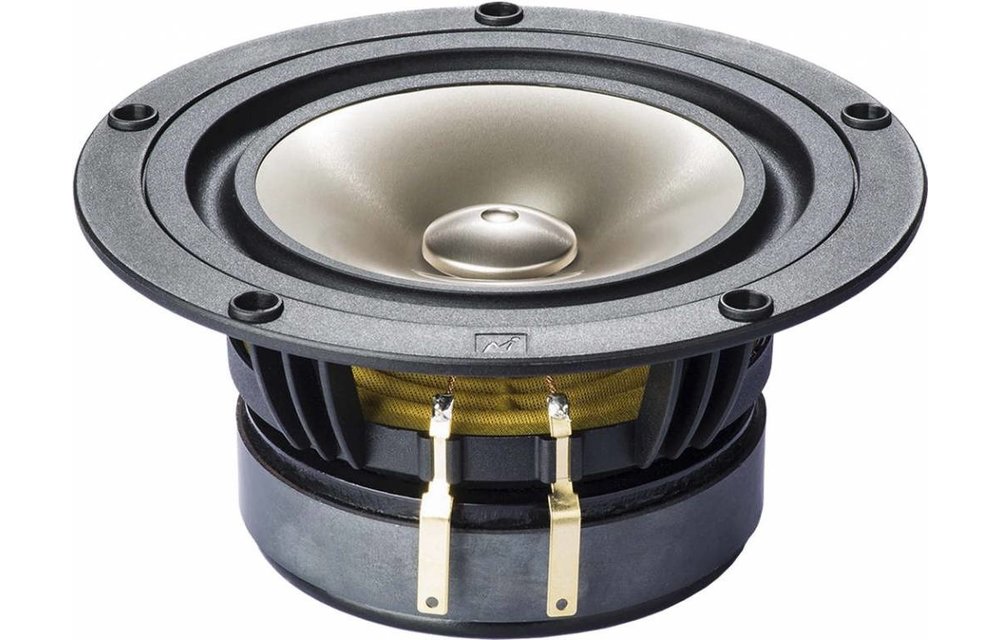

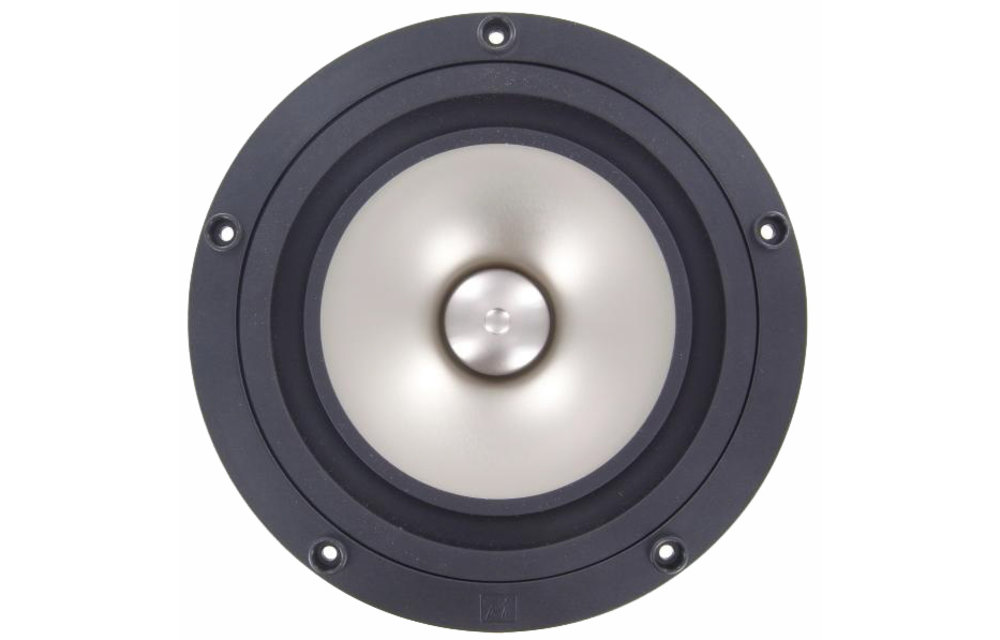

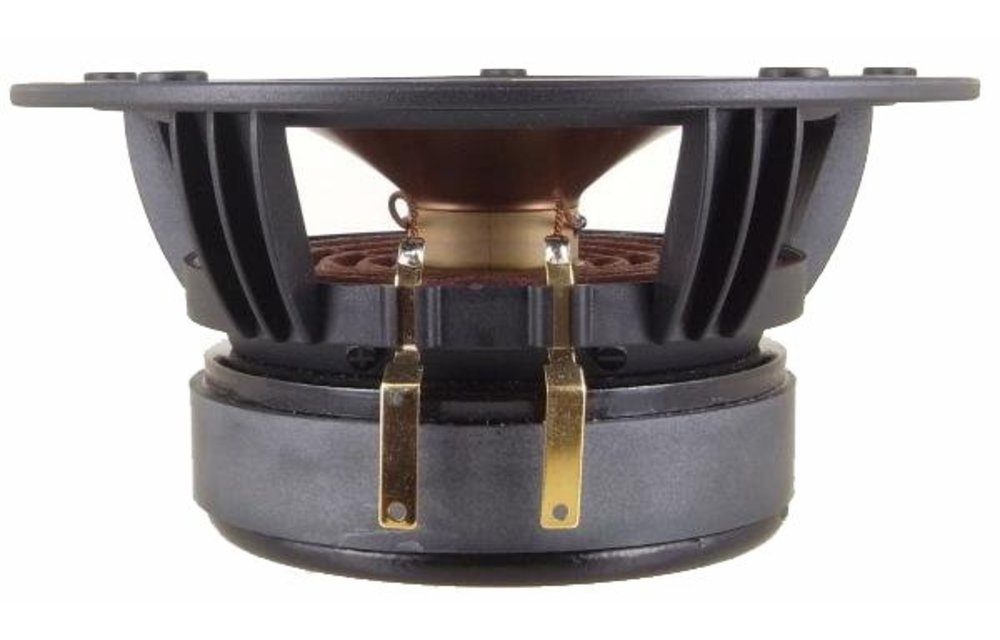

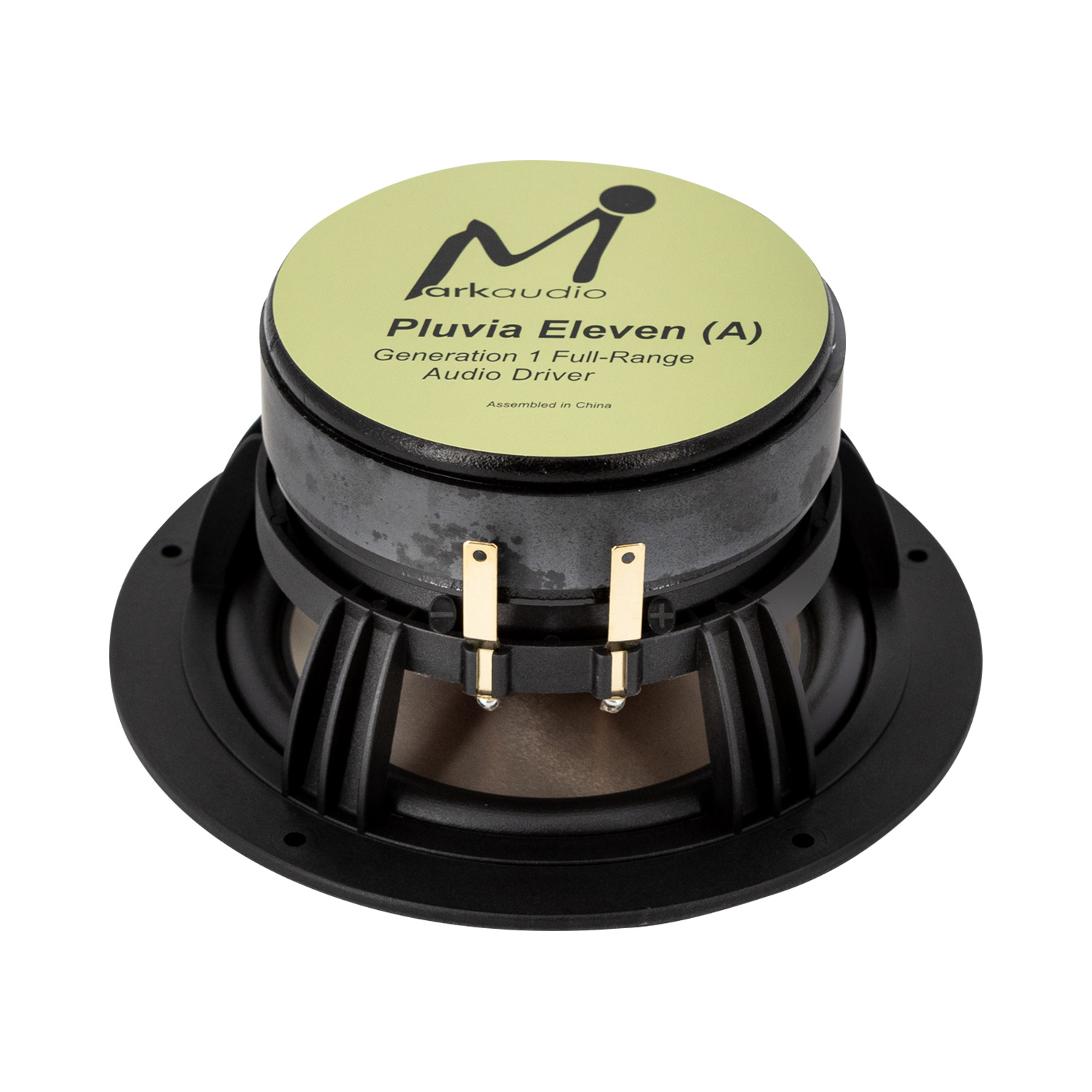

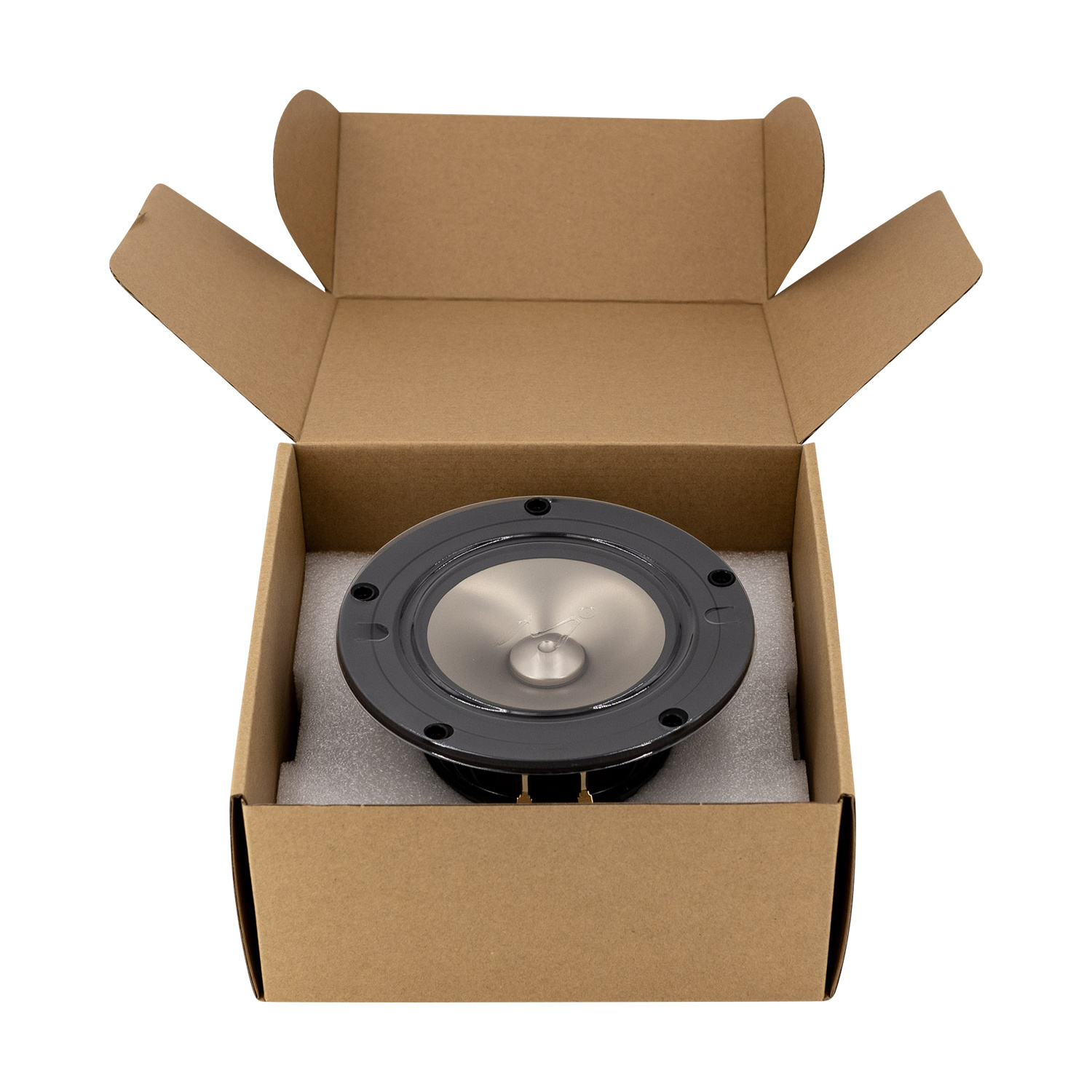

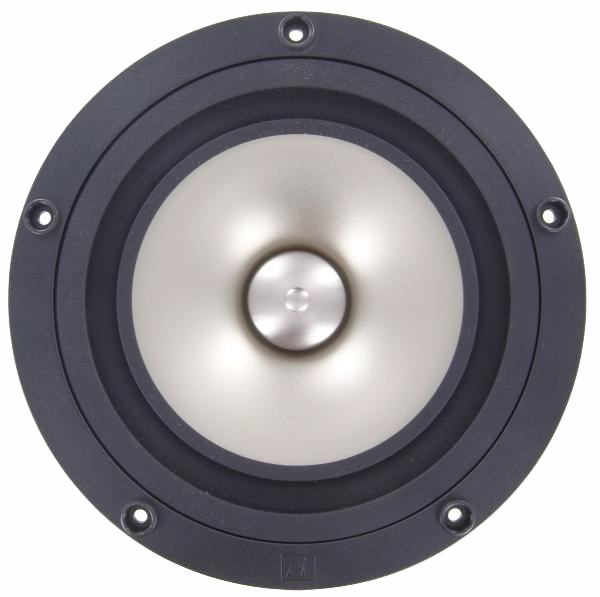

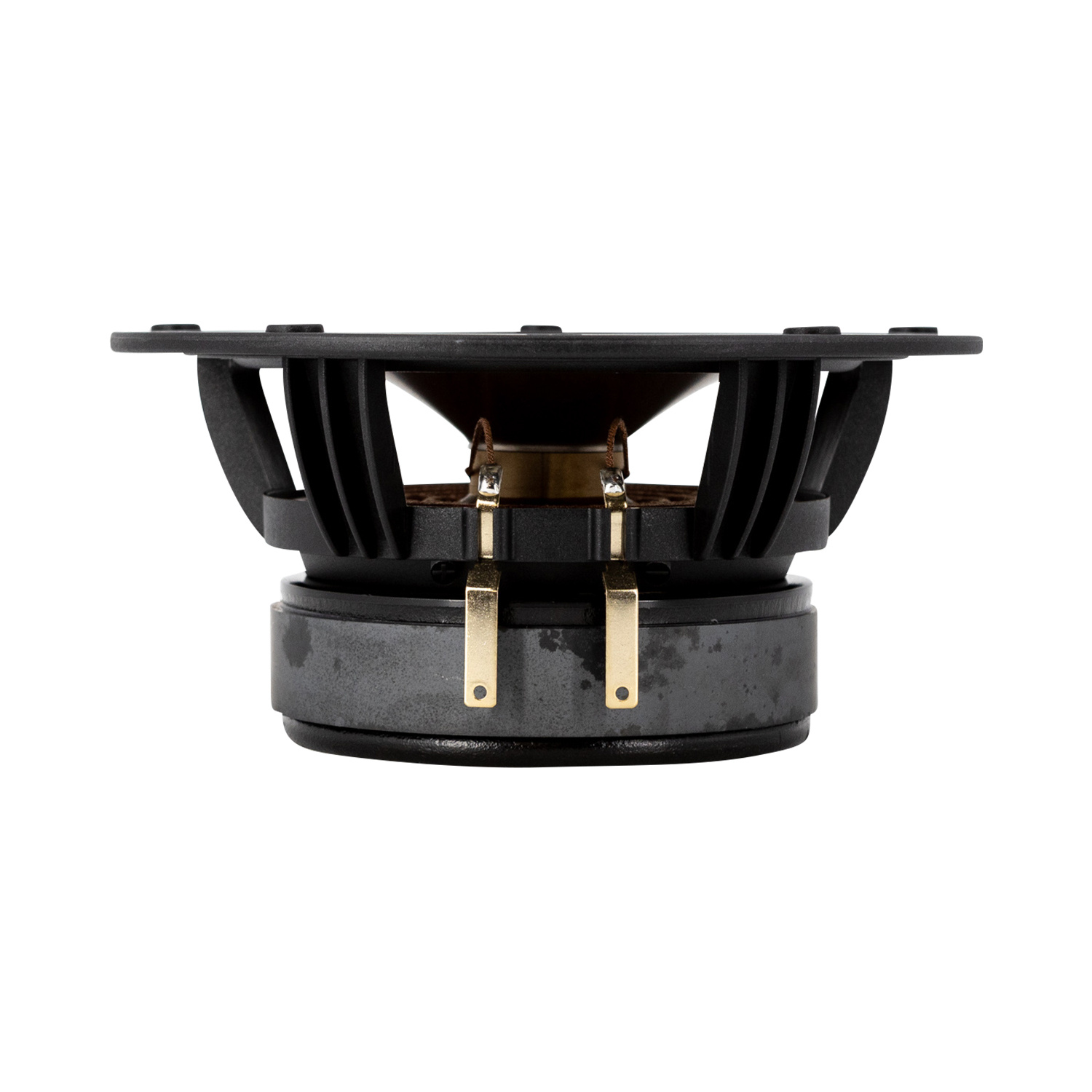

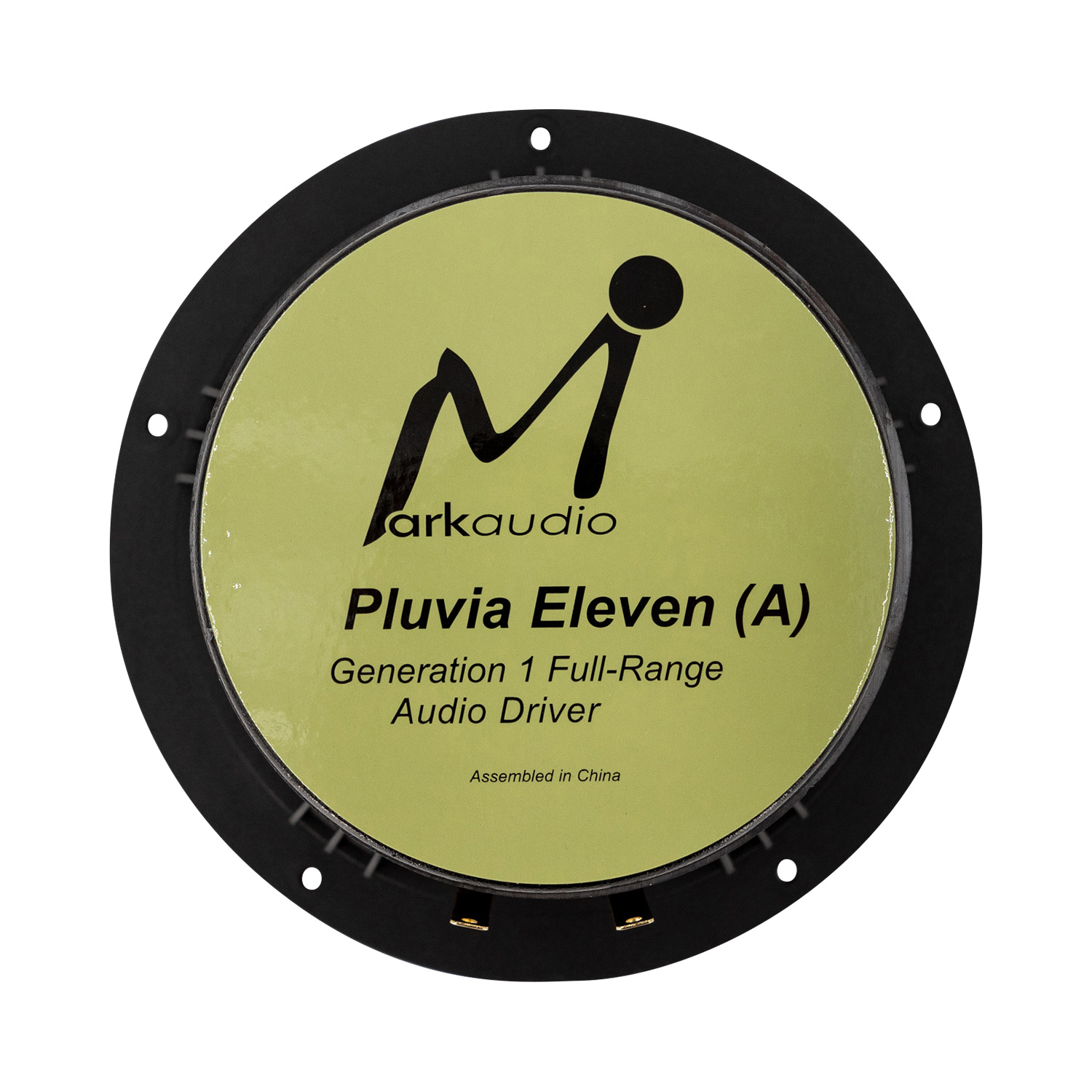

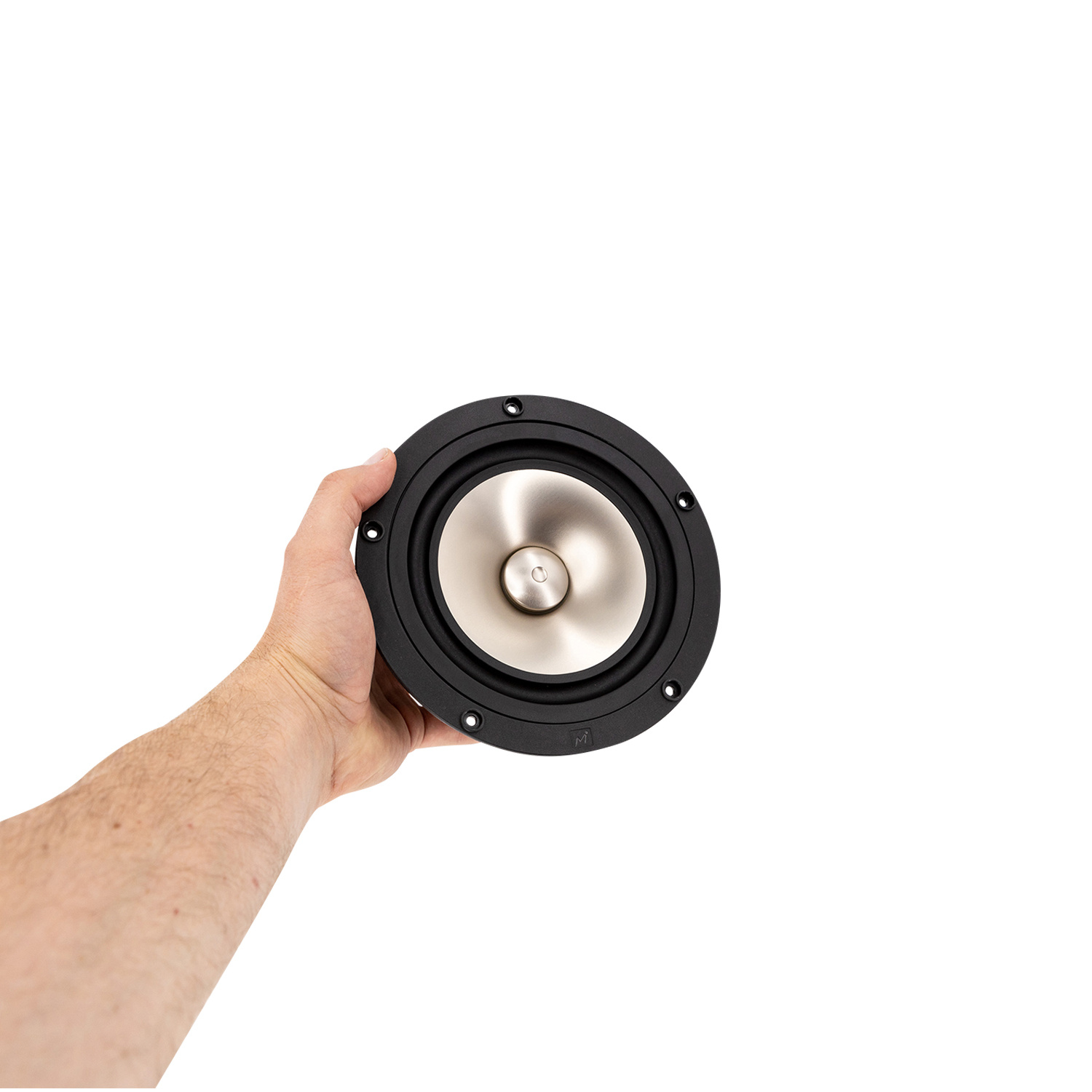

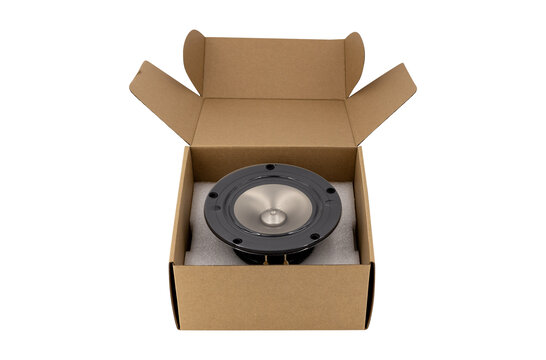

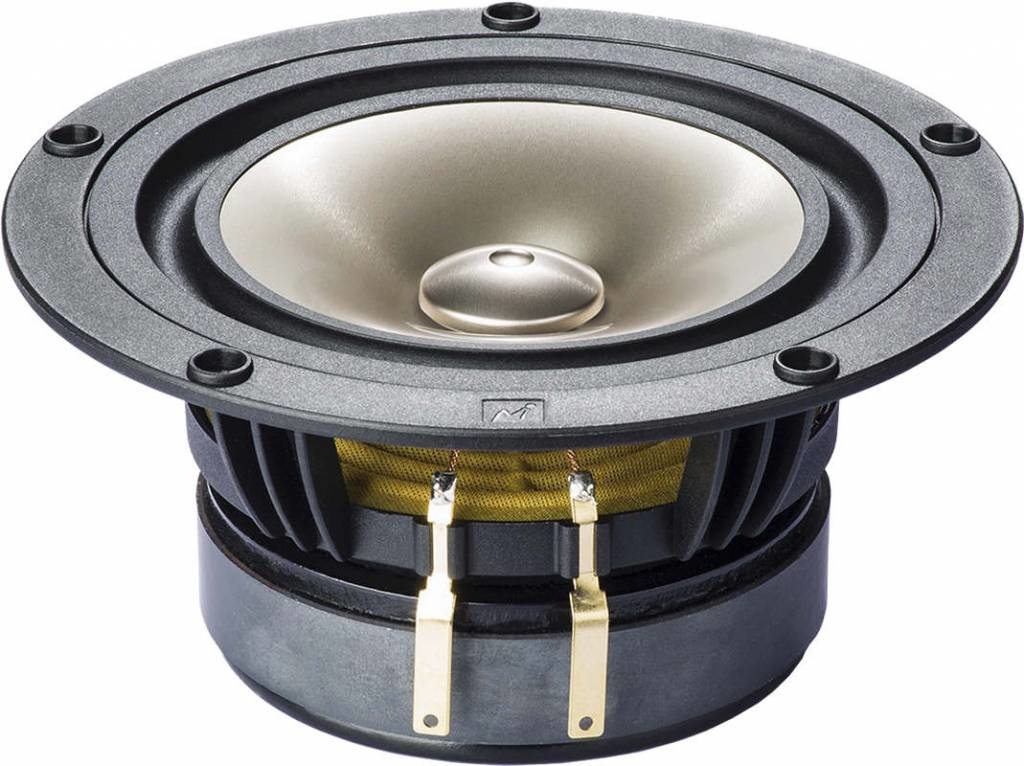

Markaudio PLUVIA-11 Grey 7" Full Range Aluminium Woofer

Levertijd: 1 werkdag

  • Artikelcode: PLUVIA-11 Grey
  • Voorraad: 3 Op voorraad

The Pluvia 11 is a completely new driver design. It is the first “full range” driver that can handle bass loads typically delivered by 5.5 inch to 6.5 inch mid-bass units used in most 2 way systems.

99,95 € 84,96 Incl. 21% btw

  • Bestel 4 voor €94,95 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Markaudio PLUVIA-11 Grey 7" Full Range Aluminium Woofer

The Pluvia 11 is a completely new driver design. It is the first “full range” driver that can handle bass loads typically delivered by 5.5 inch to 6.5 inch mid-bass units used in most 2 way systems.



Highlights

  • Synthetic rubber surround
  • Super-strength alloy
  • Improved bass handeling
  • Improved dust cap



Product Details

Markaudio Pluvia-11 Grey 7” full Range Aluminium woofer



The Pluvia 11 is a completely new driver design. It is the first “full range” driver that can handle bass loads typically delivered by 5.5 inch to 6.5 inch mid-bass units used in most 2 way systems.



The Pluvia 11 cone is an entirely new design from Mark Fenlon. It uses a new super-strength aerospace grade alloy designed to cope with high bending stress loads. The material thickness is increased by 50% over previous Markaudio designs, yet the profile remains shallow to increase dispersion. Two more processes have been added to the Multiform cone production sequence to increase Pluvia 11's operational low frequency load capacity.

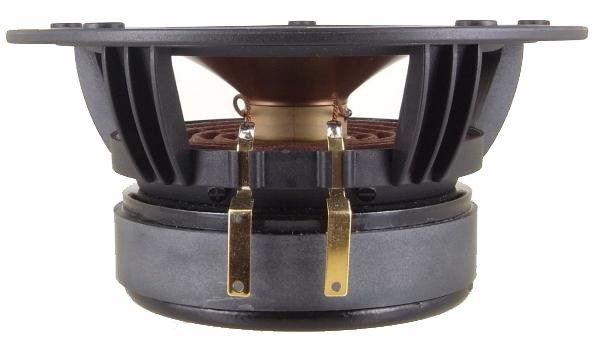

The all-new front suspension has a variable thickness geometry, increasing oscillatory stability by 30% over previous designs. The rear suspension (spider) has an operational surface area 25% larger than the Alpair 10 to cope with load demands of typical mid-bass units. However, the Pluvia 11’s high range has not been sacrificed. It outperforms the smaller Alpair 10 by reaching slightly higher frequencies with an improved spread on the high-range lift above 10kHz. Other design advances include the new “easy install” frame. This new-technology one-piece moulding utilises a GF30 glass fibre and resin mix. Pluvia 11’s frame is more rigid than previous designs, with a mounting depth of only 4.5mm, making both recessed and surface-mounting simple. Two new cone colours add visual interest. Along with the Pluvia 7, this new family of drivers will serve custom builders well into the future.



For the first time in the history of traditional full-range driver design, users now have a genuine choice to go full-range without sacrificing bass handling, or use it as a wide-range mid-bass driver that allows simple filtering.



The new Pluvia 11 is an excellent high-end and multi-purpose driver. It's also suitable for many computer, Home Theatre, TV, and commercial A/V applications.

Specificaties

Specificaties voor: PLUVIA-11 Grey 7" Full Range Aluminium Woofer

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. Pluvia Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Full-range
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 7"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 45 Watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 90 Watts
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 88.1 dB 2.83V/1m
  • Frequency Response 100 to 20,000 Hz
  • Voice Coil Diameter 1"
  • Magnet Weight
  • DC Resistance (Re) 5.4 ohms
  • Voice Coil Inductance (Le) 0.68 mH
  • Resonant Frequency (Fs) 39.1 Hz
  • Mechanical Q (Qms) 1.80
  • Electromagnetic Q (Qes) 0.351
  • Total Q (Qts) 0.293
  • Diaphragm Mass Inc. Airload (Mms) 11.4 g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms)
  • Surface Area of Cone (Sd) 109,359 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 6.56 Tm
  • Compliance Equivalent Volume (Vas) 0.848 ft.³
  • Maximum Linear Excursion (Xmax) 7 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminum
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Glass-Fibre
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 6.77"
  • Overall Depth 3.15"
  • Baffle Cutout Diameter 5.65"
  • Bolt Circle Diameter 6.22"
  • # Mounting Holes 5
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
