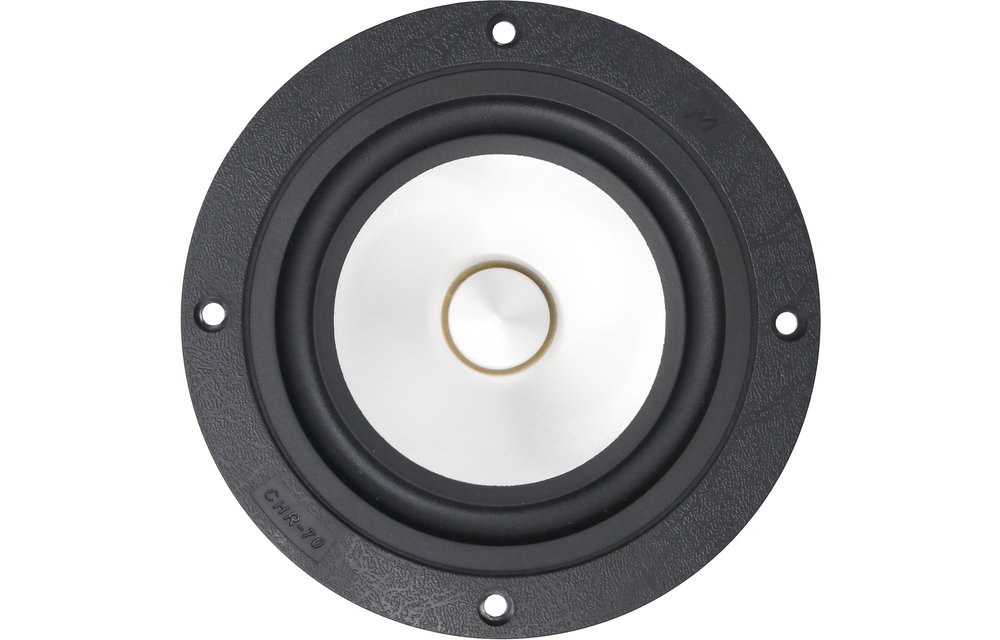

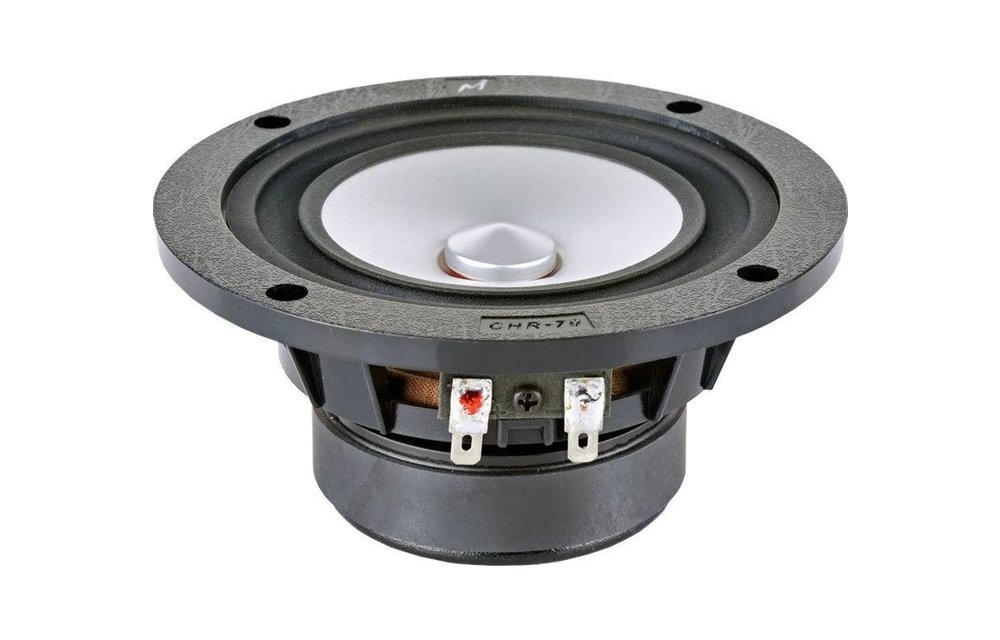

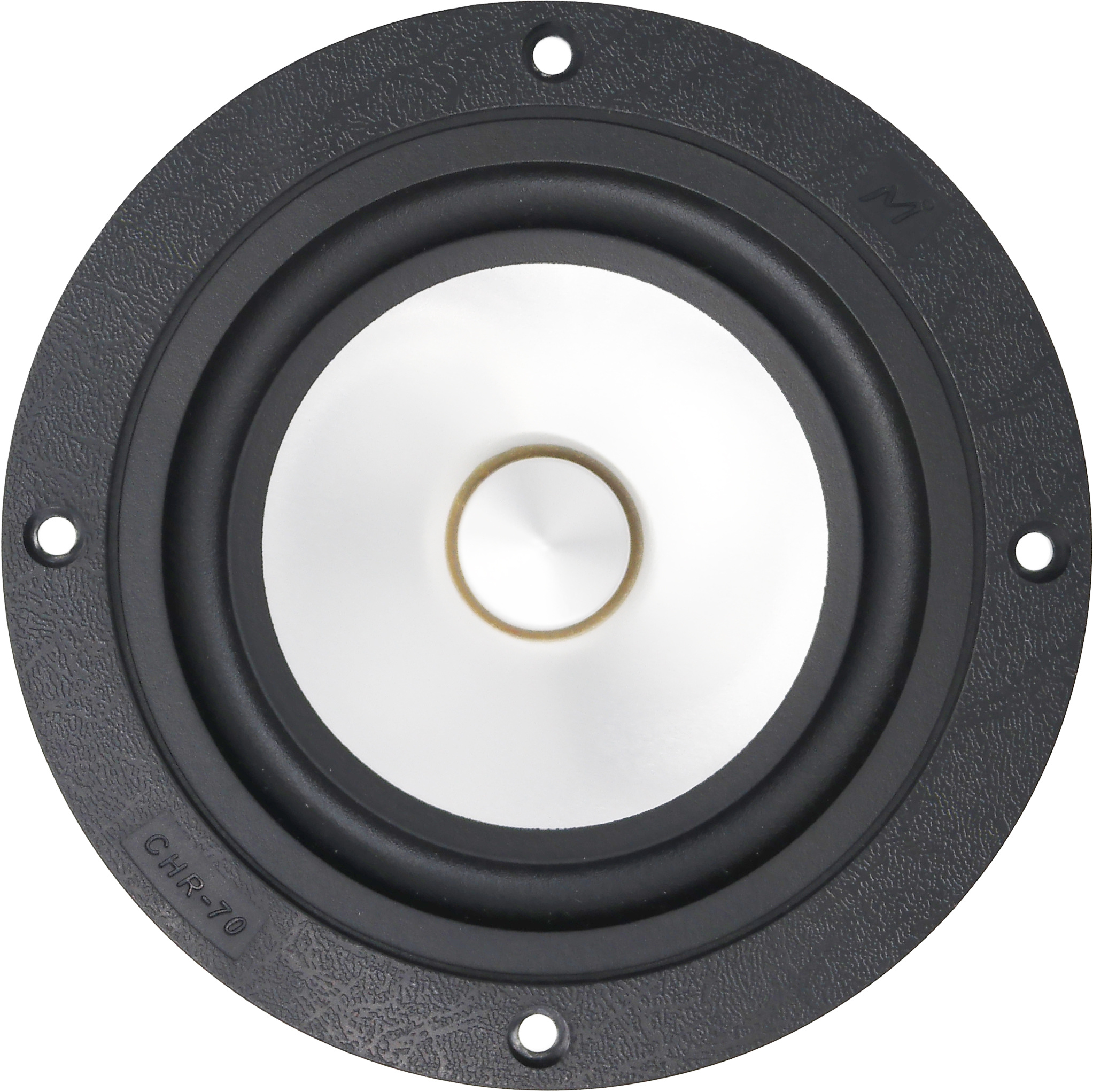

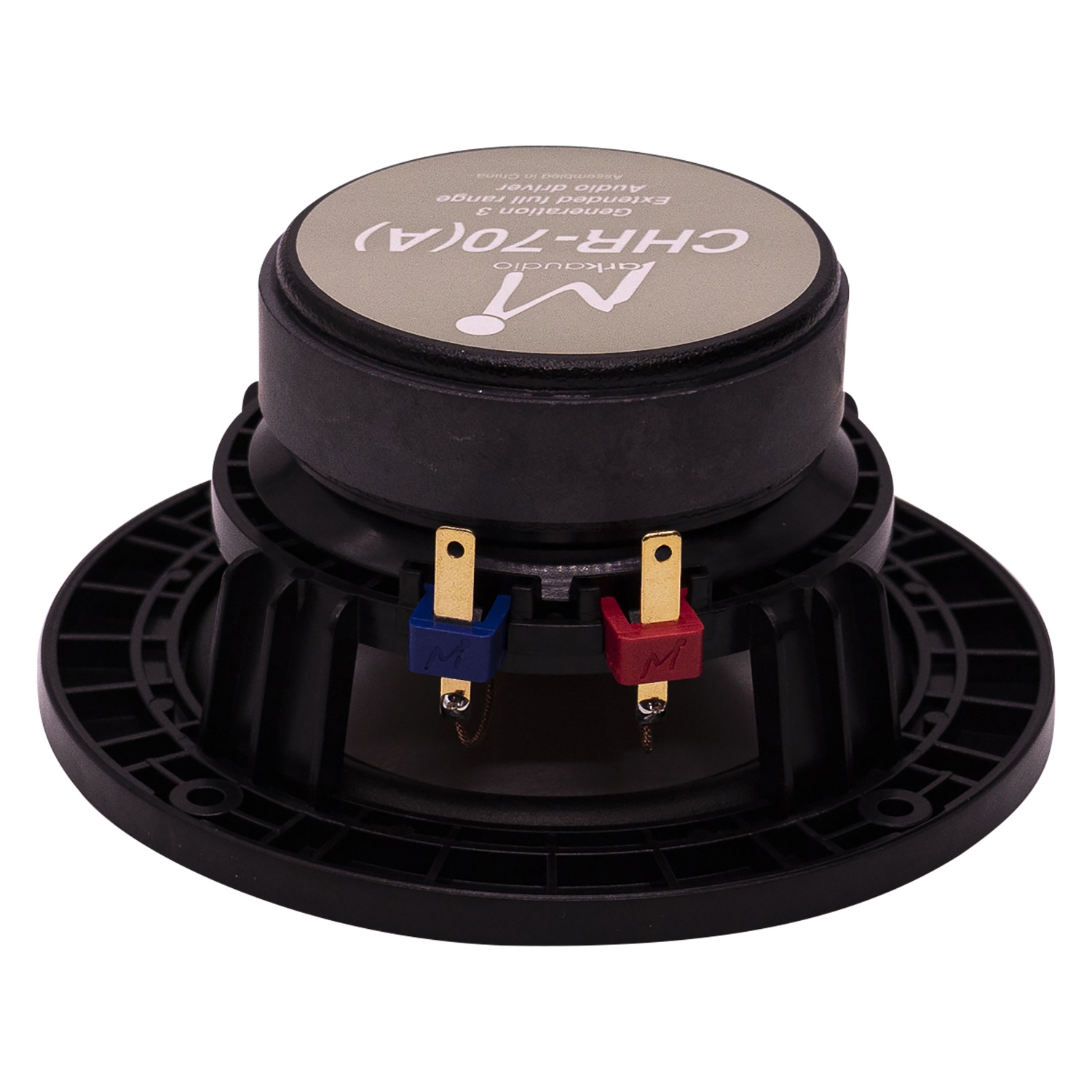

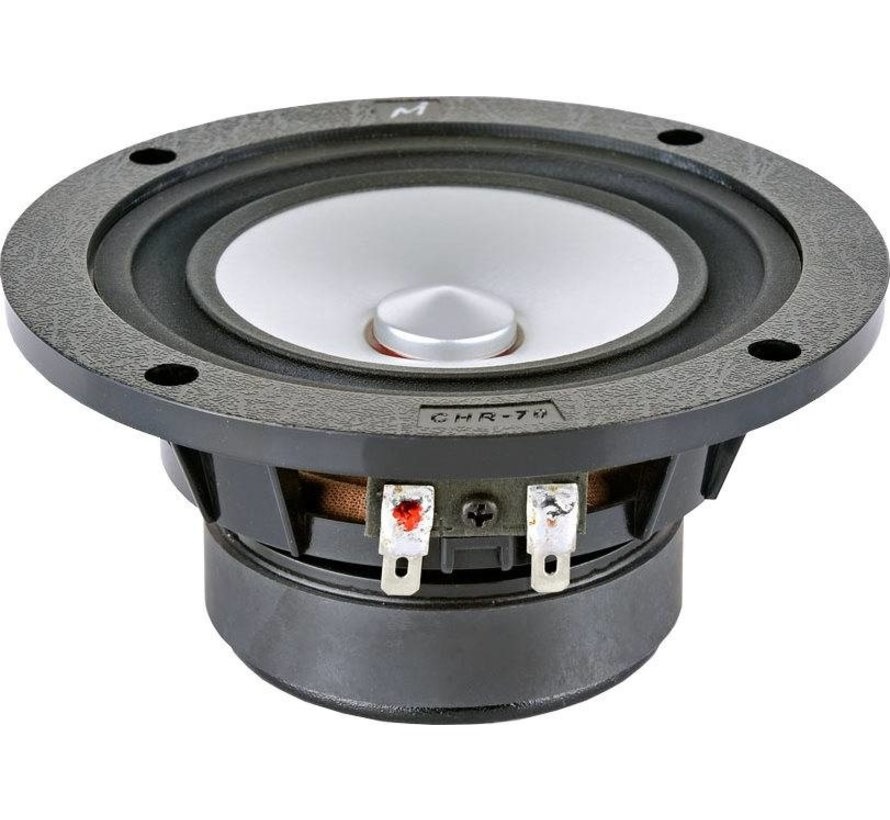

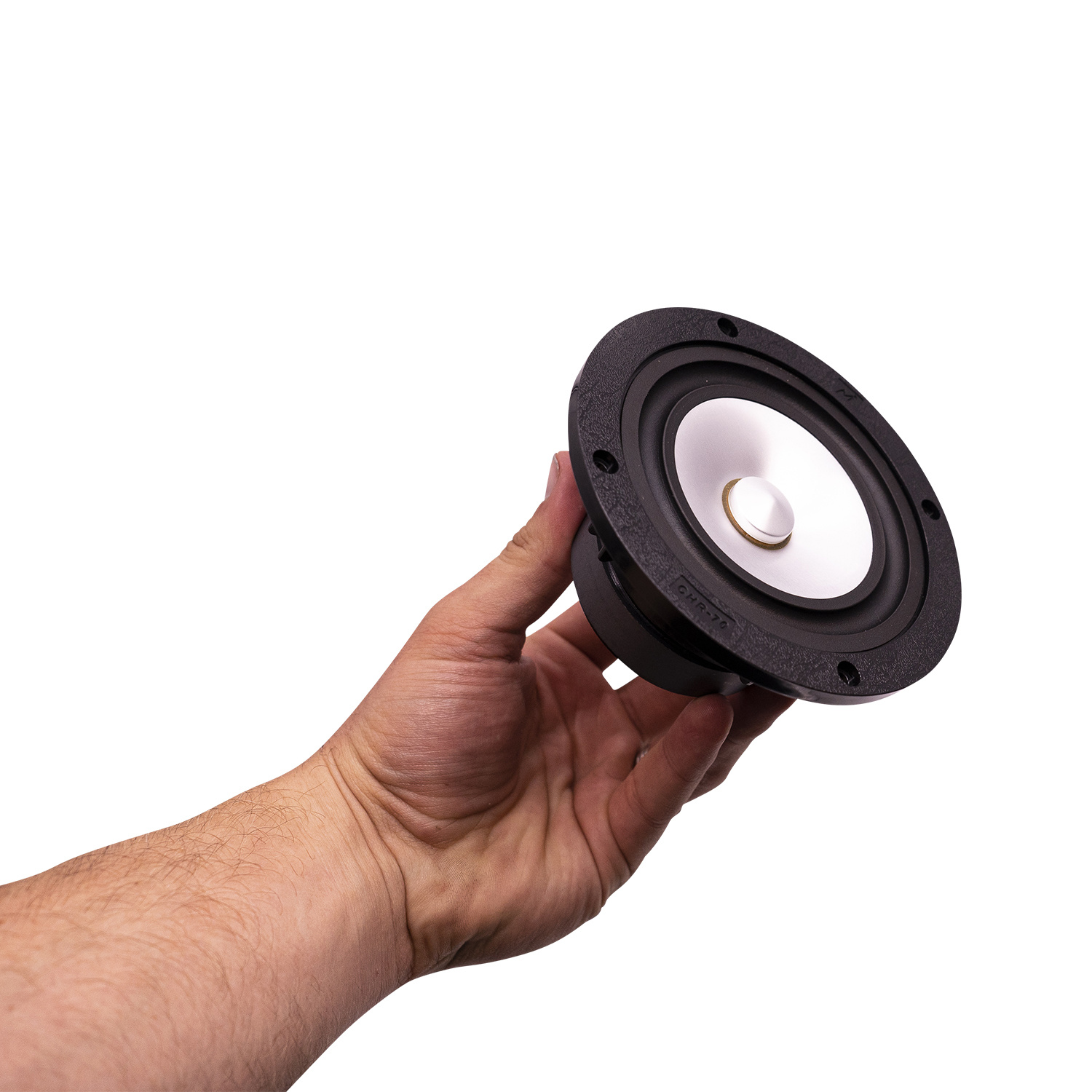

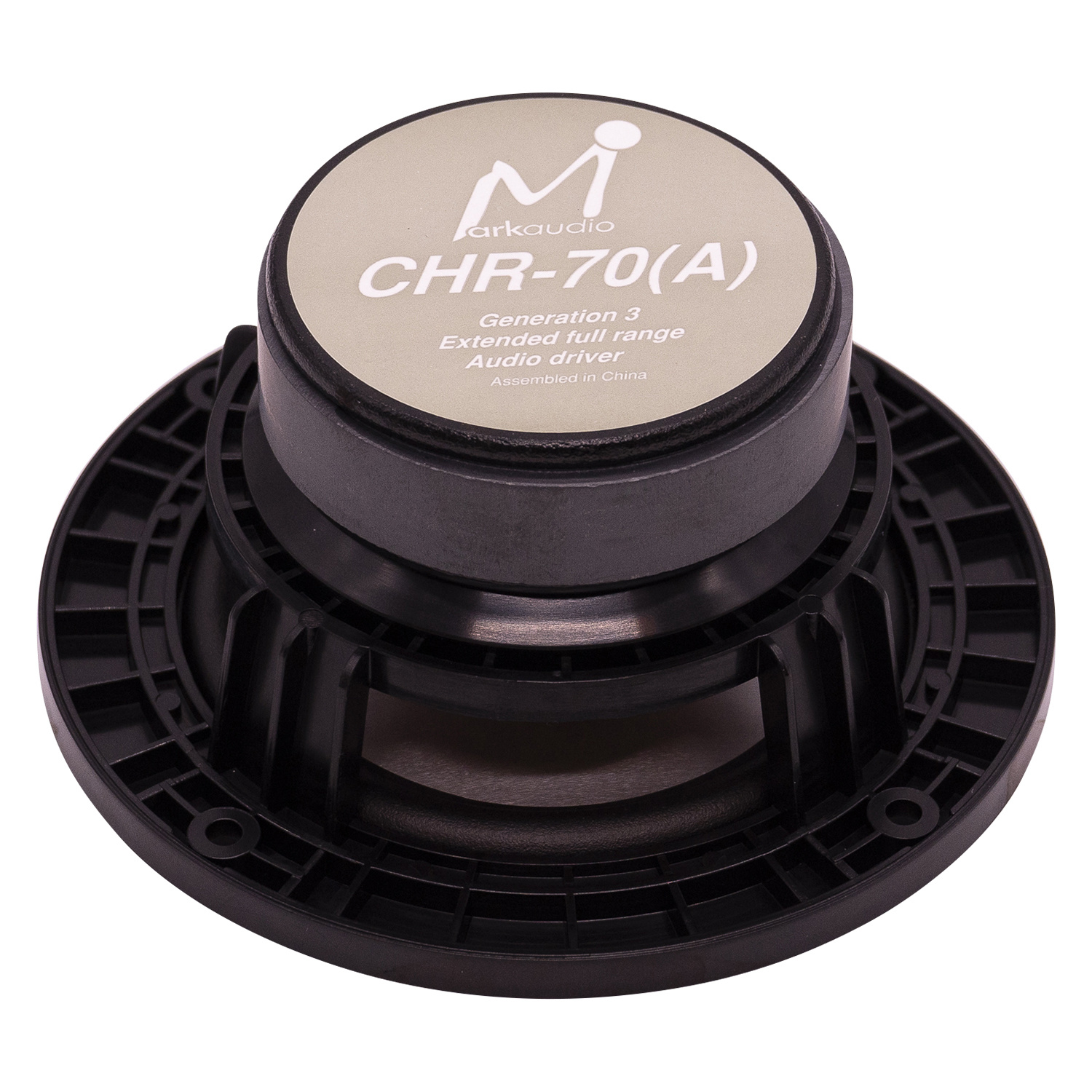

Markaudio CHR-70 Silver 4" Full Range Aluminium Woofer

Levertijd: 1 werkdag

  • Artikelcode: CHR-70 Silver
  • Voorraad: >10 Op voorraad

The CHR-70 has a light easy sound, a little warm, not so "shaped" so it will suit the listening tastes of many people. Its cone gives much musical detail and makes a very clear sound.

44,95 € 38,21 Incl. 21% btw

  • Bestel 4 voor €42,70 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Markaudio CHR-70 Silver 4" Full Range Aluminium Woofer

The MarkAudio CHR-70 has a light easy sound, a little warm, not so "shaped" so it will suit the listening tastes of many people. Its cone gives much musical detail and makes a very clear sound.



Highlights

  • Latest-model
  • Synthetic rubber surround
  • Nomex spider
  • Improved voice coil former



Product Details

Markaudio CHR-70 Silver 4" Full Range Aluminium Woofer


The CHR-70 (Gen. 3) is now up-dated 3 times since the first model was launched nearly 3 years back. This Gen. 3 driver has more high range performance. The frequency range now goes higher to 25-kHz. Bass response in the properly designed box can go low to just under 40Hz. It has a light easy sound, a little warm, not so "shaped" so it will suit the listening tastes of many people. Its cone gives much musical detail and makes a very clear sound. The driver has a medium efficiency of 85.5 dB at 8 Ohms making it easy to use on nearly all small to medium power amplifiers. The driver can easily fit into Bass-reflex and Vented box sizes from 4.4 liters to 10 liters internal volume. Many technical improvements have been made. Improved stiffer frame. New cap design with a new improved fitting method. New Japanese designed coil. New spider for improved bass. The new CHR-70 Gen. 3 is an excellent high-end and multi-purpose driver. Its also suitable for many computers, Home Theatre, TV, and commercial A/V applications.

Specificaties

Specificaties voor: CHR-70 Silver 4" Full Range Aluminium Woofer

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. CH Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Full-range
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 4"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 20 Watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt.
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 85.4 dB 2.83V/1m
  • Frequency Response 40 to 25.000 Hz
  • Voice Coil Diameter 0.78"
  • Magnet Weight
  • DC Resistance (Re) 7.2 ohms
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 65.4 Hz
  • Mechanical Q (Qms) 2.66
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Diaphragm Mass Inc. Airload (Mms)
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.44 mm/N
  • Surface Area of Cone (Sd) 50.2 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 4.2 Tm
  • Compliance Equivalent Volume (Vas) 0.18 ft.³
  • Maximum Linear Excursion (Xmax) 4 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminium
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter
  • Overall Depth
  • Baffle Cutout Diameter
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
