    Markaudio CHR-120 6.5" Grey Full Range Magnesium Woofer

    € 82,60€ 99,95 1 Op voorraad: Levertijd: 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €94,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

    • Latest-model
    • Aerospace-grade magnesium-alloy
    • Wide dispersion multiform cone concept
    • Optimized for use in larger enclosures



    Product details

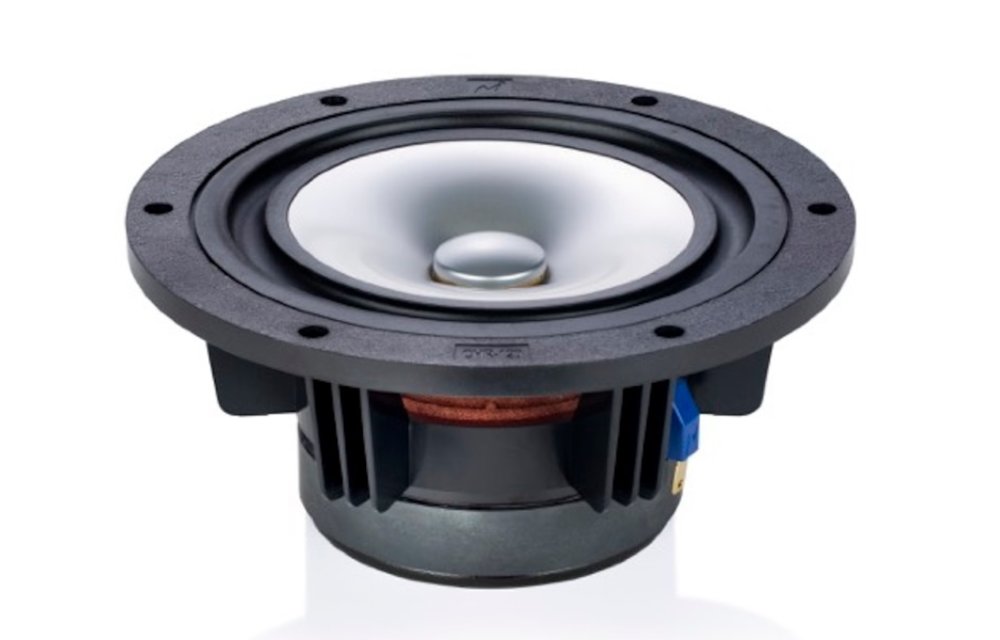

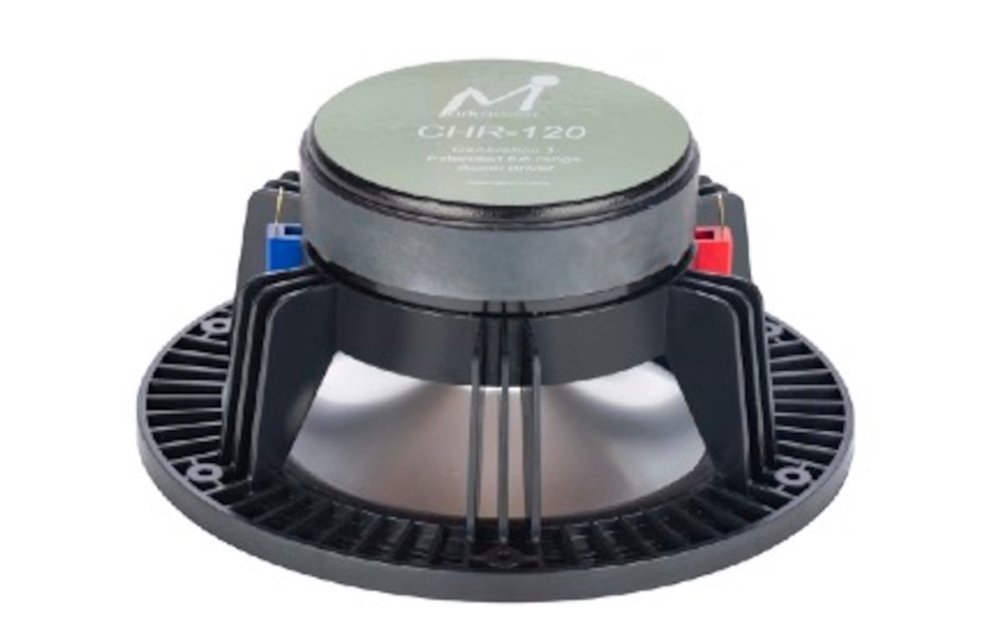

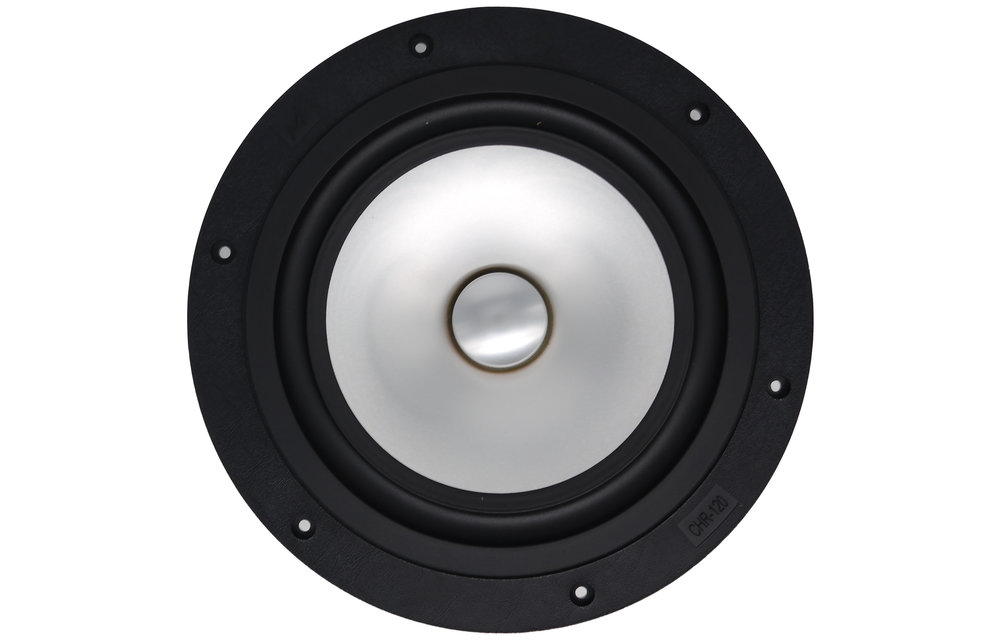

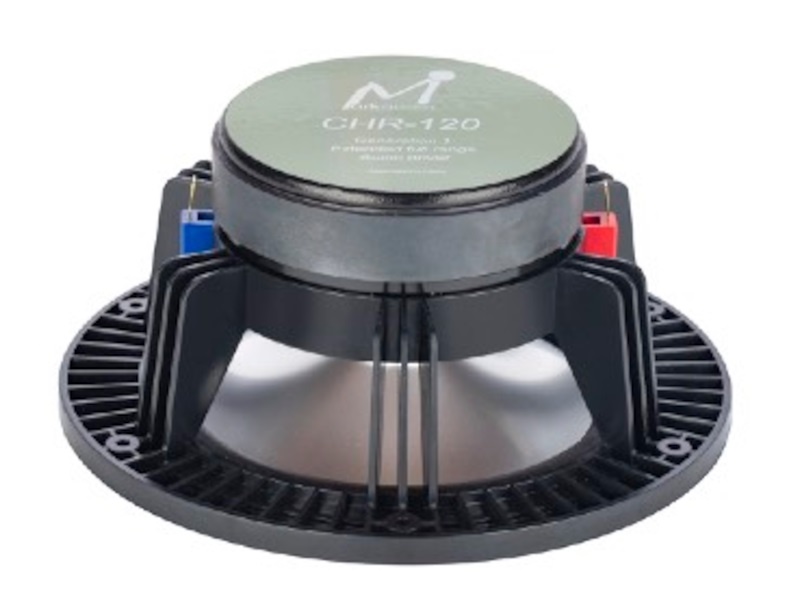

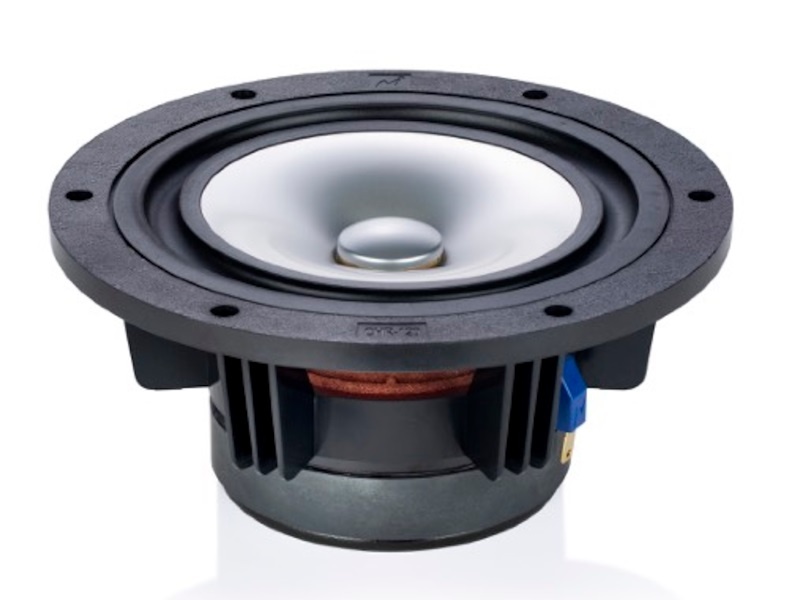

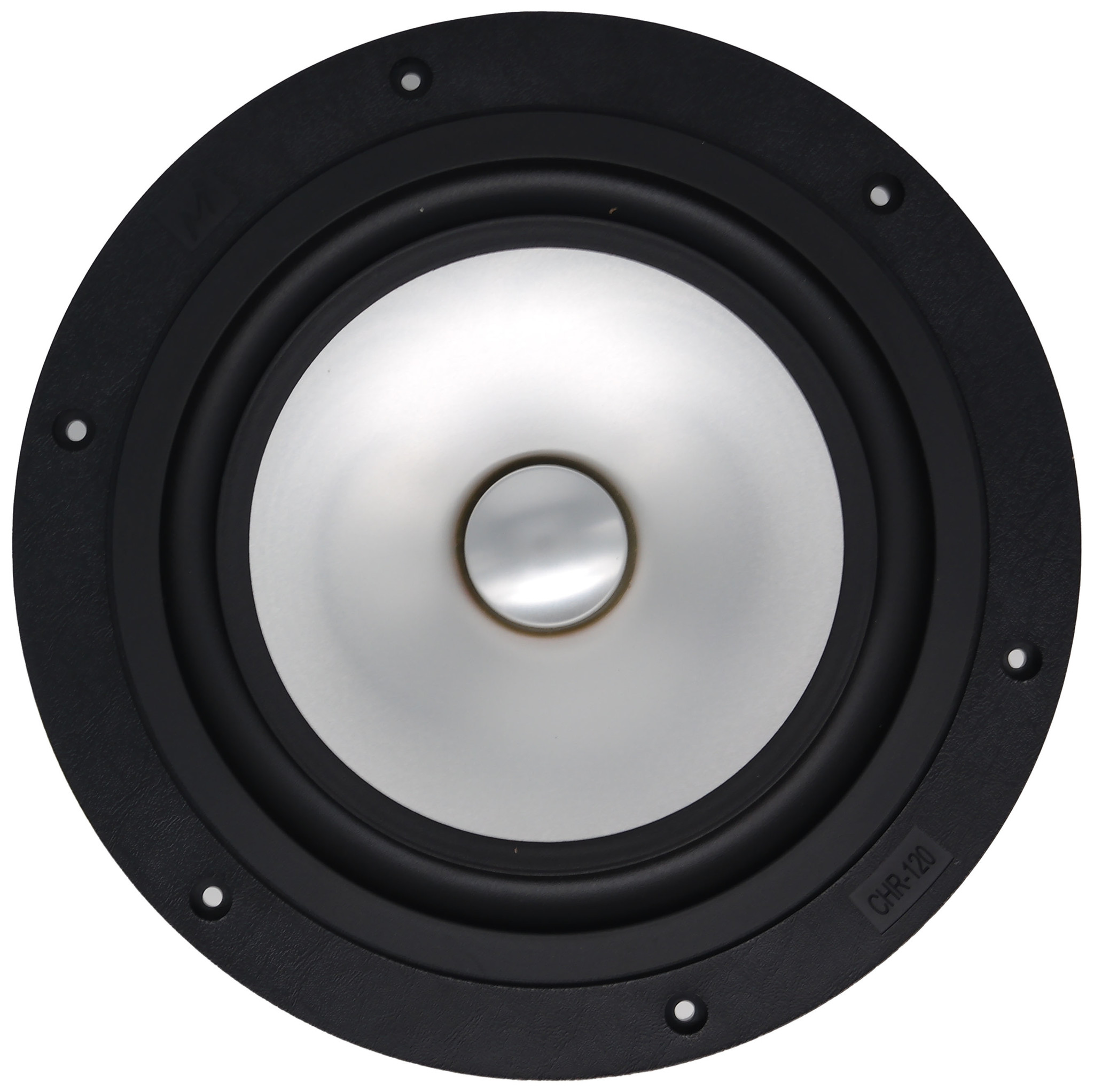

    Markaudio CHR-120 6.5" Grey Full Range Magnesium Woofer


    The CHR-120 is a brand-new 6.5-inch high fidelity multi-purpose high-volume driver design from Markaudio. This new driver has been purpose developed to provide significant bass extension beyond what many similar-sized midbass units can deliver, combined with full-range frequency output.



    The CHR-120 cone is made from a high-strength, aerospace-grade magnesium-alloy designed to cope with high bending stress loads. Based upon our renowned shallow profile, wide dispersion multiform cone concept, the material thickness is carefully balanced to maximize low-frequency load capacity while retaining excellent performance at higher frequencies. The long-stroke suspension and low-distortion motor are designed to provide a low resonant frequency, medium Q, and an air volume compliance of around 59 liters. Optimized for use in larger enclosures, the CHR-120 can provide output to some 30Hz and smooth high-frequency range extending above 20KHz in a suitable design. Other key features include an “easy install” reinforced polymer frame for both surface and recessed mounting.



    The CHR-120 provides custom builders with wide operational flexibility at a surprisingly affordable price and can be used as a high-performance full-range driver, or as a wide-range midbass. It is ideal for use in high-fidelity, home-theatre, commercial A/V applications, and by suiting a wide range of enclosure types, it continues Markaudio’s reputation for providing qualitative excellence and advanced mechanical engineering at an accessible level.

    Specificaties

    Artikelnummer
    CHR-120 Grey
    Woofer series
    Markaudio CHR
    Woofer type
    Full-range Woofer
    Nominale diameter
    6.5"
    Belastbaarheid (RMS)
    50 Watts (Nom)
    Gelijkstroomweerstand (Re)
    7.2000 Ω
    Resonantiefrequentie (Fs)
    34.2417 Hz
    Mechanische Q (Qms)
    2.3823
    Elektrische Q (Qes)
    0.4411
    Totale Q (Qts)
    0.3722
    Bewegende massa (Mms)
    11.1310 g
    Moving Mass Of Diaphragm (Mmd)
    10.1179 g
    Compliantie van de ophanging (Cms)
    1.9409 mm/N
    Effectief oppervlak (Sd)
    0.0147 m2
    Equivalentvolume (Vas)
    58.8923 L
    Maximale excursie (Xmax)
    9mm (1 way)
    Driver's Mechanical Losses (Rms)
    1.0052 WM
