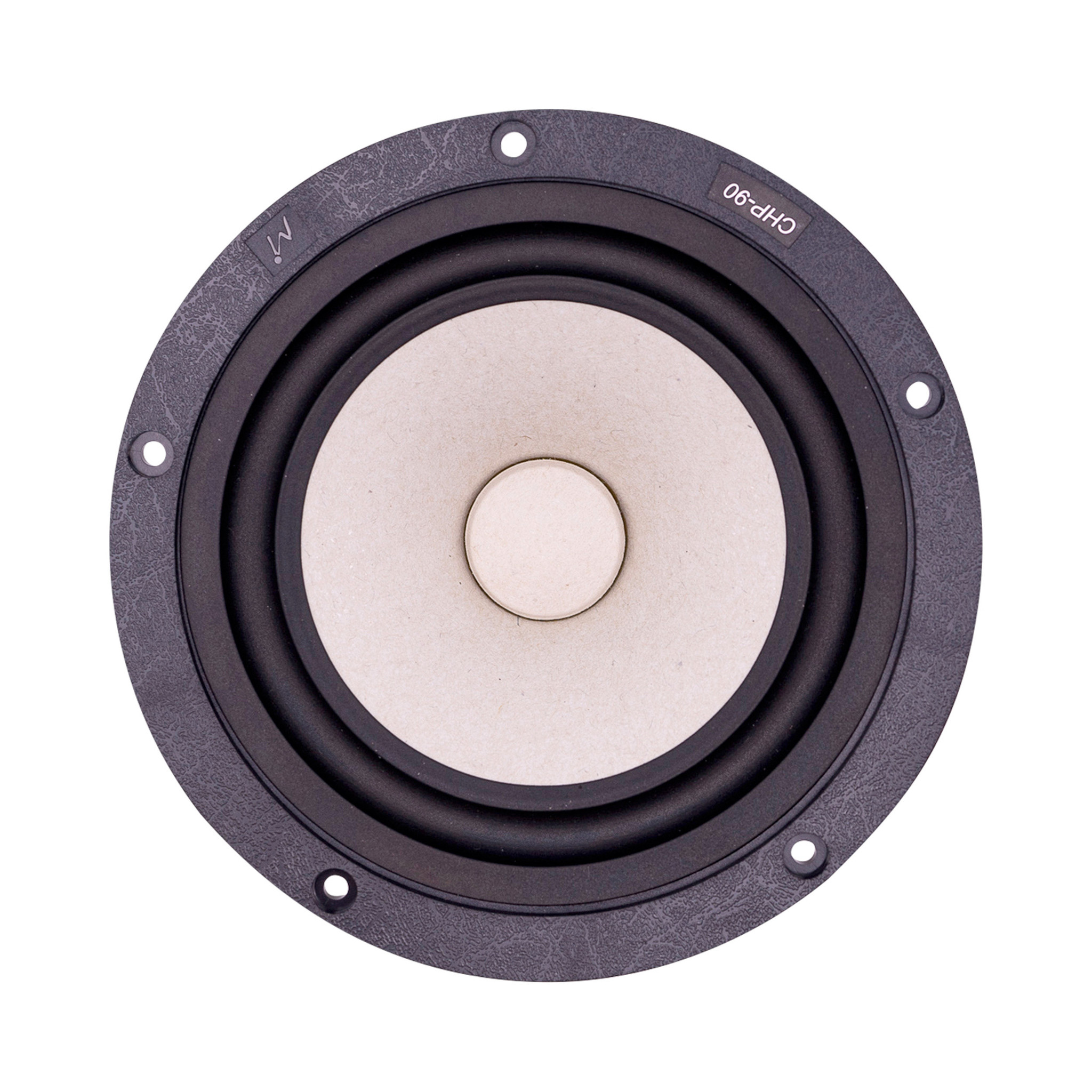

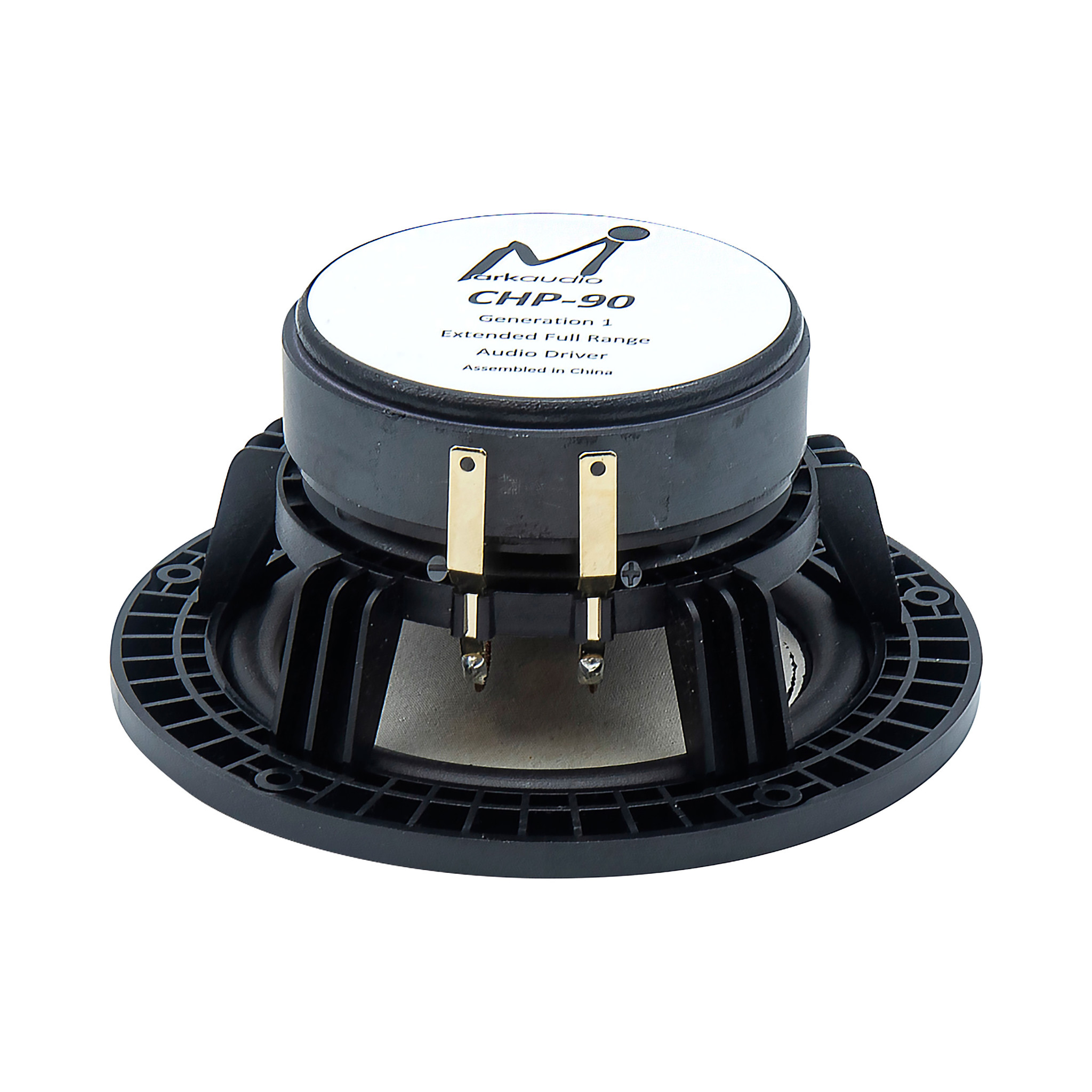

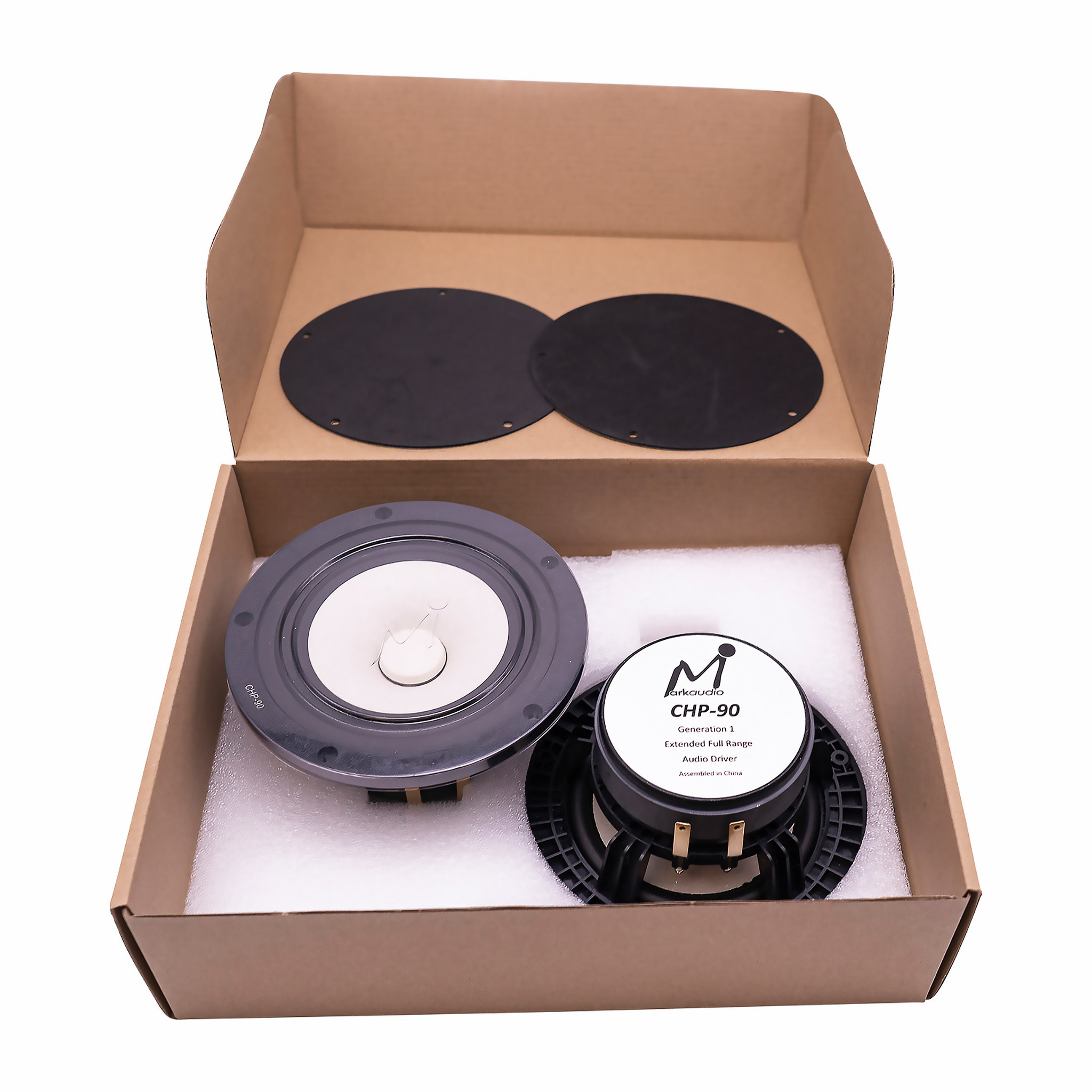

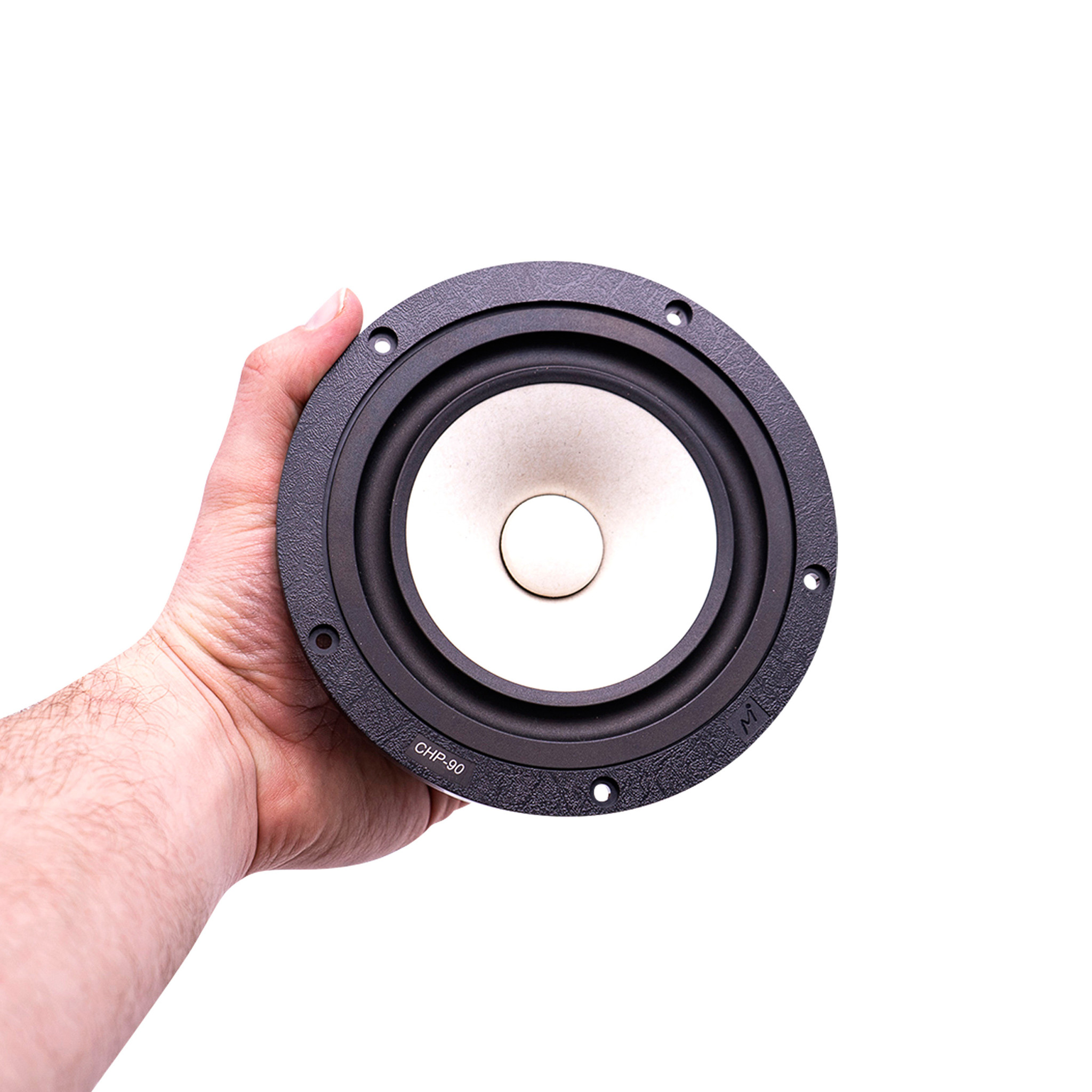

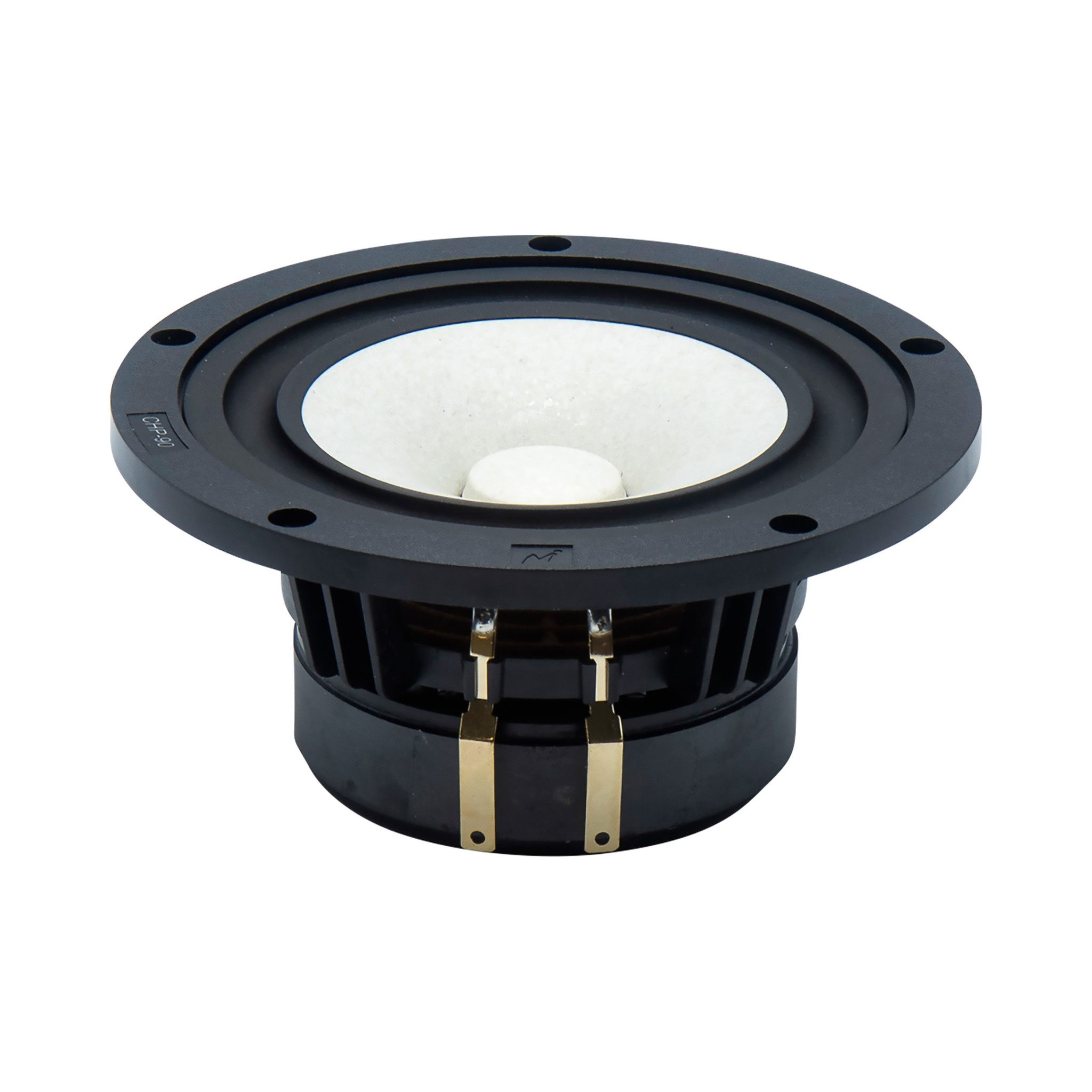

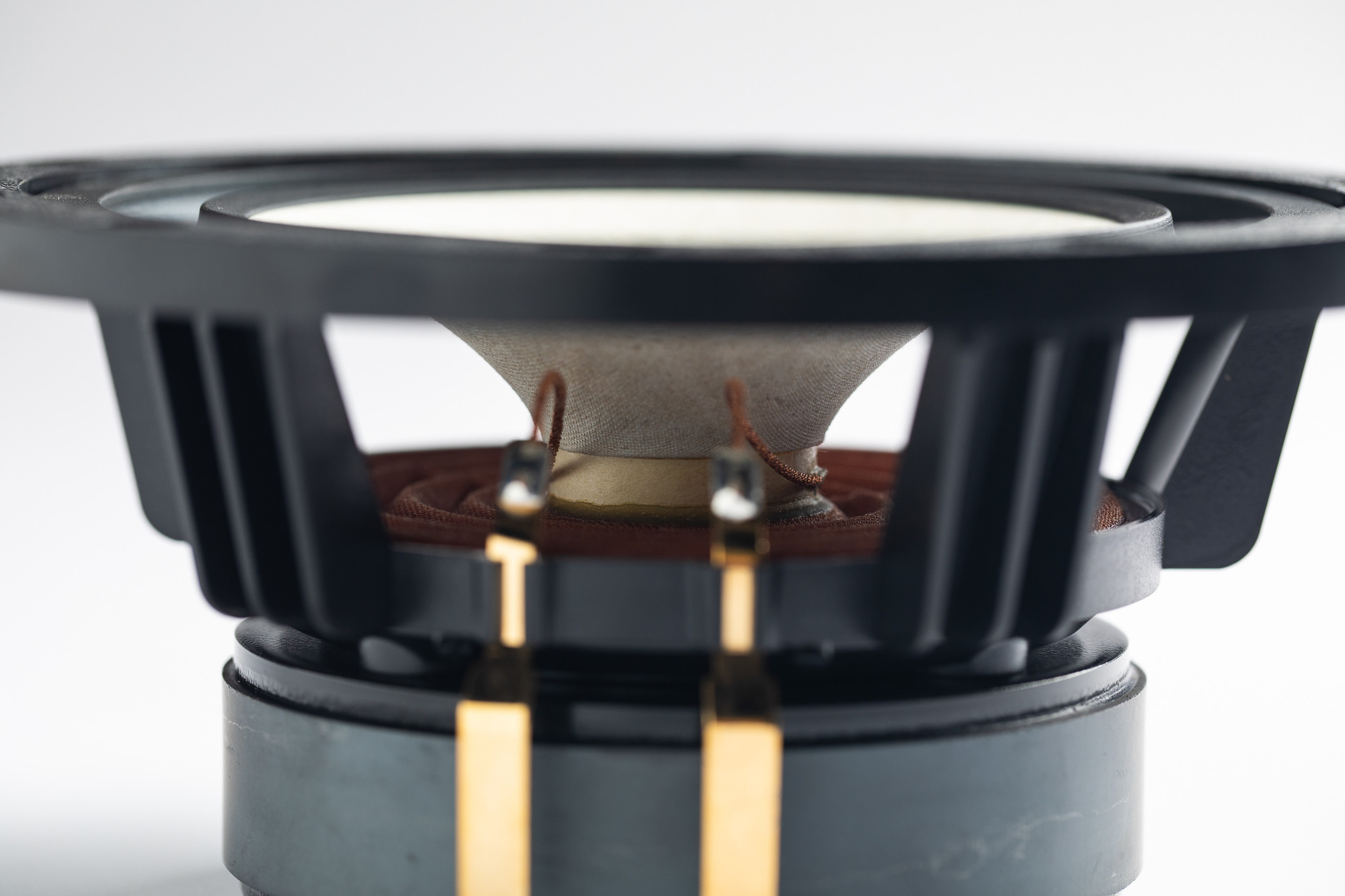

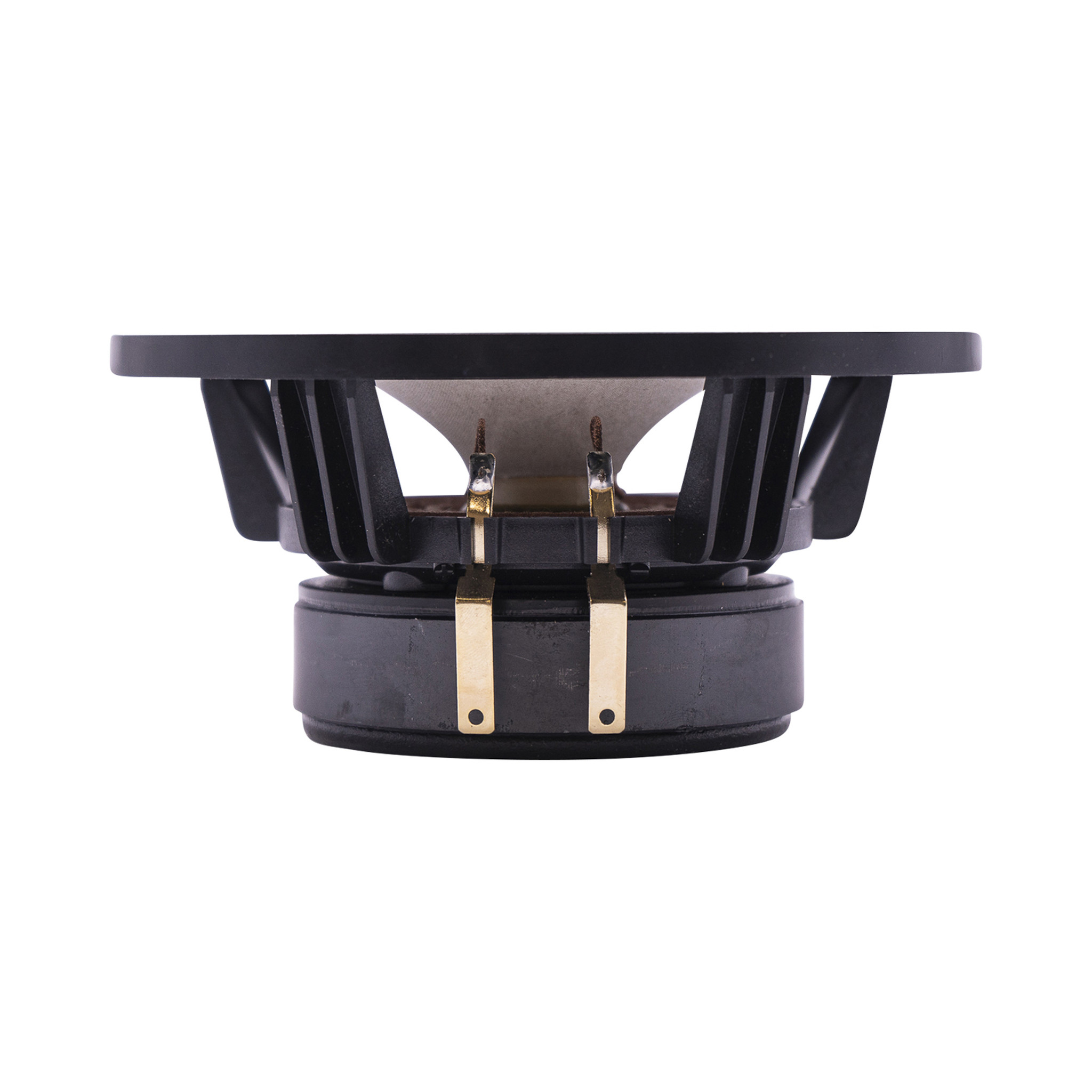

        CHP-90 White Full-range Paper Woofer

        CHP-90 White Full-range Paper Woofer


        Markaudio CHP-90 White Full-range Paper Woofer

        4 reviews
        5 van 5
        4 reviews
        5 sterren
        4 sterren
        3 sterren
        2 sterren
        1 ster
        Bekijk alle reviews
        Merk: Markaudio
        € 57,81€ 69,95 Niet op voorraad10+ verwacht op 28-06-2024
        • -5% Bestel 4 voor slechts € 66,45 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

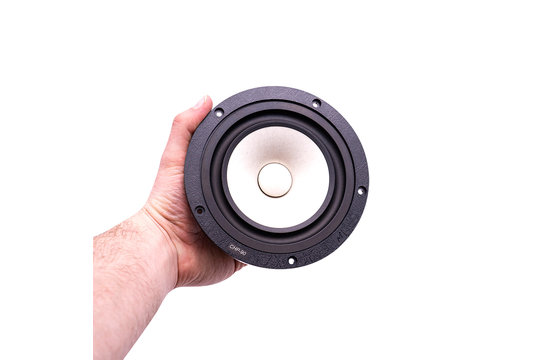

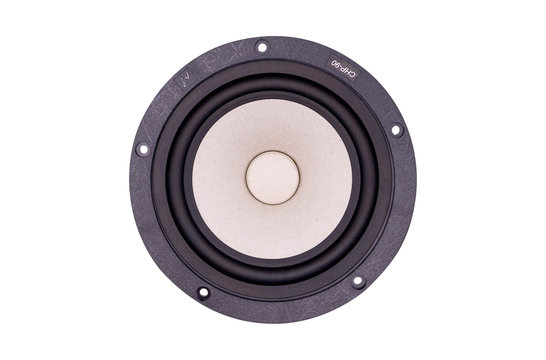

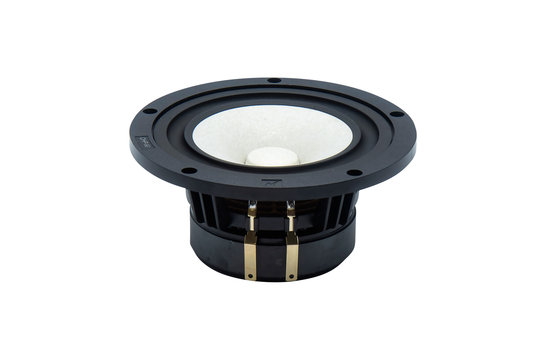

        The CHP90 is an attractive Full-Range multi-purpose drive unit suitable for use in variety of medium size loudspeakers applications, or as part of a multiway system. For single full-range point-source purist applications, the CHN90 is highly capable. The cone is formed from paper, mica and fibreglass materials creating high stability in the emitting surface across the usable frequency range.



        • Full range drive unit

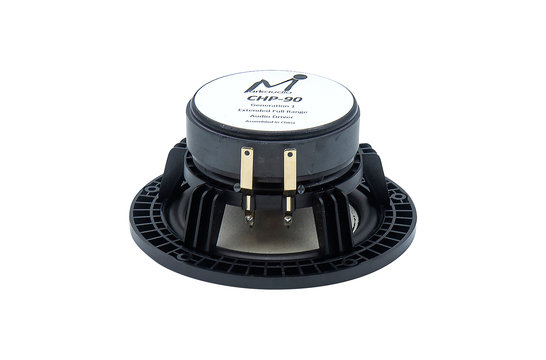

        • Single ferrite magnet
        • 90mm cone with paper, mica, glass fiber materials
        • Operating range to 28KHz –very linear response
        • Long stroke suspension with progressive-rate spider


        Product Details

        Markaudio CHP-90 White Full-range Paper Woofer


        F Zero is 48Hz, VAS is +20 Litres and SPL 89.2 dB. Useable frequency range (depending on box design) is from 37Hz to 28KHz rated at +89dB in many applications. The frequency response curve is near flat, making the CHN90 ideal for purist applications. The central mid-range is benign, near flat response, from 1KHz to 6KHz giving end-users and custom builders the potential to use the CHP90 as a mid-field driver in larger multiway applications, useful for balancing out larger radiated surface outputs from big bass units.

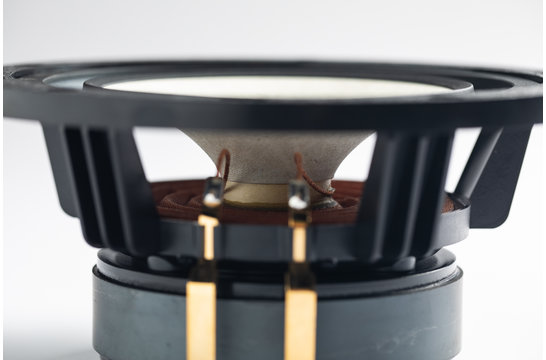

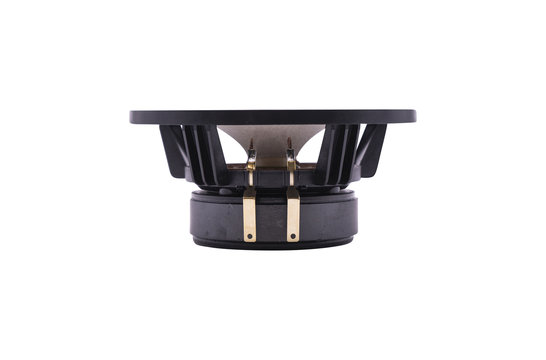

        The CHP90 also has potential for use in 2 way applications as a bass-mid driver. Most Markaudio drivers have a purpose designed frequency lift in the lower ranges (typically 100Hz to 500Hz) to compensate for baffle step losses. The CHP90 is useful to these applications where end-users and loudspeaker makers need a wider choice on frequency cross-over point selection. The CHP90 shares the custom, modified-ABS chassis design with the CHR90. All moving parts (powertrain) are new and custom made for this driver.


        Much work has been done to make the CHP90 a versatile driver and extend the well-known performance characteristics of Markaudio’s products.

        Toon meer


        Woofer series
        Woofer type
        Full-range Woofer
        Nominale diameter
        Belastbaarheid (RMS)
        40 Watts
        Impedantie (Z)
        Gevoeligheid (SPL bij 1m / 2.83V)
        89.2 dB
        Gelijkstroomweerstand (Re)
        6.2000 Ohm
        Resonantiefrequentie (Fs)
        48.5 Hz
        Mechanische Q (Qms)
        Elektrische Q (Qes)
        Totale Q (Qts)
        Bewegende massa (Mms)
        5.4051 g
        Moving Mass Of Diaphragm (Mmd)
        4.9619 g
        Compliantie van de ophanging (Cms)
        1.9898 mm/N
        Effectief oppervlak (Sd)
        0.0085 m2
        Equivalentvolume (Vas)
        20.05 L
        Maximale excursie (Xmax)
        7 mm

        Toon meer

        5 van 5
        Door Peter on 23 Augustus 2023
        5 van 5
        I have changed the amplifier. Took a chance and bought an SMSL A300, after listening for 30 hours it was almost perfect sound. You can adjust the bass and treble +-9 without deterioration of the sound, so it's just a matter of setting what suits you best. Star clear sound, low distortion almost non-existent. Combination A300 and Alpair CHP-90 is incredibly good. Give them a try. Good luck.
        Door Leif Brandt on 30 Maart 2023
