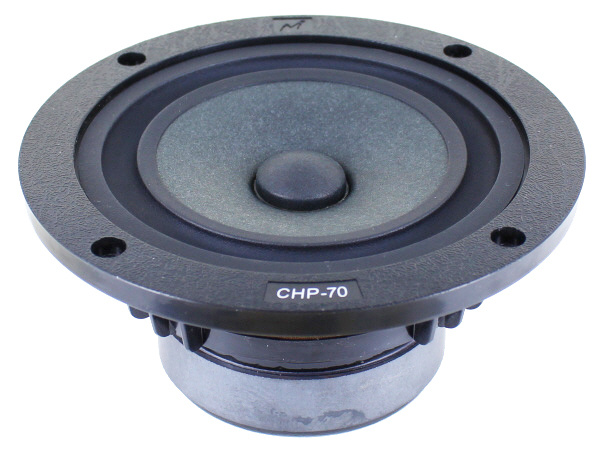

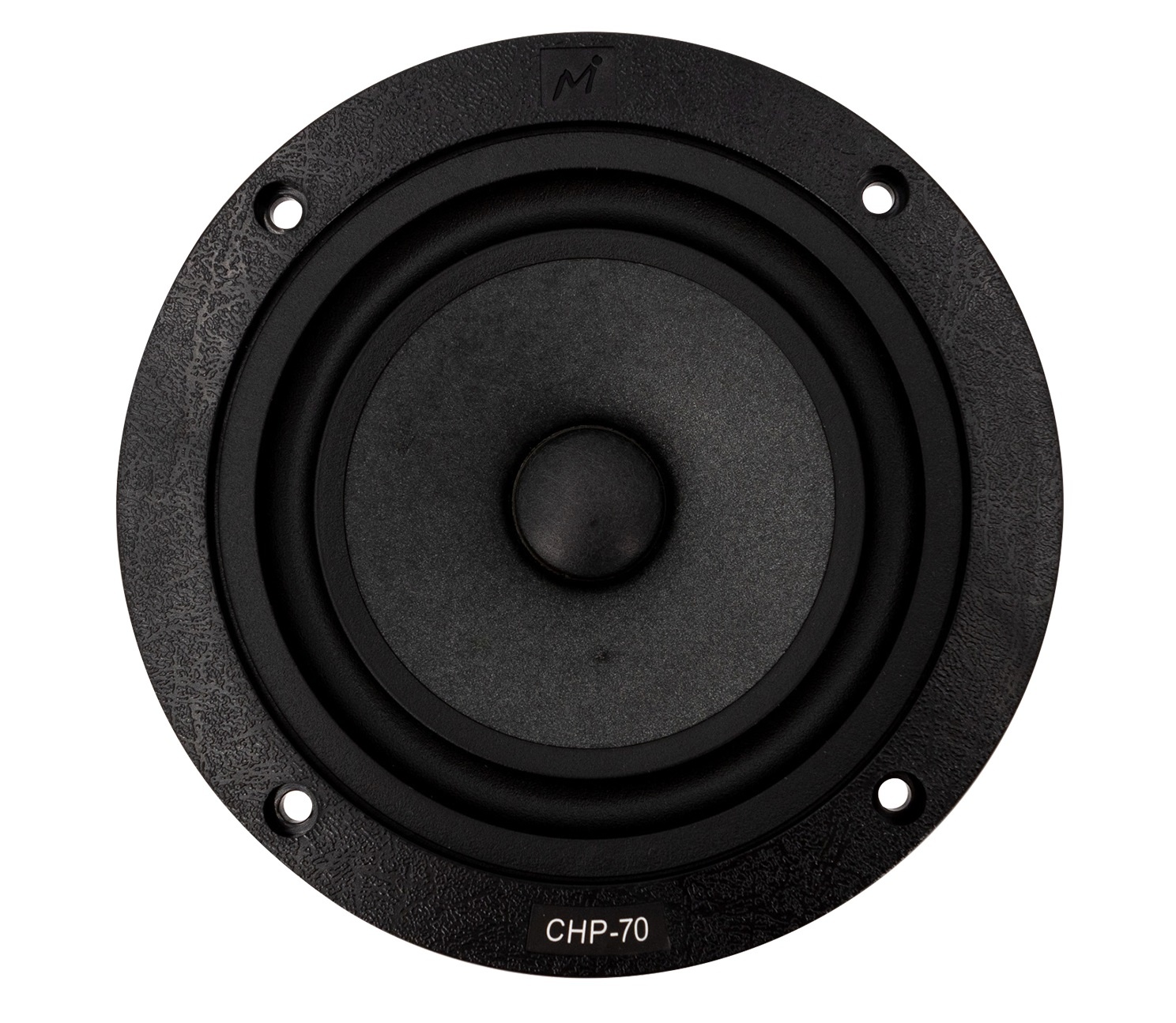

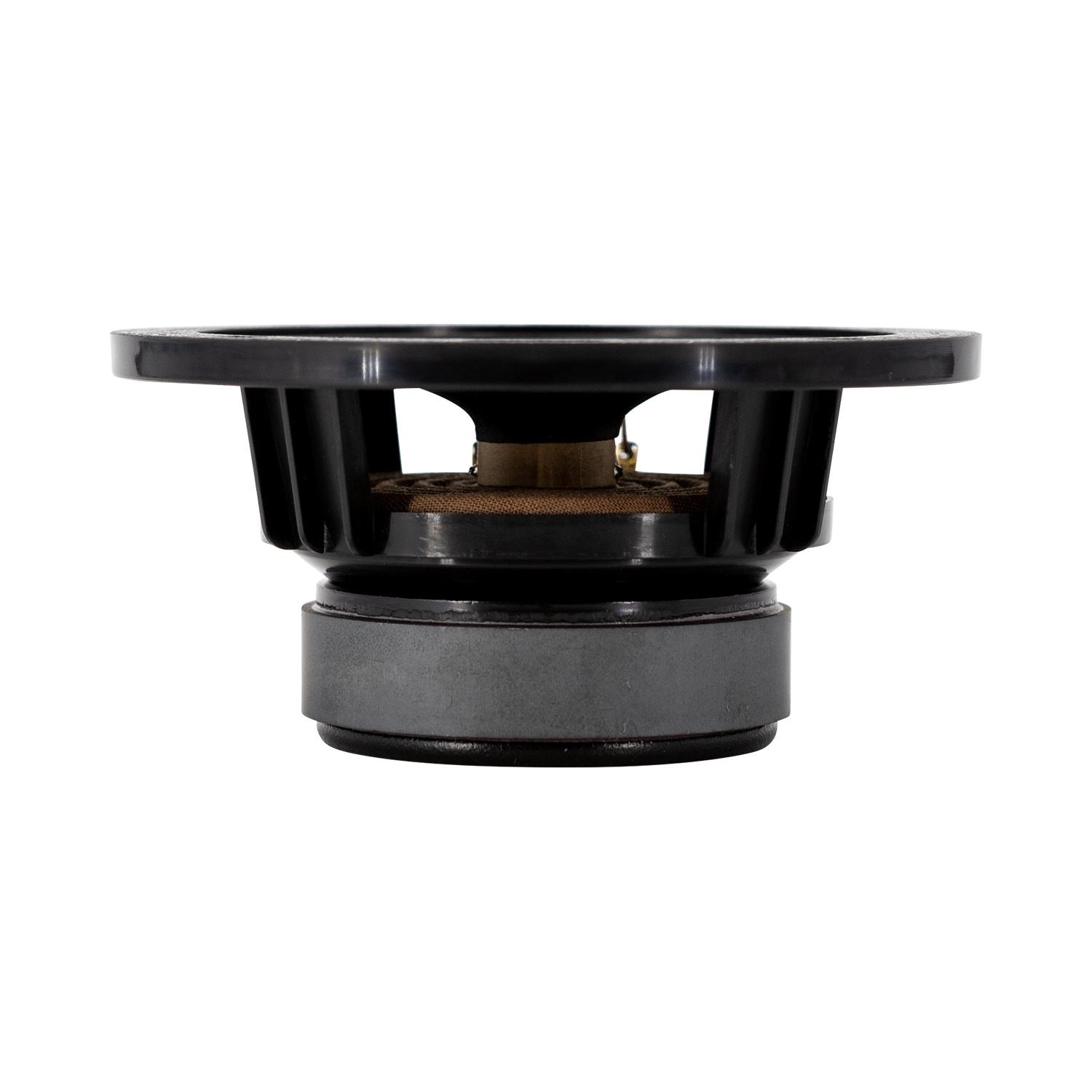

Markaudio CHP-70 Black 4" Full Range Paper Woofer

Levertijd: 1 werkdag

  • Artikelcode: CHP-70 Black
  • Voorraad: >10 Op voorraad

The MarkAudio CHP-70 driver is designed to make a semi-vintage classic sound similar to the smaller full-range driver designs from the 1950ʼs.

44,95 € 38,21 Incl. 21% btw

  • Bestel 4 voor €42,70 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Markaudio CHP-70 Black 4" Full Range Paper Woofer

The MarkAudio CHP-70 driver is designed to make a semi-vintage classic sound similar to the smaller full range driver designs from the 1950ʼs. Its middle-high range output has been made to "roll-off" from 7-kHz up.



Highlights

  • Synthetic rubber surround
  • Nomex spider
  • Improved voice coil former



Product Details

Markaudio CHP-70 Black 4" Full Range Paper Woofer

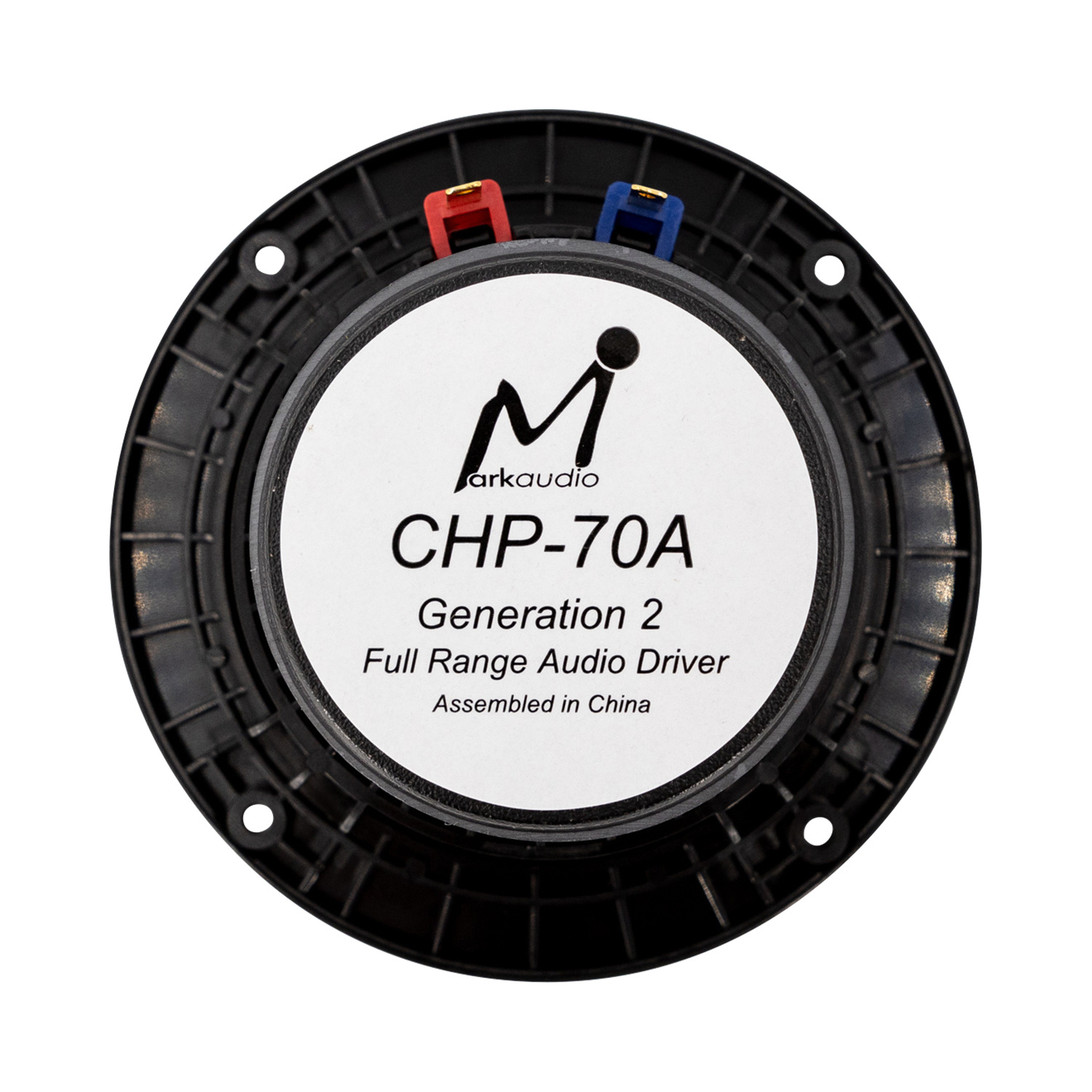

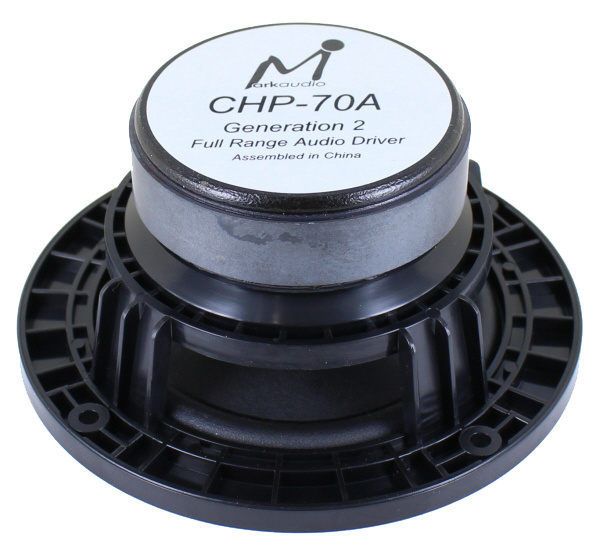

This updated (Gen. 2) CHP-70 driver is designed to make a semi-vintage classic sound similar to the smaller full-range driver designs from the 1950ʼs. Its middle-high range output has been made to "roll-off" from 7-kHz up. This helps to keep the high range sounding smooth and warm. This driver makes the singer's voice sound very natural, a little warm, pleasing for many hours of listening.



The CHP-70 Gen. 2 will assist in the control of sharp or hard sounding compressed music (digital). This CHP delivers a tone that appeals to classic music enthusiasts using smaller amplifiers. The off-axis and sound-spread of the CHP-70 are excellent. This driver can fill a room environment with an "easy listening" experience, especially for the human voice. The bass response from the CHP-70 Gen. 2 in a properly tuned box is excellent for this smaller sized driver. Typically, in a Bass-Reflex or Vented box, lower responses close to 40Hz can be obtained.



Several technical improvements have been done, such as 1 - Improved stiffer frame. 2 - New cap design with a new improved fitting method. 3 - New Japanese designed coil. 4 - New spider for improved bass. The CHP-70 Gen. 2 is an excellent "classic" and "natural" sound driver. The CHP-70 Excursion Arrestor will make a sound when exceeding the driver’s excursion limits.

Specificaties

Specificaties voor: CHP-70 Black 4" Full Range Paper Woofer

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. CH Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Full-range
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 4"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 20 Watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt.
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 86.5 dB 2.83V/1m
  • Frequency Response
  • Voice Coil Diameter 0.78"
  • Magnet Weight
  • DC Resistance (Re) 7.2 ohms
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 50.2 Hz
  • Mechanical Q (Qms) 2.3
  • Electromagnetic Q (Qes) 0.76
  • Total Q (Qts) 0.52
  • Diaphragm Mass Inc. Airload (Mms) 3.7g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.31 mm/N
  • Surface Area of Cone (Sd) 50.2 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 4.2 Tm
  • Compliance Equivalent Volume (Vas) 0.16 ft.³
  • Maximum Linear Excursion (Xmax) 4 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 4.88"
  • Overall Depth 2.2"
  • Baffle Cutout Diameter 4.41"
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
