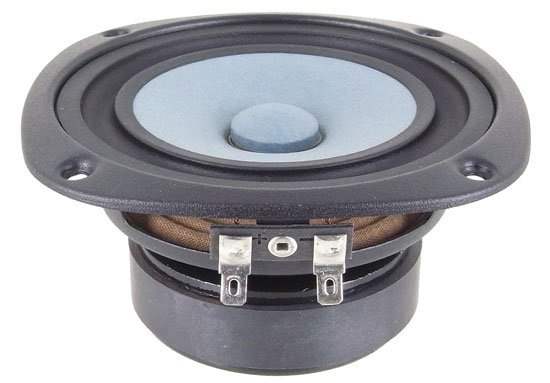

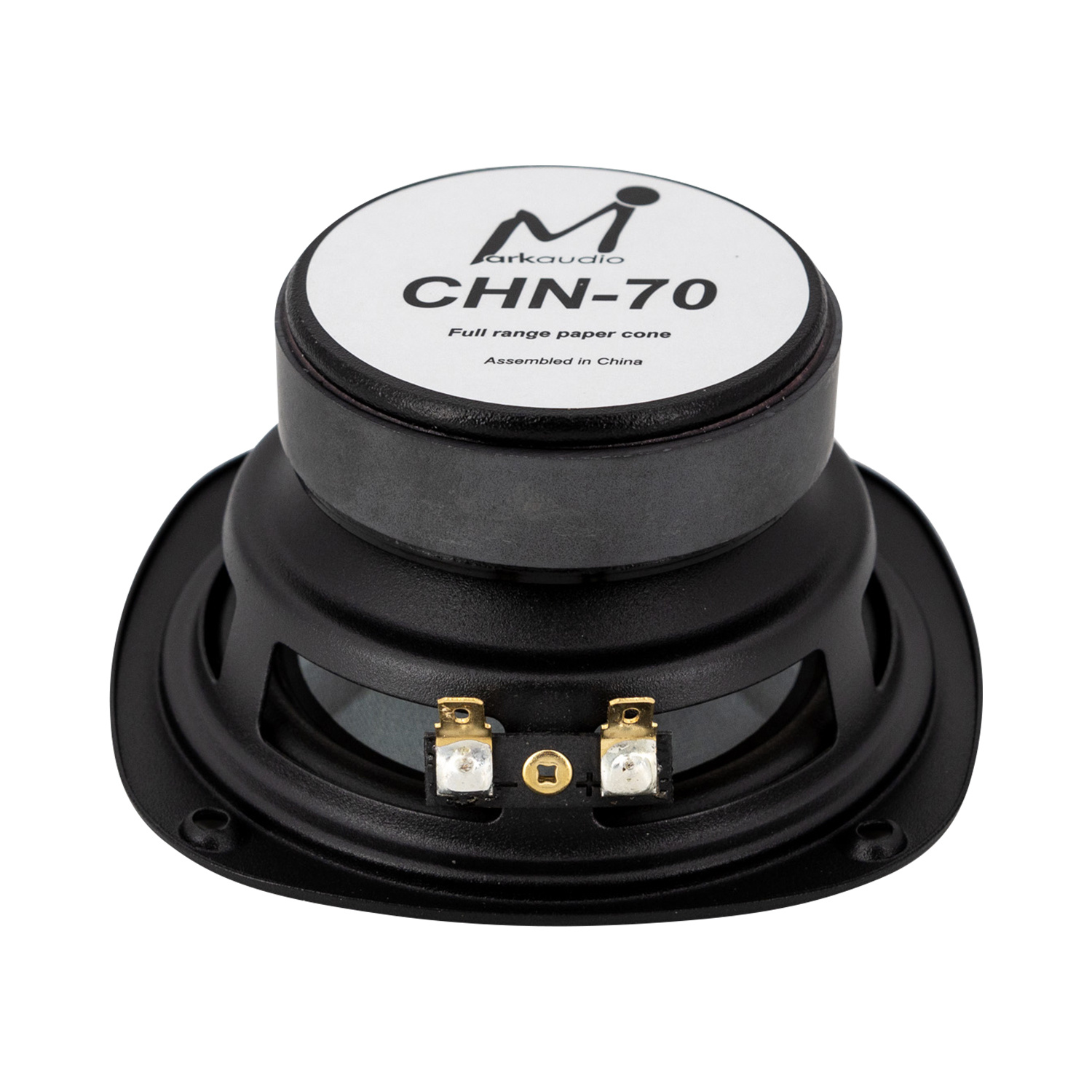

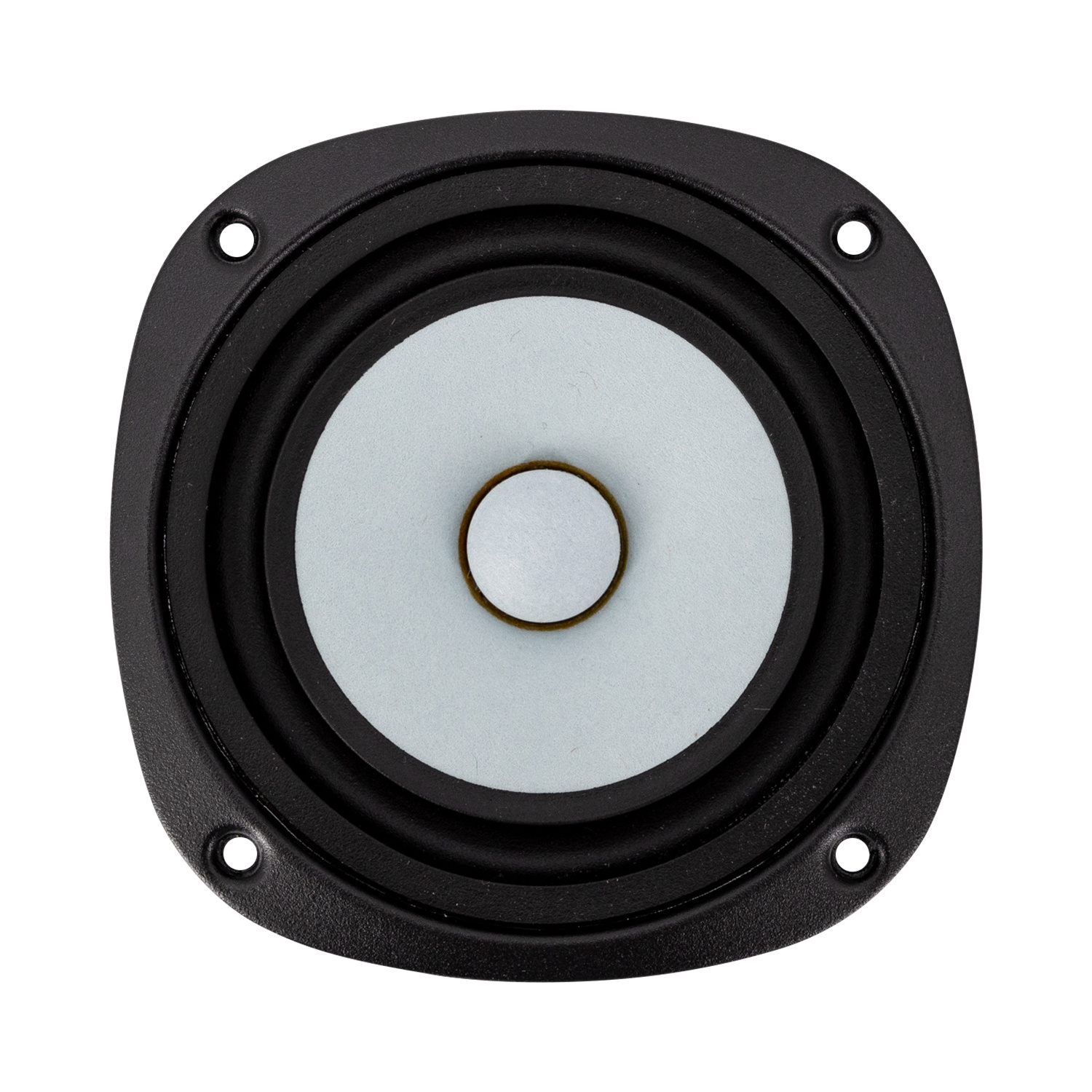

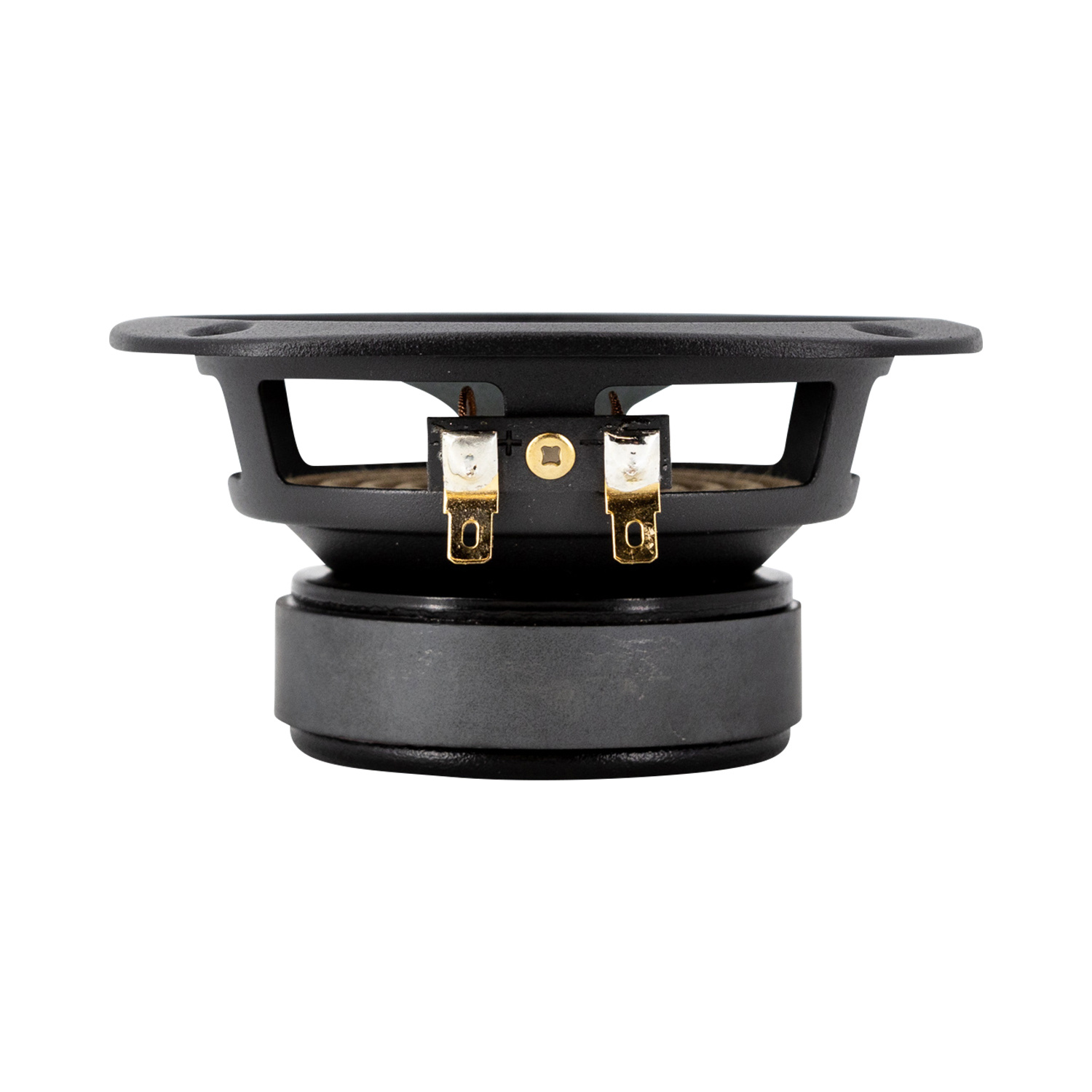

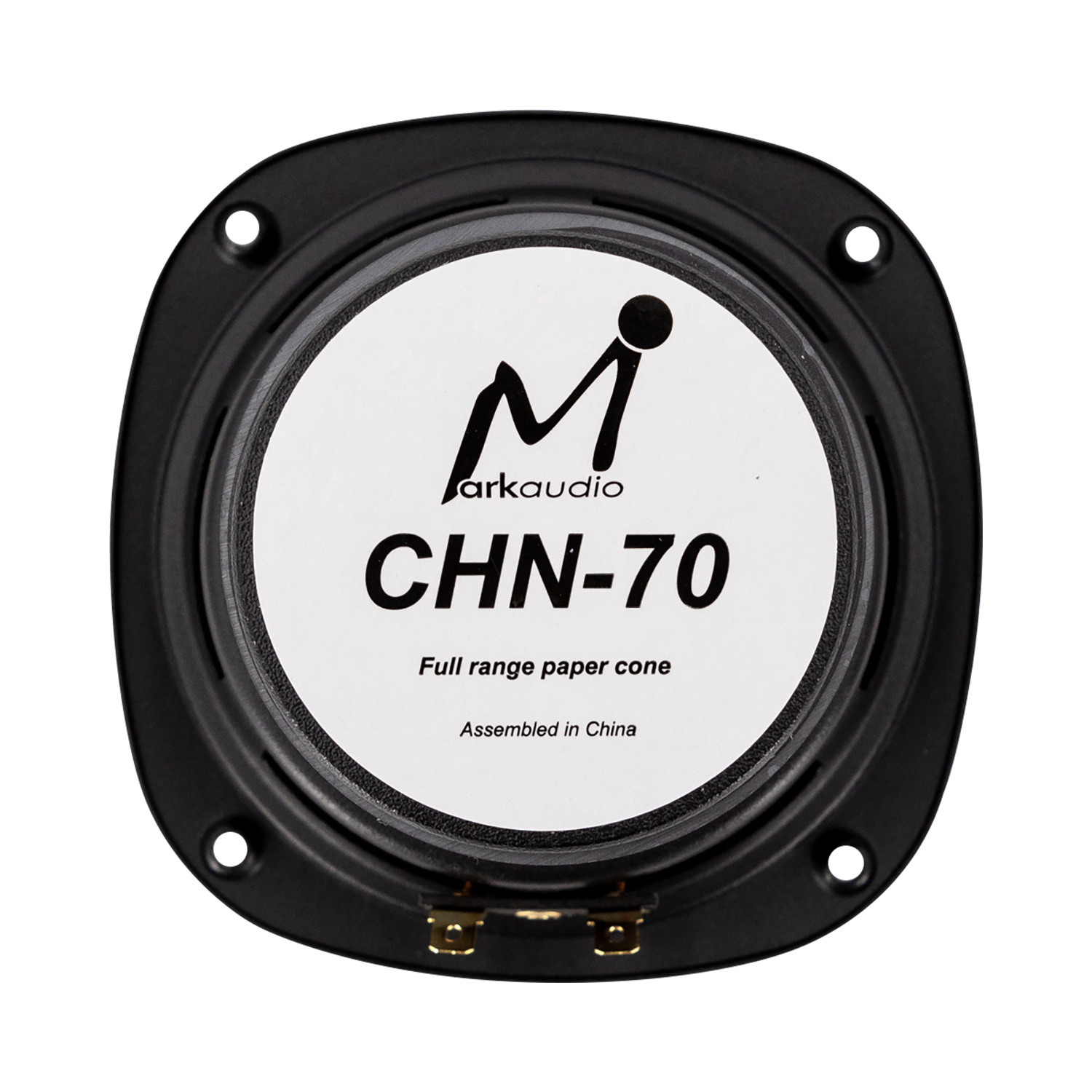

    Markaudio CHN-70 5" Full Range Paper Woofer

    € 32,45 >10 Op voorraad: Levertijd: 1 werkdag
    The CHN-70 is a Full Range design for use in many audio applications. Designed by Mark Fenlon and Evan Yu for use by audio end-users who want a high-performance driver at a lower cost.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €30,83 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    The CHN-70 is a Full Range design for use in many audio applications. Designed by Mark Fenlon and Evan Yu for use by audio end-users who want a high-performance driver at a lower cost.



    Highlights

    • Natural Sound
    • Long-throw (4mm X-max)
    • Improved paper cone
    • Improved dust cap



    Product details

    Markaudio CHN-70 5” Full Range Paper Woofer



    The cone, coil, and suspensions are all-new designs. The profile shape is unique to this driver, to give it a neutral musical tone. The frame is made from 0.8mm high quality pressed steel with synthetic damping coating to reduce vibrations and for best environmental protection. The CHNʼs sound character is natural, especially suitable for vocal reproduction. The CHN70 is suitable for sealed and ported box designs from 4 liters to 12 liters volume. Other box designs can also be used.

    Specificaties

    Artikelnummer
    CHN-70
    Woofer Series
    CH Series
    Woofer Type
    Full-range
    Nominal Diameter
    5"
    Power Handling (RMS)
    16 Watts
    Power Handling (max)
    50 Watts
    Impedance
    8 ohms
    Sensitivity
    86.7 dB 2.83V/1m
    Frequency Response
    50 to 20,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    5 ohms
    Voice Coil Inductance (Le)
    0.17 mH
    Resonant Frequency (Fs)
    71.6 Hz
    Mechanical Q (Qms)
    1.85
    Electromagnetic Q (Qes)
    0.65
    Total Q (Qts)
    0.48
    Diaphragm Mass Inc. Airload (Mms)
    3.4 g
    Surface Area of Cone (Sd)
    50.27 cm²
    BL Product (BL)
    3.4 Tm
    Compliance Equivalent Volume (Vas)
    0.188 ft.³
    Maximum Linear Excursion (Xmax)
    4 mm
    Cone / Diaphragm Material
    Paper
    Surround Material
    Rubber
    Basket / Frame Material
    Glass-Fibre
    Magnet Material
    Ferrite
    Overall Outside Diameter
    4.92"
    Baffle Cutout Diameter
    3.64"
    Bolt Circle Diameter
    4.45"
    # Mounting Holes
    4
