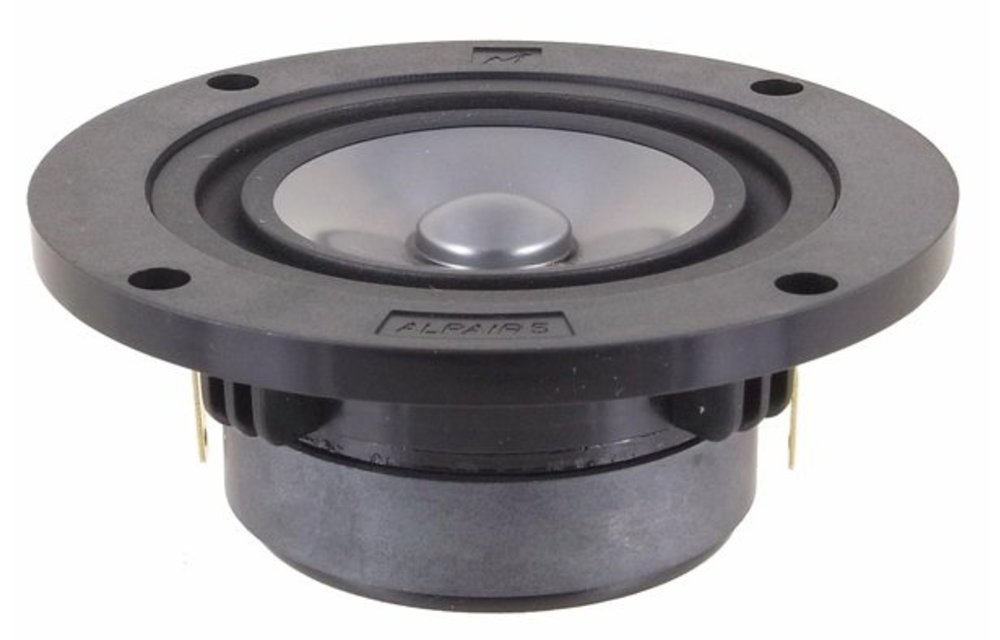

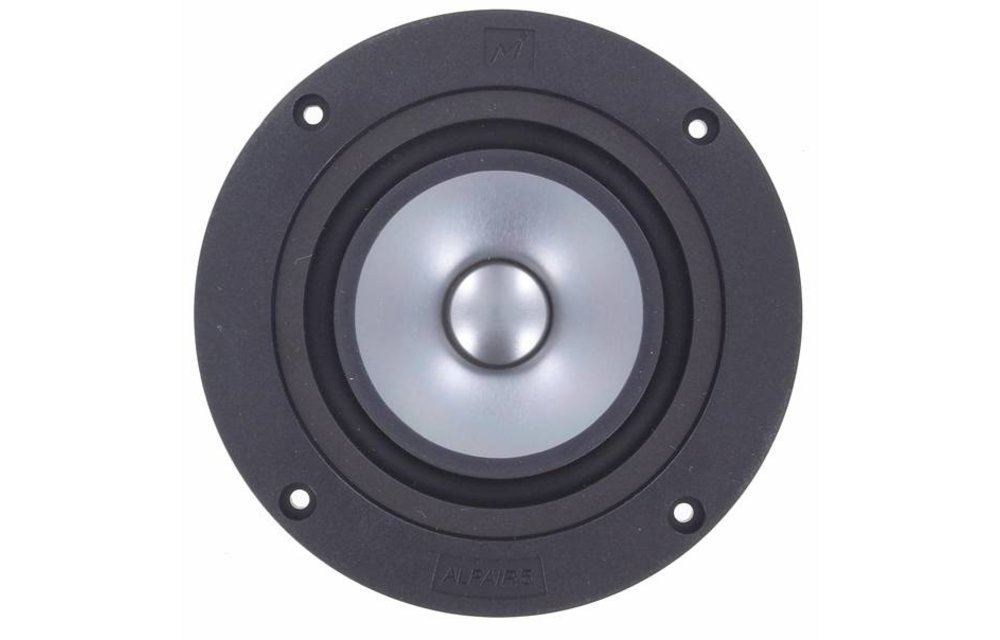

Markaudio Alpair-5 Grey 3" Full Range Aluminium Woofer

Levertijd: 1 werkdag

  • Artikelcode: Alpair-5 Grey
  • Voorraad: >10 Op voorraad

The Alpair 5 Generation 3 is a pure Free-to-air Single Suspension Full-Range audio driver. The new 5 operates only using its all-new single front suspension.

49,95 € 42,46 Incl. 21% btw

  • Bestel 4 voor €47,45 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

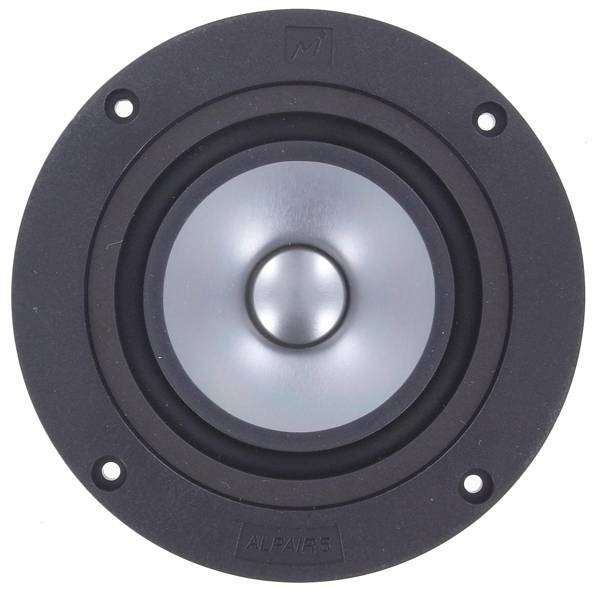

Markaudio Alpair-5 Grey 3" Full Range Aluminium Woofer

The Alpair 5 Generation 3 is a pure Free-to-air Single Suspension Full-Range audio driver. This new Alpair 5 is more advanced than its first generation version. The new 5 operates only using its all-new single front suspension.



Highlights

  • The latest model, 3rd generation
  • Natural Sound
  • Single suspension
  • Extreme frequency response(90 to 25,000Hz)



Product Details

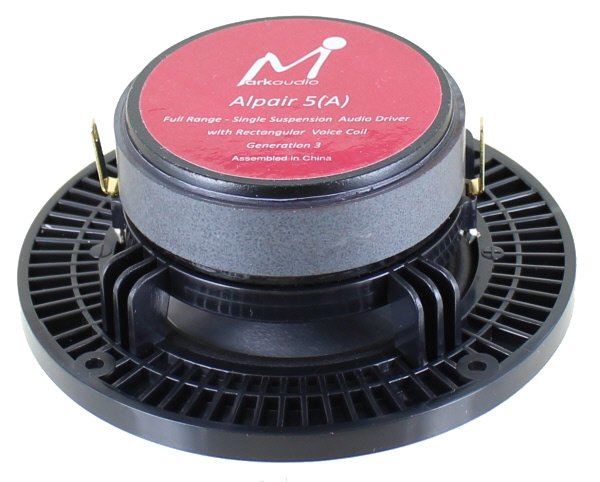

Markaudio Alpair-5 Grey 3" Full Range Aluminium Woofer



This design retains designer Mark Fenlon’s classical mechanical engineering approach to reduce mass and extend long-throw operating capacity. Mark, along with Evan Yu and the engineering team spent several months of research removing mechanical restriction from the ultra-thin coil body. Traditional driver designs use a “spider”, a suspension device located behind the driver’s cone. Bonded to the coil, it physically restricts a coil's ability to transfer mechanical-acoustic signals to the cone. Some other drivers use damping fluid, springs, or other devices, all of which produce losses. This new Alpair 5 design completely removes all these restrictions. Its coil locates cleanly between the driver’s cone and motor sub-assembly, making the new 5 a pure free-to-air mechanical design.



The accuracy requirement for this new Alpair 5 component design, engineering, and detailed assembly go well beyond typical commercial audio-driver manufacturing. The front suspension operating tolerance is measured in milli-newtons. Production Alpair 5 drivers are made to within +/- 2.5Hz @ F Zero. All production units are then pair-matched to with +/- 1Hz @ F Zero.



The result is a detailed balanced sound representation across an ultra-wide frequency band for this class of small driver. A typical box bass-reflex box application with an internal volume of 3 liters can be port tuned to below 80Hz while the driver retains is high range output up to 25kHz. The outcome is very easy to use versatile drivers suitable for many smaller applications where higher-end sound quality is desired from a mini-sized audio driver.

Specificaties

Specificaties voor: Alpair-5 Grey 3" Full Range Aluminium Woofer

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. Alpair Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Full-range
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 3"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 15 Watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt.
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 86.7 dB 2.83V/1m
  • Frequency Response 90 to 25,000 Hz
  • Voice Coil Diameter 1"
  • Magnet Weight
  • DC Resistance (Re) 3.6 ohms
  • Voice Coil Inductance (Le) 0.39 mH
  • Resonant Frequency (Fs) 101.22 Hz
  • Mechanical Q (Qms) 1.49
  • Electromagnetic Q (Qes) 0.75
  • Total Q (Qts) 0.50
  • Diaphragm Mass Inc. Airload (Mms) 2.1 g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms)
  • Surface Area of Cone (Sd) 28.270 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 2.5 Tm
  • Compliance Equivalent Volume (Vas) 0.047 ft.³
  • Maximum Linear Excursion (Xmax) 3 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Glass-Fibre
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 4.92"
  • Overall Depth
  • Baffle Cutout Diameter 3.64"
  • Bolt Circle Diameter 4.45"
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
