    Markaudio Alpair-11MS Gold 6,5" Full Range Woofer

    € 104,95 >10 Op voorraad: Levertijd: 1 werkdag
    The 11MS is completely new, utilising many new design components and manufacturing processes. The two main features are the patent-pending Negative Camber Cone and Mono suspension system. Other key features include a custom designed, gas-flowed glass-fibr... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €99,70 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The advanced design Alpair 11MS (mono suspension) is a radical departure from previous models. The 11MS is completely new, utilising many new design components and manufacturing processes. The two main features are the patent-pending Negative Camber Cone and Mono suspension system. Other key features include a custom designed, gas-flowed glass-fibre chassis and dedicated ultra light voice coil.



    Highlights

    • Latest model
    • The run-in time for the 11MS is significantly reduced compared to previous models. Ten hours of light music at moderate volumes is sufficient for the suspension to reach its optimal operating pattern.
    • An Arrestor (as deployed in previous Alpair models) provides an audible warning of accidental excess excursion.
    • The low-mass coil has a vented former and the motor employs custom made copper plating to reduce distortion.
    • The MS11 is a bass capable audio driver with comparable performance to light-medium load traditional mid-bass units.



    Product details

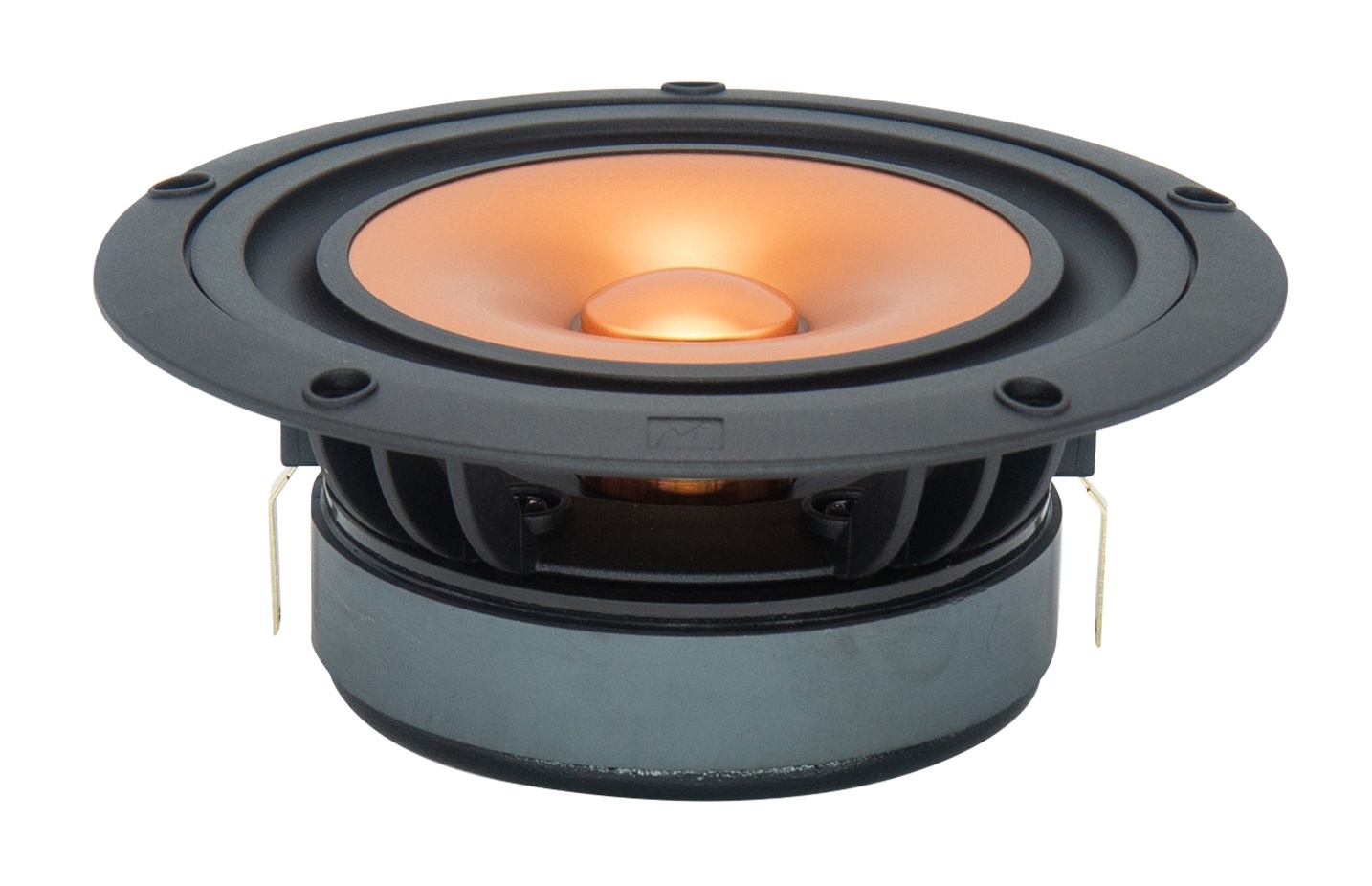

    Markaudio Alpair-11MS Gold 6,5" Full Range Woofer



    After releasing the Pluvia range of drivers, which have been well received, Mark set about the next design evolution. As some of you will know Mark’s design ethos is mechanical efficiency, adding lightness and simplifying where possible. In these new drivers Mark has managed to achieve much more with much less.



    The advanced design Alpair 11MS (mono suspension) is a radical departure from previous models. The 11MS is completely new, utilising many new design components and manufacturing processes. The two main features are the patent-pending Negative Camber Cone and Mono suspension system. Other key features include a custom designed, gas-flowed glass-fibre chassis and dedicated ultra light voice coil.



    The 11MS cone is an ultra shallow design affording a wide dispersion pattern. The outer section of the cone profile is angled backwards creating a +180 degrees emittance pattern to help optimise stereo imaging. Vocals from quality sources sound more natural and detailed as the central cap and cone profile are geometrically close-aligned.



    Much technical research has been done to balance the driver’s powertrain (cone, cap, coil and suspension) between its axis of travel and the corresponding centre of gravity. The new negative-camber cone facilitates the repositioning of the coil to avoid the need for a traditional rear suspension (spider). This new mono suspension design frees the coil from having a restrictive spider bonded to it, improving the transfer of energy from the driver’s motor to its cone. The new suspension employs an all new custom mix of four synthetic materials, resulting in improved linearity under low frequency loads.



    The 11MS all new chassis is optimised to enhance airflow. The various slopes and rounded angles help improve sound wave emittance. Custom extended terminals are provided for push-on connectors or light-soldering for cables up to 1.5mm diameter.



    The 11MS is an audio driver designed for the dedicated music lover and High-Fidelity enthusiast. Attention to design detail along with an close tolerance manufacturing standard to +/- 0.05mm on most component alignments make this new generation of Markaudio transducers stand out from the crowd.

    Specificaties

    Artikelnummer
    Alpair-11MS Gold
    Woofer Series
    Alpair Series
    Woofer Type
    Full-range
    Nominal Diameter
    5"
    Power Handling (max)
    35 Watts
    Impedance
    8 ohms
    Sensitivity
    88.1 dB 2.83V/1m
    Frequency Response
    40 to 22,000 Hz
    DC Resistance (Re)
    7.2 ohms
    Resonant Frequency (Fs)
    44 Hz
    Mechanical Q (Qms)
    2.22
    Electromagnetic Q (Qes)
    0.41
    Total Q (Qts)
    0.34
    Diaphragm Mass Inc. Airload (Mms)
    12 g
    Mechanical Compliance of Suspension (Cms)
    1.008 mm/N
    Surface Area of Cone (Sd)
    111 cm²
    BL Product (BL)
    7.8 Tm
    Compliance Equivalent Volume (Vas)
    0.625 ft.³
    Maximum Linear Excursion (Xmax)
    8 mm
    Overall Outside Diameter
    6.75"
    Overall Depth
    2.60"
    Baffle Cutout Diameter
    5.67"
    # Mounting Holes
    5

    Reviews

    5 from 5Based on 4 reviews
    Schrijf een review
    5 van 5
    I used a pair of these to build a pair of Pensil 11 full range floor-standers. They came promptly and very well packaged. After fitting and a few hours of running in I have to say I'm very impressed indeed. They are the first full range speakers I've owned so have little to compare them to but the sound is coherent, better extended in the bass than I anticipated and easy to listen to for extended periods without fatigue whilst being more detailed than my previous Monitor Audio stand-mounts. My only regret is that I I think I've been bitten by the DIY bug. Oh and my brother has requested a pair for Christmas, though that would be a generous gift indeed.
    Door Jon F. on 29 September 2020
    5 van 5
    These are great speaker units but do your research as the type of enclosure/cabinet, and the output impedance of your amplifier, will have an impact on the overall sound.
    Door Richard S. on 24 Juli 2020
