      Lepai LP210PA Mini Plaatversterker

      € 86,74€ 104,95 Niet op voorraad: 6 expected on 07-10-2022
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestelling 4 voor slechts € 99,70 per stuk
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf € 99 (NL & BE)
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      The Lepai LP210PA is the ideal Class D plate amplifier for powering smaller 2.1 speaker systems. This compact plate amplifier can provide 30 watts x 2 to the full range outputs and 60 watt to the mono subwoofer channel for powerful output capability. The adjustable crossover frequency, sub volume, and main speaker volume makes it easy to create a smooth transition from a subwoofer to satellite speakers.



      Highlights

      • Compact size (4.5" x 5" x 1") for installation into the smallest subwoofer enclosures
      • Satellite outout includes 6 dB per octave high pass at 100 Hz
      • Perfect for use in office, bedroom, or even portable speaker systems
      • Defeatable full range output for use as just a subwoofer amplifier
      • The full range speaker output uses high quality binding posts for easy connection



      Product details

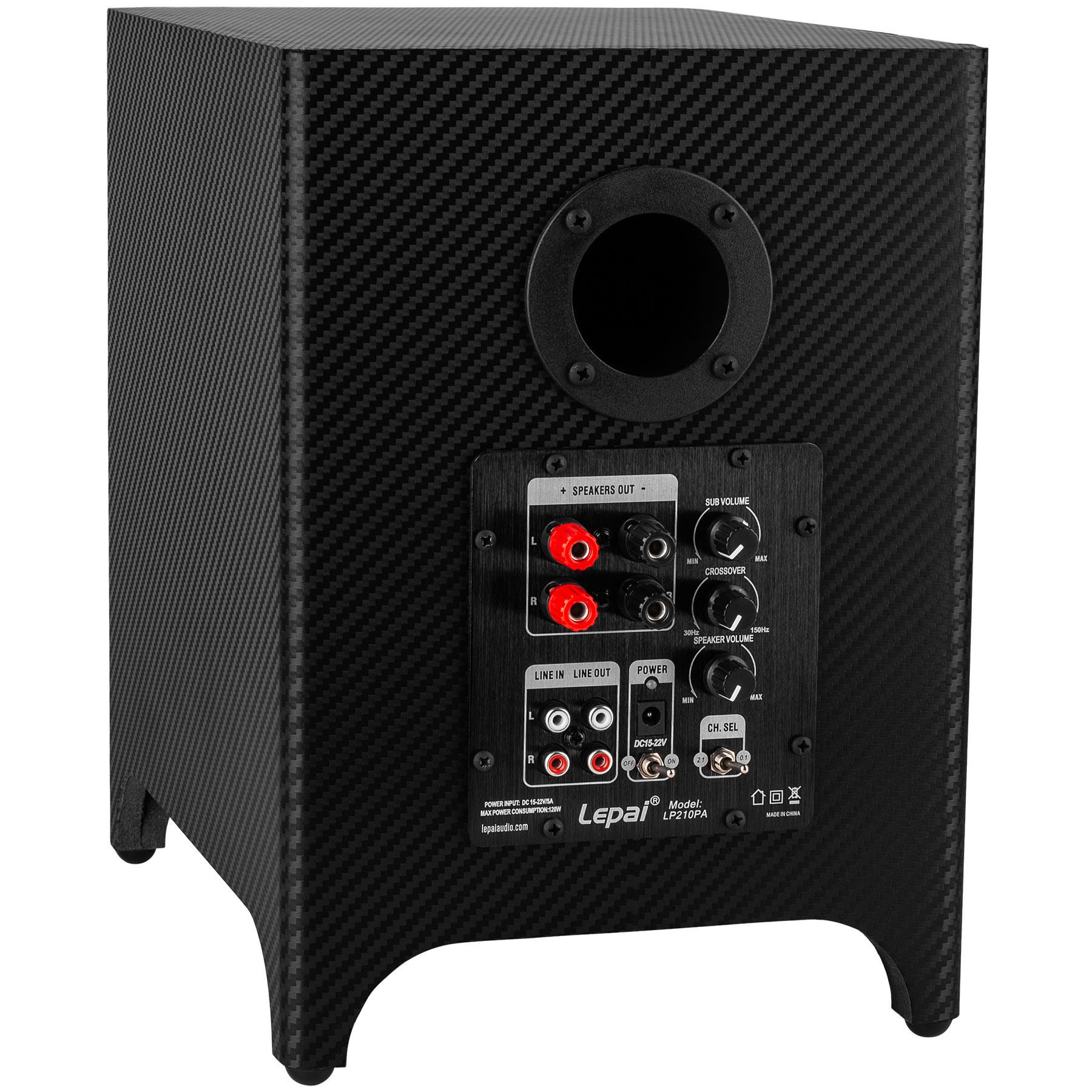

      Lepai LP210PA 2x30W + 60W 2.1 Channel Mini Plate Amplifier TPA3118



      Lepai's LP210PA compact 2.1 plate amplifier makes it easy to create your own powered subwoofer/satellite speaker systems. At only 4.5" wide and 5" tall, you can install this amplifier in even the smallest subwoofer designs; however with 60 watts to the subwoofer and 30 watts to each satellite you can expect powerful output capability. This is the perfect plate amplifier for use in office, bedroom, or even portable subwoofer/satellite speaker systems.



      The straightforward features make the LP210PA extremely easy to connect and setup. Input is handled through stereo RCA connectors. For the power outputs, there is a Phoenix connector on the back of the amplifier to connect directly to your subwoofer driver, along with binding posts on the front of the plate for simple connection to a pair of separate satellite speakers. The adjustable subwoofer volume, crossover frequency, and main speaker volume makes it easy to create a smooth transition between the subwoofer and satellite speakers. In addition, this amplifier includes a unique channel selection switch, which allow you to turn off the satellite speakers and run just the subwoofer by itself allowing you to run separate powered satellites from the stereo RCA pass through outputs.



      Note: Power supply not included.

      Specificaties

      Artikelnummer
      LP210PA
      Nominaal vermogen
      2 x 30 watts + 1 x 60 watts
      Vermogen gebrugd
      -
      Minimale belasting
      4 ohms
      Signaal-ruisverhouding (SNR)
      -
      Vervorming
      -
      Vervorming gebrugd
      -
      Versterkerklasse
      Class D
      Versterkertopologie
      TPA3118 based
      Efficiëntie
      -
      Frequentierespons
      20 - 20,000 Hz
      Ingangsimpedantie
      -
      Ingangsgevoeligheid
      245 mV
      Inschakelgevoeligheid
      -
      DSP
      -
      DAC
      -
      Maximale sample rate
      -
      Uitgangskanalen
      3
      Analoog in / uit
      1/1
      S/PDIF in / uit
      -/-
      AES/EBU in / uit
      -/-
      Coaxial in / uit
      -/-
      RCA in / uit
      1/1
      XLR in / uit
      -/-
      Jack in / uit
      -/-
      USB-Verbinding
      -
      Netwerkverbinding
      -
      Bluetooth
      -
      Subwoofer pre-out
      -
      Auto aan / uit
      -
      Afstandsbediening
      -
      App-bediening
      -
      EQ-correctie
      -
      EQ-profielen
      -
      Fasesturing
      -
      Instelbare kantelfrequentie
      Presets
      -
      Besturingssoftware
      -
      Windows/Mac compatible
      -/-
      Voedingsvereisten
      15 - 22 VDC
      Voedingsaansluiting
      2.1 x 5.5 mm plug
      Standby stroomverbruik
      -
      Stroomlimiet
      -
      Onder-/overspanningsbeveiliging
      -
      Afmetingen (H x B x D)
      159 x 114 x 102 mm
      Uitsparingsafmetingen
      104.76 x 95.25 mm

      Toon meer

      Reviews

      5 from 5Based on 7 reviews
      Schrijf een review
      5 van 5
      Excellent. Fixed 100Hz LP filter on satellites. Sub controls do what they say. Low noise on a power brick after adding a series choke 300mH and 1000uF cap. No trouble with Tang Band 4R 8" and Morel mid/highs. I would use these on my dual AV subs if that amp ever fails.
      Door keith h. on 17 December 2021
      4 van 5
      I have had a few more days testing this plate amp and I thought I would share some thoughts. I had a lot of fun building a small sub with this which turned out great. Combined with a pair of small bookshelves i bought many years ago it is perfect. However when I paired it with a pair of Dali Sektor 2, the highpass filter took alot away from the dalis. I believe there is a 100hz highpass filter. Perhaps this is a good thing for you, but I would not pair this amp with just any speaker. Also there is a slight self noise if you set the volume on the amp higher than 12 o clock (which really should not be necessary og all but the most unefficient speakers). I am using an old laptop power supply that is near the max this amp can take. All in all I am quite happy whith this for the price, and it was a fun project. I might be a bit critical as my main listening system is b&w cm9 with a rotel rb 1582 amp.
      Door Tomas M. on 11 Oktober 2020
