    Lepai LP-2020TI Digital Hi-Fi Audio Mini Class D Stereo Amplifier with Power Supply

    € 33,02€ 39,95 1 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €37,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Lepai LP-2020TI mini power amplifier provides 20 watts RMS of clean audio power to any set of stereo speakers. Harnessing technology from Texas Instruments, this amp is perfect for using on any desk, countertop, workbench, and even in DIY projects or mobile audio applications.



    Highlights

    • Uses the Texas Instruments TPA3118 to produce clean, efficient audio with detail
    • Economical price and tremendous performer
    • Compact size makes this amplifier great for projects and DIY audio applications
    • 5 mm stereo jack connects easily to most any iPod, smart phone, or tablet
    • Use RCA jacks to connect to CD players, TVs, or streaming media players
    • Aluminum enclosure that is lightweight yet sturdy
    • 12 VDC, 3A power supply included



     Product Details

    Lepai LP-2020TI Digital Hi-Fi Audio Mini Class D Stereo Amplifier with Power Supply



    Continuing the Legacy

    For years the LP-2020A+ dominated the mini amp arena, but due to the scarcity of the Tripath TA2020 amp chip, Lepai is phasing out this very popular amp. However, emerging from its decline is the Lepai LP-2020TI. Identical in form and function this little amplifier has the same set of inputs and the same front panel controls, but where it differs is the insides, and it is truly remarkable what the engineers at Lepai have created in the LP-2020TI.



    Making a name for itself

    Fitted with the Texas Instruments TPA3118 Class D amplifier chip, this mini amp produces efficient audio, with extremely low distortion, and it runs cool while doing it. A 12 VDC, 3A power supply is included with this amp, which is ample power to drive almost any speaker. But one amazing feature of the LP-2020TI is its ability to run on a wide range of voltages; 4.5-24 VDC. That means you can run this amp in a portable application using only 3 AA batteries or you can upgrade your power supply to maximize its full potential.



    All the features you need

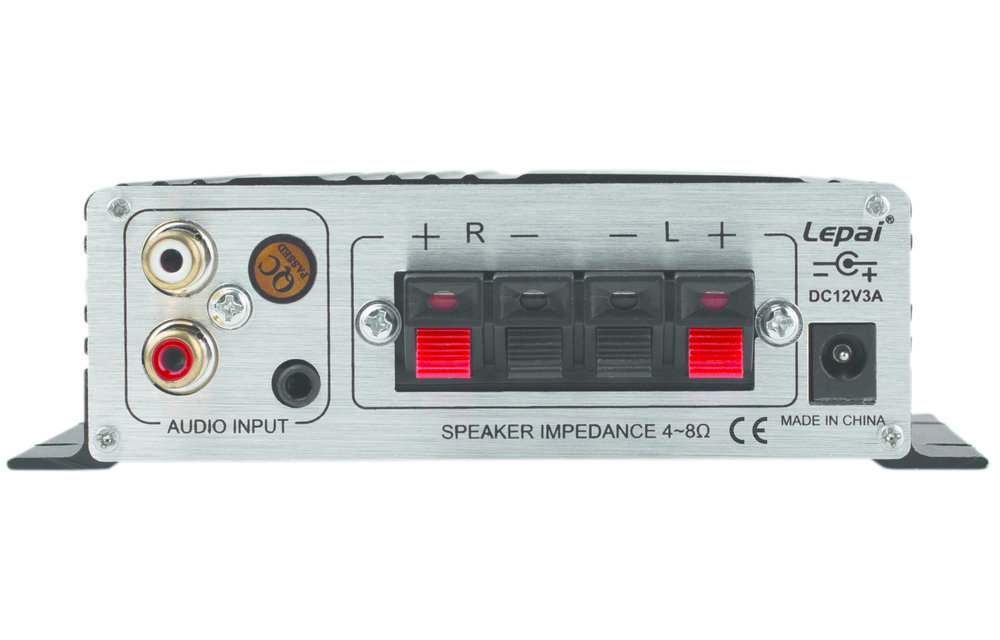

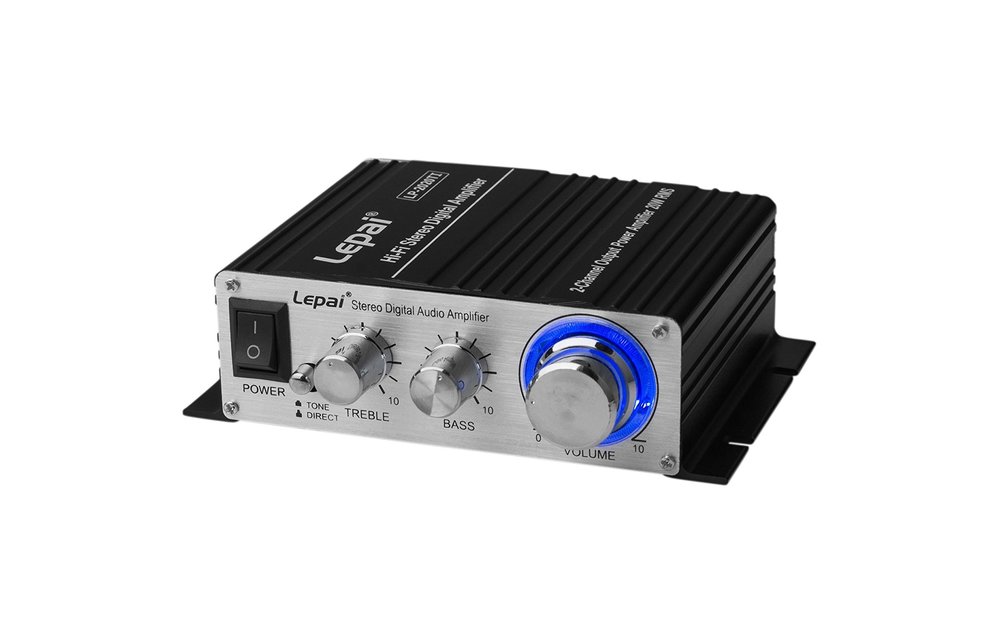

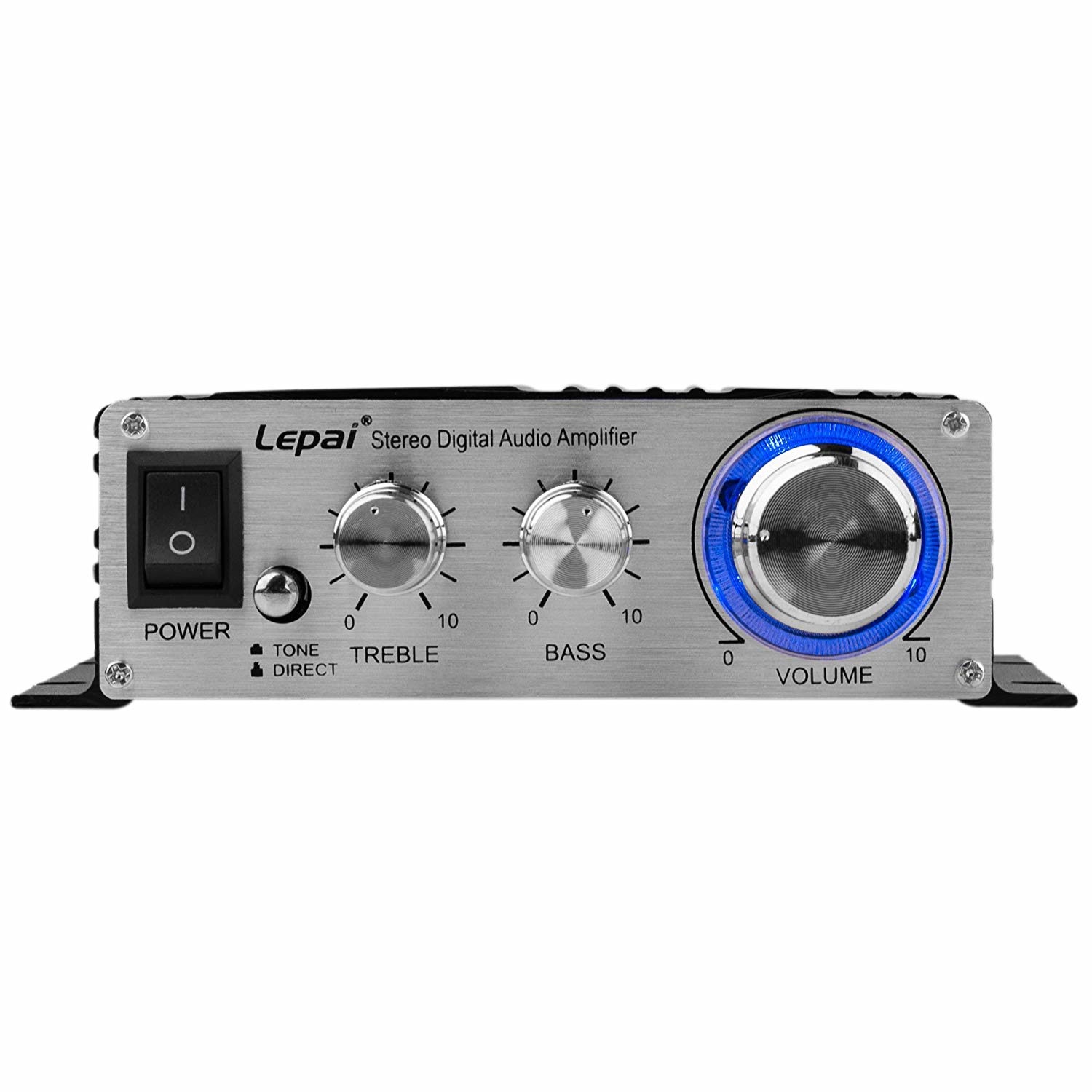

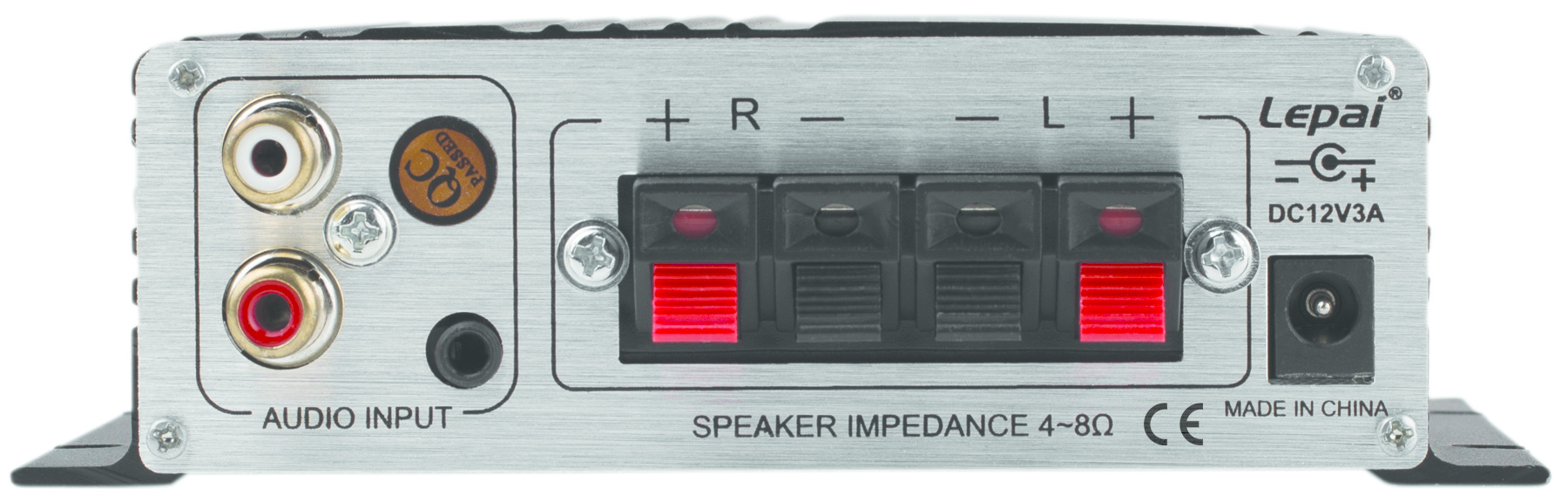

    Simple and straightforward, this amp is easy to use. To get started, just plug in your power supply, connect speaker wire between your speakers and the spring loaded terminals on the back panel, connect a source device using either the 3.5 mm AUX input or stereo RCA jacks, turn it on and rock out. Customize your sound using the bass and treble controls or push the "Direct" button to bypass this circuit for a more pure listening experience. The oversized front knob controls the volume smoothly and is encircled by an array of blue light. Mounting tabs on the sides of this amp make it easy to securely mount this amp into turnkey DIY projects. Enjoy great sounding, easy-to-operate audio and more features than you would expect in an amp in this price range with the Lepai LP2020TI.

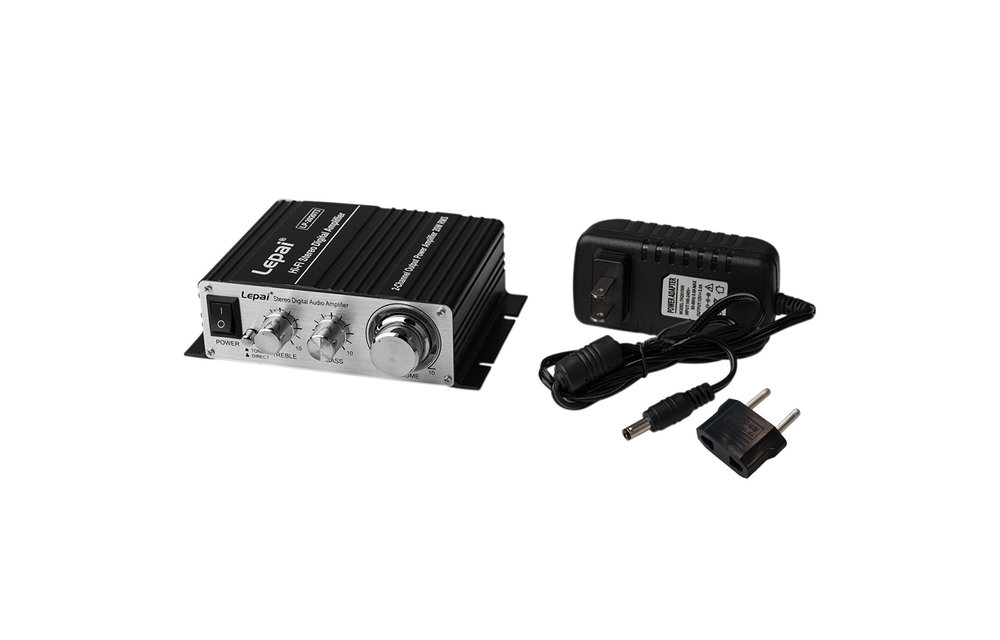

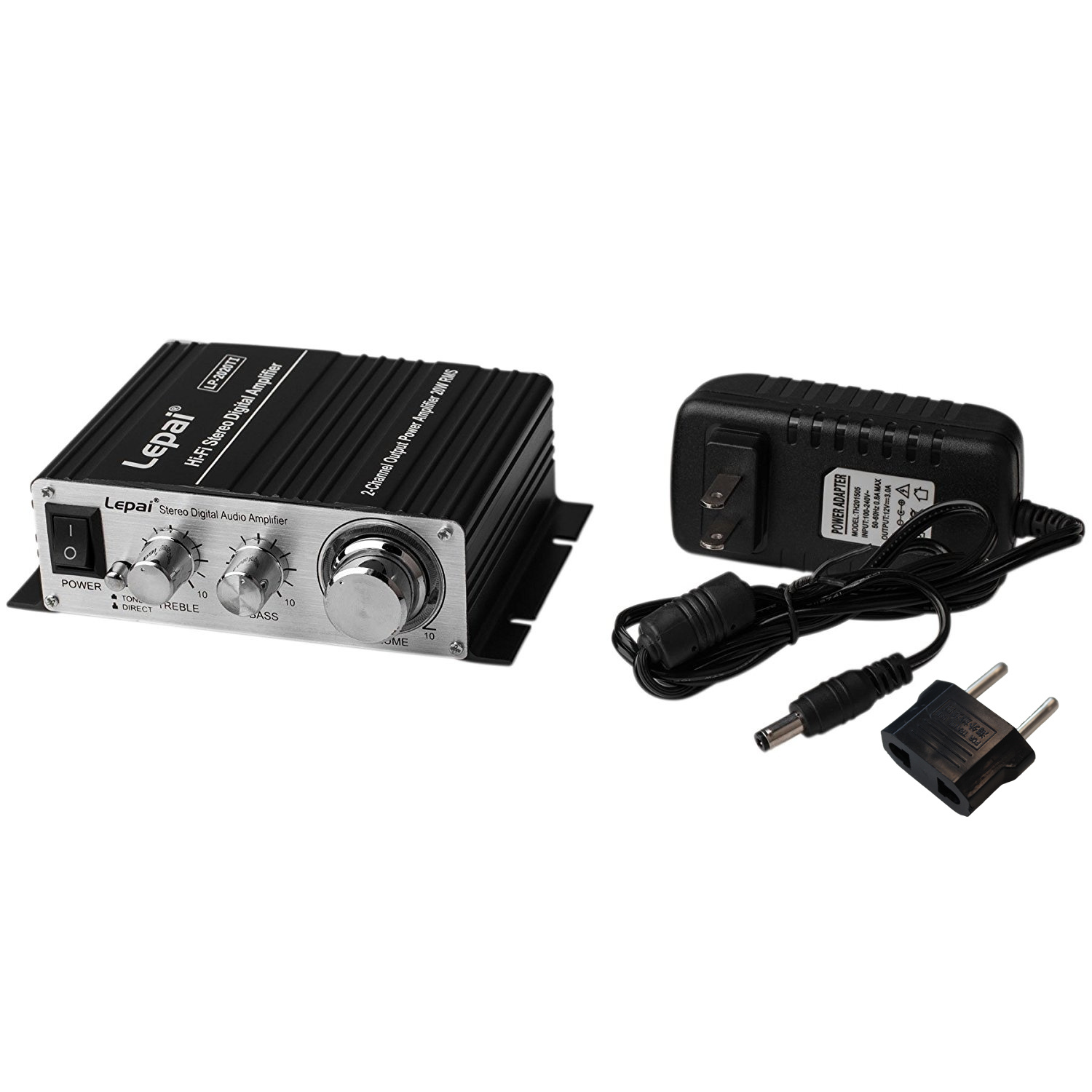

    Power Supply Specifications: • Input: 100~240 VAC, 50-60 Hz • Output: 12 VDC, 3A (minimum) • 2.1 x 5.5 plug.



    Please Note: The included power supply is capable of driving this amp at 2 x 15 watts per channel. To realize the full potential of this amp (>20 watts per channel), we recommend a power supply that is capable of producing 60 watts of total output.

    Specificaties

    Artikelnummer
    LP-2020TI
    Vermogen (RMS)
    2 x 20 watts
    Vermogen gebrugd (RMS)
    -
    Minimale belasting
    4 ohms
    Signaal-ruisverhouding (SNR)
    >102 dB
    Vervorming
    <0.1% THD+N
    Vervorming gebrugd
    -
    Efficiëntie
    -
    Frequentierespons
    20 - 22,000 Hz
    Input impedance
    47k ohms
    Ingangsgevoeligheid
    200 mV
    Inschakelgevoeligheid
    -
    DSP
    -
    DAC
    -
    Maximale sample rate
    -
    Versterkertopologie
    Texas Instruments TPA3118
    Versterkerklasse
    Class D
    Uitgangskanalen
    2
    Subwoofer uitgangskanaal
    -
    Analoog in / uit
    -/-
    S/PDIF in / uit
    -/-
    Coaxial in / uit
    -/-
    RCA in / uit
    1/-
    AUX in / uit
    1/-
    Bus in / uit
    -/-
    XLR in / uit
    -/-
    USB
    -
    Geheugenkaartslot
    -
    Netwerkverbinding
    -
    Koptelefoonaansluiting
    -
    Subwoofer pre-out
    -
    Bluetooth
    -
    NFC
    -
    Wi-Fi
    -
    Banaanstekker
    -
    Afstandsbediening
    -
    App-bediening
    -
    Auto aan / uit
    -
    Ondersteunde bestandsformaten
    -
    EQ-correctie
    check
    EQ-profielen
    -
    Multi zone / kamer
    -
    Instelbare kantelfrequentie
    -
    Brugbaar
    -
    Voedingsvereisten
    12 VDC
    Voedingsaansluiting
    DC jack 2.1 x 5.5 mm
    Stroomverbruik
    -
    Standby stroomverbruik
    -
    Afmetingen (D x B x H)
    119.9 x 147.1 x 41.9 mm
    Behuizingsmateriaal
    Aluminum
