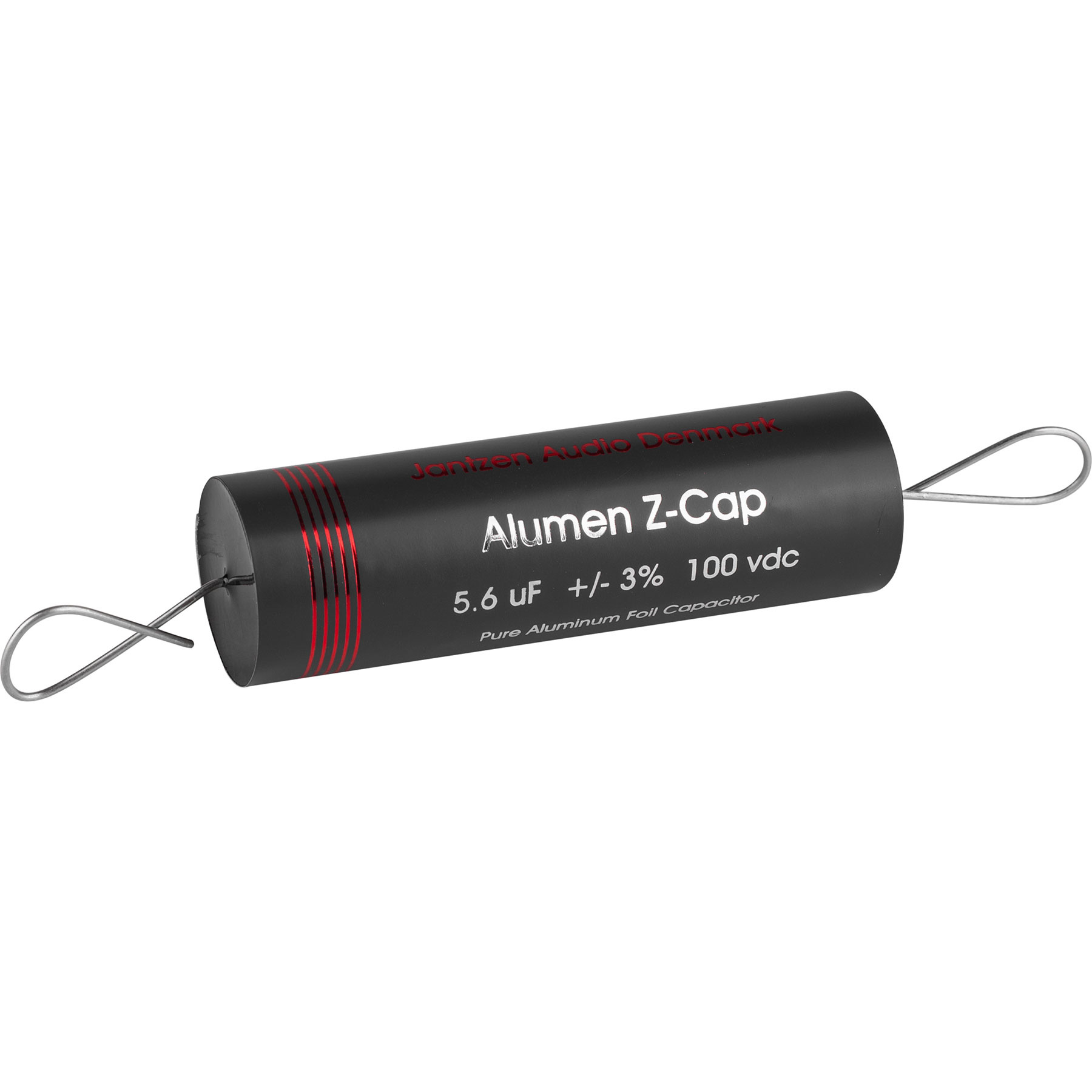

        001-7045 | 5,60 µF | 3% | 100 V | Alumen Z-condensator

        001-7045 | 5,60 µF | 3% | 100 V | Alumen Z-condensator

        €66,95

        Jantzen Audio 001-7045 | 5,60 µF | 3% | 100 V | Alumen Z-condensator

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 55,33€ 66,95 2 Op voorraad
        • -5% Bestel 4 voor slechts € 63,60 per stuk
        • -10% Bestel 10 voor slechts € 60,26 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        The Alumen Z-Cap (pure aluminium foil capacitors) was especially designed for the tweeter and mid-section of crossovers for passive hi-fi speakers.



        Highlights

        • Ultra-thin dielectric insulation to eliminate memory effect in the capacitor
        • An extremely fast reacting capacitor
        • High quality pure aluminium foil wound with highly specialised machinery and precision winding techniques
        • Specifically designed for the tweeter and mid-range section of passive crossovers
        • Can also be used as coupling capacitors for transistor amplifiers



        Product details

        Jantzen Audio 001-7045 | 5,60 µF | 3% | 100 V | Alumen Z-Cap



        The improved transparency performance of this new cap is on the same high level as Jantzen Silver/Gold Z-Cap, but with a slightly softer tonal presence and less brightness / sheen / glare in comparison. The Alumen Z-Cap will offer a more “neutral” presentation in the overall sound in certain crossover designs. By “neutral” Jantzen refers to the fact that the focus will be shifted from what can be a somewhat overemphasized brightness from a Super PP cap, to a more even balancing between the depth of the midrange and the presence of the tweeter.



        It utilises a much thinner dielectric insulation compared to the market standard. A high voltage rating is not needed for application related to passive loudspeaker crossovers. The usage of a thinner dielectric insulator allows for a capacitor with less “memory” and one that is much faster reacting. The Alumen Z-Cap offers unparalleled value for money in terms of cost versus performance. Compared to the Superior capacitors, the Alumen Z-Cap will bring less brightness and a little more natural top end balance to your system. Ideal for audio aficionados who prefer a slightly less bright system, while also hearing improvements in the overall naturalness/neutrality of the system as a whole.



        Specifications: Capacitor foil: Pure aluminium • Dielectric: Polypropylene • Voltage rating:100 VDC / 65 VAC • Capacitance tolerance: +/- 3% (on nominal value) • Temperature range: - 30C to + 85C • Extremely low ESR and SEL data • Non inductive construction • Terminal leads: Pure PCOCC grade copper • Dissipation factor: .0001 • Signal direction: None (non-polarised capacitor) • Very low ESR, SEL, inductance and dielectric absorption data • Leadout dimensions: 1mm (diameter) x 55mm (length).

        Toon meer

        Specificaties

        Artikelnummer
        001-7045
        Capaciteit (µF)
        5.6 µF
        Maximale spanning
        100 V
        Tolerantie
        3%
        Afmetingen: Ø * L (mm)
        30 x 95
        Aansluitingsstijl
        Axial

        Toon meer
