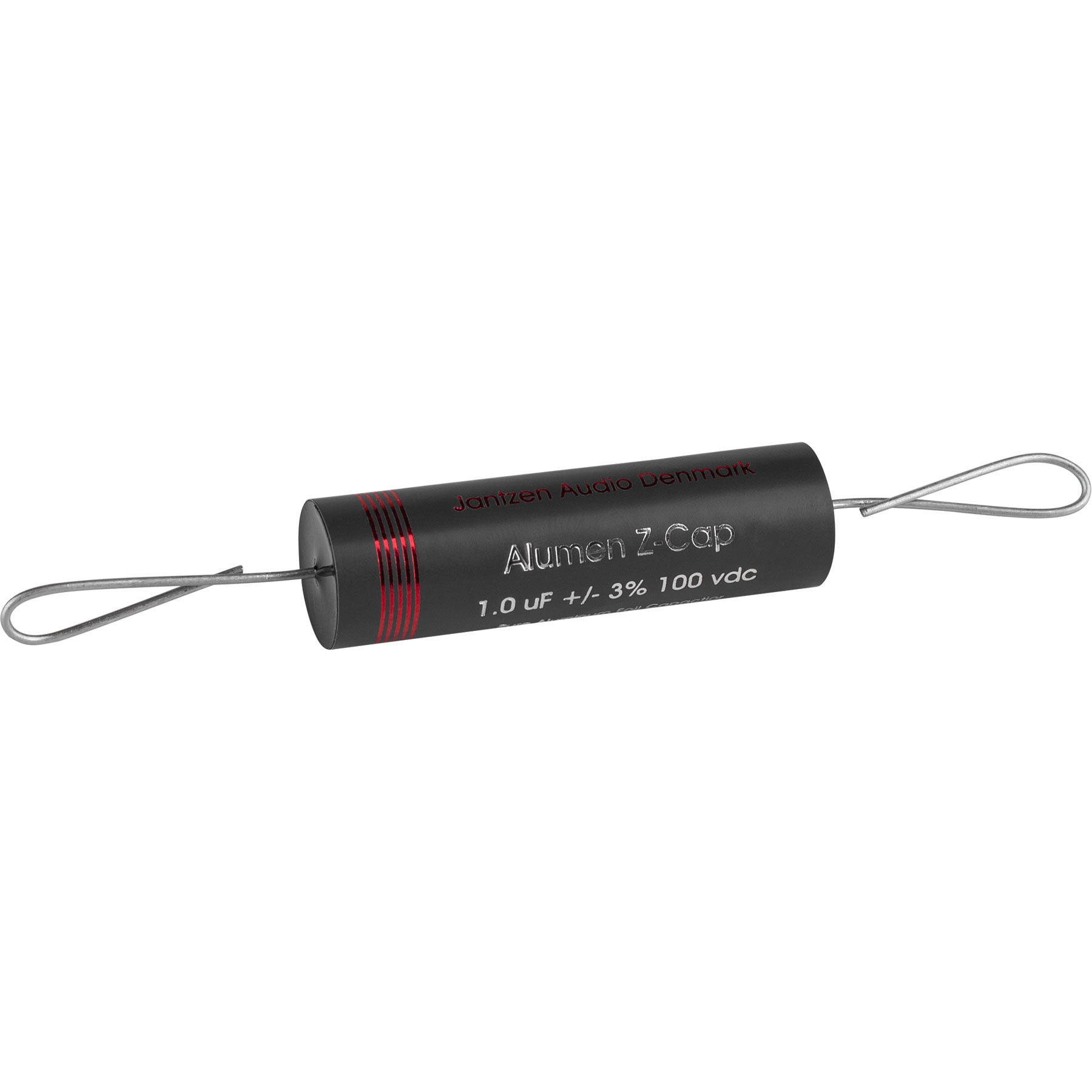

      Jantzen Audio 001-7022 | 1,00 µF | 3% | 100 V | Alumen Z-Cap

      € 25,99€ 31,45 Niet op voorraad
      • -5% Bestelling 4 voor slechts € 29,88 per stuk
      • -10% Bestelling 10 voor slechts € 28,31 per stuk

      Buy now, pay later

      • Gratis verzending vanaf € 99 (NL & BE)
      • Nu besteld, morgen bezorgd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      The Alumen Z-Cap (pure aluminium foil capacitors) was especially designed for the tweeter and mid-section of crossovers for passive hi-fi speakers.



      Highlights

      • Ultra-thin dielectric insulation to eliminate memory effect in the capacitor
      • An extremely fast reacting capacitor
      • High quality pure aluminium foil wound with highly specialised machinery and precision winding techniques
      • Specifically designed for the tweeter and mid-range section of passive crossovers
      • Can also be used as coupling capacitors for transistor amplifiers



      Product details

      Jantzen Audio 001-7022 | 1,00 µF | 3% | 100 V | Alumen Z-Cap



      The improved transparency performance of this new cap is on the same high level as Jantzen Silver/Gold Z-Cap, but with a slightly softer tonal presence and less brightness / sheen / glare in comparison. The Alumen Z-Cap will offer a more “neutral” presentation in the overall sound in certain crossover designs. By “neutral” Jantzen refers to the fact that the focus will be shifted from what can be a somewhat overemphasized brightness from a Super PP cap, to a more even balancing between the depth of the midrange and the presence of the tweeter.



      It utilises a much thinner dielectric insulation compared to the market standard. A high voltage rating is not needed for application related to passive loudspeaker crossovers. The usage of a thinner dielectric insulator allows for a capacitor with less “memory” and one that is much faster reacting. The Alumen Z-Cap offers unparalleled value for money in terms of cost versus performance. Compared to the Superior capacitors, the Alumen Z-Cap will bring less brightness and a little more natural top end balance to your system. Ideal for audio aficionados who prefer a slightly less bright system, while also hearing improvements in the overall naturalness/neutrality of the system as a whole.



      Specifications: Capacitor foil: Pure aluminium • Dielectric: Polypropylene • Voltage rating:100 VDC / 65 VAC • Capacitance tolerance: +/- 3% (on nominal value) • Temperature range: - 30C to + 85C • Extremely low ESR and SEL data • Non inductive construction • Terminal leads: Pure PCOCC grade copper • Dissipation factor: .0001 • Signal direction: None (non-polarised capacitor) • Very low ESR, SEL, inductance and dielectric absorption data • Leadout dimensions: 1mm (diameter) x 55mm (length).

      Toon meer

      Specificaties

      Artikelnummer
      001-7022
      Capaciteit (µF)
      1,00 µF
      Maximale spanning
      100 V
      Tolerantie
      3%
      Afmetingen: Ø * L (mm)
      22 x 70
      Aansluitingsstijl
      Axial

      Toon meer
