HQR32/082/71 | 0,82 mH | 0,48 Ω | 5% | 21 AWG | Tube Core Coil

€5,95

Toevoegen aan winkelwagen

Intertechnik HQR32/082/71 | 0,82 mH | 0,48 Ω | 5% | 21 AWG | Tube Core Coil

Name: Intertechnik HQR32/082/71 | 0,82 mH | 0,48 Ω | 5% | 21 AWG | Tube Core Coil
Brand: Intertechnik
SKU: HQR32/082/71
Price: 5.95 EUR
Availability: InStock

0 reviews

Merk: Intertechnik

Toon alle Koperfoliespoelen

HQR32/082/71 | 0,82 mH | 0,48 Ω | 5% | 21 AWG | Tube Core Coil

€ 4,92€ 5,95 3 Op voorraad9 verwacht op 24-05-2024

Gratis verzending vanaf € 99
Nu besteld, dinsdag bezorgd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Productomschrijving

The I.T. Intertechnik HQR32/082/71 is a top-notch Tube Core Coil designed for high-performance audio applications.

Highlights

Inductance of 0.82 mH.
Resistance of 0.48 Ω.
5% inductance tolerance.
Constructed with 21 AWG copper wire.

Product details

I.T. Intertechnik HQR32/082/71 | 0,82 mH | 0,48 Ω | 5% | 21 AWG | Tube Core Coil

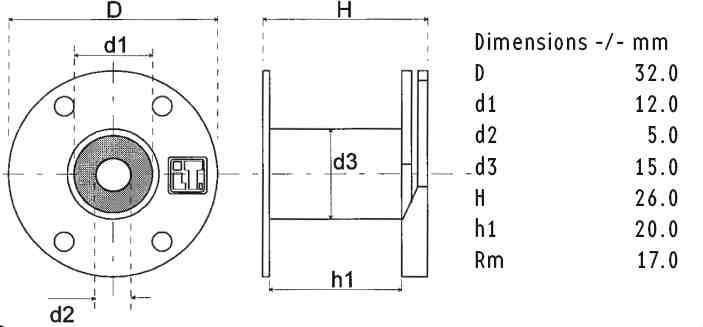

The I.T. Intertechnik HQR32/082/71 is a superior quality Tube Core Coil, specifically designed for the crossover components in high-end audio systems. Crafted with copper foil coils, it features an inductance of 0.82 mH and a resistance of 0.48 Ω, with an inductance tolerance of 5%. The coil is constructed using 21 AWG copper wire, ensuring maximum conductivity and minimal resistance. The wire is made of high-purity copper (>99.99%), with a diameter of 0.50-0.60 mm. The coil also features a durable ABS spool body and is available in either Corobar or Ferrobar core shapes. The coil's measurements are taken at a nominal 25 degrees C and 1 kHz, ensuring accurate and reliable performance in a variety of audio applications.

I.T. Intertechnik artikelnummer: 1340249
