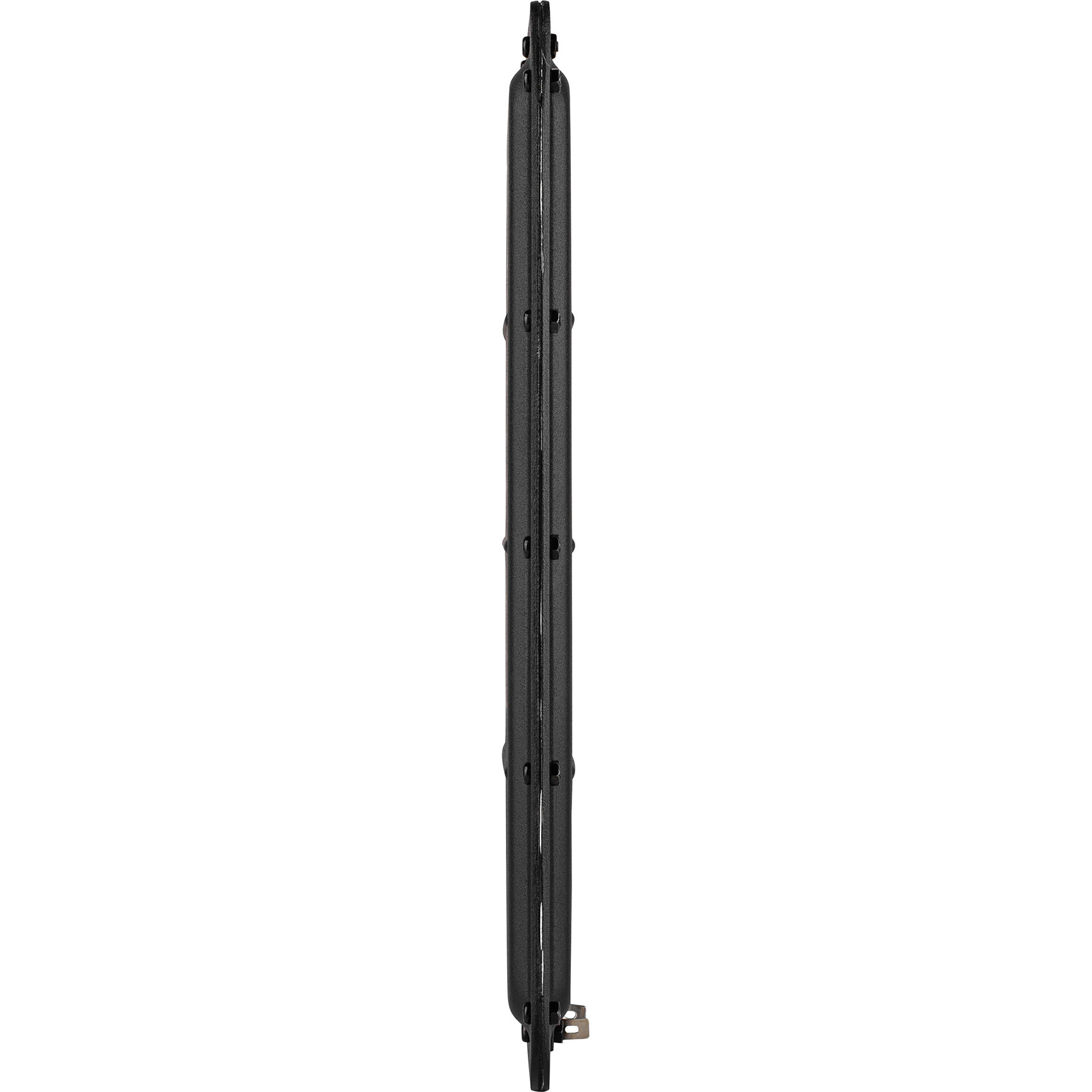

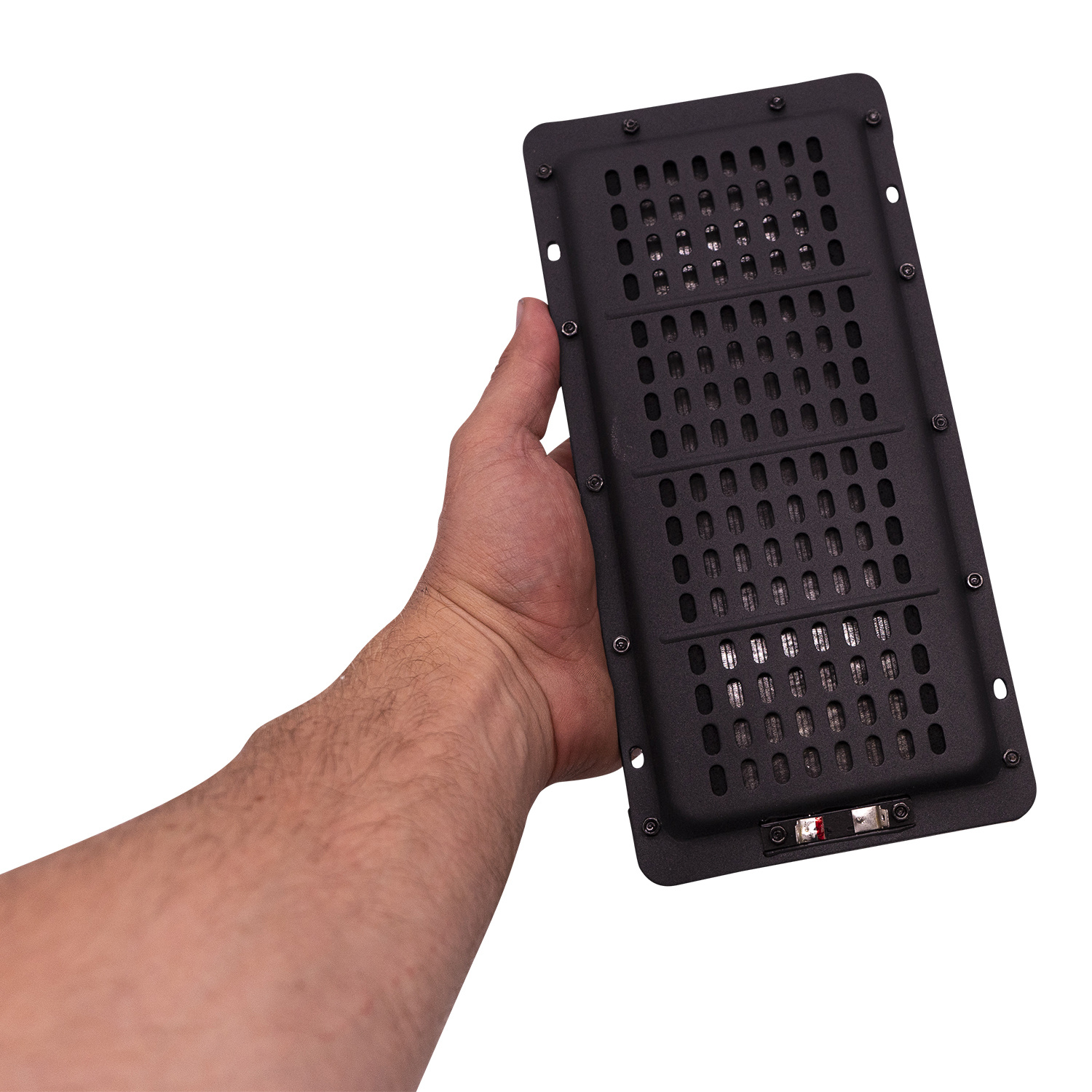

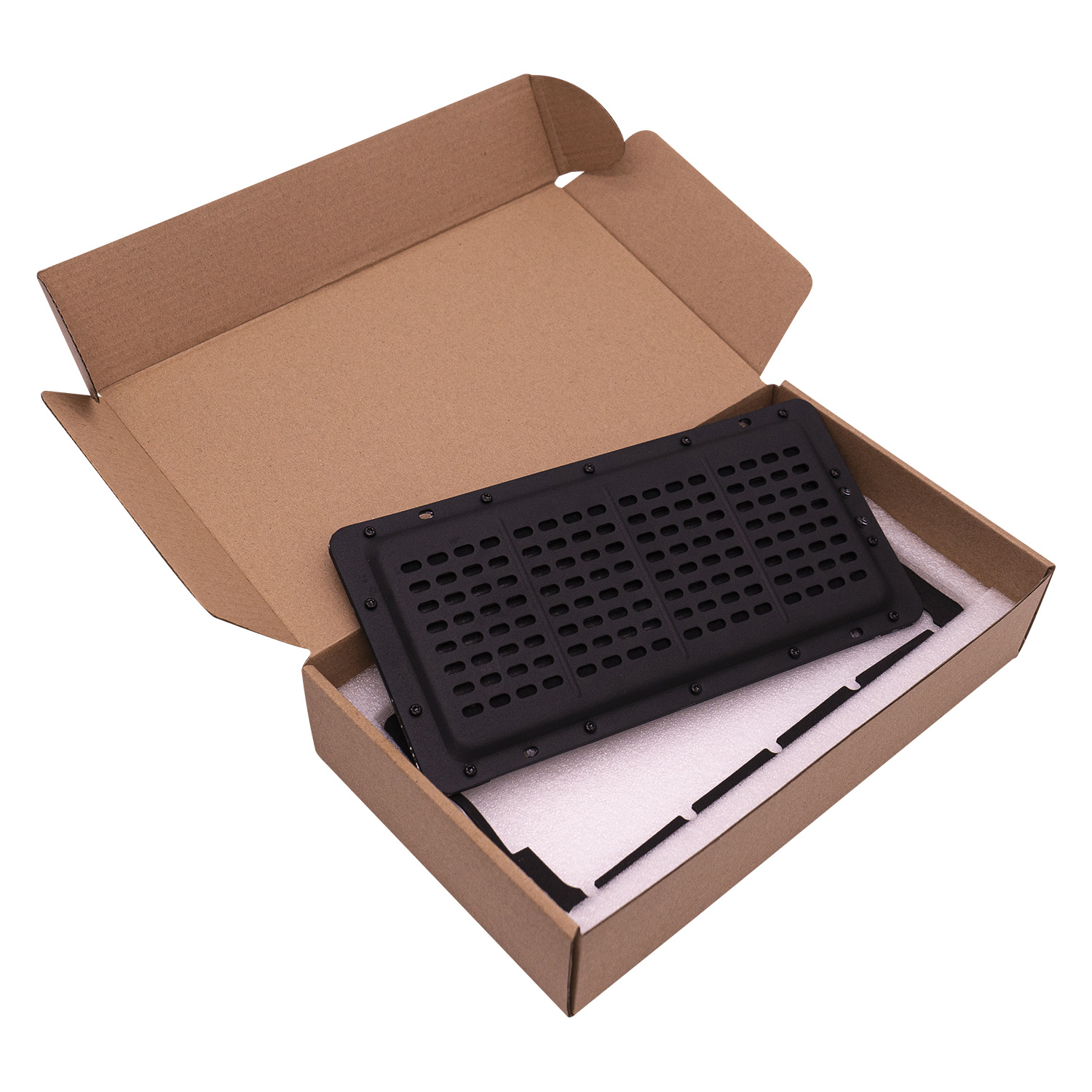

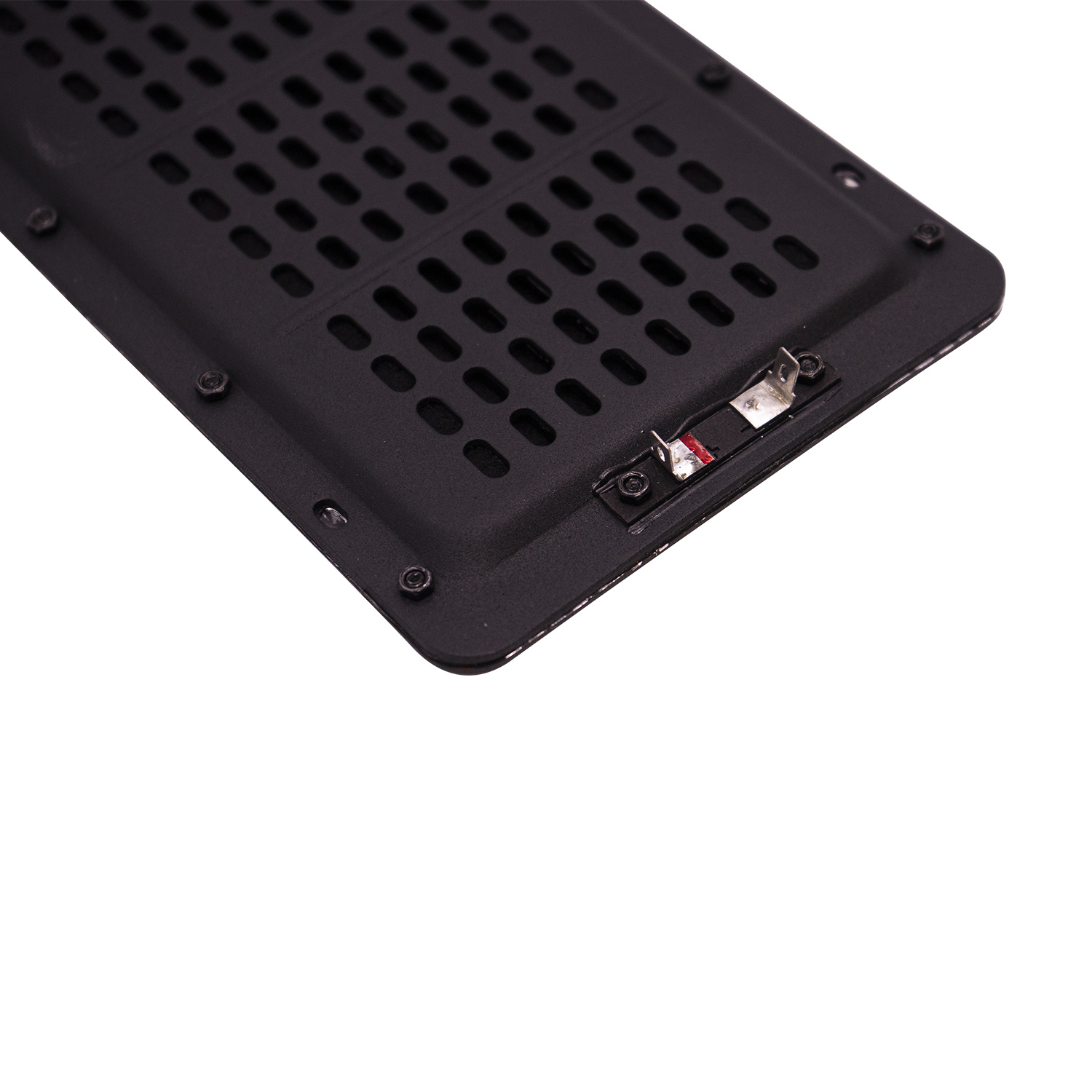

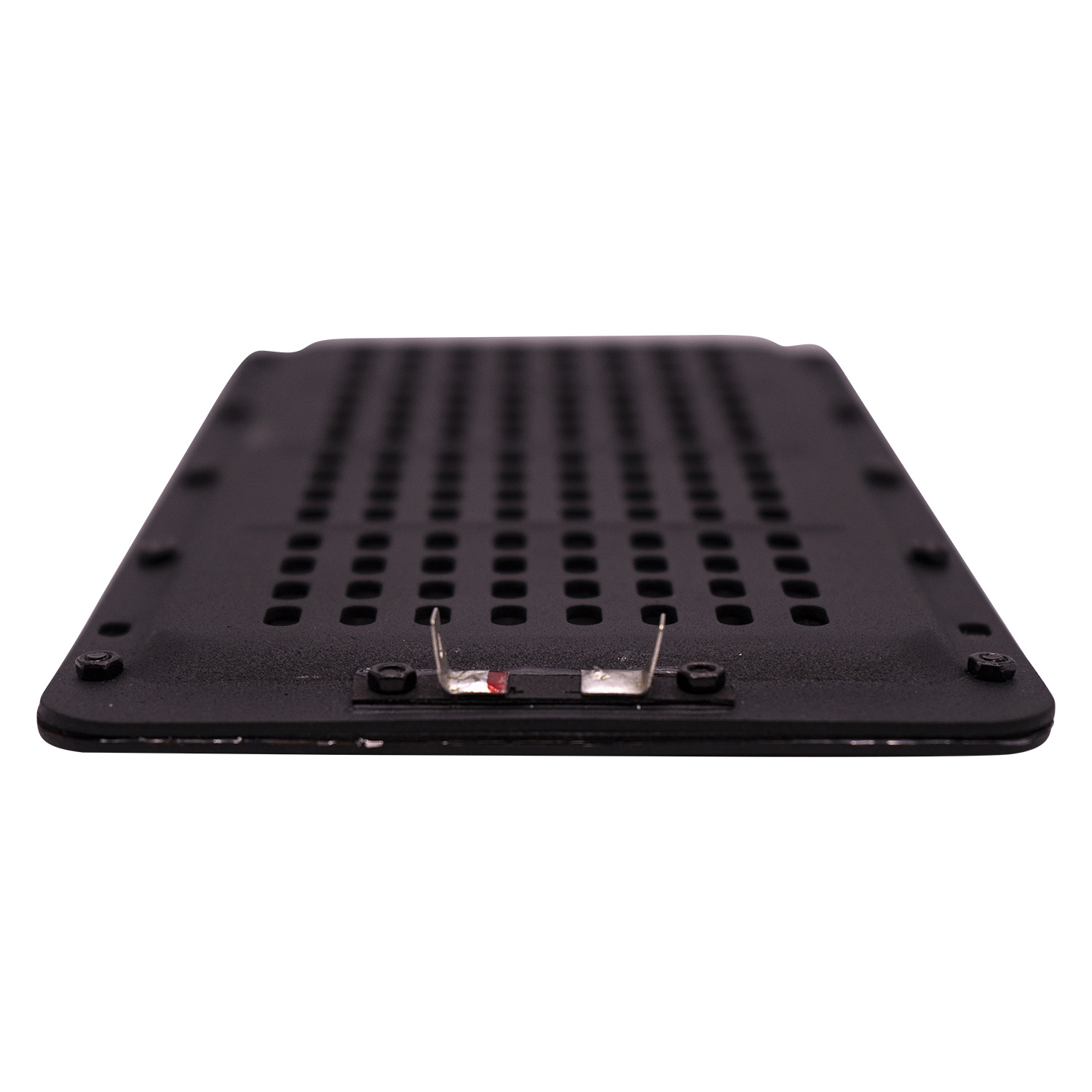

    GRS PT5010-8 10" Planar Mid/Tweeter 8 Ohm

    € 159,95 9 Op voorraad: levertijd 1 werkdag
    Capable of delivering extremely wide bandwidth with low distortion, the GRS PT5010-8 open back planar driver is designed to deliver natural midrange response while remaining accurate to the highest frequencies. With an extremely lightweight diaphragm and... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €151,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Capable of delivering extremely wide bandwidth with low distortion, the GRS PT5010-8 open back planar driver is designed to deliver natural midrange response while remaining accurate to the highest frequencies. With an extremely lightweight diaphragm and a neodymium motor system, this driver is capable of excellent transient response with amazing dynamics. The open back construction produces true dipole radiation which is ideal for use in open baffle designs.



    Highlights

    • Extremely low mass diaphragm provides excellent transient response and accuracy
    • Large diaphragm produces high efficiency with incredible dynamics
    • Remarkably wide bandwidth for predictable transition to woofer and tweeter drivers
    • Open back delivers true dipole radiation for use in open baffle designs
    • Linear impedance simplifies crossover design
    • Shallow mounting depth for use in low profile designs



    Product Details

    GRS PT5010-8 10" Planar Mid/Tweeter 8 Ohm



    With the ability to provide low distortion output from 300-8,000 Hz, the GRS PT5010-8 open back midrange/tweeter is an excellent choice for use in 2-way designs or even as a drop in replacement for many existing systems. Thanks to a lightweight damped Polyethylene Naphthalate film diaphragm driven by 56 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and detail. With a nearly linear 6.8 ohm impedance keeps crossover design simple with predictable final results. In addition, the open back design gives this midrange/tweeter true dipole radiation making it the perfect choice for use in high end open baffle speaker designs.

    Specificaties

    Artikelnummer
    PT5010-8
    Tweeter Type
    Planar
    Power Handling (RMS)
    70 Watts
    Impedance
    8 ohms
    Sensitivity
    94 dB 2.83V/1m
    Frequency Response
    200 to 8,000 Hz
    DC Resistance (Re)
    6.8 ohms
    Voice Coil Inductance (Le)
    0.01 mH
    Mechanical Q (Qms)
    2.14
    Total Q (Qts)
    1.96
    Overall Outside Diameter
    10.04" x 4.92"
    Cutout Diameter
    9.05" x 4.20"
    Depth
    0.6"

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Sehr guter Mittelhochtöner. Perfekt für Open Baffle Anwendungen. Ab 600 Hz sinnvoll einsetzbar!
    Door Bernhard W. on 20 Januari 2021
