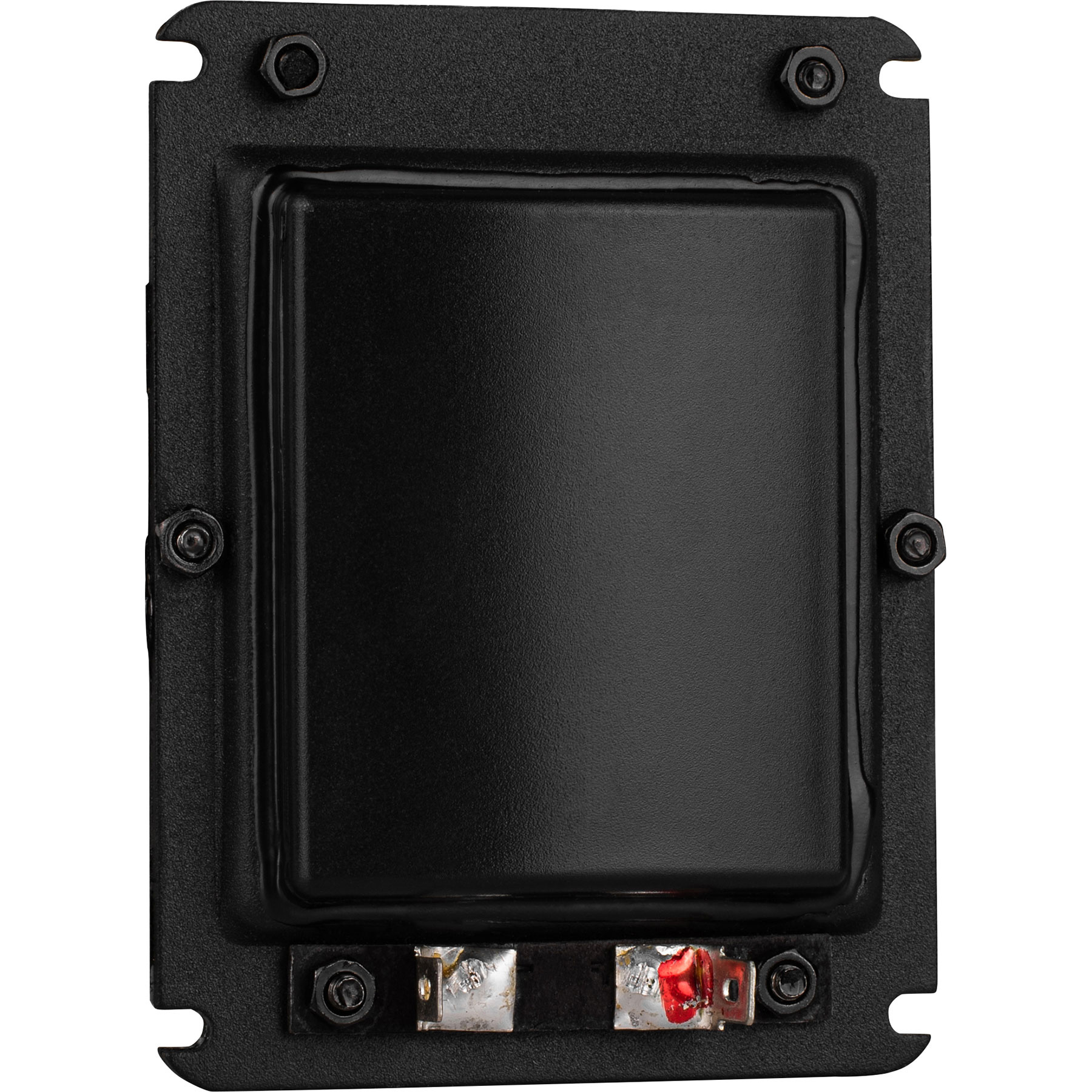

        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm

        GRS PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm

        €54,95

        10+ verwacht op 27-03-2026

        Toevoegen aan winkelwagen

        GRS PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm

        5 reviews
        4 van 5
        5 reviews
        5 sterren
        60%
        4 sterren
        20%
        3 sterren
        0%
        2 sterren
        20%
        1 ster
        0%
        Bekijk alle reviews
        Merk: GRS
        Toon alle Planar tweeter
        3.5" | 4 Ω
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        € 45,41€ 54,95 Niet op voorraad10+ verwacht op 27-03-2026
        • -5% Bestel 4 voor slechts € 52,20 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Snel weer op voorraad
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm
        PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm

        Productomschrijving GRS PT2522C-4 Planar Tweeter with Back Cup

        With a low mass diaphragm and powerful motor, the GRS PT2522C-4 planar sealed back tweeter delivers high efficiency output with excellent transient response. The low profile sealed back allows this tweeter to be installed easily into conventional speakers without the need for a separate sub-enclosure. Remarkably smooth frequency response gives the PT2522C-4 an incredibly natural but dynamic sound.



        Highlights

        • Extremely low mass diaphragm provides excellent transient response and accuracy
        • Large diaphragm produces high efficiency and wide bandwidth
        • Multiple neodymium magnets in push pull arrangement for incredible control and low distortion
        • Remarkably flat response even at 30 degrees off axis
        • Linear impedance simplifies crossover design

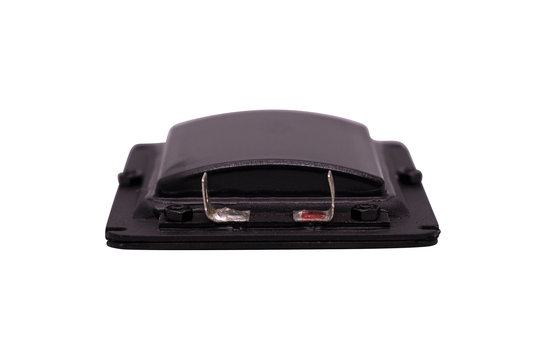

        • Shallow mounting depth for use in low profile designs



        Product Details

        GRS PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm

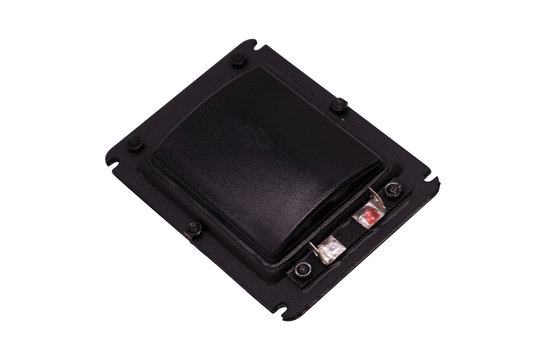

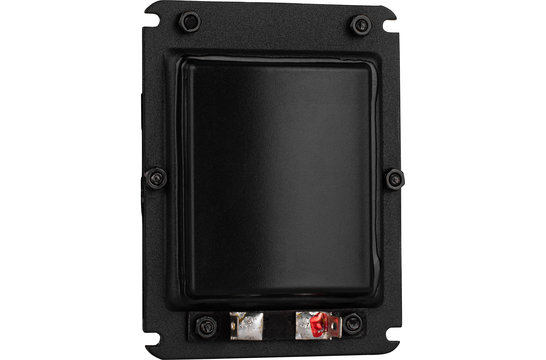

        The GRS PT2522C-4 sealed back planar tweeter is designed to deliver high efficiency with extremely smooth response. Thanks to a lightweight damped Polyethylene Naphthalate film diaphragm that is driven by 6 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and low distortion. The linear 3.4 ohm impedance makes crossover design simple and minimizes the number of components required to achieve your required roll off. In addition, the low profile sealed rear chamber isolates the rear side of the diaphragm for simple installation into conventional enclosures. The PT2522C-4 is a perfect choice for use as a drop in replacement in existing systems or for use in new designs where low distortion and accurate response is needed.

        Toon meer

        Specificaties

        Artikelnummer
        PT2522C-4
        EAN
        0848864061221
        Tweeter type
        Planar
        Belastbaarheid (RMS)
        20 Watts
        Impedantie (Z)
        4 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        94 dB
        Frequentierespons
        1,800 to 20,000 Hz
        Gelijstroomweerstand (Re)
        3.4 ohms
        Voice Coil Inductance (Le)
        0.01 mH
        Totale Q (Qts)
        4.46
        Totale buitendiameter
        3.5" x 2.66"
        Montagegatdiameter
        2.87" x 2.3"
        Diepte
        0.70"

        Toon meer

        Reviews

        5 reviews
        Schrijf een review
        2 van 5
        Qualität schwankt sehr; Toleranzen der Daten und der Übertragungslinie sind zu groß. So kann ich den verbliebenen GRS (=great replacement speaker) nicht als Ersatz für einen defekten Neo PRD nutzen. Nicht mal das "Gehäuse" passte. Die Nachbauten haben Verschraubungen und keine Flachniete. Passt so nicht in die originale Front. Liegt jetzt halt so rum. Schade!
        Door Martin on 3 Februari 2026
        5 van 5
        I already had two of these tweeters but I needed a third one, very fast order preparation and delivery. Thank you ! This tweeter works very well but it needs to be calmed upper 10 kHz. The frequency response is rising, see attached file.
        Door Jean-Yves on 2 Juni 2025
