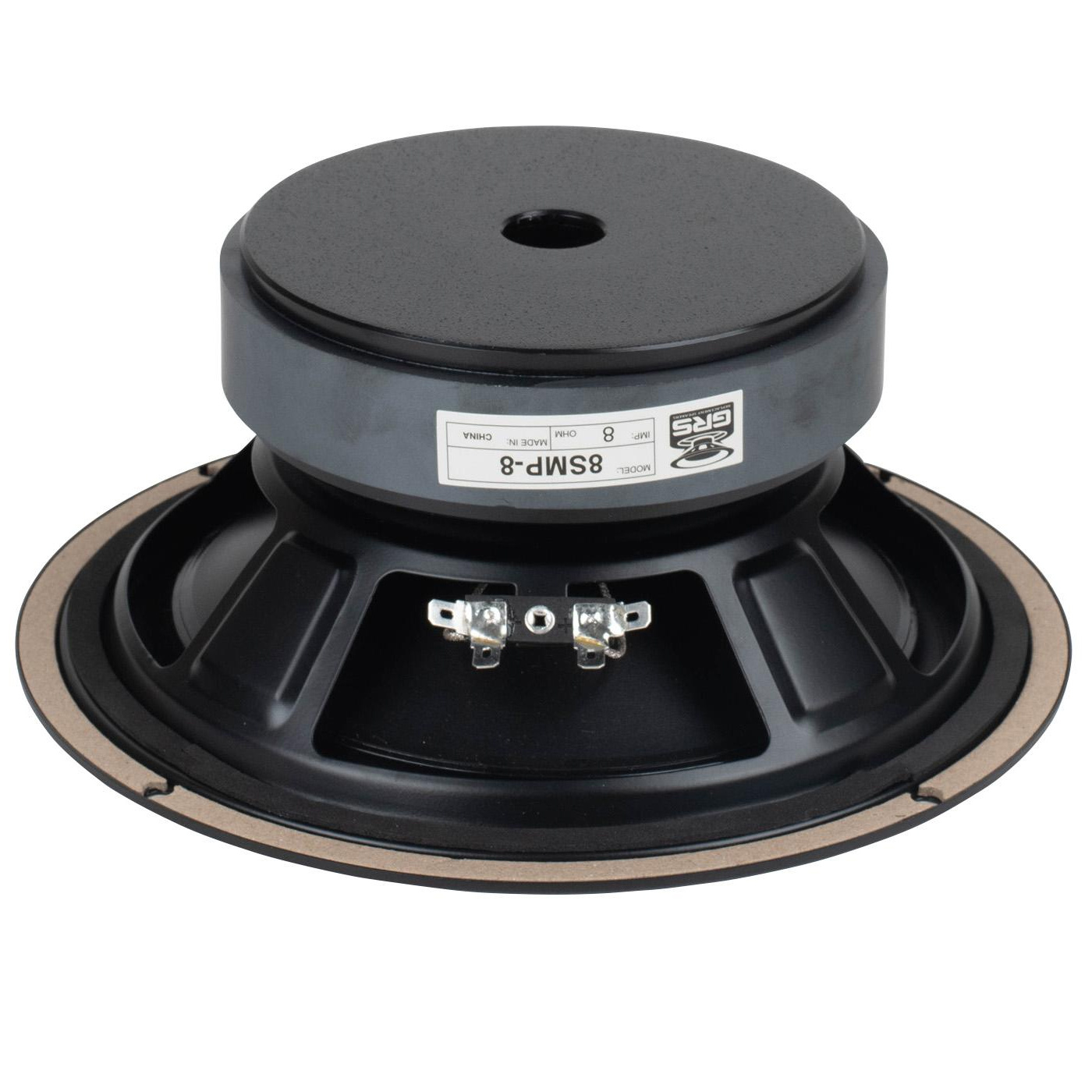

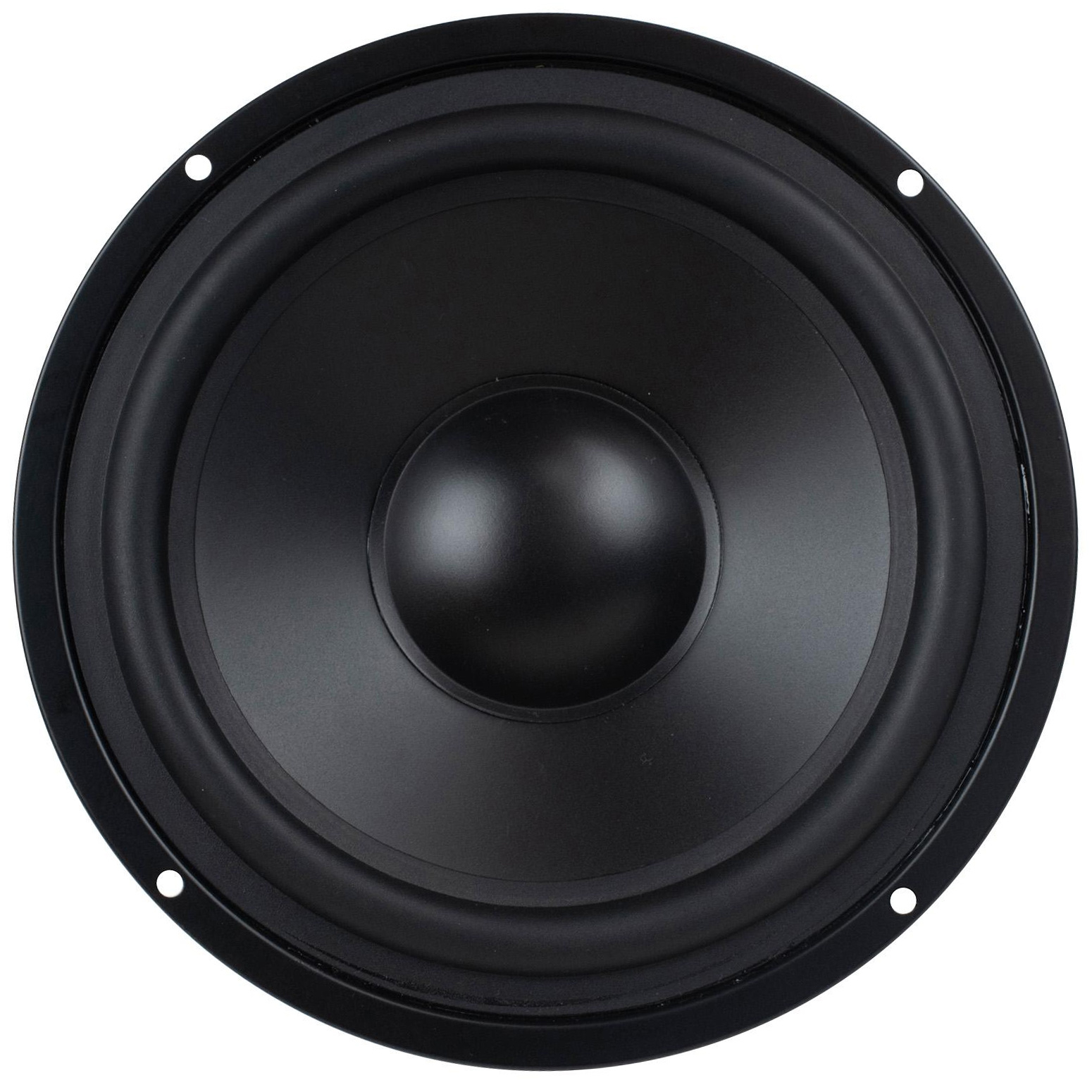

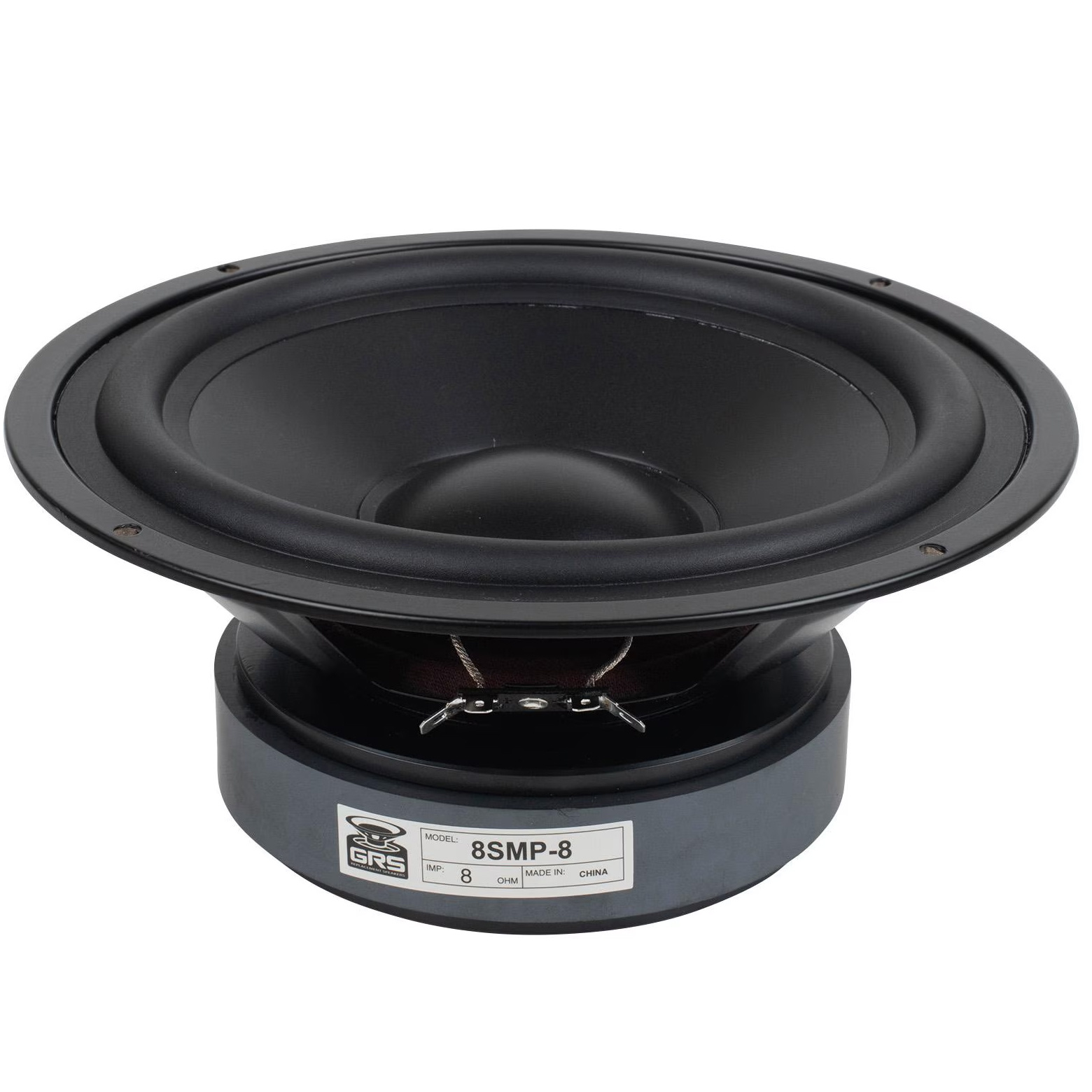

        8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer

        GRS 8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer

        €49,95

        10+ verwacht op 19-12-2025

        Toevoegen aan winkelwagen

        GRS 8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: GRS
        Toon alle Nieuwe producten
        8" | 8 Ω
        8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer
        8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer
        8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer
        8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer
        8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer
        8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer
        € 41,28€ 49,95 Niet op voorraad10+ verwacht op 19-12-2025
        • -5% Bestel 4 voor slechts € 47,45 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Snel weer op voorraad
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer
        8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer
        8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer
        8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer
        8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer
        8SMP-8 8" Surface Mount Poly Cone Bass-midwoofer

        Productomschrijving GRS 8SMP-8 Bass-midwoofer

        The GRS 8SMP-8 is a 8" surface-mount woofer built for precision and performance in tight spaces. With an 8-ohm impedance, high excursion, and carefully engineered thermal management, this driver is a solid fit for full-range or two-way speaker systems where efficiency, clarity, and installation flexibility are key.



        Highlights of the GRS 8SMP-8

        • Poly cone with rubber surround ensures damped, smooth response with controlled resonance
        • Copper cap reduces voice coil inductance and improves high-frequency performance
        • 5.5 mm Xmax and 60W RMS power handling enable clean, dynamic bass output
        • Low-profile frame with integrated foam gasket supports airtight surface-mount installation



        Product details GRS 8SMP-8

        GRS 8SMP-8 Surface Mount Woofer



        The GRS 8SMP-8 is a 8" 8-ohm woofer specifically engineered for surface-mount applications. It features a damped poly cone with a rubber surround that minimizes unwanted resonances, delivering a usable frequency range from 30 Hz to 1,500 Hz. Its motor system includes a copper cap that reduces distortion by lowering inductance, and a vented pole piece that supports better cooling during high-power operation. The 25 mm voice coil uses an aluminum former to enhance heat transfer and maintain stability under load. With an SPL of 89.5 dB @ 2.83V/1m and an Xmax of 5.5 mm, the 8SMP-8 offers solid midbass performance and moderate low-end extension. It's ideal for high-quality compact speaker designs, line arrays, or custom audio installations requiring precise, low-profile mounting solutions.

        Toon meer

        Specificaties

        Artikelnummer
        8SMP-8
        EAN
        0848864079851
        Woofer type
        Bass-midwoofer
        Belastbaarheid (RMS)
        60 Watts
        Impedantie (Z)
        8 Ohm
        Gevoeligheid (SPL bij 1m / 2.83V)
        89.5 dB
        Frequentierespons
        30 – 1,500 Hz
        Spreekspoeldiameter
        39 mm
        Gelijkstroomweerstand (Re)
        5.8 Ohm
        Spreekspoelinductie (Le)
        0.41 mH
        Resonantiefrequentie (Fs)
        41 Hz
        Mechanische Q (Qms)
        2.85
        Elektrische Q (Qes)
        0.55
        Totale Q (Qts)
        0.46
        Bewegende massa (Mms)
        29.5g
        Compliantie van de ophanging (Cms)
        0.51 mm/N
        Effectief oppervlak (Sd)
        211 cm²
        Maximaal verplaatst volume (Vd)
        116 cm³
        Krachtsfactor (BL)
        8.95 Tm
        Equivalentvolume (Vas)
        32.5 L
        Maximale excursie (Xmax)
        5.5 mm
        # Bevestigingsgaten
        4
