    GRS 8FR-8 Full-Range 8" Speaker Pioneer Type B20FU20-51FW

    € 16,95 >10 Op voorraad: levertijd 1 werkdag
    The GRS 8FR-8 full-range 8" speaker is engineered to withstand rigorous commercial use, but will also deliver great results when used in point-source hi-fi applications.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -10% Bestel 4 voor slechts €15,26 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    The GRS 8FR-8 full-range 8" speaker is engineered to withstand rigorous commercial use, but will also deliver great results when used in point-source hi-fi applications.



    Highlights

    • Replacement for Pioneer B20FU20-51FW
    • GRS quality construction
    • 1 year warranty
    • Superb multipurpose speaker for DIY projects



    Product details

    GRS 8FR-8 Full-Range 8" Speaker Pioneer Type B20FU20-51FW

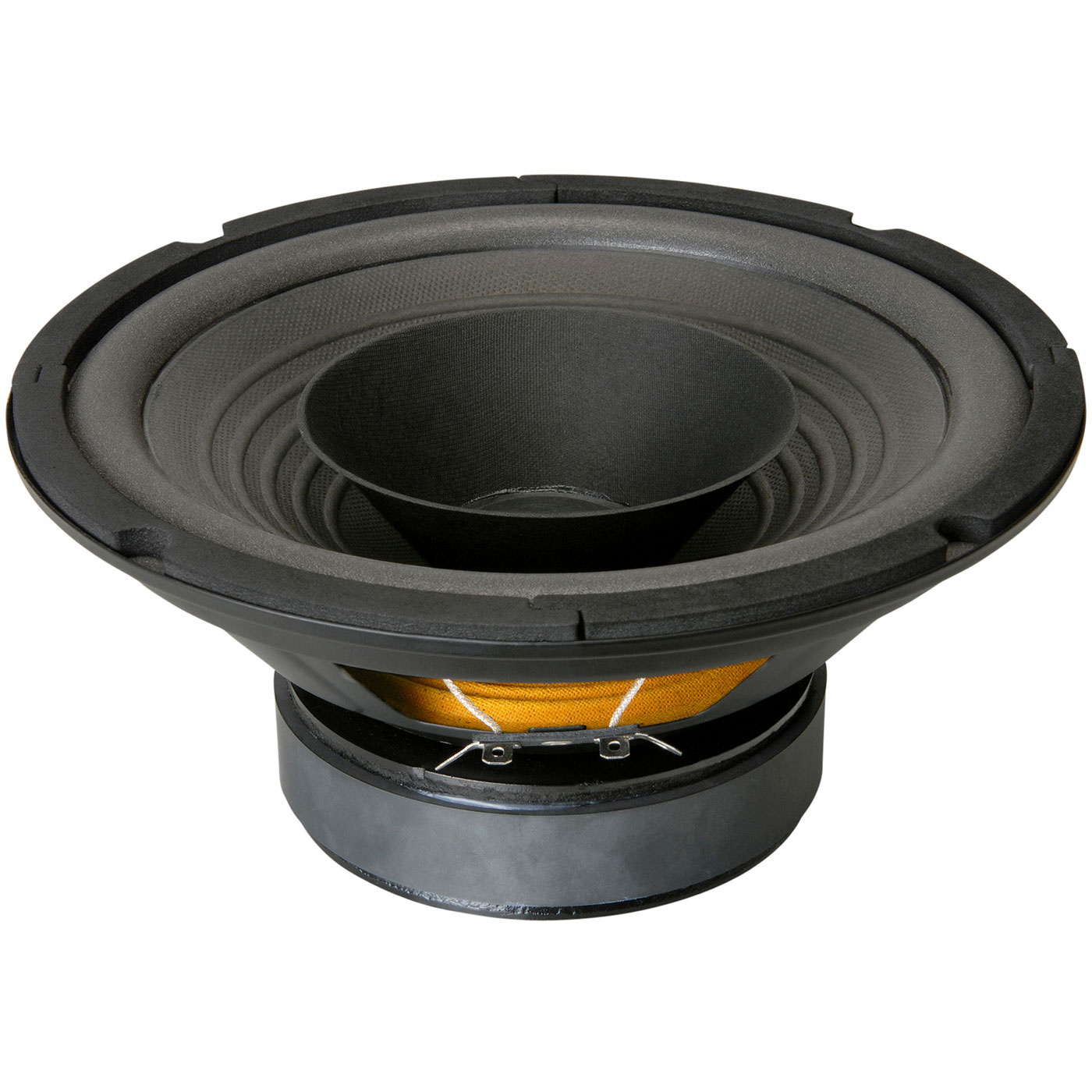

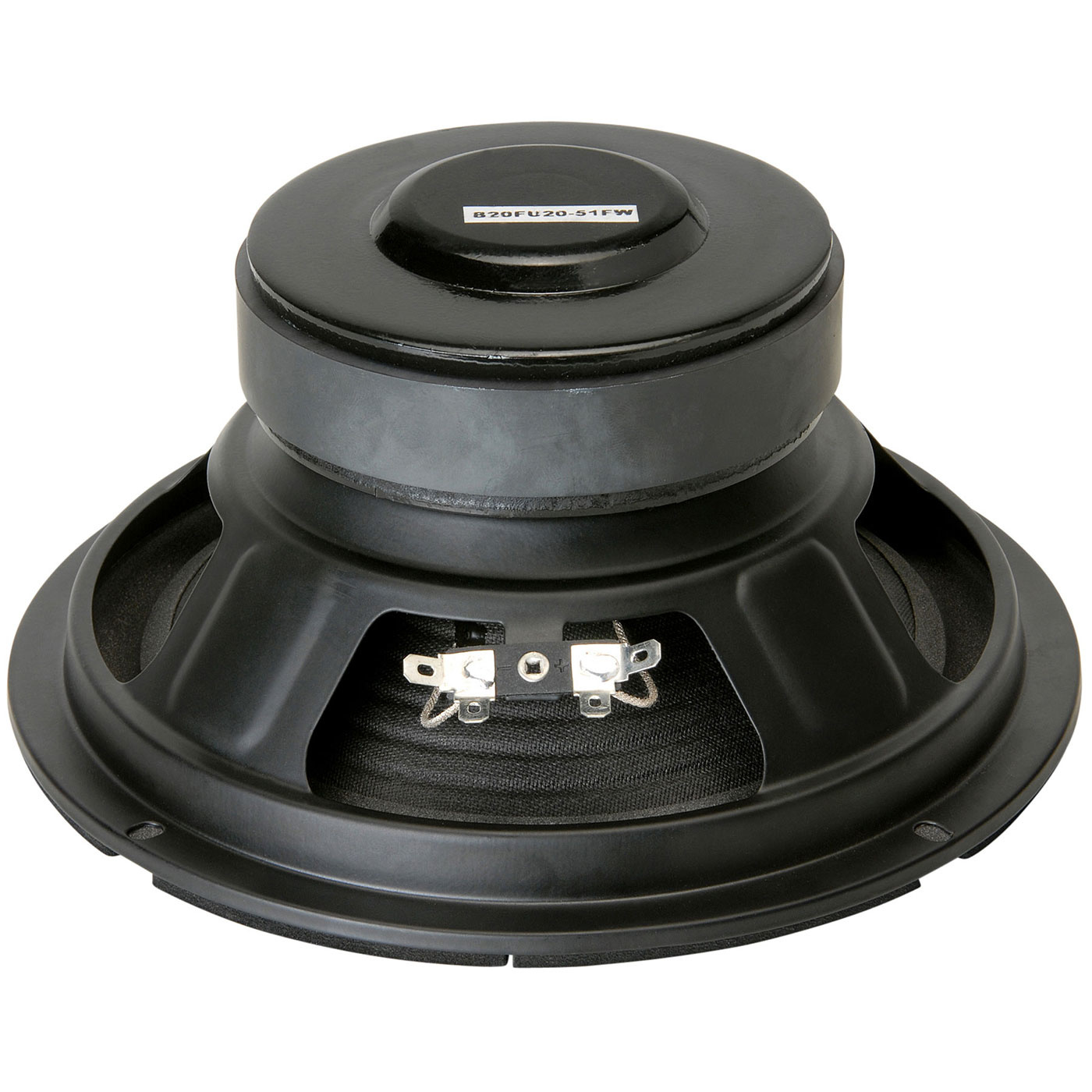

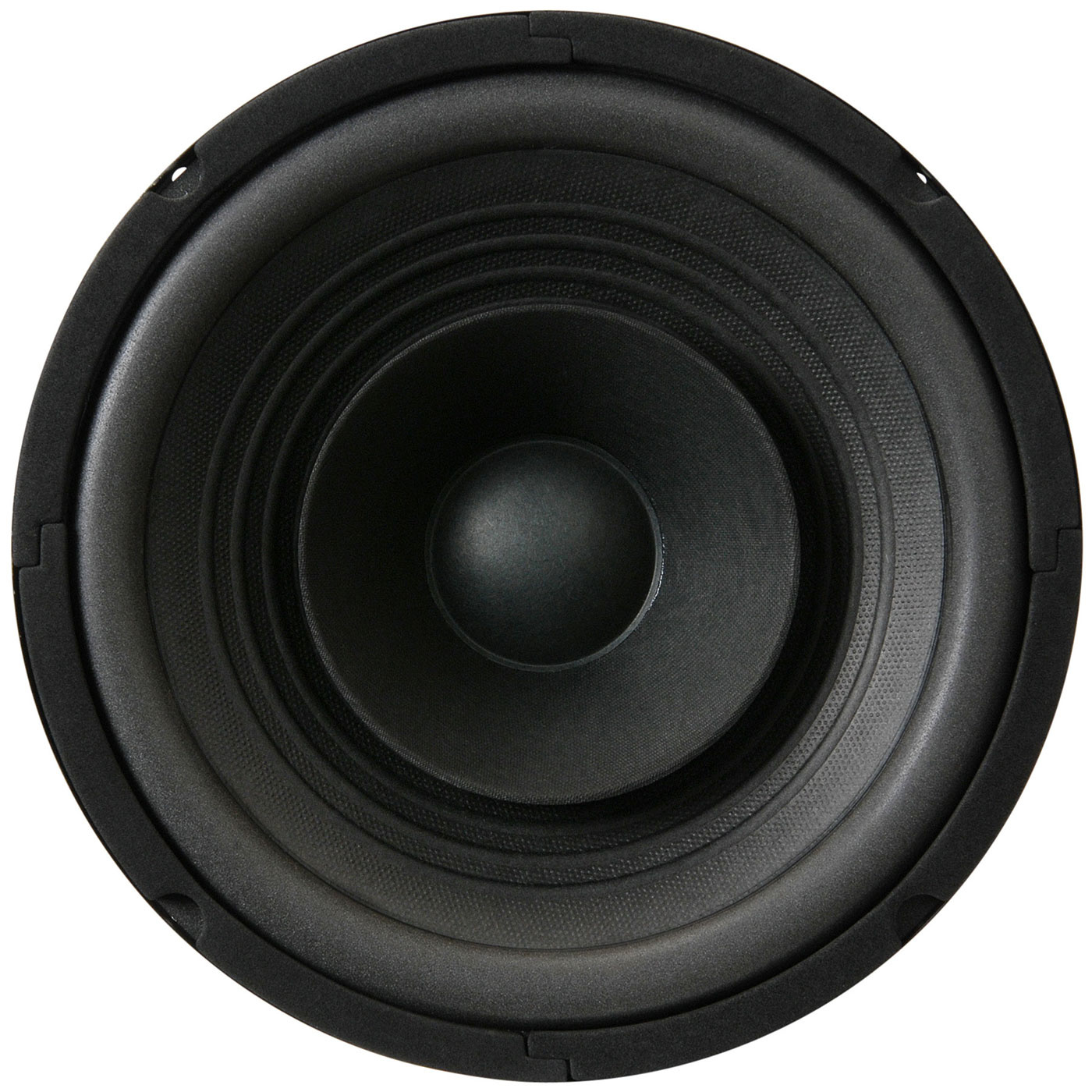

    The GRS 8FR-8 full-range 8" speaker features a paper cone with poly foam surround. A whizzer cone extends high frequency response and dispersion. Engineered to withstand rigorous commercial use, this driver will also deliver great results when used in point-source hi-fi applications. Affordable pricing makes it perfect for DIY applications. Ideal replacement for the Pioneer B20FU20-51FW (also known in DIY communities as the BOFU)



    Specificaties

    Artikelnummer
    8FR-8
    Woofer Series
    Replacement woofer
    Woofer Type
    Full-range
    Nominal Diameter
    8"
    Power Handling (RMS)
    60 Watts
    Power Handling (max)
    85 Watts
    Impedance
    8 ohms
    Sensitivity
    91 dB 1W/1m
    Frequency Response
    39 to 16,000 Hz
    Voice Coil Diameter
    1.5"
    DC Resistance (Re)
    7.02 ohms
    Voice Coil Inductance (Le)
    1.28 mH
    Resonant Frequency (Fs)
    39 Hz
    Mechanical Q (Qms)
    2.94
    Electromagnetic Q (Qes)
    0.46
    Total Q (Qts)
    0.4
    Compliance Equivalent Volume (Vas)
    2.26 ft.³
    Maximum Linear Excursion (Xmax)
    3 mm
    Cone / Diaphragm Material
    Paper
    Magnet Material
    Ferrite
    Overall Outside Diameter
    8"
    Overall Depth
    3.875"
    Baffle Cutout Diameter
    7.25"
    # Mounting Holes
    4
    Sealed Volume
    0.71 ft.³
    Sealed F3
    78 Hz
    Vented Volume
    1.76 ft.³
    Vented F3
    43 Hz
