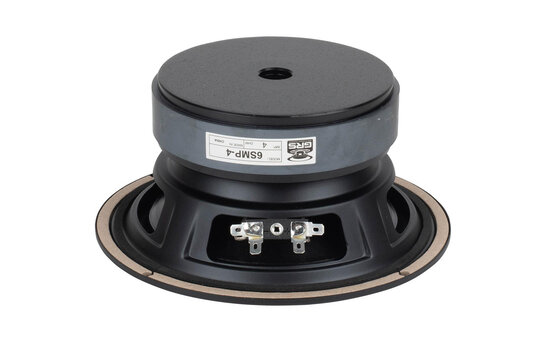

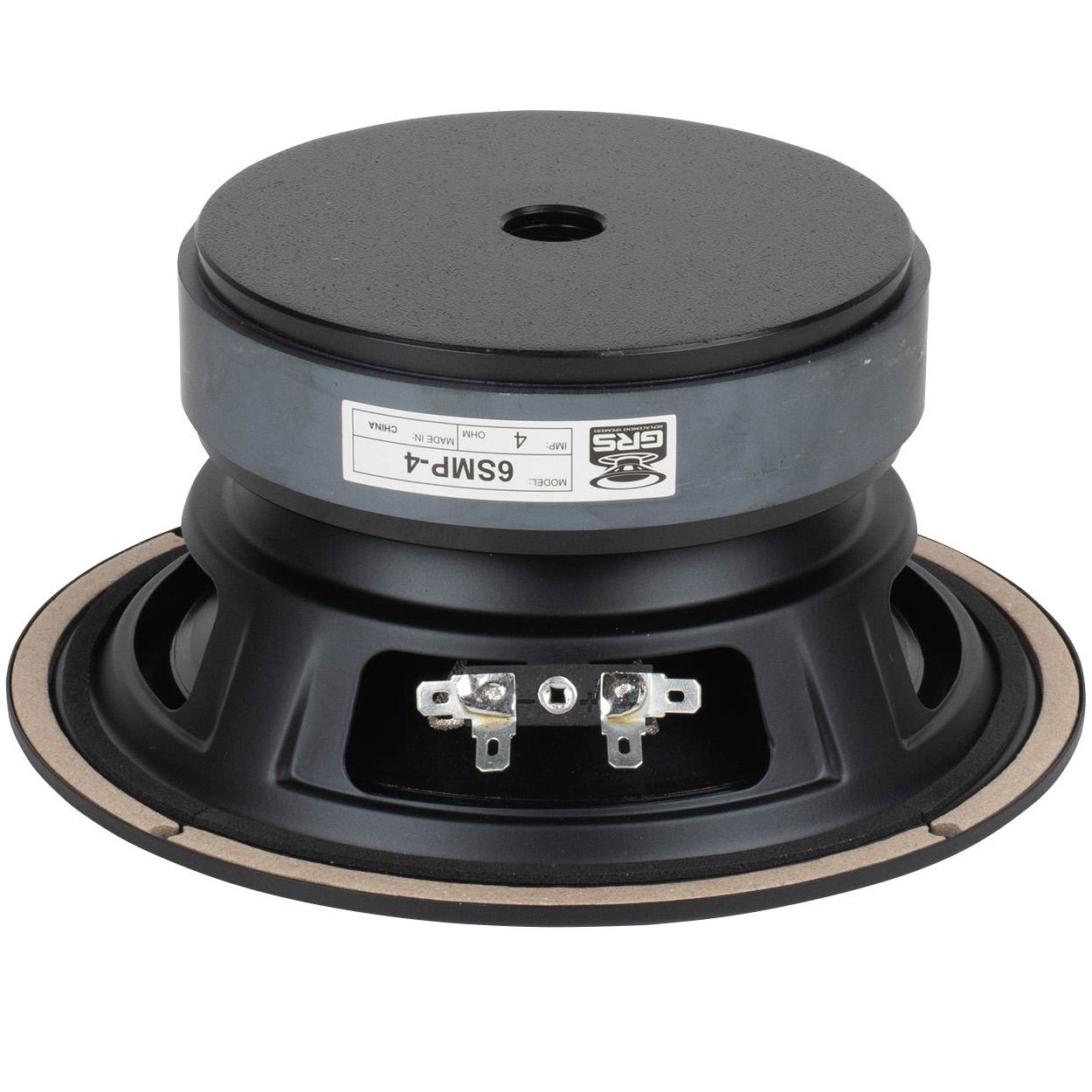

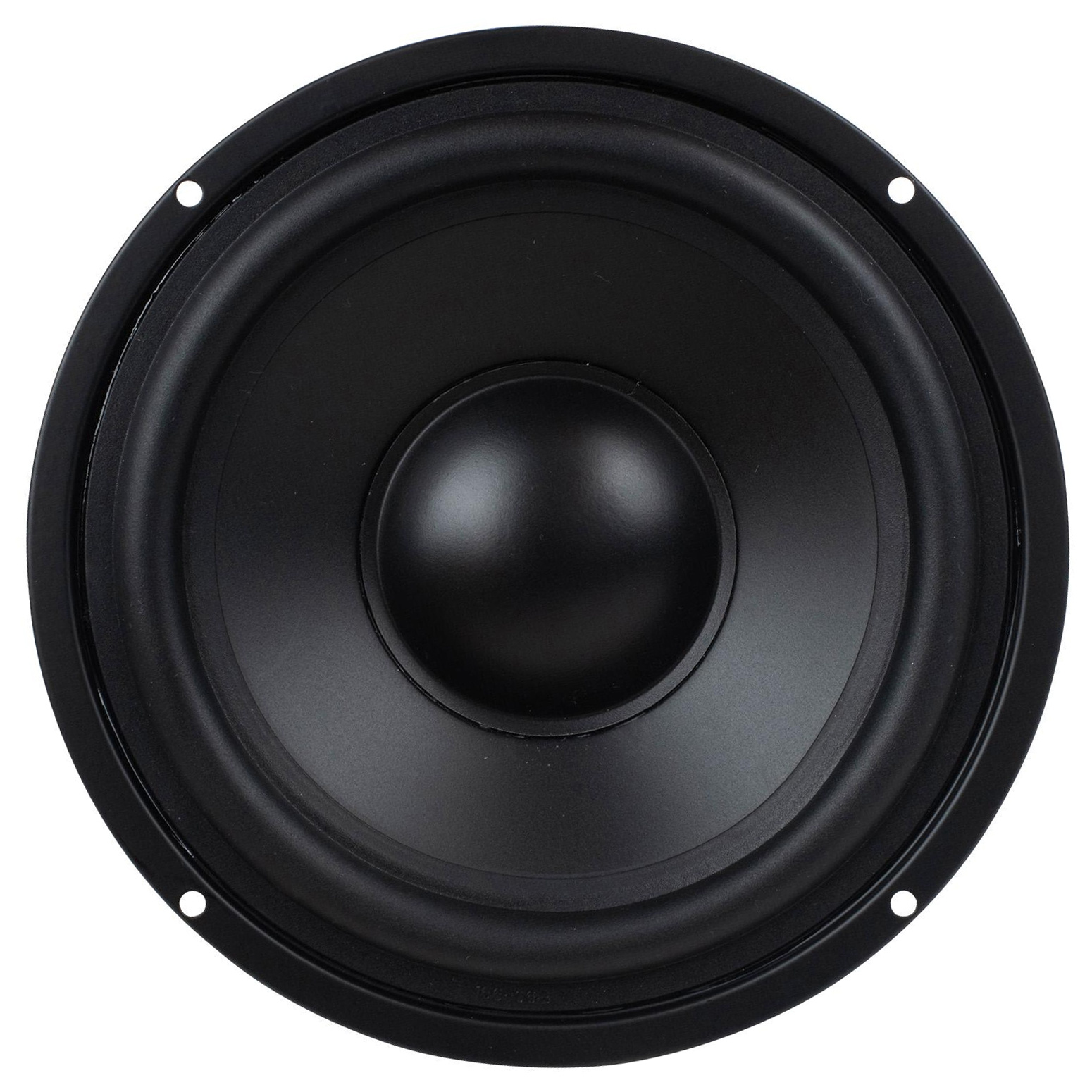

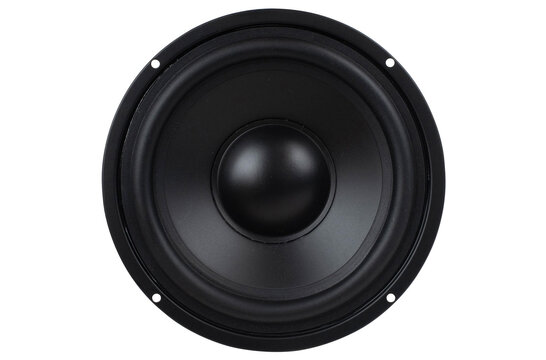

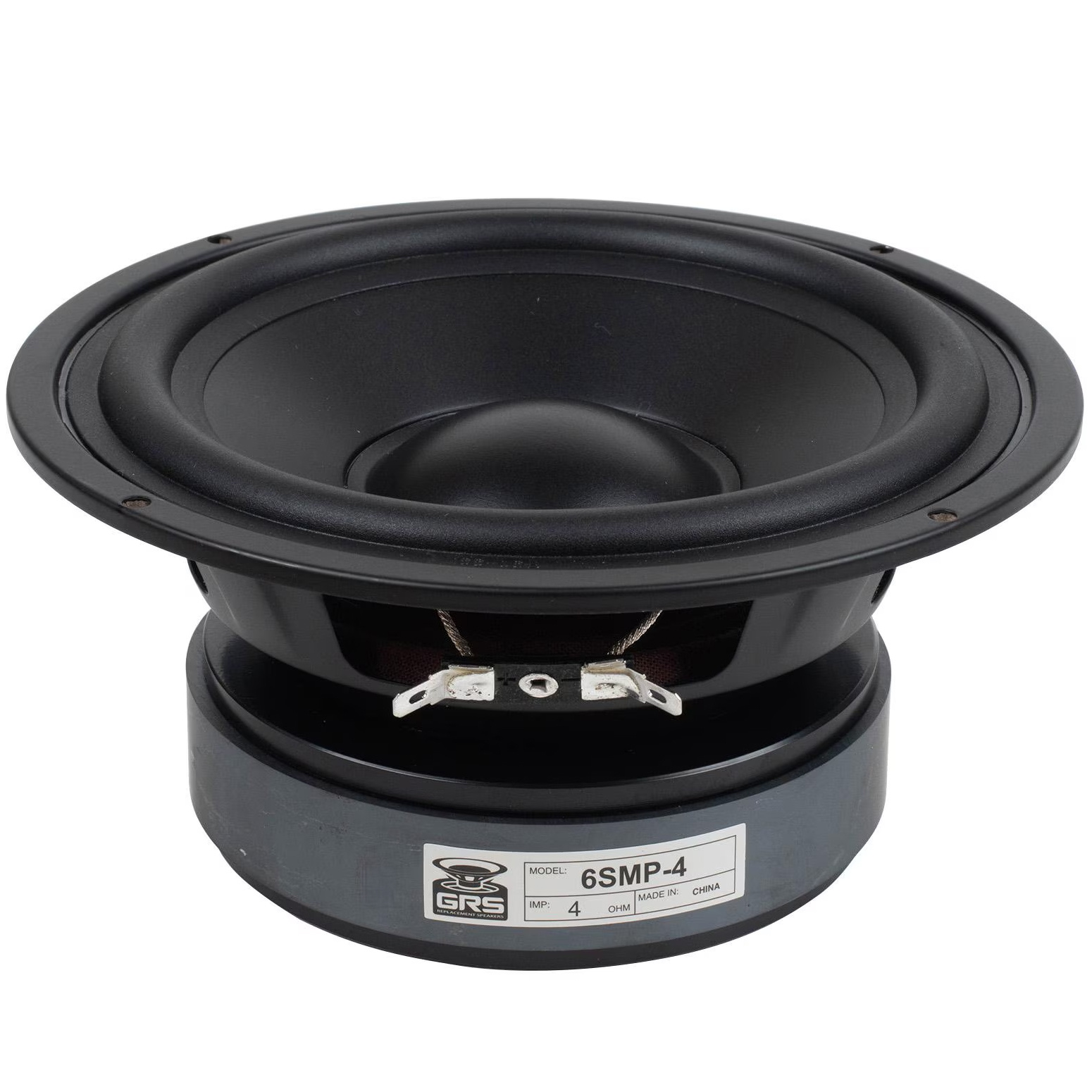

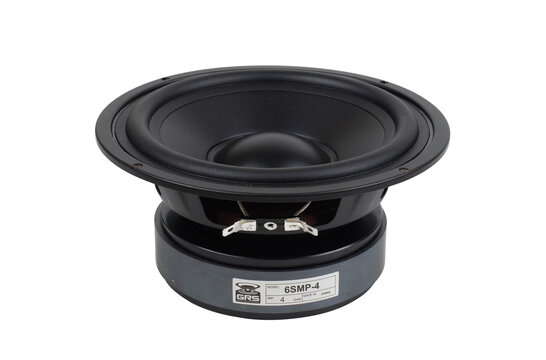

        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer

        GRS 6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer

        €39,95

        10+ verwacht op 19-12-2025

        Toevoegen aan winkelwagen

        GRS 6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: GRS
        Toon alle Nieuwe producten
        6.5" | 4 Ω
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        € 33,02€ 39,95 Niet op voorraad10+ verwacht op 19-12-2025
        • -5% Bestel 4 voor slechts € 37,95 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Snel weer op voorraad
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer
        6SMP-4 6-1/2" Surface Mount Poly Cone Bass-midwoofer

        Productomschrijving GRS 6SMP-4 Bass-midwoofer

        The GRS 6SMP-4 is a robust 6-1/2" poly cone woofer optimized for surface mounting. With strong midbass performance, extended excursion, and smart thermal features, it’s ideal for compact audio systems, line arrays, or custom speaker builds that demand clarity and efficiency from a low-profile design.



        Highlights of the GRS 6SMP-4

        • High-excursion design with 5 mm Xmax for deep and accurate bass
        • Aluminum voice coil former supports superior heat dissipation and power handling
        • Copper cap minimizes inductance and reduces distortion at higher frequencies
        • Low-profile frame and integrated foam gasket for efficient surface mounting



        Product details GRS 6SMP-4

        GRS 6SMP-4 Surface Mount Woofer



        The GRS 6SMP-4 is a 6-1/2" 4-ohm surface-mount woofer designed with performance and practicality in mind. Its damped poly cone and rubber surround ensure clean response with minimal resonance, while the 5 mm Xmax allows for high-output, low-distortion bass extension down to 40 Hz. The voice coil features an aluminum former for effective heat transfer, and a copper cap on the pole reduces inductance for cleaner high-frequency performance. With a sensitivity of 90.2 dB @ 2.83V/1m and 50 watts RMS power handling, the 6SMP-4 is well-suited for high-efficiency DIY loudspeaker projects, midbass reinforcement, or compact two-way designs. A vented pole piece helps maintain performance under load, and the integrated gasket ensures an airtight seal in cabinet builds.

        Toon meer

        Specificaties

        Artikelnummer
        6SMP-4
        EAN
        0848864079820
        Woofer type
        Bass-midwoofer
        Belastbaarheid (RMS)
        50 Watts
        Impedantie (Z)
        4 Ohm
        Gevoeligheid (SPL bij 1m / 2.83V)
        90.2 dB
        Frequentierespons
        40 – 2,500 Hz
        Spreekspoeldiameter
        39 mm
        Gelijkstroomweerstand (Re)
        3.7 Ohm
        Spreekspoelinductie (Le)
        0.29 mH
        Resonantiefrequentie (Fs)
        45 Hz
        Mechanische Q (Qms)
        2.73
        Elektrische Q (Qes)
        0.45
        Totale Q (Qts)
        0.39
        Bewegende massa (Mms)
        21g
        Compliantie van de ophanging (Cms)
        0.60 mm/N
        Effectief oppervlak (Sd)
        136 cm²
        Maximaal verplaatst volume (Vd)
        68.4 cm³
        Krachtsfactor (BL)
        7.0 Tm
        Equivalentvolume (Vas)
        15 L
        Maximale excursie (Xmax)
        5 mm
        # Bevestigingsgaten
        4

        Toon meer
