        6PT-8  Midbass Woofer

        6PT-8 Midbass Woofer

        €26,45

        GRS 6PT-8 Midbass Woofer

        2 reviews
        5 van 5
        2 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: GRS
        € 21,86€ 26,45 10+ Op voorraad
        • -5% Bestel 4 voor slechts € 25,13 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        The GRS 6PT-8 6-1/2” professional paper cone woofer will deliver high output midbass and midrange response without breaking the bank. Packed with features like a 1.6” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability. Whether you need a drop-in replacement for a damaged loudspeaker or you are designing a high output 2 or 3-way system, the 6PT-8 is the perfect driver for budget builds.



        Highlights

        • Lightweight damped paper cone allows high efficiency with minimal resonance
        • Smooth on and off axis response for use in high output 2 or 3-way designs
        • Extensive venting keeps cool air flowing across the voice coil to minimize power compression
        • Inductance lowering copper cap reduces distortion and extends high frequency response
        • Spring-loaded push-button terminals makes wire connections quick and easy
        • Foam front gasket ensures an airtight seal for rear mount installations



        Product details

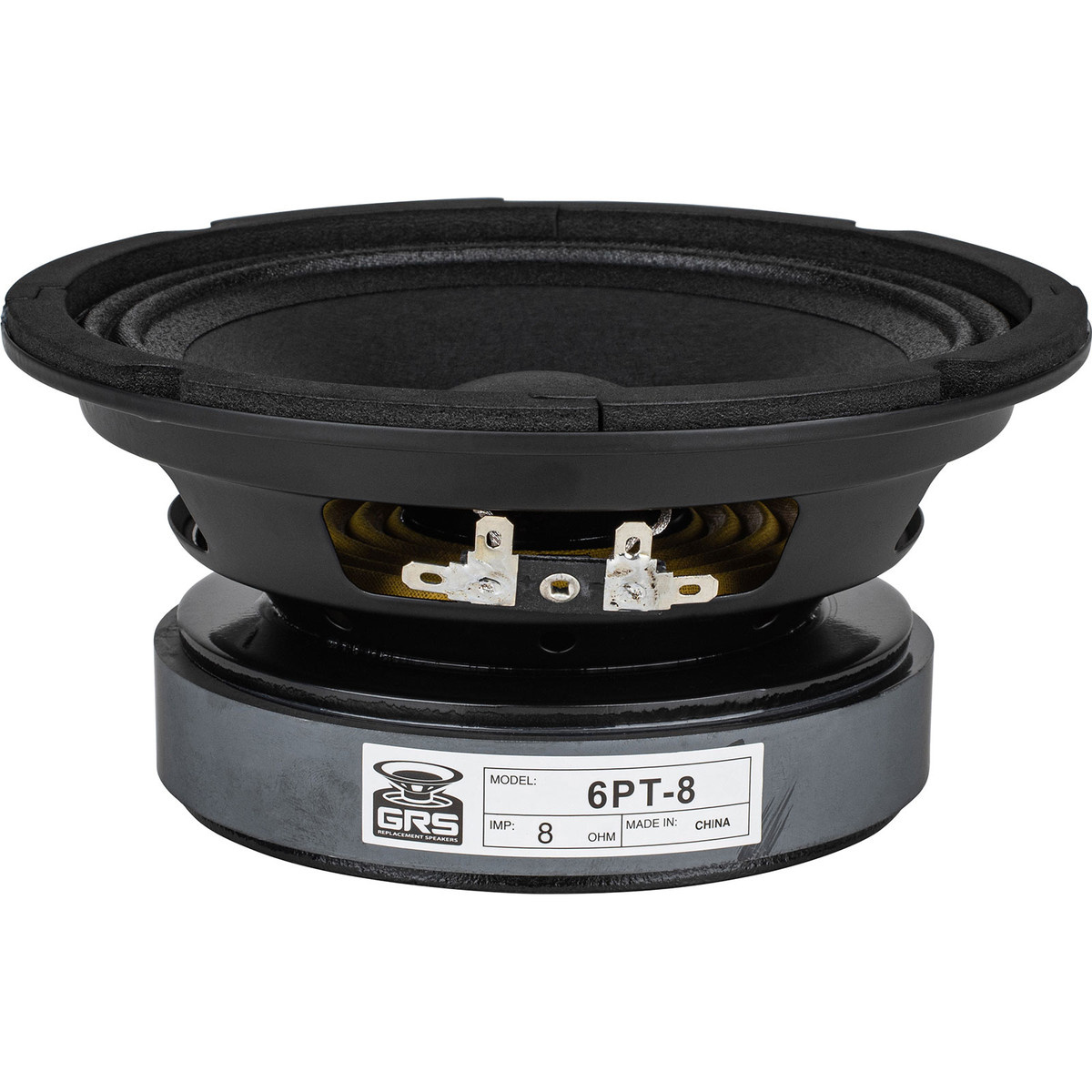

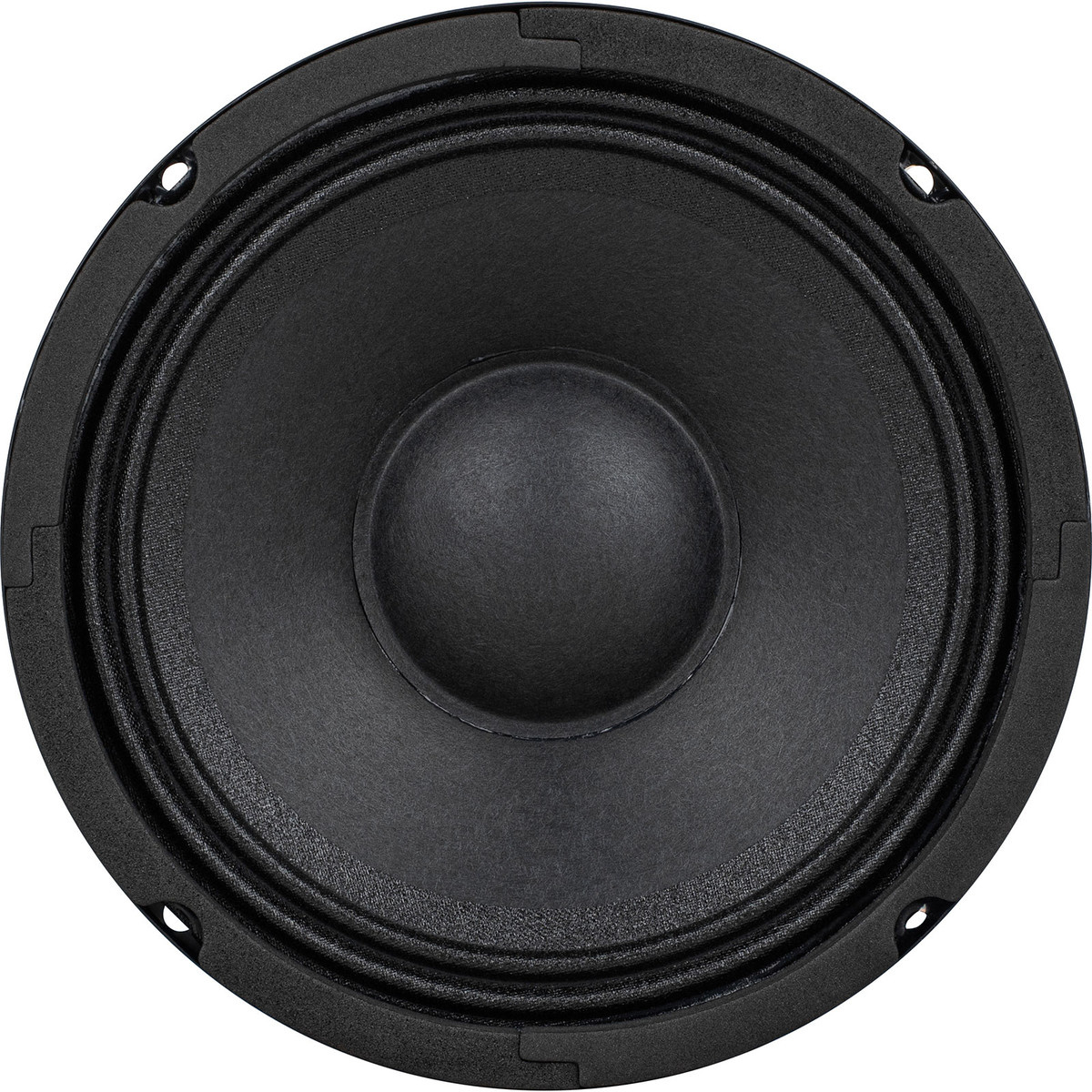

        GRS 6PT-8 6-1/2" Paper Cone Professional Midbass Woofer 8 Ohm



        Engineered for high output with smooth frequency response, the 6PT-8 6-1/2” professional woofer is ideal for use in systems built to provide impressive SPL. Packed with features you would expect from much more expensive drivers, the 6PT-8 is built for low distortion and reliability even when pushed to its limit. The lightweight reinforced paper cone has excellent damping properties, minimizing unwanted resonances, and the ribbed surface controls cone breakup to ensure smooth response all the way up to 3,000 Hz. Driving the cone is a 1.6” diameter dual-layer voice coil that is wound on a heat resistant polyimide former to handle up to 100 watt RMS. Extensive venting through frame, pole piece, and magnetic gap cools the voice coil to prevent thermal runaway and lower power compression during long sessions at high power. With a copper cap on the pole piece keeping inductance under control, you can ensure that the 6PT-8 will provide low distortion throughout its useable bandwidth. Whether you need a drop-in replacement for a worn-out speaker, or are designing high output 2 or 3-way system, the 6PT-8 is the ideal choice if you want high output and natural response without spending a fortune.

        Toon meer

        Specificaties

        Artikelnummer
        6PT-8
        Nominale diameter
        6-1/2"
        Belastbaarheid (RMS)
        100 Watts
        Belastbaarheid (max)
        200 Watts
        Impedantie (Z)
        8 Ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        92 dB
        Frequentierespons
        55 to 11,000Hz
        Gelijkstroomweerstand (Re)
        7.4Ω
        Spreekspoelinductie (Le)
        1.1mH
        Resonantiefrequentie (Fs)
        94 Hz
        Mechanische Q (Qms)
        4.74
        Elektrische Q (Qes)
        0.85
        Totale Q (Qts)
        0.72
        Bewegende massa (Mms)
        8g
        Compliantie van de ophanging (Cms)
        0.36mm/N
        Effectief oppervlak (Sd)
        136.6cm²
        Krachtsfactor (BL)
        6.4T·m
        Equivalentvolume (Vas)
        0.335ft³
        Maximale excursie (Xmax)
        4.2 mm
        Cone / Diaphragm Material
        Paper / Glass Fiber
        Surroundmateriaal
        Cloth
        Spreekspoel draadmateriaal
        Copper
        Spreekspoel vormermateriaal
        Kapton® / Polyimide
        Mand- /framemateriaal
        Steel
        Totale buitendiameter
        6.5"
        Totale diepte
        3"
        Montagegatdiameter
        5.8"
        Bolt Circle Diameter
        6.14
        # Bevestigingsgaten
        4
        Gesloten volume
        0.5ft³
        Gesloten F3
        108Hz
        Gepoort volume
        1.1ft³
        Gepoort F3
        57Hz

        Toon meer

        5 van 5
        -
        Door KONSTANTINOS on 4 Februari 2024
        5 van 5
        Am Preis gemessen gute Tieftöner. Ich verwende 2Stk. In ca.20l Bassreflex mit Hochtonhorn als Monitor/Multifunktionslautsprecher. Mit entsprechend EQing untenrum sogar als Fullrange tauglich(Natürlich mit Pegel Einbußen).
        Door A. Leiser on 23 Juni 2022
