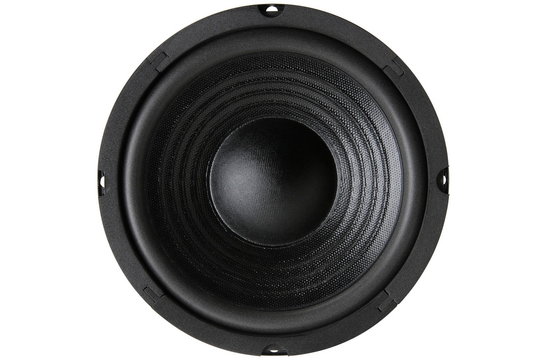

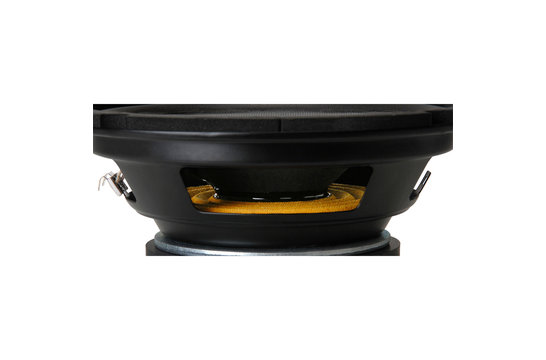

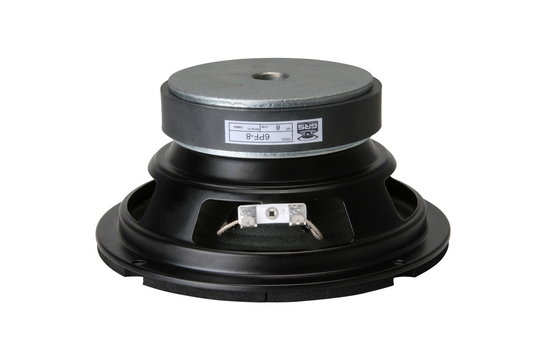

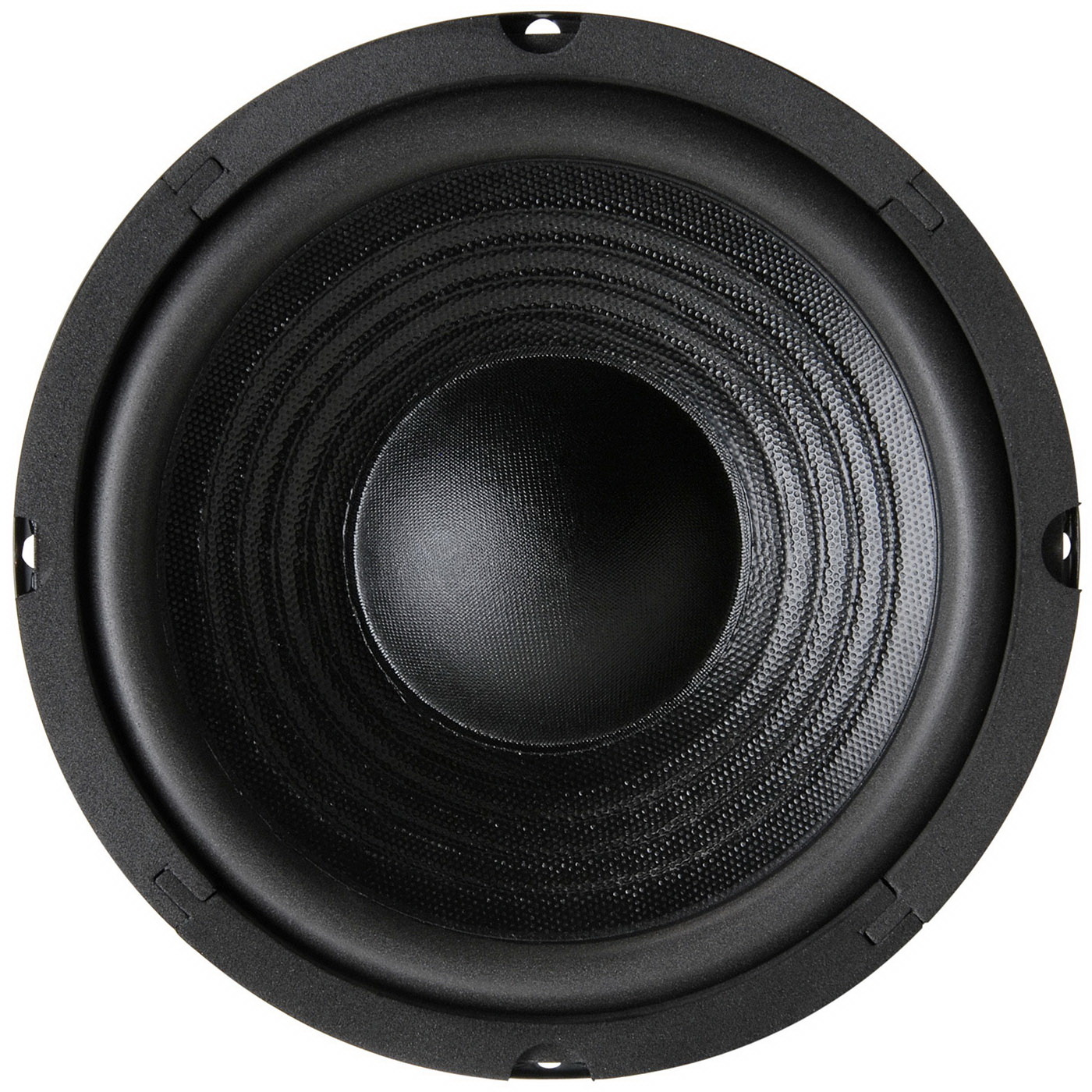

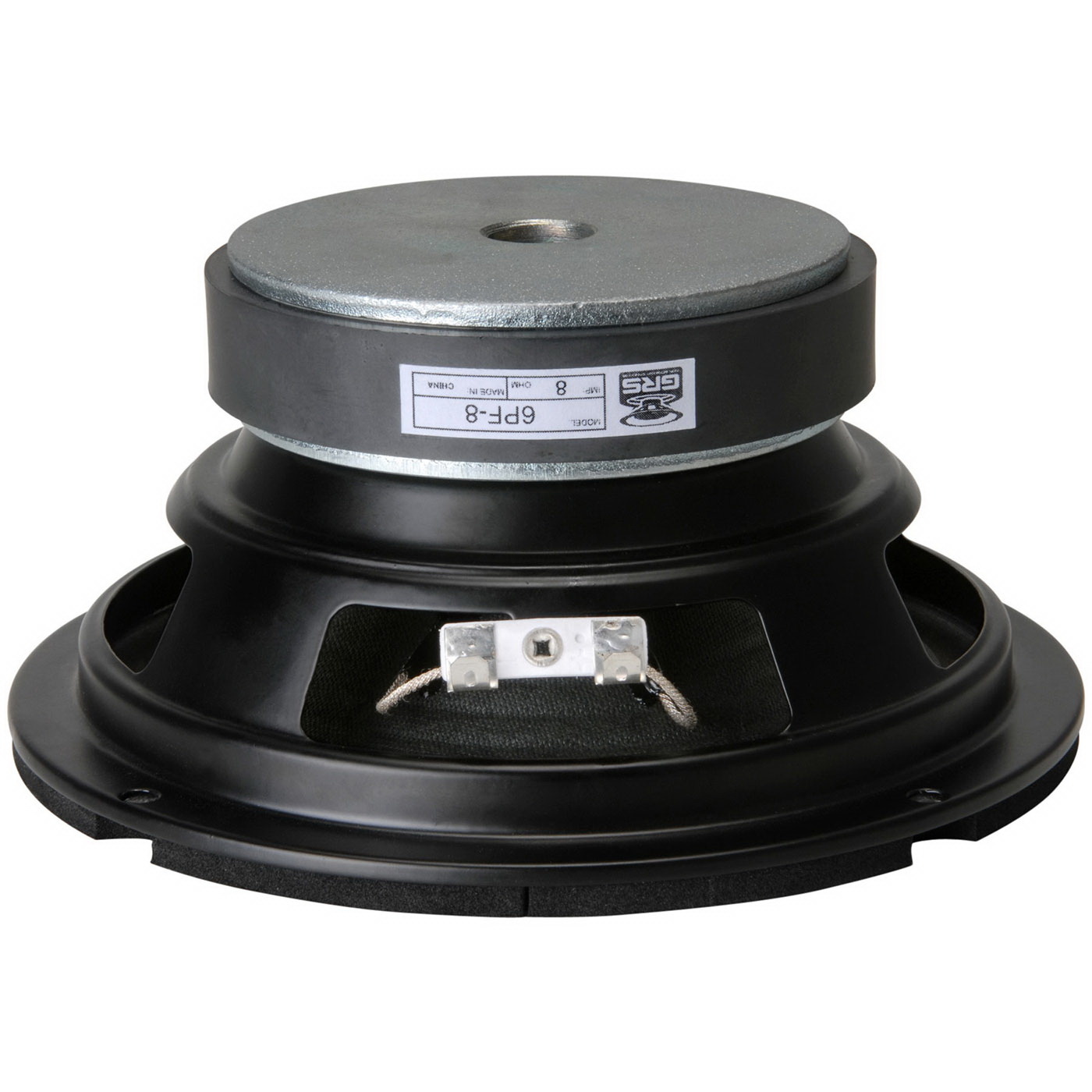

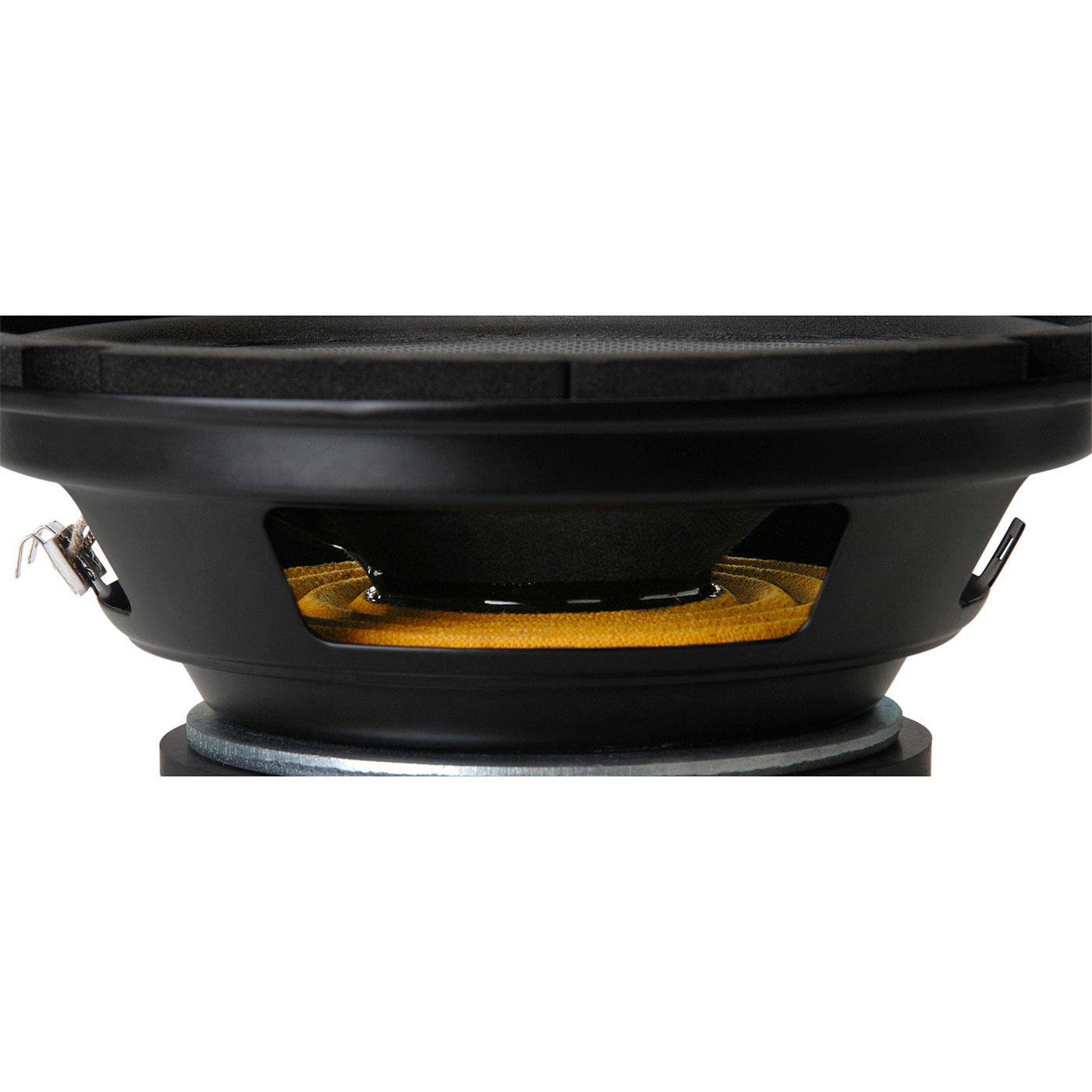

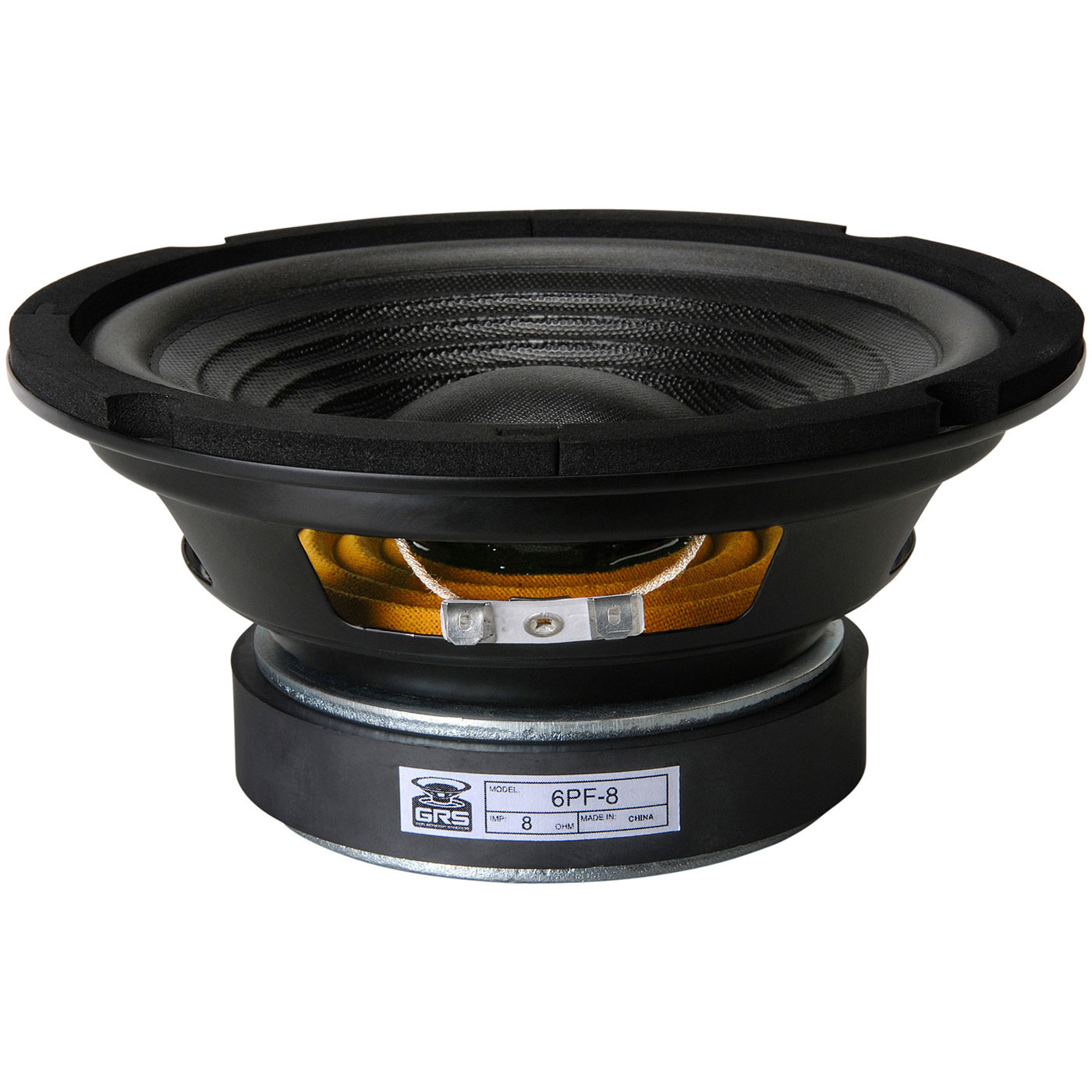

    GRS 6PF-8 6-1/2" Paper Cone Foam Surround Woofer

    € 11,45 >10 Op voorraad: levertijd 1 werkdag
    All the sound you need thanks to their carefully optimized parameters, the GRS 6PF-8 6-1/2" poly-laminated paper cone woofers offer a high degree of compatibility when used as replacement speakers—they also provide excellent performance in new projects, t... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -10% Bestel 4 voor slechts €10,31 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    All the sound you need, and without spending a bundle! The GRS 6PF-8 paper cone 6" woofer is the answer to your replacement speaker needs.



    Highlights

    • Perfect for use in sealed-box home theater and music systems
    • Poly-laminated paper cone, treated foam surround, and polymer dust cap
    • Smooth frequency response with minimal cone breakup



    Product details

    GRS 6PF-8 6-1/2" Paper Cone Foam Surround Woofer



    All the sound you need thanks to their carefully optimized parameters, the GRS 6PF-8 6-1/2" poly-laminated paper cone woofers offer a high degree of compatibility when used as replacement speakers—they also provide excellent performance in new projects, too.

    Specificaties

    Artikelnummer
    6PF-8
    Woofer Series
    Replacement woofer
    Woofer Type
    Midwoofer
    Nominal Diameter
    6-1/2"
    Power Handling (RMS)
    90 Watts
    Power Handling (max)
    180 Watts
    Impedance
    8 ohms
    Sensitivity
    87 dB 1W/1m
    Frequency Response
    70 to 8,000 Hz
    Voice Coil Diameter
    1.5"
    DC Resistance (Re)
    7.59 ohms
    Voice Coil Inductance (Le)
    1.09 mH
    Resonant Frequency (Fs)
    82 Hz
    Mechanical Q (Qms)
    3.67
    Electromagnetic Q (Qes)
    1.3
    Total Q (Qts)
    0.95
    Compliance Equivalent Volume (Vas)
    0.25 ft.³
    Maximum Linear Excursion (Xmax)
    3 mm
    Cone / Diaphragm Material
    Treated Paper
    Magnet Material
    Ferrite
    Overall Outside Diameter
    6.5"
    Overall Depth
    3.0625"
    Baffle Cutout Diameter
    5.625"
    # Mounting Holes
    4
    Sealed Volume
    0.34 ft.³
    Sealed F3
    86 Hz
    Vented Volume
    1.35 ft.³
    Vented F3
    47 Hz
