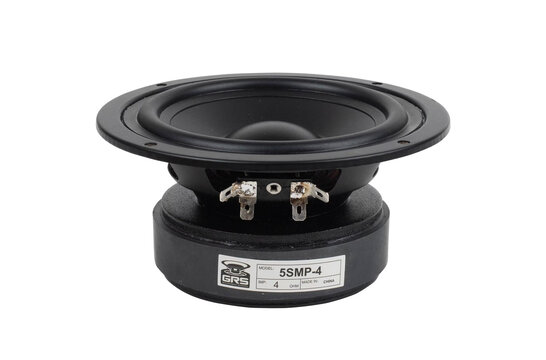

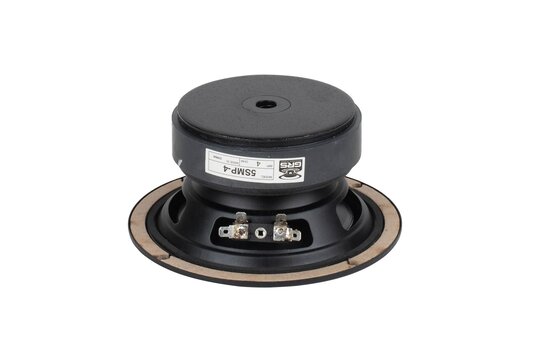

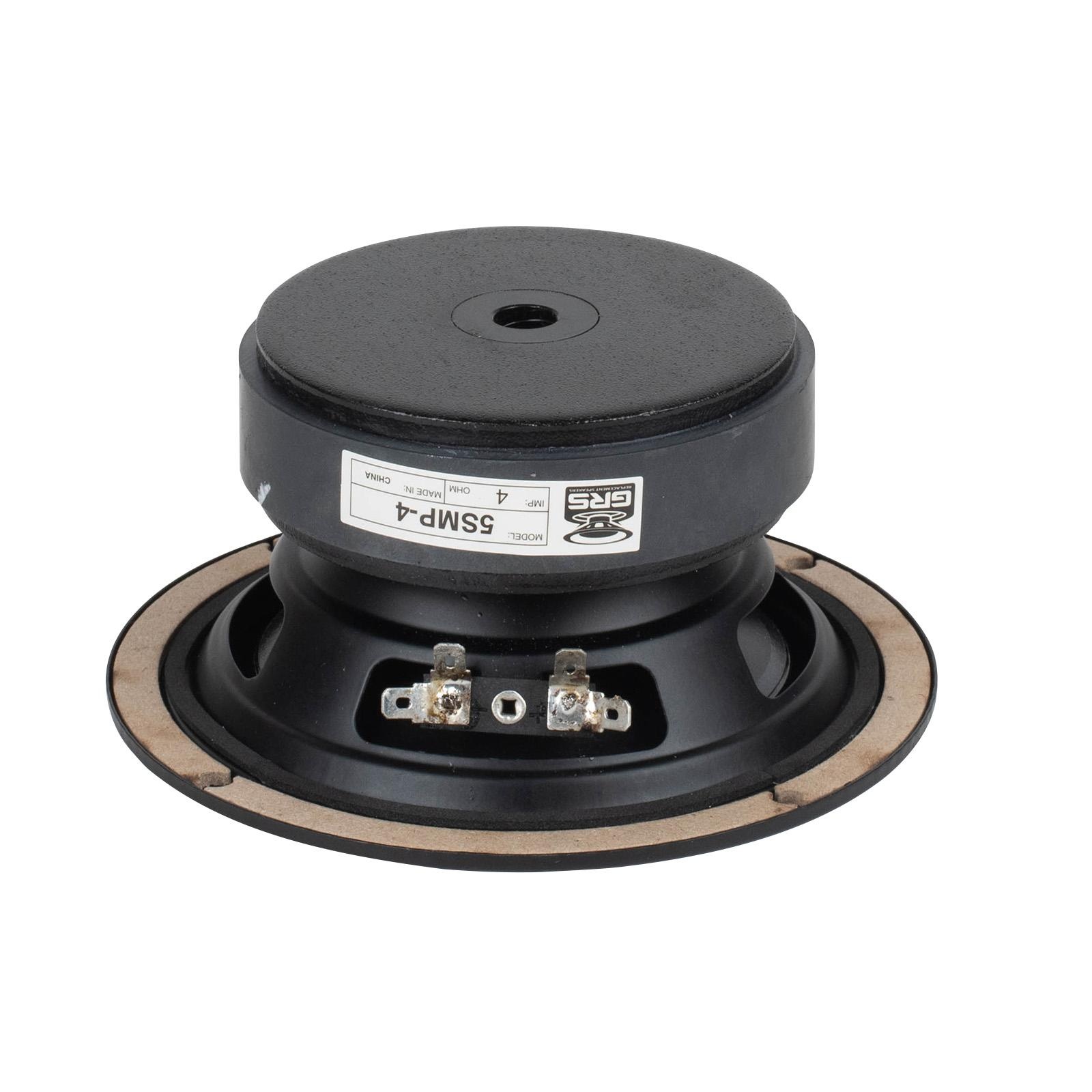

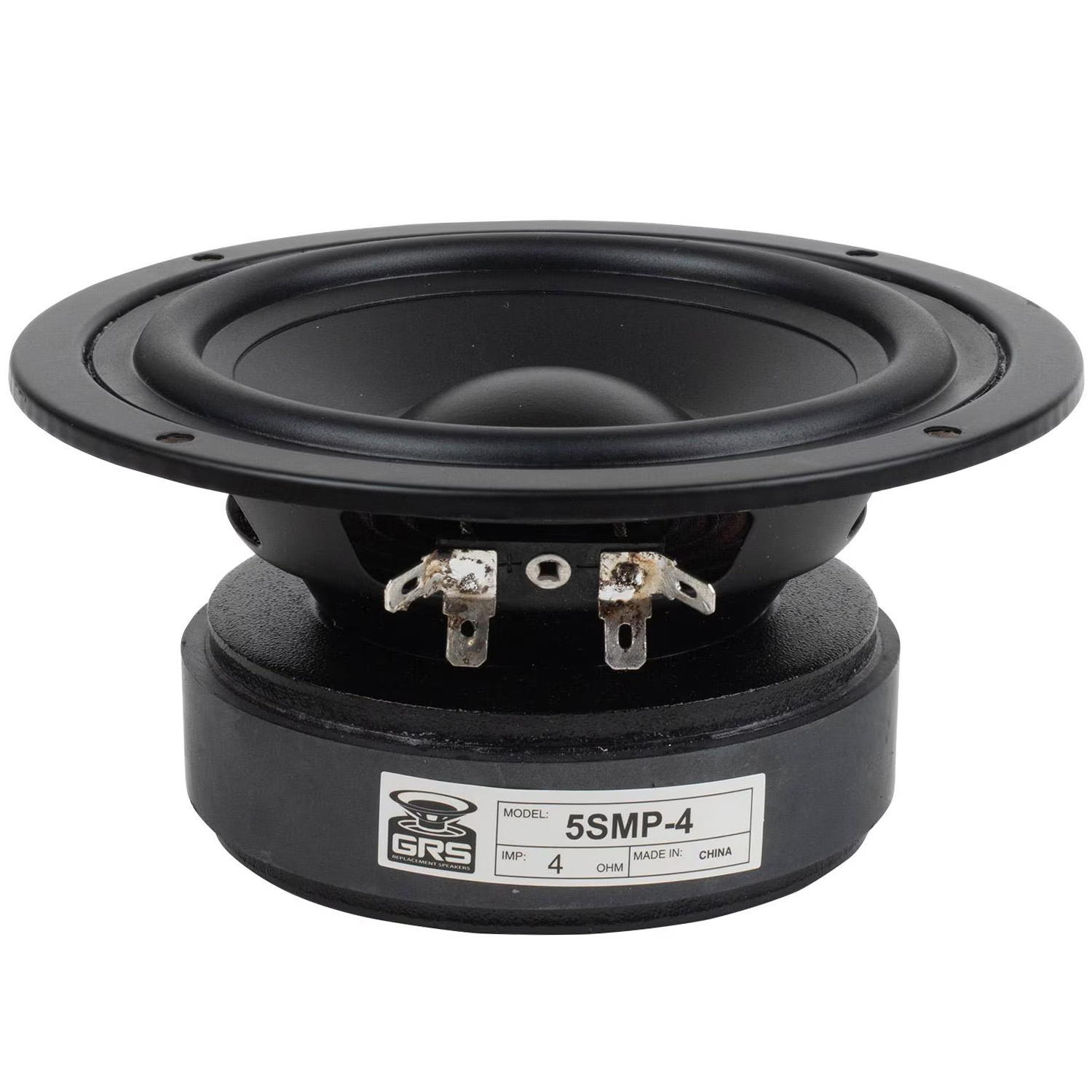

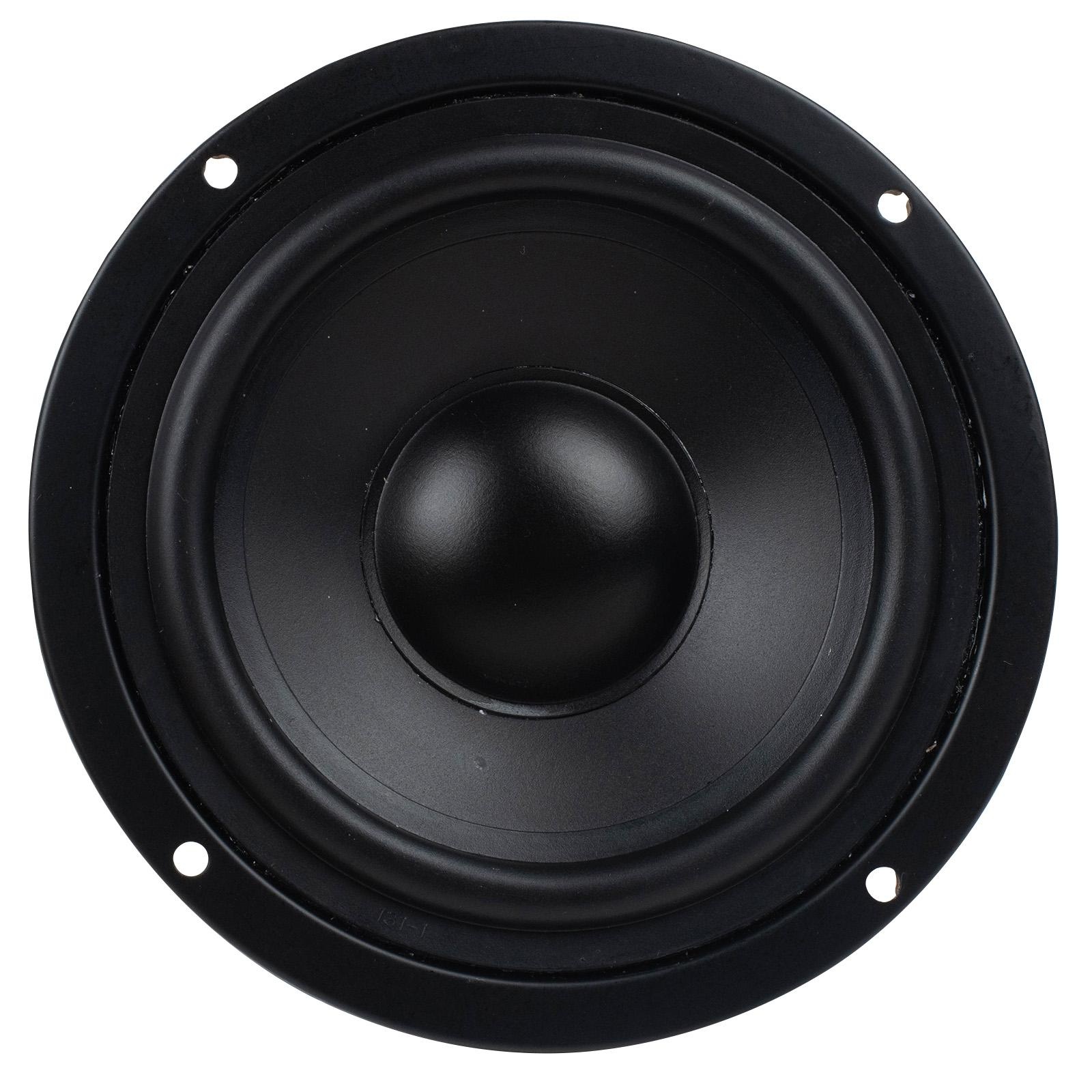

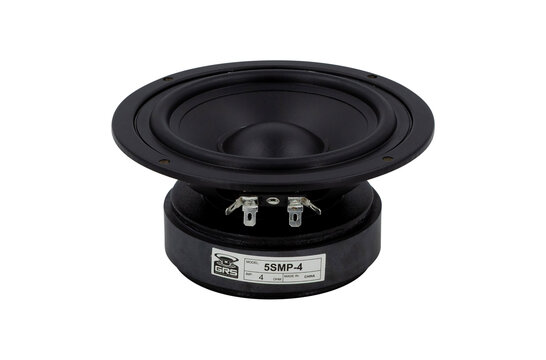

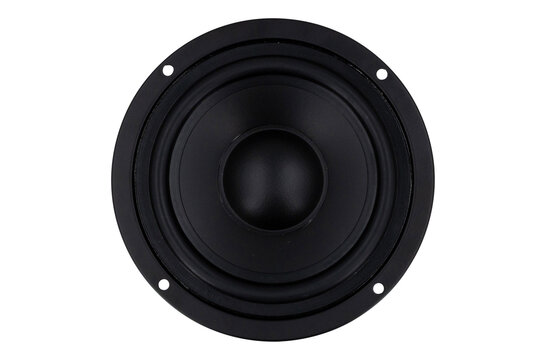

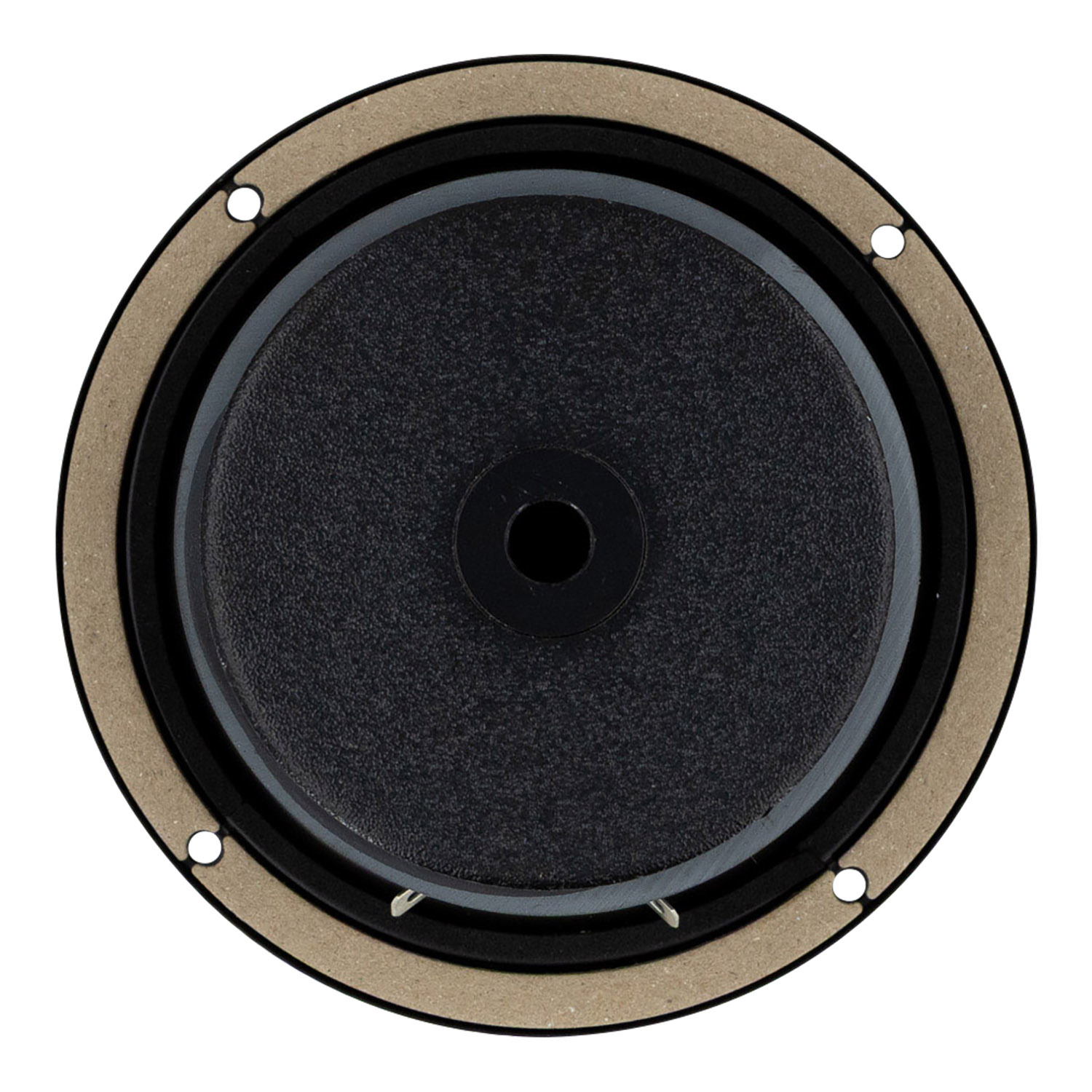

        5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer

        GRS 5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer

        €29,95

        10+ verwacht op 19-12-2025

        Toevoegen aan winkelwagen

        GRS 5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: GRS
        Toon alle Nieuwe producten
        5¼" | 4 Ω
        5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer
        5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer
        5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer
        5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer
        5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer
        5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer
        € 24,75€ 29,95 Niet op voorraad10+ verwacht op 19-12-2025
        • -5% Bestel 4 voor slechts € 28,45 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Snel weer op voorraad
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer
        5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer
        5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer
        5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer
        5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer
        5SMP-4 5-1/4" Surface Mount Poly Cone Bass-midwoofer

        Productomschrijving GRS 5SMP-4 Bass-midwoofer

        High-output 5-1/4" surface-mount bass-midwoofer designed for compact installations requiring clean, efficient low-to-mid frequency performance. The 5SMP-4 features a poly cone, vented motor, and surface-mount-ready frame, optimized for tight cabinet spaces.



        Highlights of the GRS 5SMP-4

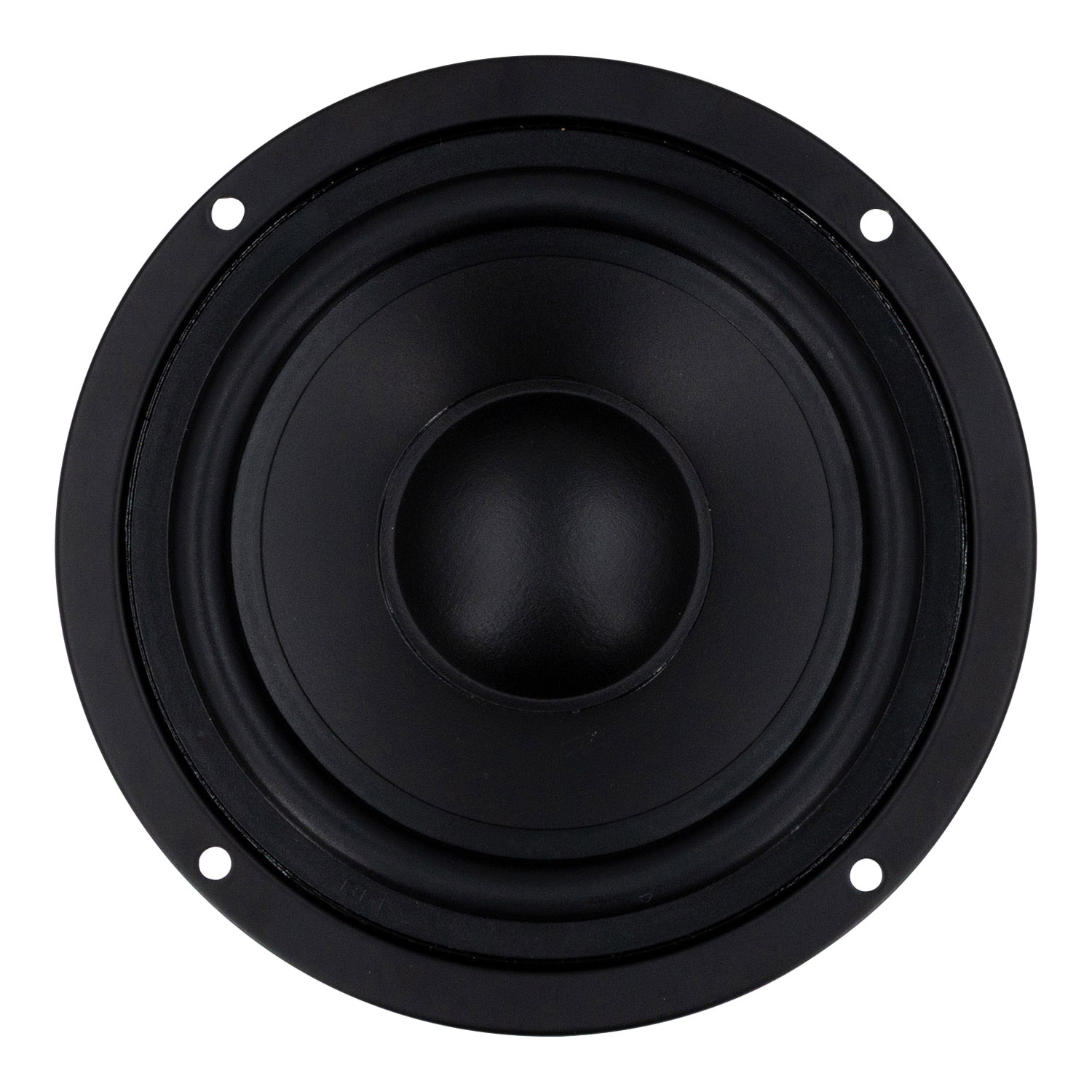

        • Damped poly cone with rubber surround delivers smooth response and controlled resonance
        • Low-profile design tailored for surface-mounted enclosures and shallow installations
        • Vented pole piece and copper cap reduce distortion and manage thermal buildup
        • Aluminum voice coil former promotes heat dissipation for stable long-term operation



        Product details GRS 5SMP-4

        5SMP-4 5-1/4" Surface-Mount Poly Cone Bass-Midwoofer

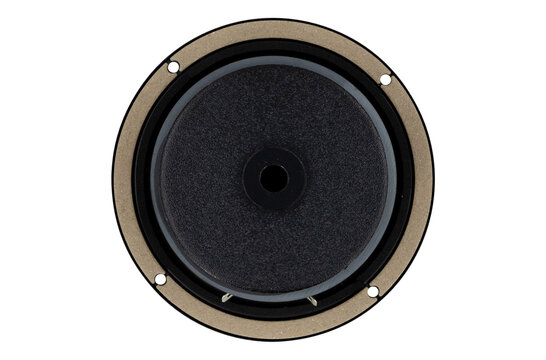

        The 5SMP-4 is a 5-1/4" surface-mount woofer designed for audio systems where space efficiency and sonic clarity are critical. Its damped polypropylene cone and rubber surround offer reliable, resonance-controlled performance across a usable frequency range of 50 Hz to 2,500 Hz. This makes it ideal for bass-mid applications in compact 2-way systems and architectural installations. With a sensitivity of 88.8 dB (2.83V/1m) and 35 W RMS power handling, it strikes a strong balance between output and detail. The vented motor design, combined with a copper cap and aluminum voice coil former, minimizes distortion and enhances heat dissipation. A surface-mount-friendly frame and integrated foam gasket ensure airtight sealing and secure fitment in shallow enclosures. Whether in commercial background music systems, home audio installs, or custom compact designs, the 5SMP-4 offers a solid solution for delivering clear midbass and smooth response in limited spaces.

        Toon meer

        Specificaties

        Artikelnummer
        5SMP-4
        EAN
        0848864079806
        Woofer type
        Bass-midwoofer
        Nominale diameter
        5-1/4"
        Belastbaarheid (RMS)
        35 Watts
        Impedantie (Z)
        4 Ohm
        Gevoeligheid (SPL bij 1m / 2.83V)
        88.8dB
        Frequentierespons
        50 - 2,500Hz
        Spreekspoeldiameter
        26mm
        Gelijkstroomweerstand (Re)
        3.7 Ohm
        Spreekspoelinductie (Le)
        0.58mH
        Resonantiefrequentie (Fs)
        62Hz
        Mechanische Q (Qms)
        4.21
        Elektrische Q (Qes)
        0.62
        Totale Q (Qts)
        0.54
        Bewegende massa (Mms)
        10.4g
        Compliantie van de ophanging (Cms)
        0.63mm/N
        Effectief oppervlak (Sd)
        80cm²
        Maximaal verplaatst volume (Vd)
        16 cm³
        Krachtsfactor (BL)
        4.9T·m
        Equivalentvolume (Vas)
        6 L
        Maximale excursie (Xmax)
        2mm
        Cone / Diaphragm Material
        poly
        Surroundmateriaal
        rubber
        Spreekspoel vormermateriaal
        aluminium
        Mand- /framemateriaal
        steel
        Magneetmateriaal
        ferrite
        # Bevestigingsgaten
        4
