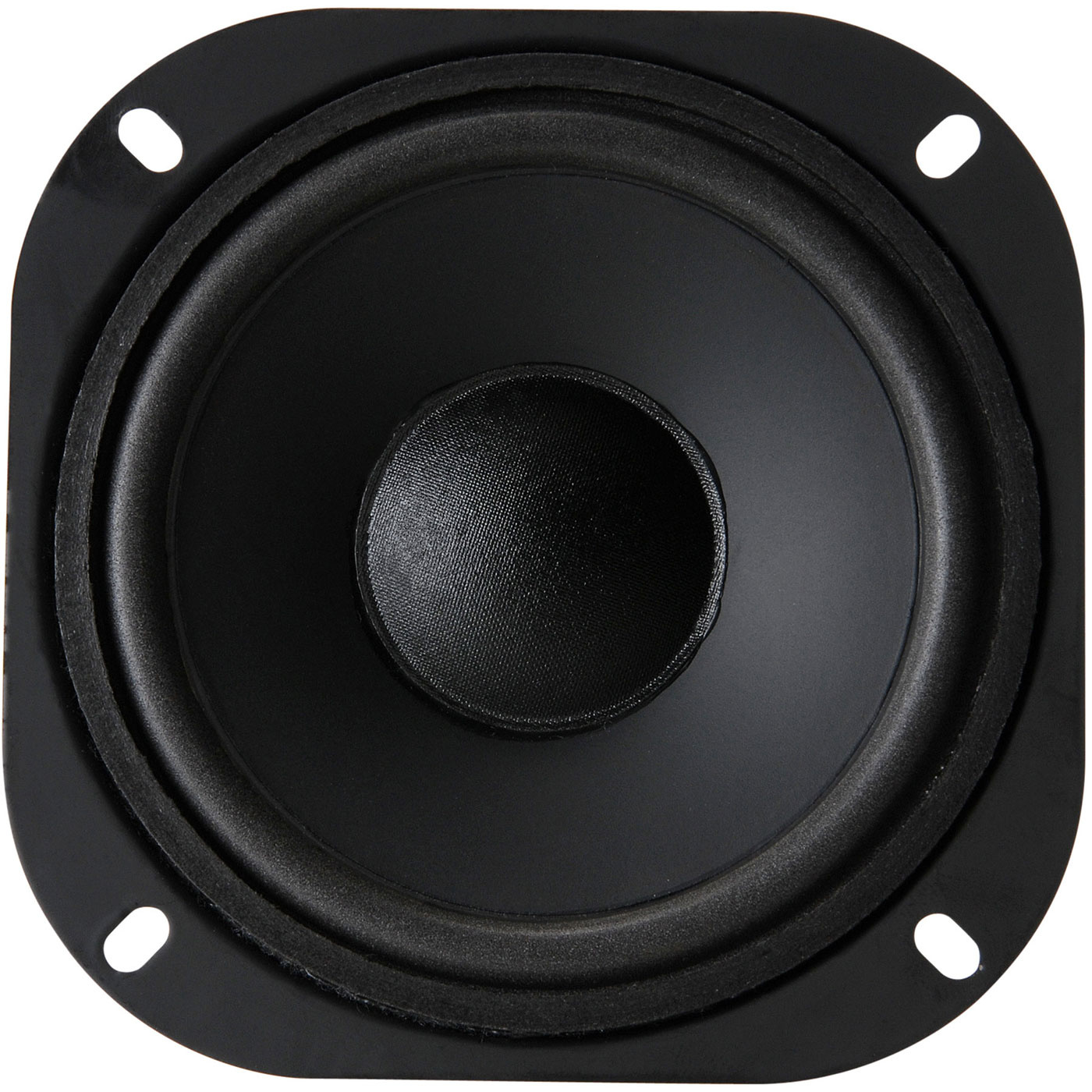

    GRS 5PF-8 5-1/4" Paper Cone Foam Surround Woofer

    € 6,95 1 Op voorraad: levertijd 1 werkdag
    Thanks to their carefully optimized parameters, GRS 4PF-8 4" poly-laminated paper cone woofers offer a high degree of compatibility when used as replacement speakers.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -10% Bestel 4 voor slechts €6,26 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Thanks to their carefully optimized parameters, GRS 4PF-8 4" poly-laminated paper cone woofers offer a high degree of compatibility when used as replacement speakers.



    Highlights

    • Perfect for use in sealed-box home theater and music systems
    • Poly-laminated paper cone, treated foam surround, and polymer dust cap
    • Smooth frequency response with minimal cone breakup



    Product details

    GRS 5PF-8 5-1/4" Paper Cone Foam Surround Woofer



    The GRS 5PF-8 5-1/4" woofers feature a poly-laminate coated cone and a foam surround. They are ideally suited for all sealed-box speaker applications. Thanks to their carefully optimized parameters, GRS 5PF-8 5-1/4" poly-laminated paper cone woofers offer a high degree of compatibility when used as replacement speakers—they also provide excellent performance in new projects, too.

    Specificaties

    Artikelnummer
    5PF-8
    Woofer Series
    Replacement woofer
    Woofer Type
    Midwoofer
    Nominal Diameter
    5-1/4"
    Power Handling (RMS)
    70 Watts
    Power Handling (max)
    130 Watts
    Impedance
    8 ohms
    Sensitivity
    84 dB 1W/1m
    Frequency Response
    90 to 8,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    7.45 ohms
    Voice Coil Inductance (Le)
    0.85 mH
    Resonant Frequency (Fs)
    100 Hz
    Mechanical Q (Qms)
    4.87
    Electromagnetic Q (Qes)
    1.97
    Total Q (Qts)
    1.4
    Compliance Equivalent Volume (Vas)
    0.11 ft.³
    Maximum Linear Excursion (Xmax)
    2.5 mm
    Cone / Diaphragm Material
    Treated Paper
    Surround Material
    Foam
    Magnet Material
    Ferrite
    Overall Outside Diameter
    5.0625"
    Overall Depth
    2.3125"
    Baffle Cutout Diameter
    4.75"
    # Mounting Holes
    4
    Sealed Volume
    0.08 ft.³
    Sealed F3
    107 Hz
    Vented Volume
    1.26 ft.³
    Vented F3
    54 Hz

    Reviews

    3 from 5Based on 1 reviews
    Schrijf een review
    3 van 5
    Als Woofer für mein DiY Projekt Bestellt. Für die Preisklasse ganz Ok. Damit er sich gut Entfalten kann wird jedoch eine Menge an Volumen benötigt.
    Door Sebastian Derjong on 16 November 2019
