    GRS 4FR-8 Full-Range 4-1/2" Speaker Pioneer Type A11EC80-02F 8 Ohm

    € 8,45 >10 Op voorraad: levertijd 1 werkdag
    The GRS 4FR-8 is perfect for compact designs that require wide-bandwidth, high-sensitivity performance at an economical price. It’s also a drop-in replacement for other popular 4-1/2" full-range drivers.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -10% Bestel 4 voor slechts €7,61 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    The GRS 4FR-8 is perfect for compact designs that require wide-bandwidth, high-sensitivity performance at an economical price. It’s also a drop-in replacement for other popular 4-1/2" full-range drivers.



    Highlights

    • Replacement for Pioneer A11EC80-02F
    • Extended bandwidth and high sensitivity
    • Natural-sounding paper cone
    • Quality GRS construction



    Product Details

    GRS 4FR-8 Full-Range 4-1/2" Speaker Pioneer Type A11EC80-02F 8 Ohm

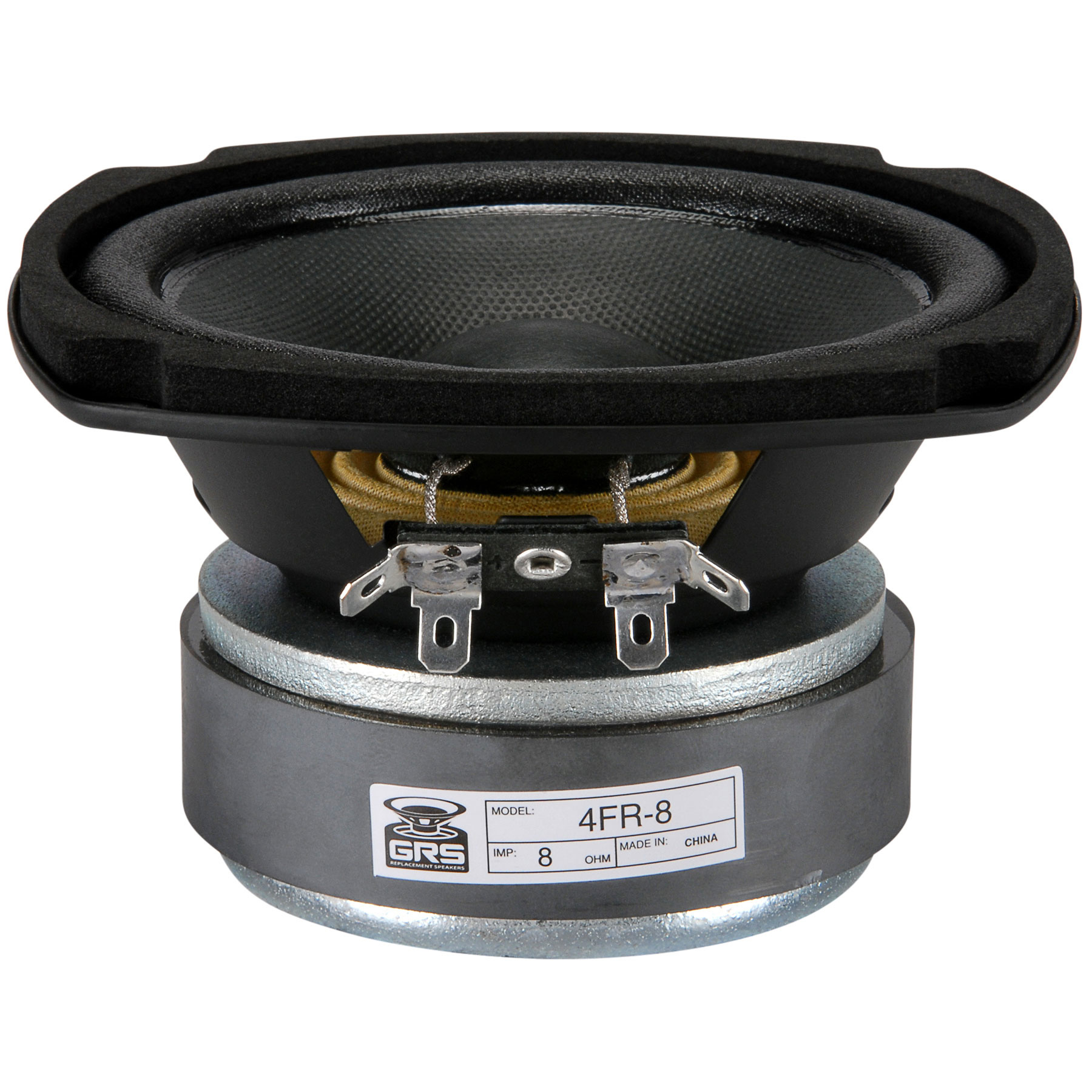

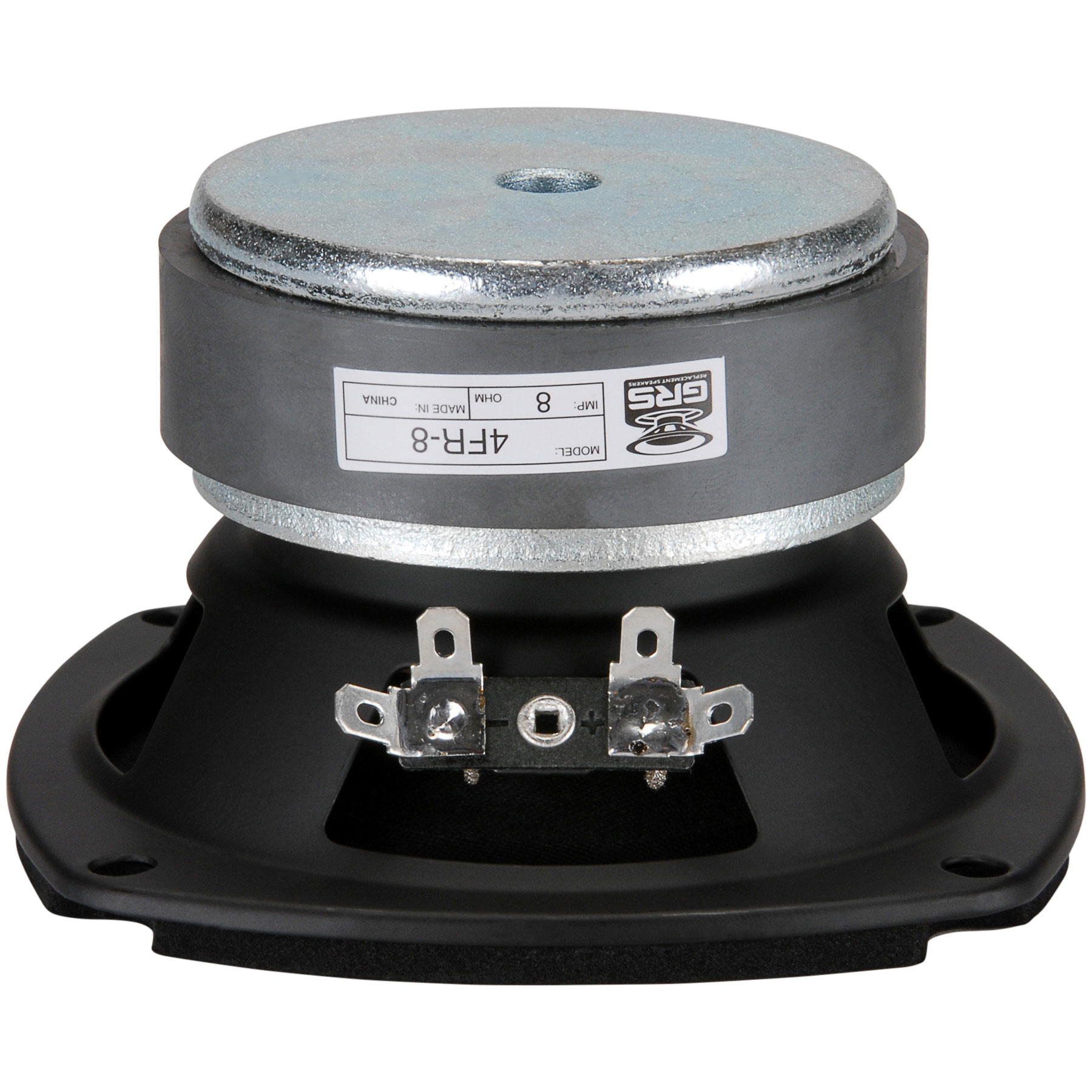

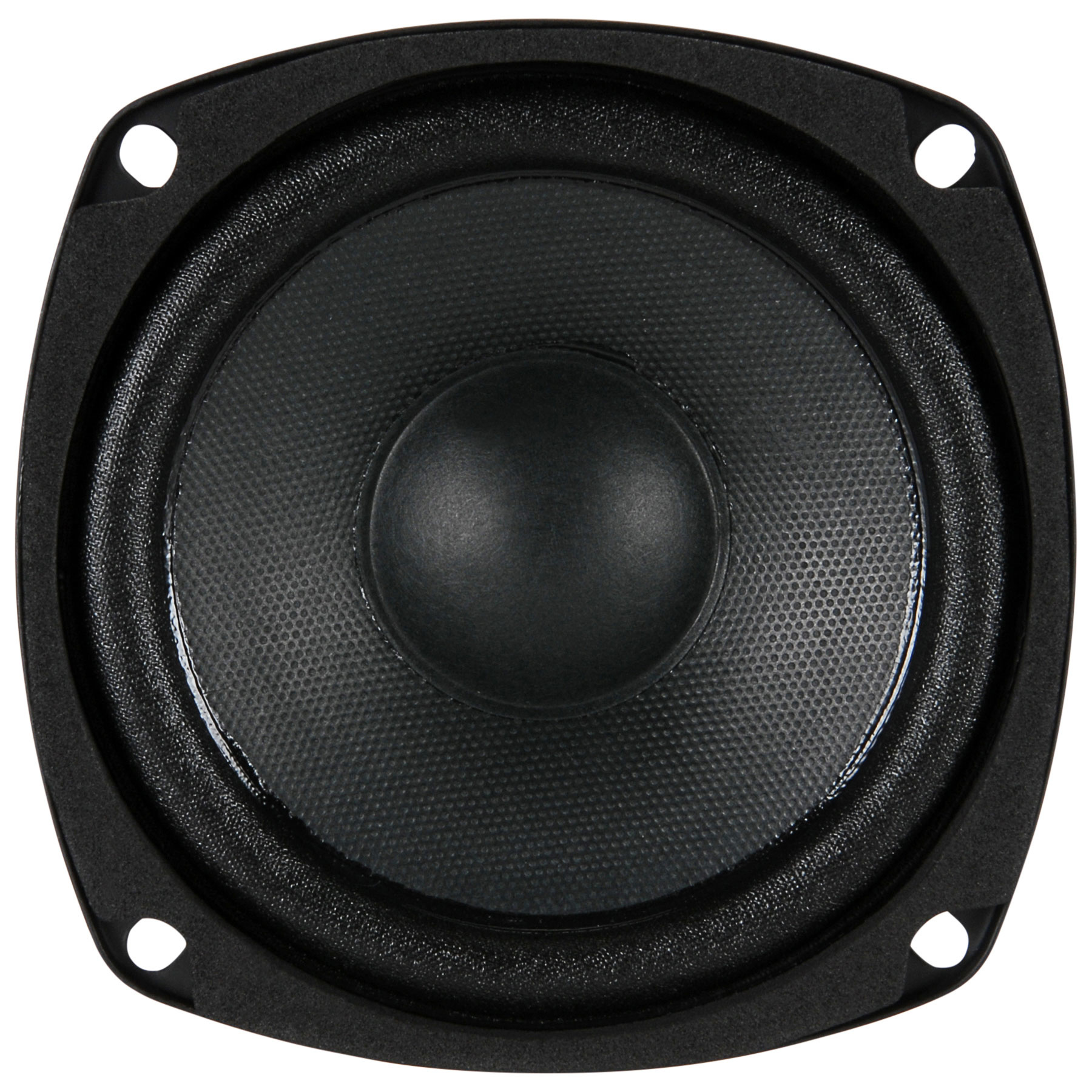

    GRS 4FR-8 full-range 4-1/2" speaker features a well-damped paper cone and long-lasting treated fabric surround. Its design parameters have been carefully chosen to suit a wide variety of enclosures for hi-fi or commercial use, and it's great for use as a full-range driver or as a high-sensitivity midwoofer.



    The large ceramic motor structure and lightweight Kapton voice coil former ensure crisp, highly-dynamic reproduction. This driver is a perfect drop-in replacement for the classic Pioneer model A11EC80-02F full-range driver, or other popular 4-1/2" full-range drivers.

    Specificaties

    Artikelnummer
    4FR-8
    Nominal Diameter
    4-1/2"
    Power Handling (RMS)
    15 Watts
    Power Handling (max)
    30 Watts
    Impedance
    8 ohms
    Sensitivity
    91 dB 1W/1m
    Frequency Response
    100 to 10,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    8.11 ohms
    Voice Coil Inductance (Le)
    0.71 mH
    Resonant Frequency (Fs)
    100 Hz
    Mechanical Q (Qms)
    5.14
    Electromagnetic Q (Qes)
    0.98
    Total Q (Qts)
    0.82
    Compliance Equivalent Volume (Vas)
    0.11 ft.³
    Maximum Linear Excursion (Xmax)
    1 mm
    Cone / Diaphragm Material
    Paper
    Surround Material
    Cloth
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    4.5"
    Overall Depth
    2.71"
    Baffle Cutout Diameter
    4.01"
    # Mounting Holes
    4
    Sealed Volume
    0.05 ft.³
    Sealed F3
    135 Hz
    Vented Volume
    0.1 ft.³
    Vented F3
    95 Hz

    Reviews

    5 from 5Based on 6 reviews
    Schrijf een review
    5 van 5
    nice sounding little speakers. good value
    Door Kostas Papaprokopiou on 18 Juli 2020
    4 van 5
    Great value for money. I used it as great sounding mid in open baffle.
    Door Robert Z. on 15 April 2020
