      GRS 18PT-8 Woofer

      € 107,40€ 129,95 >10 Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €123,45 per stuk
      • -10% Bestel 8 voor slechts €116,96 per stuk
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf €99
      • In-house technische support
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      The GRS 18PT-8 18” professional paper cone woofer will deliver high output bass response without breaking the bank. Packed with features like a 3” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability. Whether you need a drop-in replacement for a worn-out professional subwoofer or are working on a completely new design, the 18PT-8 is the perfect driver for budget builds.



      Highlights

      • Lightweight ribbed paper cone allows high efficiency with minimal resonance
      • 3” diameter voice coil on heat resistant Kapton former handles up to 350 watts RMS
      • Great displacement capability is ideal for high output subwoofer designs
      • Extensive venting keeps cool air flowing across the voice coil to minimize power compression
      • Inductance lowering copper cap reduces distortion and extends high frequency response
      • Spring-loaded push-button terminals makes wire connections quick and easy
      • Foam front gasket ensures an airtight seal for rear mount installations



      Product details

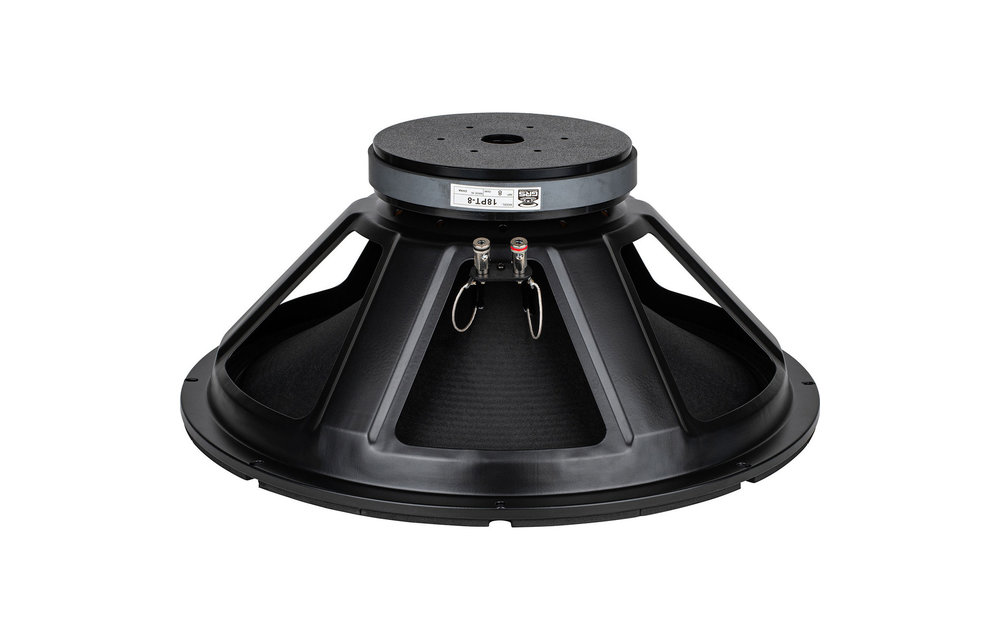

      GRS 18PT-8 18" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm



      Engineered for high output with powerful low frequency extension, the 18PT-8 18” professional woofer is ideal for use in large low-cost sound systems. Packed with features you would expect from much more expensive drivers, the 18PT-8 is built for low distortion and reliability even when pushed to its limit. The lightweight reinforced paper cone has excellent damping properties, minimizing unwanted resonances, and the ribbed surface controls cone breakup to ensure smooth response all the way up to 1,000 Hz. Driving the cone is a 3” diameter dual-layer voice coil that is wound on a heat resistant polyimide former to handle up to 350 watt RMS. Extensive venting through frame, pole piece, and magnetic gap cools the voice coil to prevent thermal runaway and lower power compression during long sessions at high power. With a copper cap on the pole piece keeping inductance under control, you can ensure that the 18PT-8 will provide low distortion throughout its useable bandwidth. Whether you need a drop-in replacement for a blown professional subwoofer, or are designing a new system, the 18PT-8 is the ideal choice if you want high impact low frequency response without spending a fortune.

      Specificaties

      Artikelnummer
      18PT-8
      Woofer series
      Paper Cone Professional Woofer
      Nominale diameter
      18"
      Belastbaarheid (RMS)
      350 Watts
      Belastbaarheid (max)
      700 Watts
      Impedantie (Z)
      8 Ohms
      Gevoeligheid
      93dB 2.83V/1m
      Frequentierespons
      25 to 4,000Hz
      Spreekspoeldiameter
      3"
      Gelijkstroomweerstand (Re)
      6.9Ω
      Spreekspoelinductie (Le)
      1.9mH
      Resonantiefrequentie (Fs)
      23Hz
      Mechanische Q (Qms)
      9.59
      Elektrische Q (Qes)
      0.58
      Totale Q (Qts)
      0.54
      Bewegende massa (Mms)
      218g
      Compliantie van de ophanging (Cms)
      0.22mm/N
      Effectief oppervlak (Sd)
      1234cm²
      Krachtsfactor (BL)
      19.5T·m
      Equivalentvolume (Vas)
      16.8ft³
      Maximale excursie (Xmax)
      7.8mm
      Cone / Diaphragm Material
      Paper / Glass Fiber
      Surroundmateriaal
      Cloth
      Spreekspoel draadmateriaal
      Copper
      Spreekspoel vormermateriaal
      Kapton® / Polyimide
      Mand- /framemateriaal
      Steel
      Magneetmateriaal
      Ferrite
      Totale buitendiameter
      16.07"
      Totale diepte
      7.48"
      Montagegatdiameter
      16.65"
      Bolt Circle Diameter
      17.59
      # Bevestigingsgaten
      8
      Gesloten volume
      5ft³
      Gesloten F3
      40Hz
      Gepoort volume
      6ft³
      Gepoort F3
      34Hz
