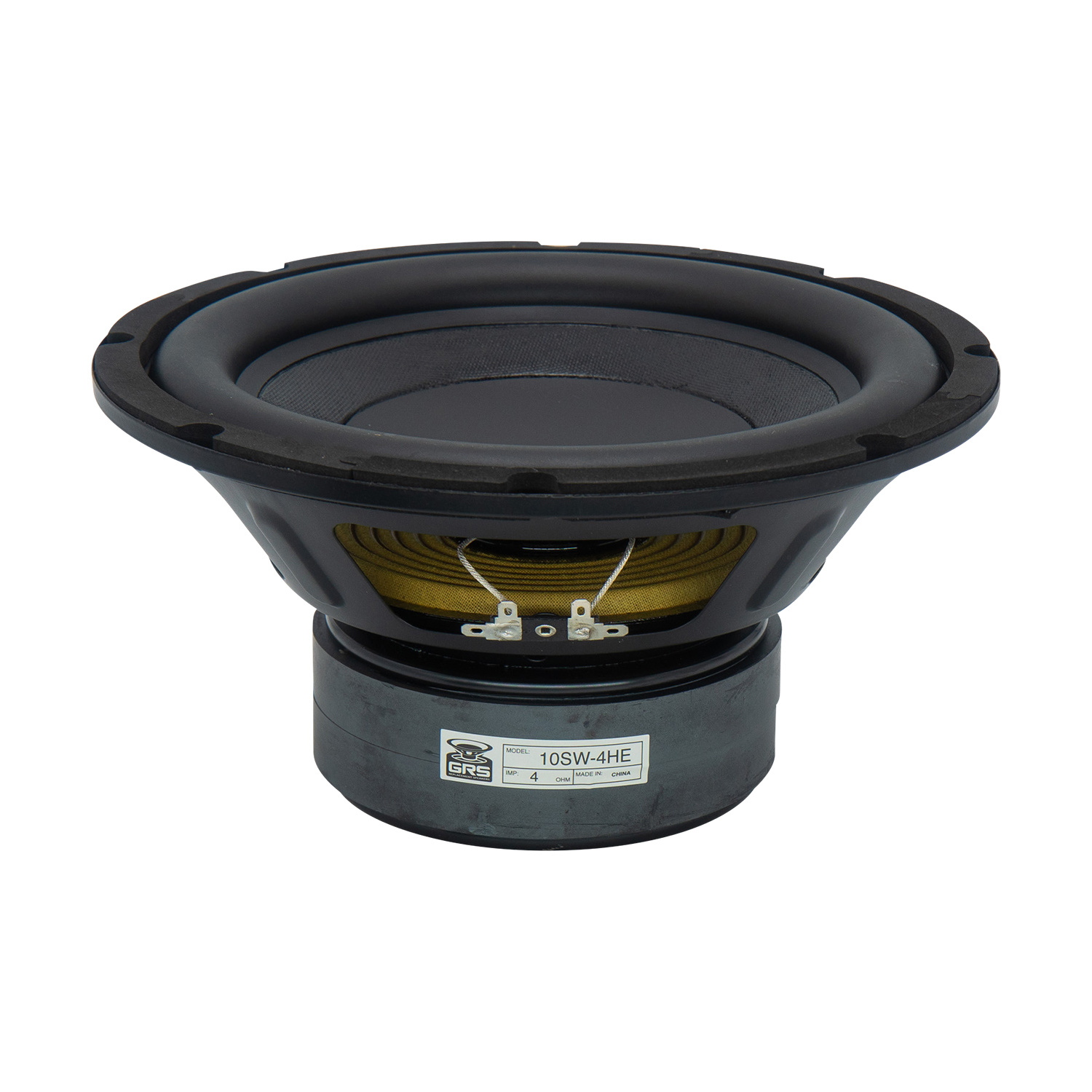

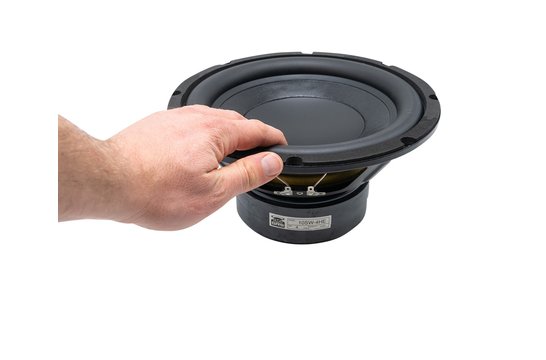

        10SW-4HE 10" High Excursion Subwoofer 4 Ohm

        10SW-4HE 10" High Excursion Subwoofer 4 Ohm

        €79,95

        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm

        2 reviews
        5 van 5
        2 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: GRS
        € 66,07€ 79,95 Niet op voorraad8 verwacht op 30-08-2024
        • -5% Bestel 4 voor slechts € 75,95 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        The versatile 10SW-4HE 10” high excursion subwoofer from GRS is designed to produce excellent low frequency extension in a variety of designs. Suitable for both sealed and vented enclosures, this driver the ideal replacement or upgrade for your existing subwoofers with worn out or blown drivers. Featuring extensive venting, rubber surround, high temperature voice coil, low Fs, and 10.5 mm of excursion the 10SW-4HE is built for remarkable bass response on a budget.



        Highlights

        • High excursion and low Fs to produce powerful low frequency output
        • 2” voice coil on a thick aluminum former to handle up to 200 watts RMS

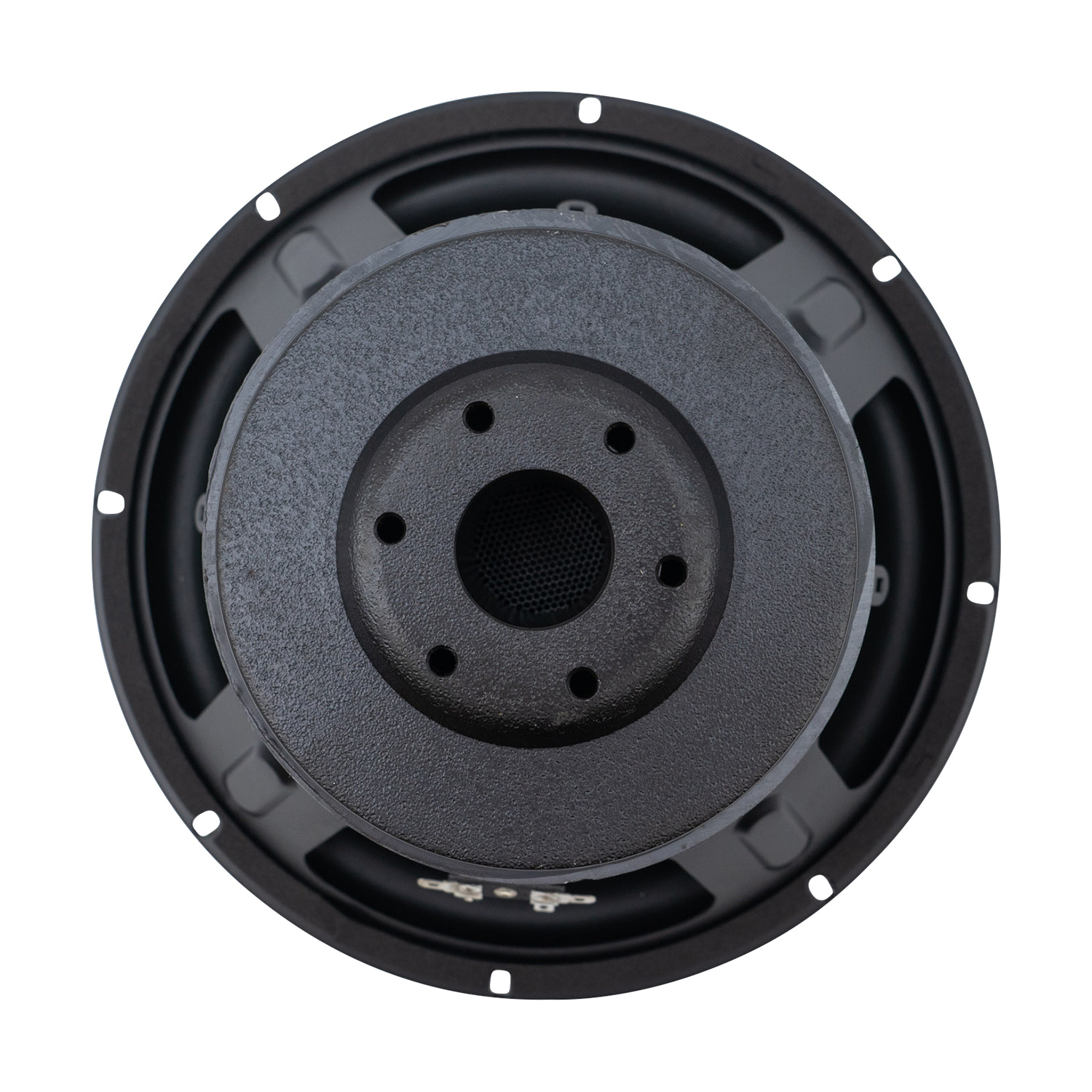

        • Venting under the spider, through the pole piece, and in the magnetic gap for excellent heat dissipation

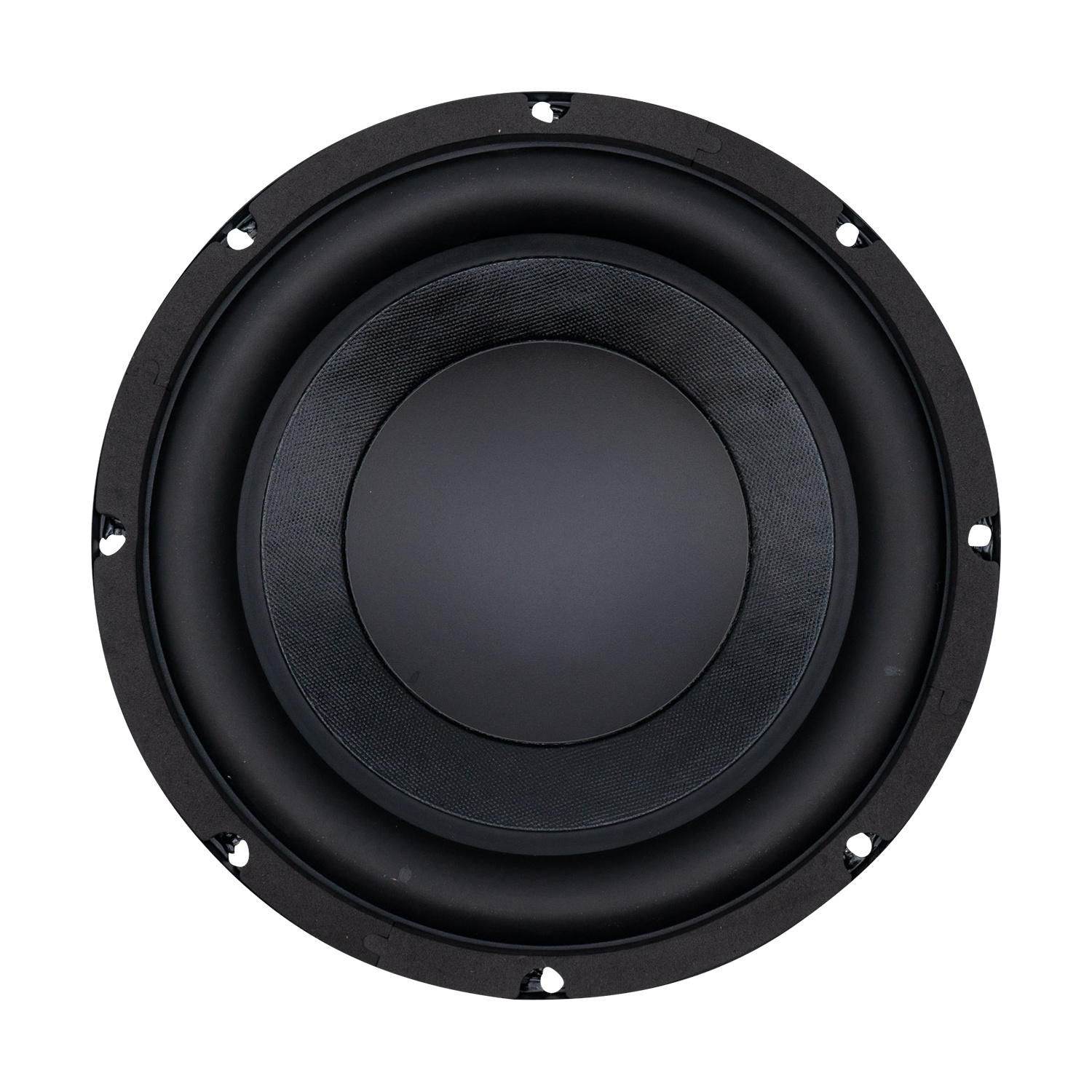

        • Durable reinforced paper cone with rubber surround produces reliable and consistent performance

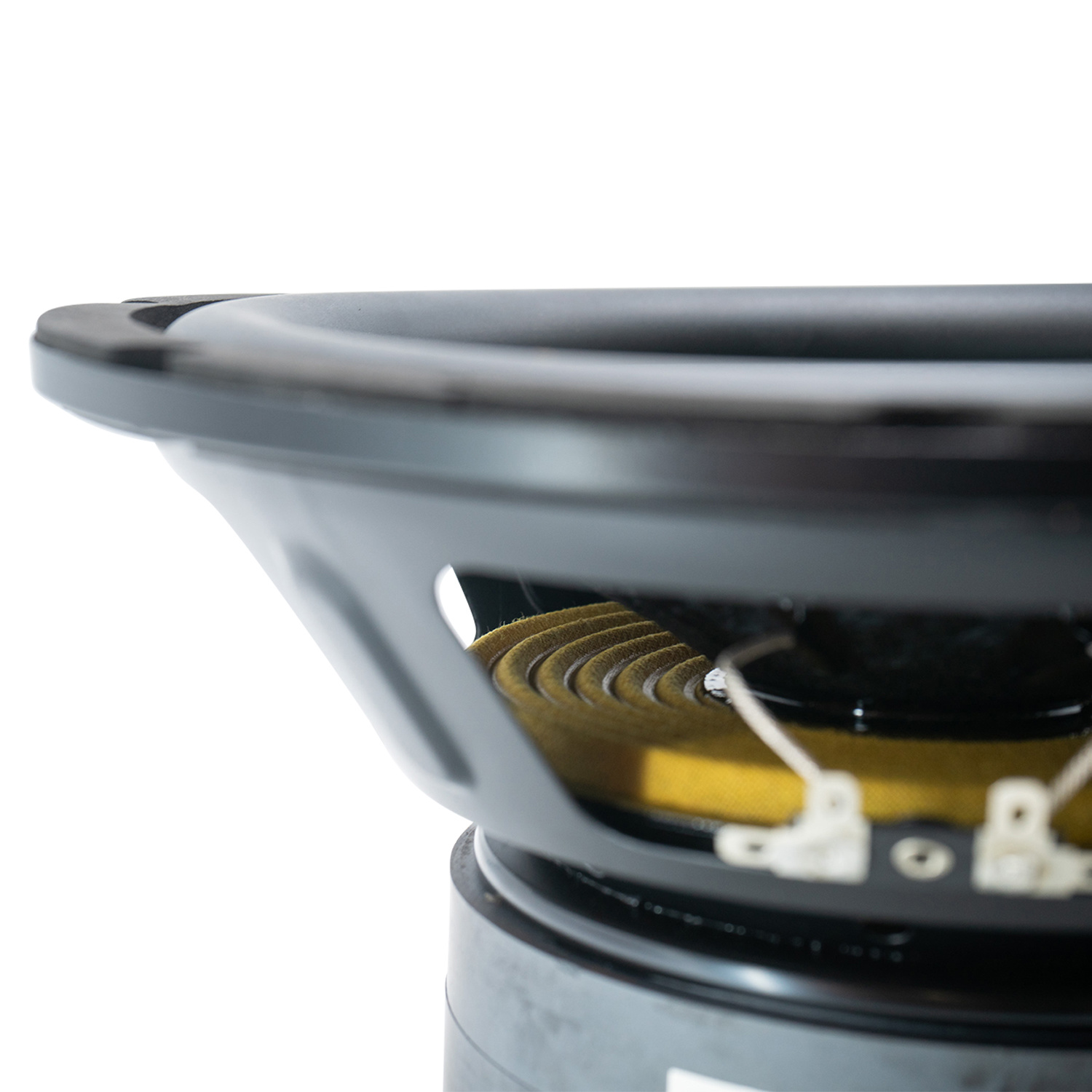

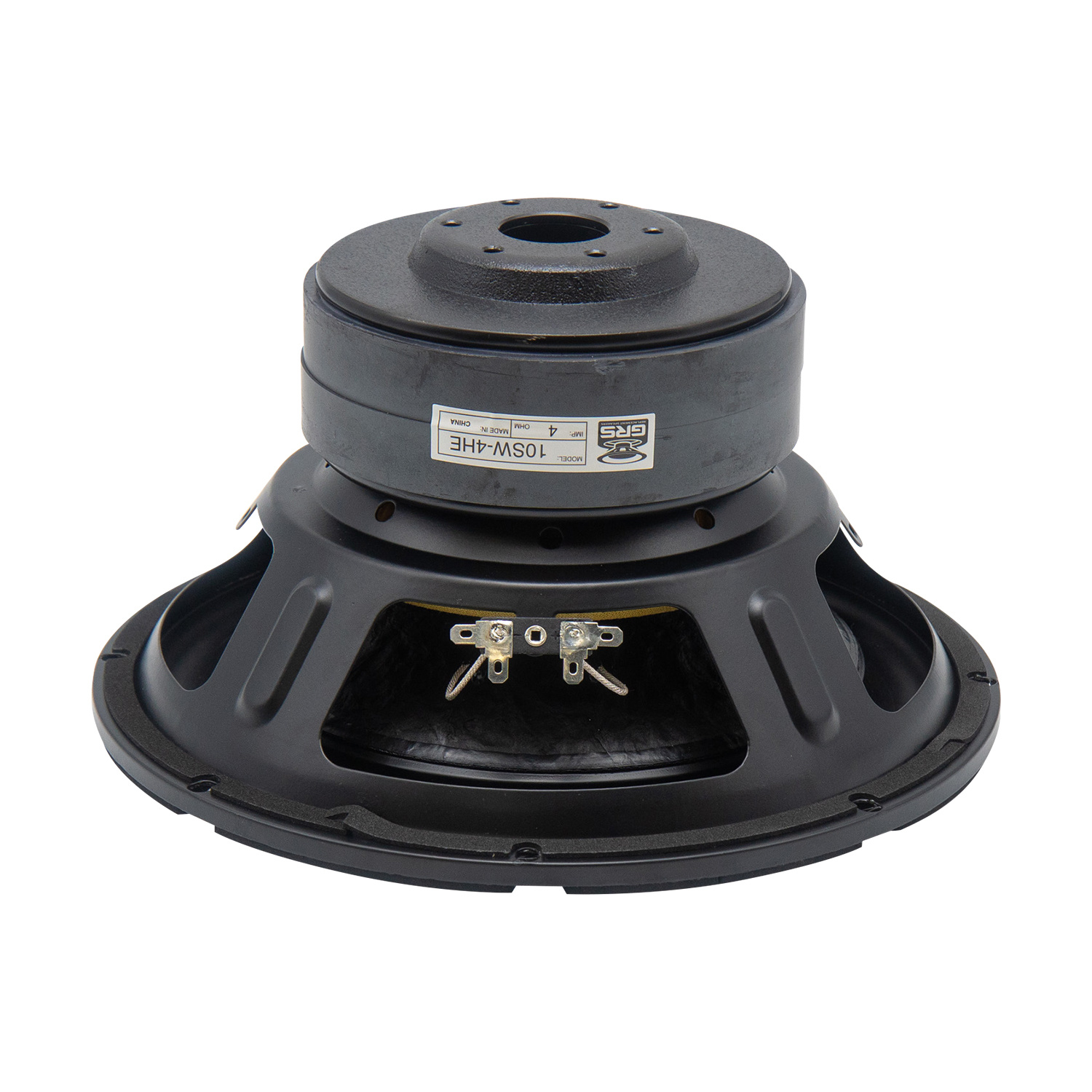

        • Extended frame and bumped back plate allow ample clearance for high excursion



        Product details

        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm


        The GRS 10SW-4HE 10” high excursion subwoofer from GRS is an ideal replacement driver for existing subwoofer systems or an excellent choice for new economical designs. Capable of producing powerful bass response in both sealed and vented designs, the 10SW-4HE is suitable as a drop-in replacement for most existing 10” subwoofers.



        Key Specs:

        • Nominal Diameter: 10"
        • Power Handling (RMS): 200W
        • Power Handling (MAX): 400W
        • Impedance: 4 Ω
        • Frequency Response: 26-500Hz
        • Sensitivity: 87.5dB 2.83V/1m
        • Voice Coil Diameter: 2"
        • Maximum Linear Excursion: 11mm



        Frequency Response & Impedance Curve

        The GRS 10SW-4HE has a bass-centric response from 20Hz up to 800Hz and is highly efficient within its passband. This efficiency and a low QTS lends itself well to both vented and sealed subwoofers for incredibly deep bass from an 10-inch driver.



        Extensive venting through the frame, pole piece, and magnetic gap dissipates excess heat to keep power compression to a minimum, even when driven hard for long periods. The rigid paper cone is supported by a large diameter spider and rubber surround to keep excursion linear while providing reliable performance. With a high temperature 2” voice coil wound on a thick aluminum former the 10SW-4HE can comfortably handle up to 200 watts RMS of power.

        Toon meer

        Specificaties

        Artikelnummer
        10SW-4HE
        Woofer type
        Subwoofer
        Nominale diameter
        10"
        Belastbaarheid (RMS)
        200 Watts
        Belastbaarheid (max)
        400 Watts
        Impedantie (Z)
        Gevoeligheid (SPL bij 1m / 2.83V)
        87.5 dB
        Frequentierespons
        26 to 500 Hz
        Spreekspoeldiameter
        2"
        Gelijkstroomweerstand (Re)
        3.8Ω
        Spreekspoelinductie (Le)
        3mH
        Resonantiefrequentie (Fs)
        25.2 Hz
        Mechanische Q (Qms)
        4
        Totale Q (Qts)
        0.5
        Bewegende massa (Mms)
        110.7g
        Compliantie van de ophanging (Cms)
        0.36mm/N
        Effectief oppervlak (Sd)
        346.4cm²
        Krachtsfactor (BL)
        10.8T·m
        Equivalentvolume (Vas)
        2.14ft³
        Maximale excursie (Xmax)
        11 mm
        Cone / Diaphragm Material
        Coated Paper
        Surroundmateriaal
        Rubber
        Spreekspoel draadmateriaal
        Copper
        Spreekspoel vormermateriaal
        Aluminum
        Mand- /framemateriaal
        Steel
        Magneetmateriaal
        Ferrite
        Totale buitendiameter
        10.11"
        Totale diepte
        5.15"
        Montagegatdiameter
        9.18"
        Bolt Circle Diameter
        9.64
        # Bevestigingsgaten
        8
        Gesloten volume
        1ft³
        Gesloten F3
        43Hz
        Gepoort volume
        2ft³
        Gepoort F3
        25Hz

        Toon meer
