        10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer

        GRS 10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer

        €69,95

        6 Op voorraad

        Toevoegen aan winkelwagen

        GRS 10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: GRS
        Toon alle Nieuwe producten
        10" | 4 Ω
        10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
        10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
        10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
        10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
        10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
        10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
        € 57,81€ 69,95 6 Op voorraad
        • -5% Bestel 4 voor slechts € 66,45 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
        10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
        10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
        10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
        10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
        10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer

        Productomschrijving GRS 10SMP-4 Bass-midwoofer

        The GRS 10SMP-4 is a high-performance 10" surface-mount woofer engineered for deep bass extension and efficient low-frequency reproduction. With a large cone area, 70W RMS power handling, and low Fs of 28 Hz, this 4-ohm driver delivers impactful bass in compact enclosures without compromising on clarity or control.



        Highlights of the GRS 10SMP-4

        • Extended low-frequency response down to 24 Hz with a low resonance frequency (Fs) of 28 Hz
        • High displacement (Vd 170 cm³) and 5 mm Xmax enable deep, clean bass output
        • Aluminum voice coil former and copper cap provide thermal stability and reduced distortion
        • Surface-mount frame with integrated foam gasket for airtight cabinet sealing



        Product details GRS 10SMP-4

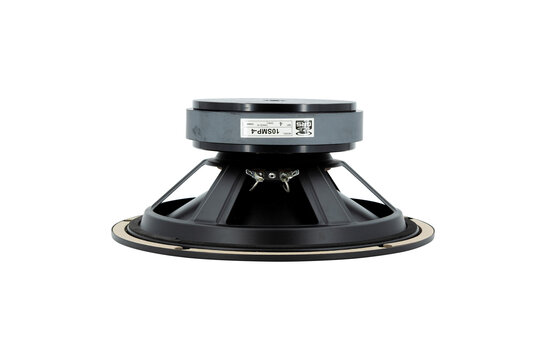

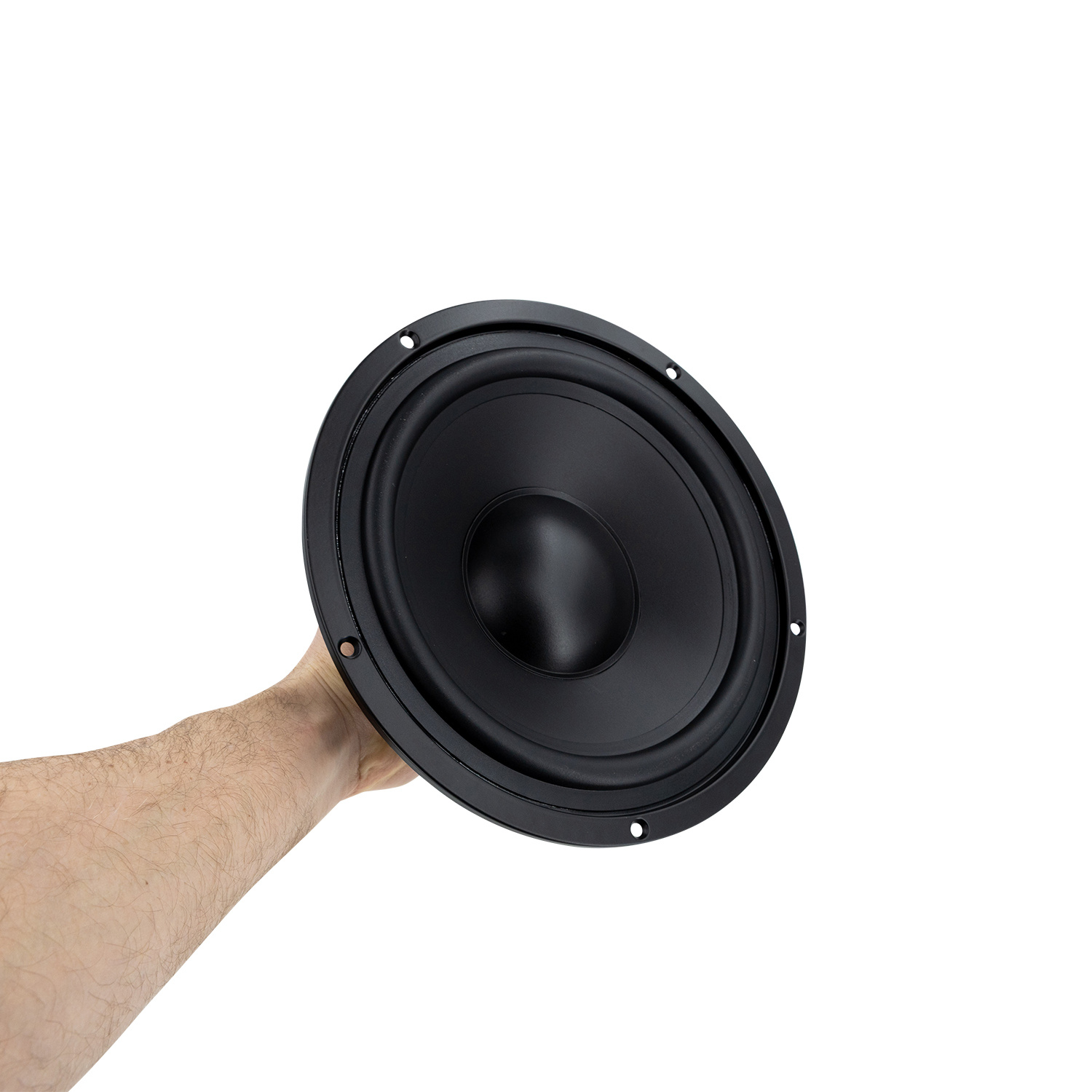

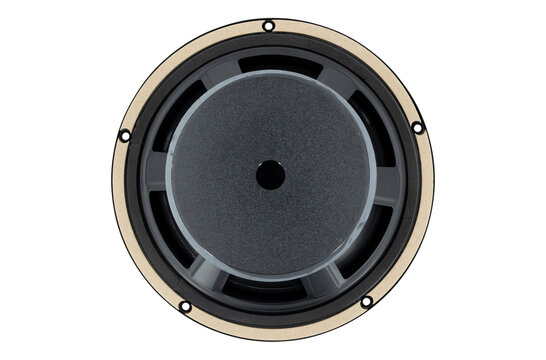

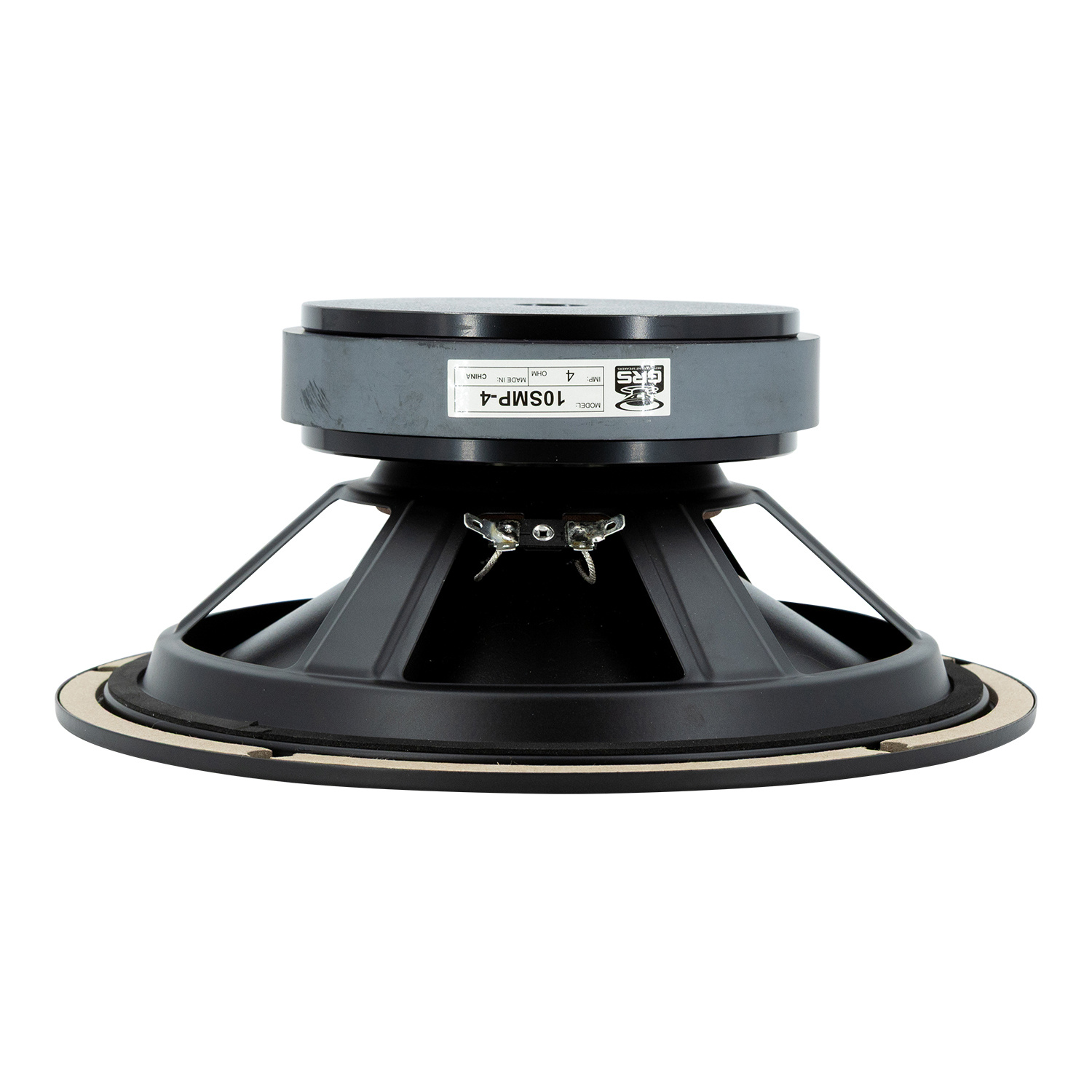

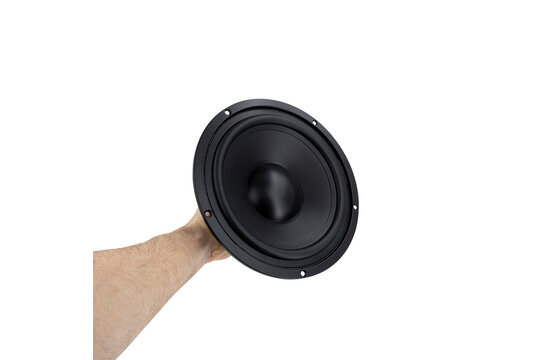

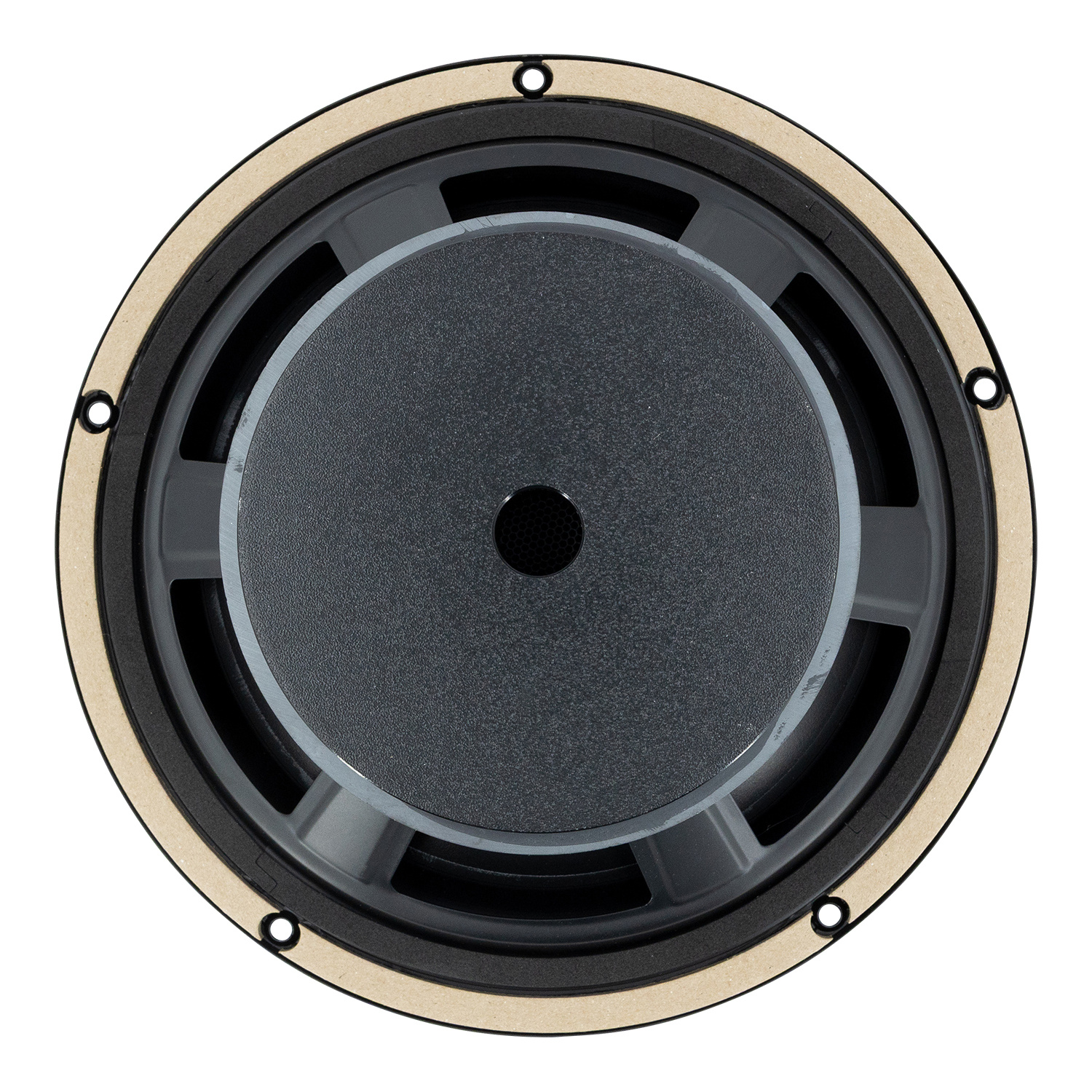

        GRS 10SMP-4 Surface Mount Woofer



        The GRS 10SMP-4 is a 10" poly cone woofer designed for surface-mount installation, offering powerful low-frequency performance in shallow speaker enclosures. With a 4-ohm impedance and 70W RMS power handling, this woofer features a vented pole piece for enhanced cooling, a copper cap to reduce inductance and distortion, and an aluminum voice coil former for excellent heat dissipation. It has a high-efficiency design with a sensitivity of 90 dB @ 2.83V/1m and supports a usable frequency range of 24 Hz to 2,000 Hz. The large cone area (Sd 340 cm²) and generous displacement volume (Vd 170 cm³) make it ideal for deep bass response, while its controlled Qts of 0.51 and low Le of 0.34 mH ensure tight, articulate sound reproduction. A perfect fit for DIY home theater subs, compact full-range towers, or automotive installs demanding slim profile and big sound.

        Toon meer

        Specificaties

        Artikelnummer
        10SMP-4
        EAN
        0848864079868
        Woofer type
        Bass-midwoofer
        Belastbaarheid (RMS)
        70 Watts
        Impedantie (Z)
        4 Ohm
        Gevoeligheid (SPL bij 1m / 2.83V)
        90 dB
        Frequentierespons
        24 – 2,000 Hz
        Spreekspoeldiameter
        39 mm
        Gelijkstroomweerstand (Re)
        3.8 Ohm
        Spreekspoelinductie (Le)
        0.34 mH
        Resonantiefrequentie (Fs)
        28 Hz
        Mechanische Q (Qms)
        2.72
        Elektrische Q (Qes)
        0.63
        Totale Q (Qts)
        0.51
        Bewegende massa (Mms)
        63g
        Compliantie van de ophanging (Cms)
        0.51 mm/N
        Effectief oppervlak (Sd)
        340 cm²
        Maximaal verplaatst volume (Vd)
        170 cm³
        Krachtsfactor (BL)
        8.2 Tm
        Equivalentvolume (Vas)
        86 L
        Maximale excursie (Xmax)
        5 mm
        # Bevestigingsgaten
        5

        Toon meer
