      GRS 10PT-8 Woofer

      € 52,02€ 62,95 10+ Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts € 59,80 per stuk
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf € 99 (NL & BE)
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      The GRS 10PT-8 10” professional paper cone woofer will deliver high output midbass and midrange response without breaking the bank. Packed with features like a 2” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability. Whether you need a drop-in replacement for a damaged DJ speaker or you are designing a high output 2 or 3-way system, the 10PT-8 is the perfect driver for budget builds.



      Highlights

      • Lightweight ribbed paper cone allows high efficiency with minimal resonance
      • Smooth on and off axis response up to 2,000 Hz for use in high output 2 or 3-way designs
      • Extensive venting keeps cool air flowing across the voice coil to minimize power compression

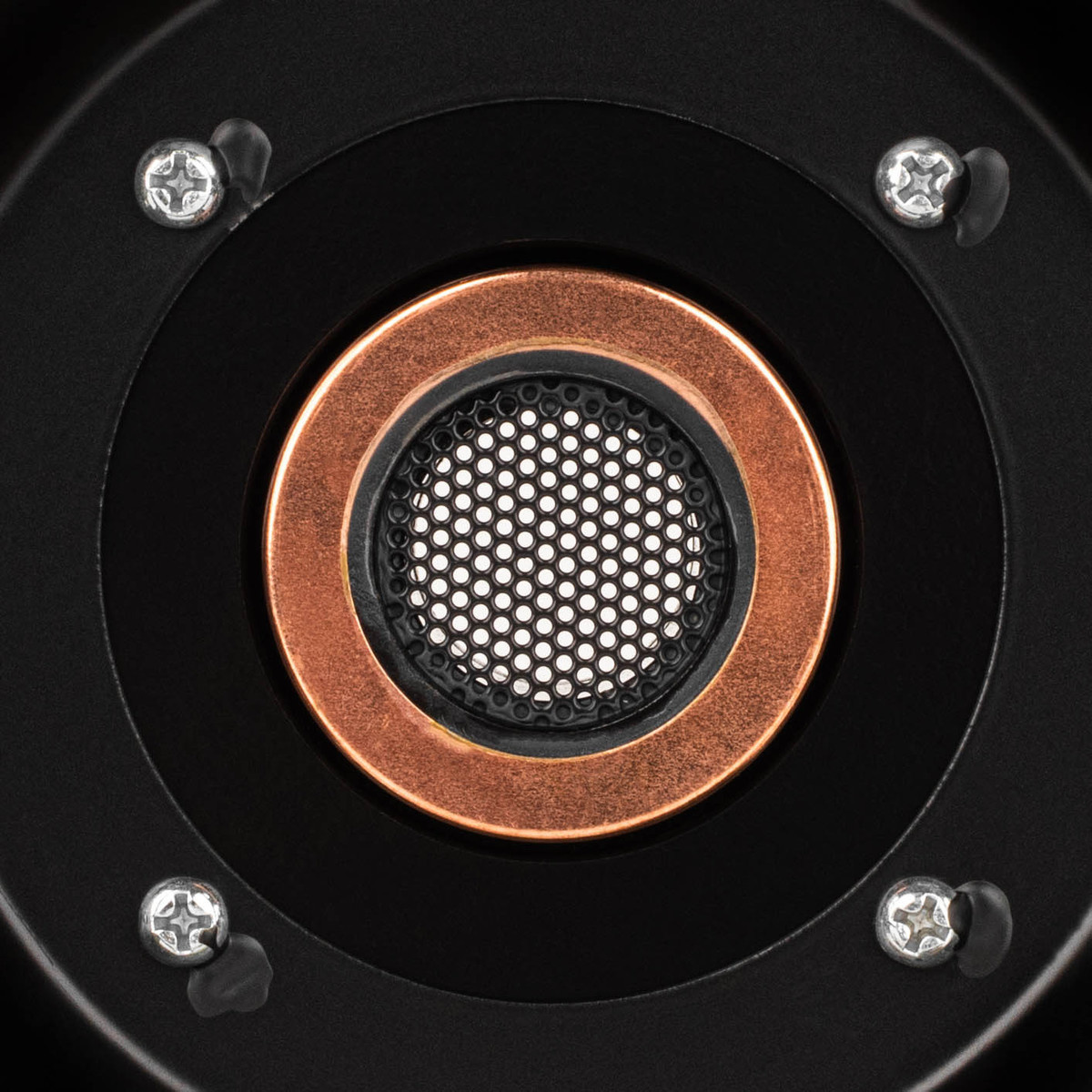

      • Inductance lowering copper cap reduces distortion and extends high frequency response

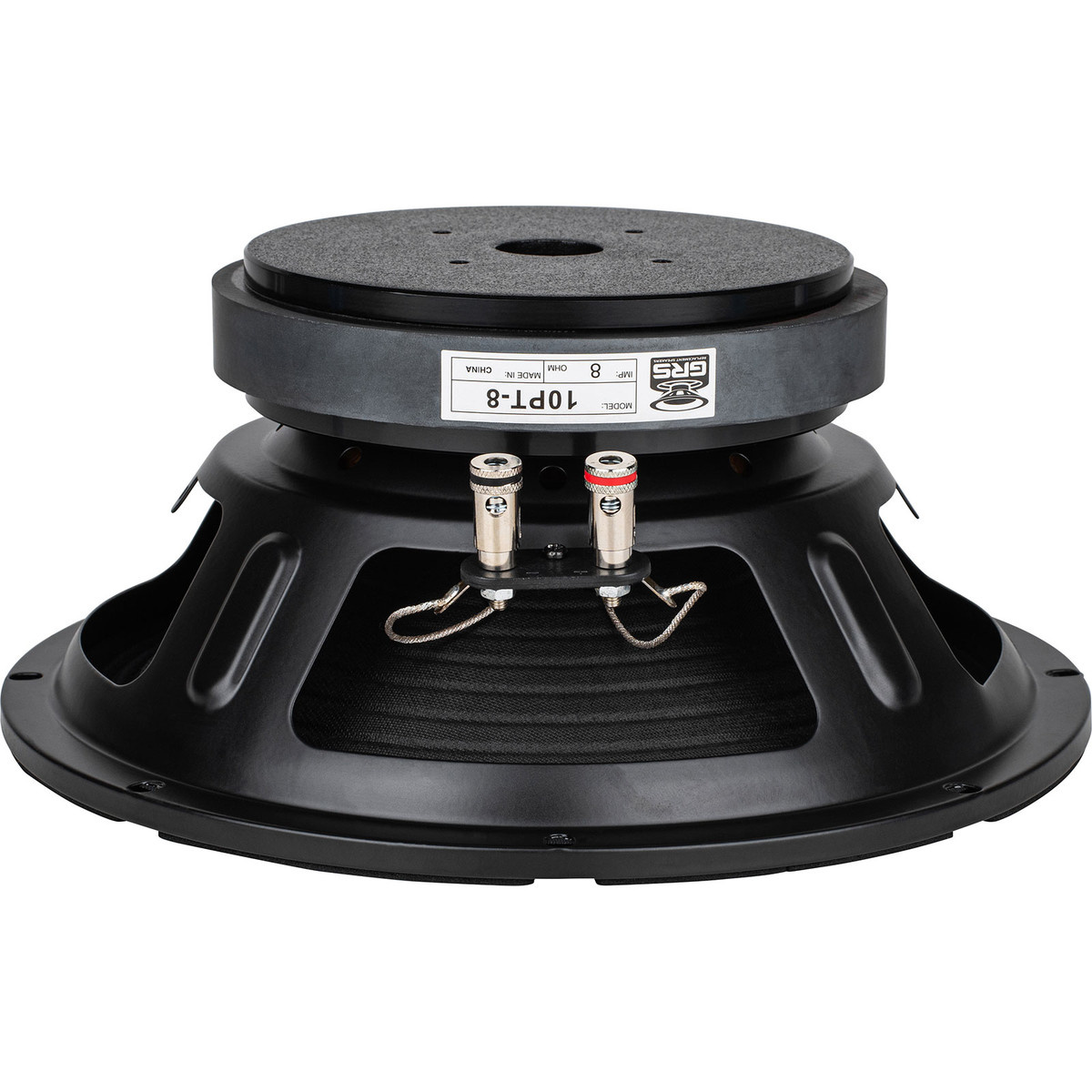

      • Spring-loaded push-button terminals makes wire connections quick and easy
      • Foam front gasket ensures an airtight seal for rear mount installations



      Product details

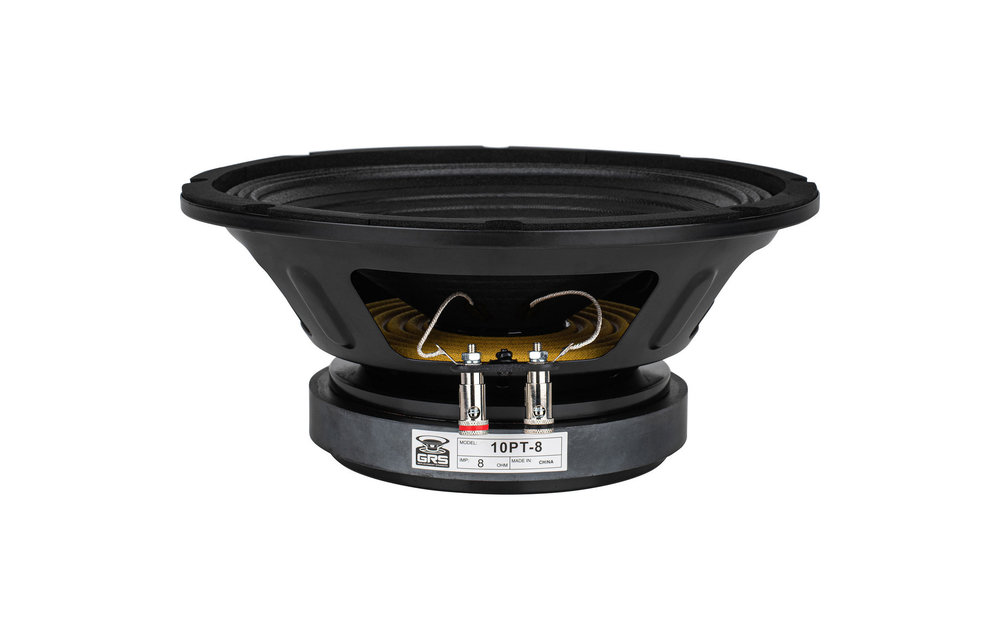

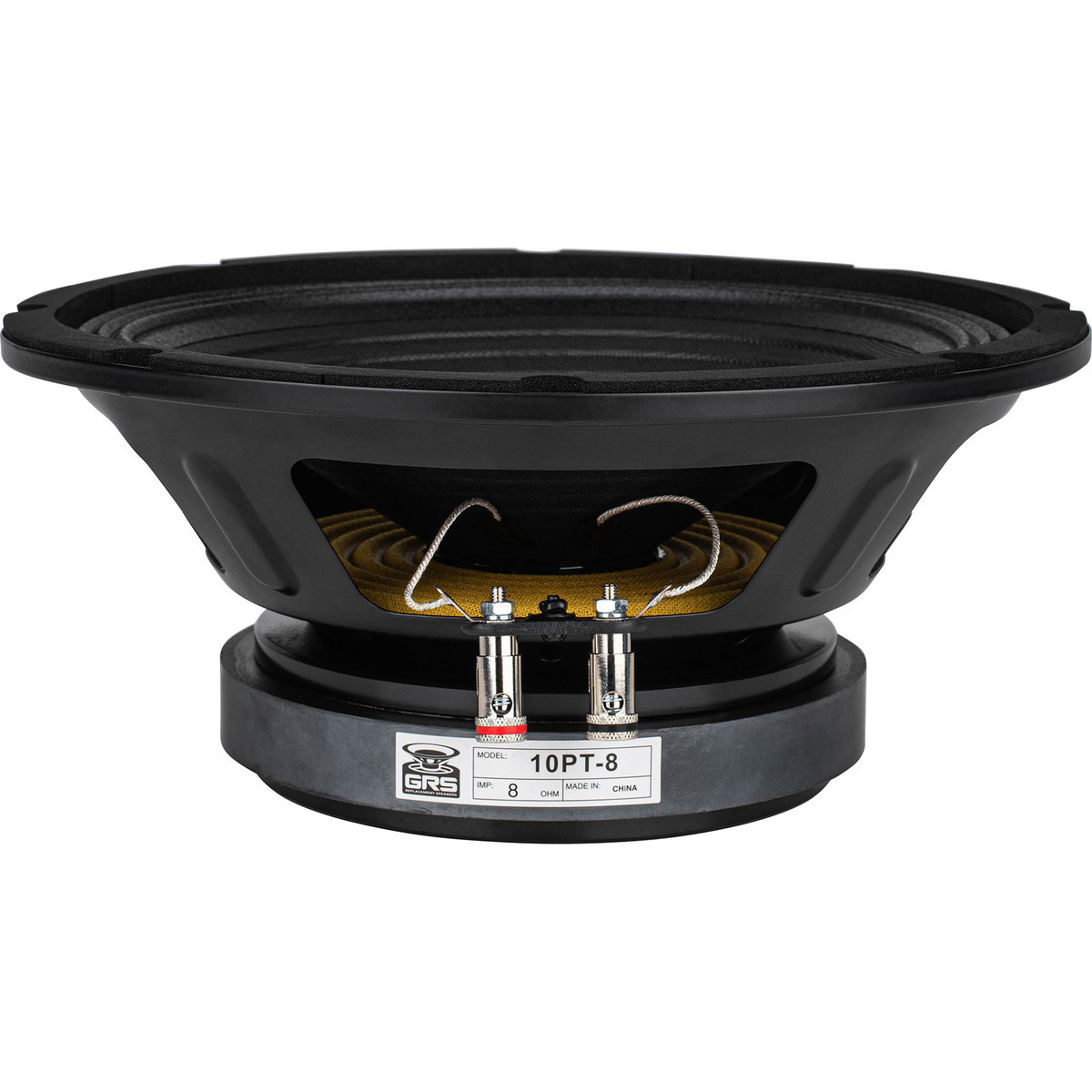

      GRS 10PT-8 10" Paper Cone Professional Woofer 8 Ohm

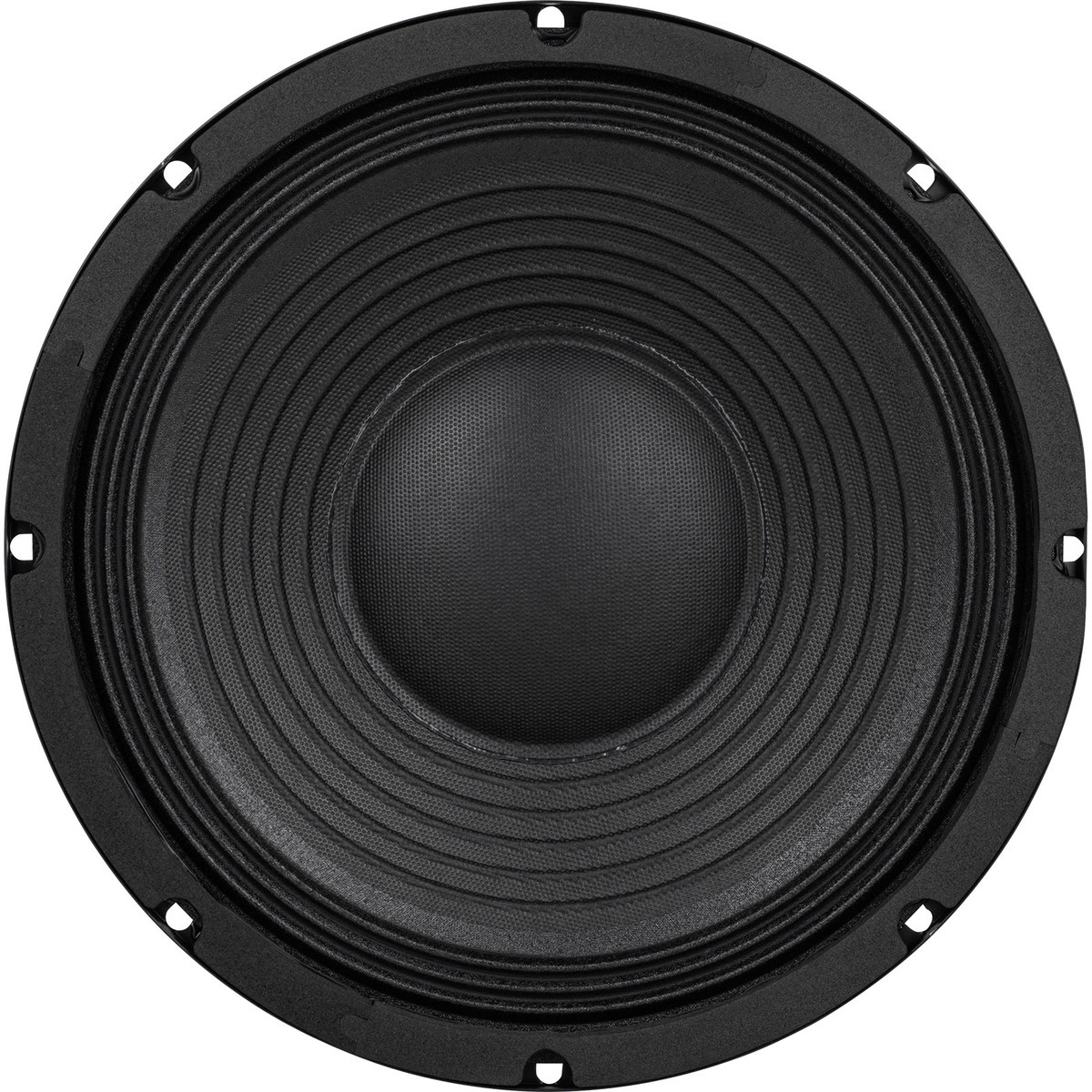

      Engineered for high output with smooth frequency response, the 10PT-8 10” professional woofer is ideal for use in systems built to provide impressive SPL. Packed with features you would expect from much more expensive drivers, the 10PT-8 is built for low distortion and reliability even when pushed to its limit. The lightweight reinforced paper cone has excellent damping properties, minimizing unwanted resonances, and the ribbed surface controls cone breakup to ensure smooth response all the way up to 2,000 Hz. Driving the cone is a 2” diameter dual-layer voice coil that is wound on a heat resistant polyimide former to handle up to 200 watt RMS. Extensive venting through frame, pole piece, and magnetic gap cools the voice coil to prevent thermal runaway and lower power compression during long sessions at high power. With a copper cap on the pole piece keeping inductance under control, you can ensure that the 10PT-8 will provide low distortion throughout its useable bandwidth. Whether you need a drop-in replacement for a worn-out DJ speaker, or are designing high output 2 or 3-way system, the 10PT-8 is the ideal choice if you want high output and natural response without spending a fortune.

      Specificaties

      Artikelnummer
      10PT-8
      Woofer type
      Paper Cone Professional Woofer
      Nominale diameter
      10"
      Belastbaarheid (RMS)
      200 Watts
      Belastbaarheid (max)
      400 Watts
      Impedantie (Z)
      8 Ohms
      Gevoeligheid
      93dB 2.83V/1m
      Frequentierespons
      40 to 7,000Hz
      Gelijkstroomweerstand (Re)
      7.1Ω
      Spreekspoelinductie (Le)
      1.6mH
      Resonantiefrequentie (Fs)
      47Hz
      Mechanische Q (Qms)
      11.4
      Elektrische Q (Qes)
      0.5
      Totale Q (Qts)
      0.48
      Bewegende massa (Mms)
      43g
      Compliantie van de ophanging (Cms)
      0.27mm/N
      Effectief oppervlak (Sd)
      348cm²
      Krachtsfactor (BL)
      13.4T·m
      Equivalentvolume (Vas)
      1.63ft³
      Maximale excursie (Xmax)
      7.8mm
      Cone / Diaphragm Material
      Paper / Glass Fiber
      Surroundmateriaal
      Cloth
      Spreekspoel draadmateriaal
      Copper
      Spreekspoel vormermateriaal
      Kapton® / Polyimide
      Mand- /framemateriaal
      Steel
      Magneetmateriaal
      Ferrite
      Totale buitendiameter
      10.16"
      Totale diepte
      4.41"
      Montagegatdiameter
      9.13"
      Bolt Circle Diameter
      9.76
      # Bevestigingsgaten
      8
      Gesloten F3
      78Hz
      Gepoort volume
      2.3ft³
      Gepoort F3
      38Hz
