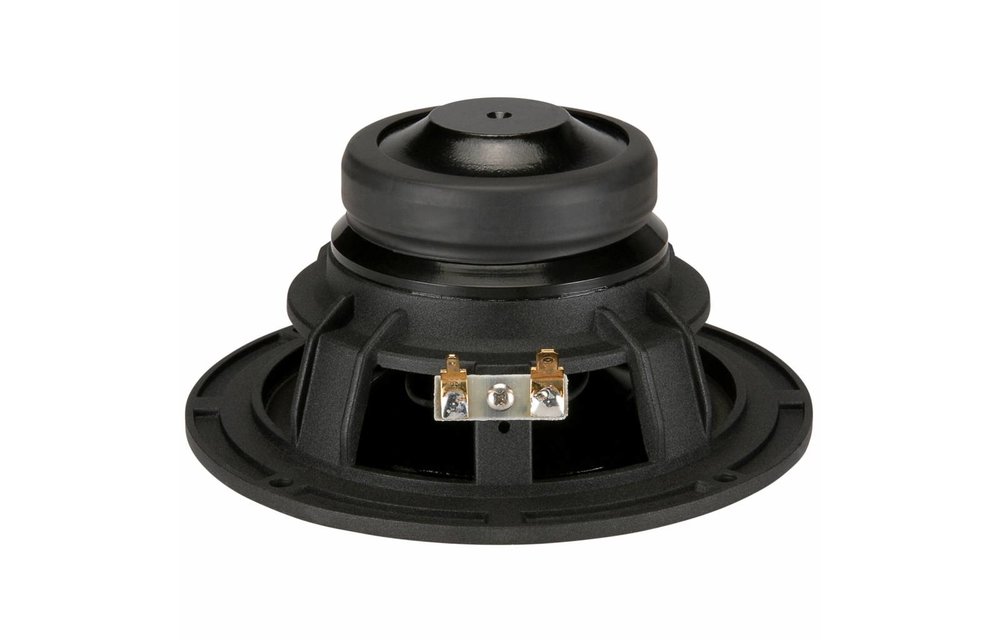

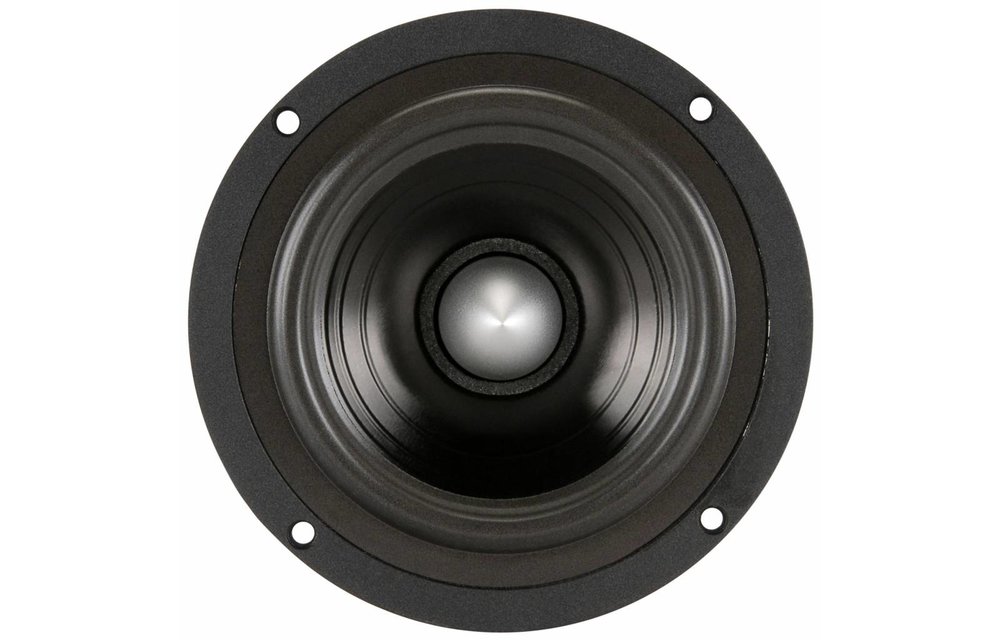

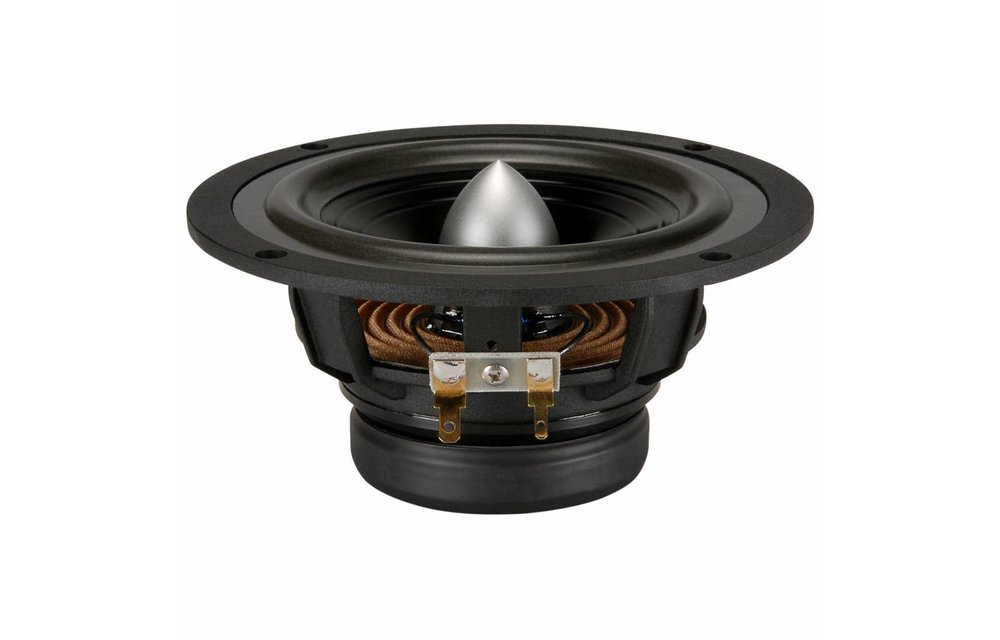

    Fountek FR135EX 5" Full Range Speaker

    € 84,95 Niet op voorraad: binnen 1 week leverbaar
    Fountek’s FR135EX 5" full range driver features an attractive, high-strength aluminum cone, robust cast-aluminum frame, and an optimized long-excursion neodymium motor, for low distortion and excellent detail.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €80,70 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Fountek’s FR135EX 5" full range driver features an attractive, high-strength aluminum cone, robust cast-aluminum frame, and an optimized long-excursion neodymium motor, for low distortion and excellent detail.



    Highlights

    • Black anodized aluminum cone with phase plug
    • 40 watts RMS power handling
    • Neo-powered, high-excursion, underhung motor design
    • Smooth, extended frequency response
    • Cast aluminum frame



    Product details

    Fountek FR135EX 5" Neodymium Full Range Speaker Driver



    Fountek has applied much of what it has learned from designing industry-leading ribbon transducers in creating its line of full-range drivers. These high-performing cone drivers feature optimized aluminum diaphragms that shed resonance rapidly, for exceptional detail and smooth frequency response.



    The 5" FR135EX model features a high-strength neodymium motor structure for low distortion, extended excursion, and excellent transient response. It’s perfect as a full-range driver or a midrange in multi-way speaker designs.

    Specificaties

    Artikelnummer
    FR135EX
    Woofer Type
    Full-range
    Nominal Diameter
    5"
    Power Handling (RMS)
    40 Watts
    Power Handling (max)
    80 Watts
    Impedance
    8 ohms
    Sensitivity
    85.1 dB 2.83V/1m
    Frequency Response
    50 to 20,000Hz
    Voice Coil Diameter
    1.26"
    Resonant Frequency (Fs)
    61.5 hz
    Mechanical Q (Qms)
    1.71
    Electromagnetic Q (Qes)
    0.69
    Total Q (Qts)
    0.49
    Diaphragm Mass Inc. Airload (Mms)
    7.55g
    Mechanical Compliance of Suspension (Cms)
    0.89 mm/N
    Surface Area of Cone (Sd)
    70.5 cm²
    BL Product (BL)
    5.03 Tm
    Compliance Equivalent Volume (Vas)
    0.22 ft.³
    Maximum Linear Excursion (Xmax)
    5 mm
    Cone / Diaphragm Material
    Aluminum
    Surround Material
    Foam
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Neodymium
    Overall Outside Diameter
    5.73”
    Overall Depth
    2.71"
    Baffle Cutout Diameter
    4.53"
    # Mounting Holes
    4
    Sealed Volume
    0.13 ft.³
    Sealed F3
    100 Hz
    Vented Volume
    0.34 ft.³
    Vented F3
    48 Hz
