        HF146-8P 1,4" Compression Driver 8 Ohm

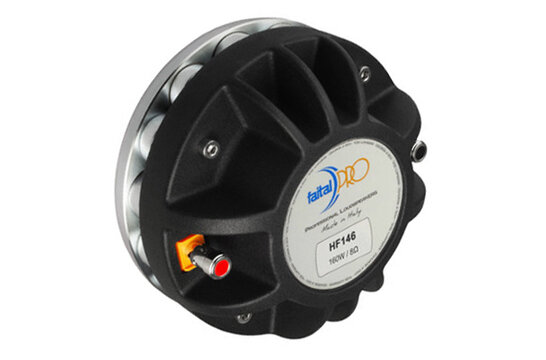

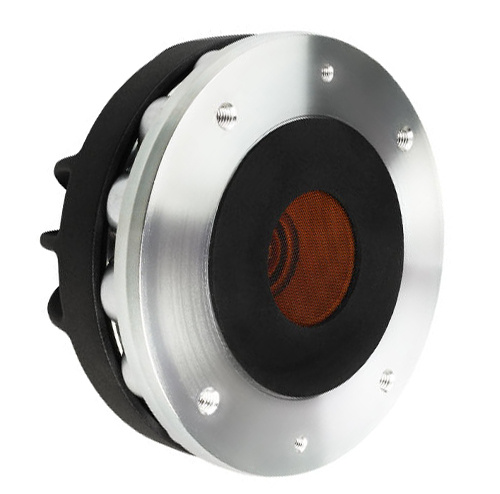

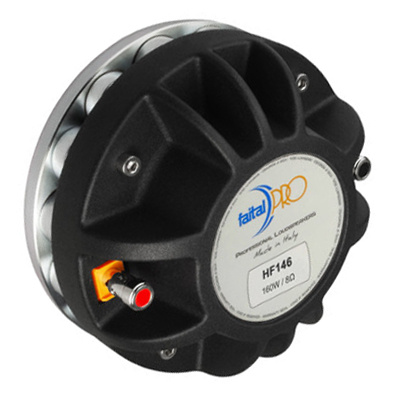

        FaitalPRO HF146-8P 1,4" Compression Driver 8 Ohm

        €289,95

        2 Op voorraad

        Toevoegen aan winkelwagen

        FaitalPRO HF146-8P 1,4" Compression Driver 8 Ohm

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: FaitalPRO
        Toon alle Compression driver
        1.4" | 8 Ω
        HF146-8P 1,4" Compression Driver 8 Ohm
        HF146-8P 1,4" Compression Driver 8 Ohm
        HF146-8P 1,4" Compression Driver 8 Ohm
        HF146-8P 1,4" Compression Driver 8 Ohm
        € 239,63€ 289,95 2 Op voorraad
        • -5% Bestel 4 voor slechts € 275,45 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        HF146-8P 1,4" Compression Driver 8 Ohm
        HF146-8P 1,4" Compression Driver 8 Ohm
        HF146-8P 1,4" Compression Driver 8 Ohm
        HF146-8P 1,4" Compression Driver 8 Ohm

        Productomschrijving FaitalPRO HF146-8P Compression Driver

        The FaitalPRO HF146 is a professional 1.4-inch exit compression driver engineered for clean, high-output performance with excellent low crossover capability. Designed for large-format horn systems, it delivers smooth, wide-range high-frequency reproduction with superior power handling and consistency.



        Highlights of the FaitalPRO HF146

        • 80 W AES (above 0.9 kHz) and 40 W AES (above 0.65 kHz) power handling for extended versatility
        • 109 dB sensitivity ensures powerful HF output with minimal amplifier strain
        • 65 mm (2.56”) aluminum voice coil and neodymium slug crown magnet for dynamic control
        • Wide frequency range from 700 Hz to 18 kHz with a 29° conical exit angle



        Product details FaitalPRO HF146

        FaitalPRO HF146 High-Frequency Compression Driver – 8 Ohm Version



        The FaitalPRO HF146 is a 1.4" exit high-frequency driver that balances high sensitivity, extended frequency response, and flexible power handling options. Designed for two- and three-way professional audio systems, the HF146 uses a 65 mm (2.56 in) aluminum voice coil on a Kapton former, capable of handling 80 W AES above 0.9 kHz or 40 W AES above 0.65 kHz. Peak handling doubles at both thresholds, offering up to 160 W and 80 W respectively.

        With a frequency range from 700 Hz to 18 kHz and a high 109 dB sensitivity, the HF146 performs exceptionally in vocal-critical and high-SPL applications. Its ketone polymer dome diaphragm and annular phase plug provide a coherent and dynamic HF response. The 29° conical exit angle ensures broad dispersion when used with standard 1.4" flares like the FaitalPRO LTH142. Ideal for use in compact or mid-sized horn-loaded enclosures where power-to-weight efficiency is key.

        Toon meer

        Specificaties

        Artikelnummer
        HF146-8P
        EAN
        0848864011424
        Woofer type
        Compression Driver
        Nominale diameter
        1.4"
        Belastbaarheid (RMS)
        80 Watts
        Belastbaarheid (max)
        160 Watts
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        109 dB
        Frequentierespons
        700 - 18.000 Hz
        Gelijkstroomweerstand (Re)
        5.5 Ω
        Spreekspoel draadmateriaal
        Aluminium
        Spreekspoel vormermateriaal
        Kapton
        Totale buitendiameter
        123 mm
        Totale diepte
        63.5 mm
        # Bevestigingsgaten
        4

        Toon meer
