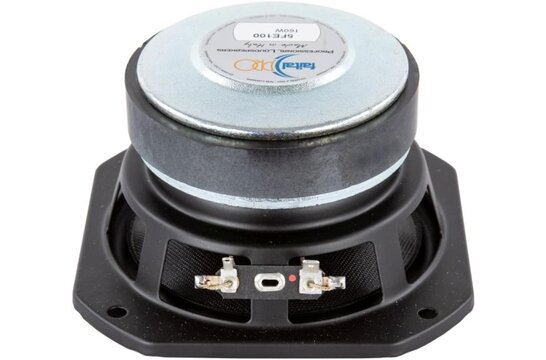

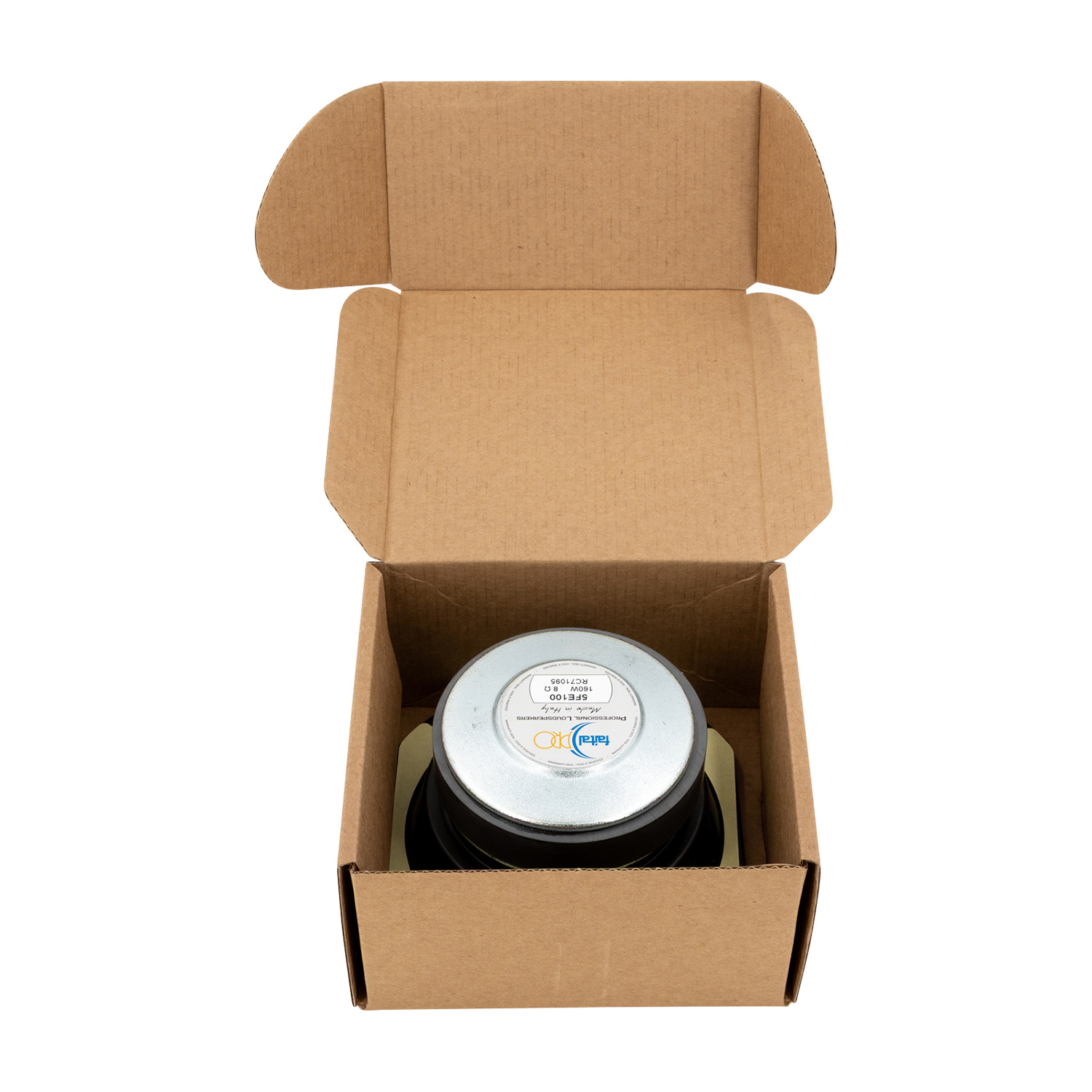

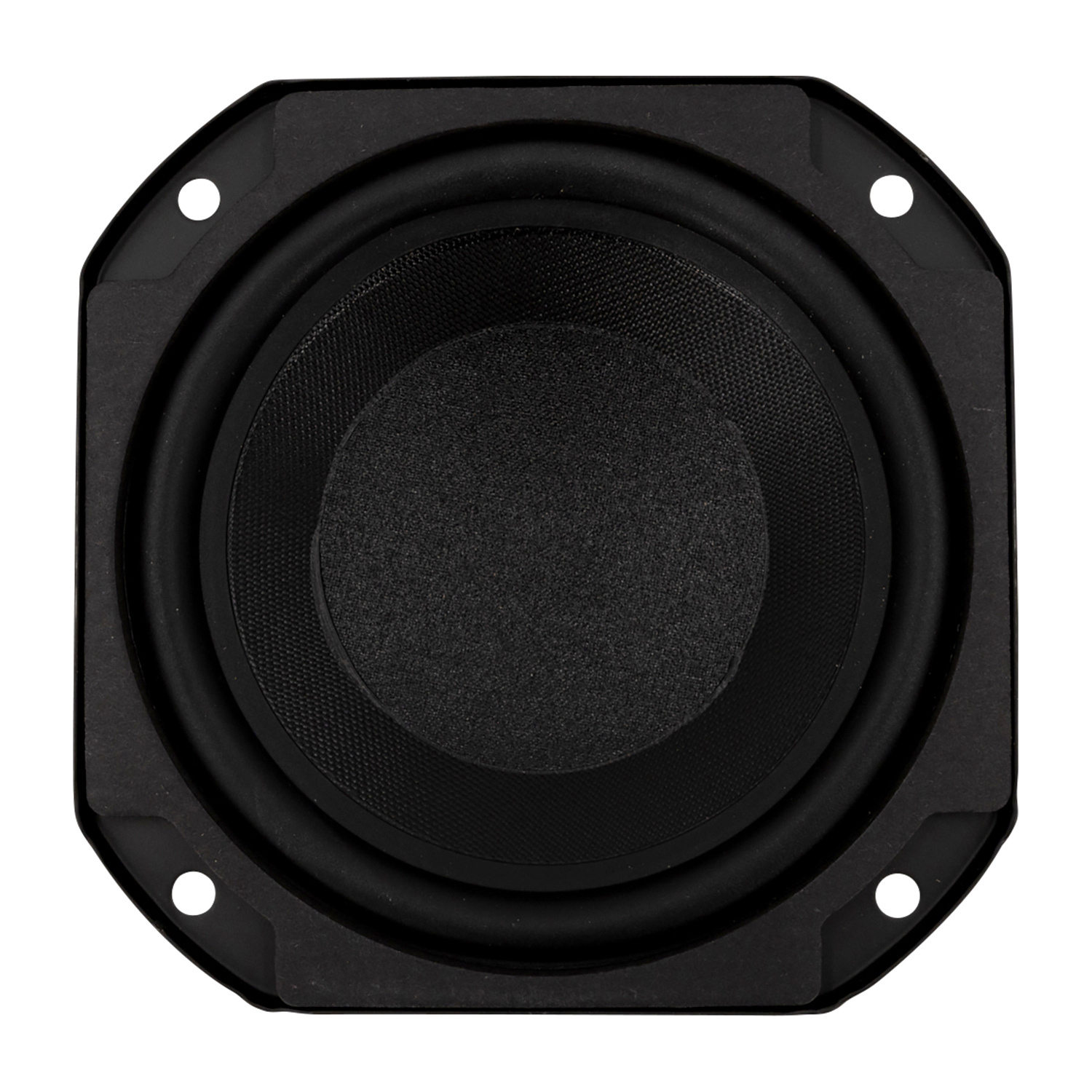

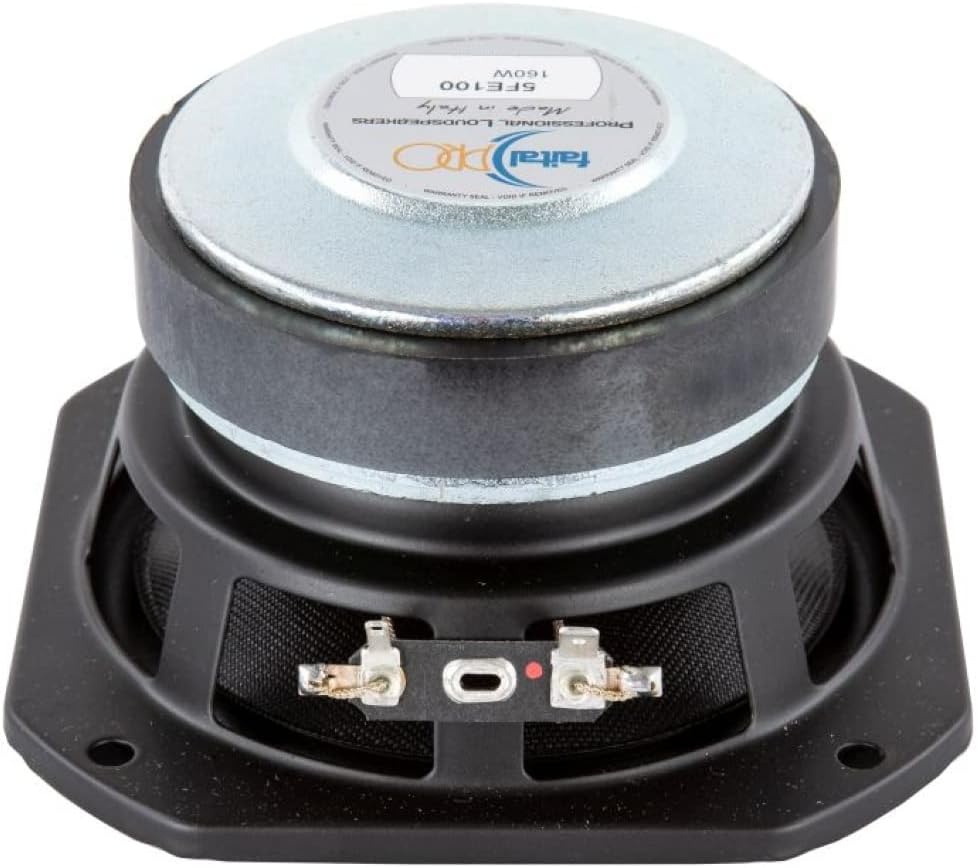

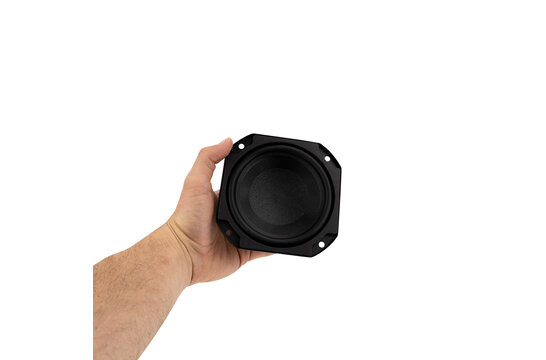

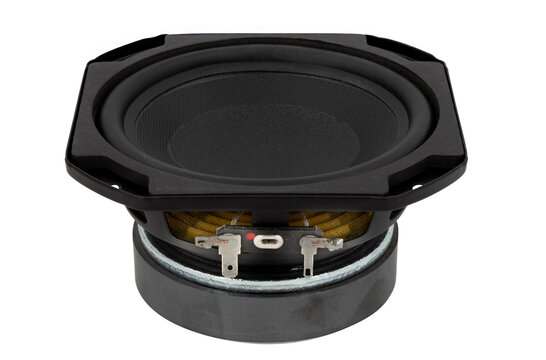

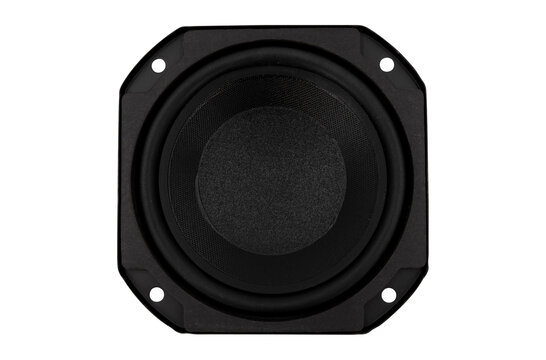

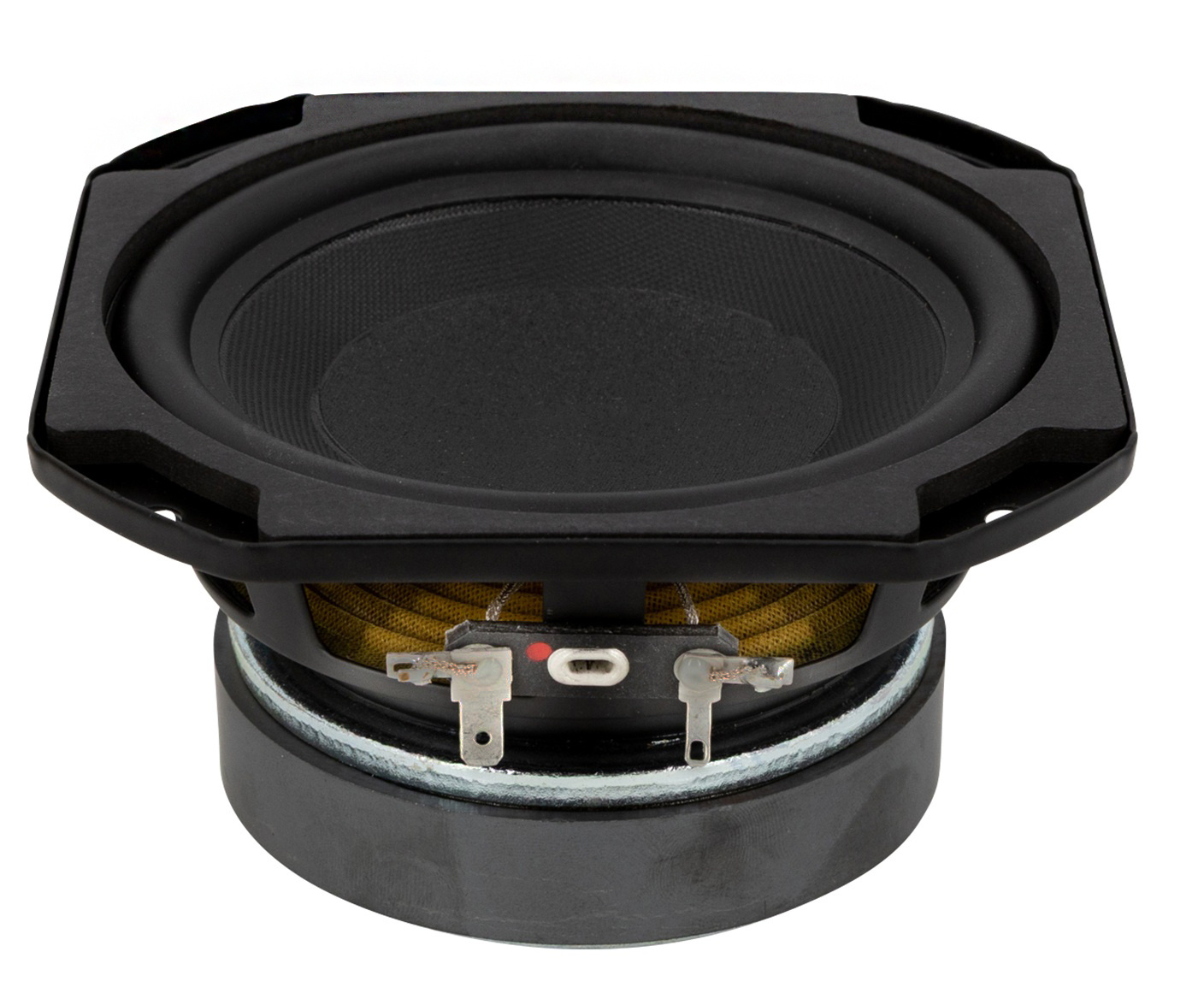

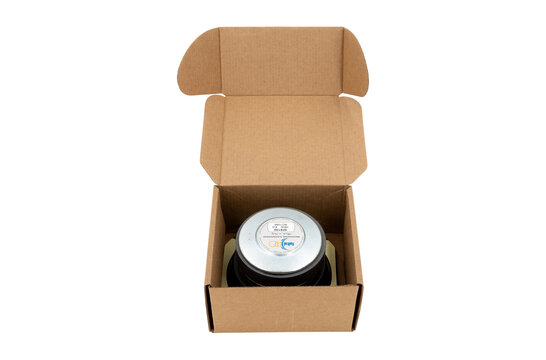

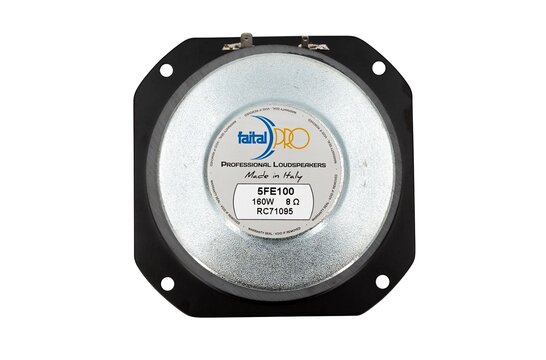

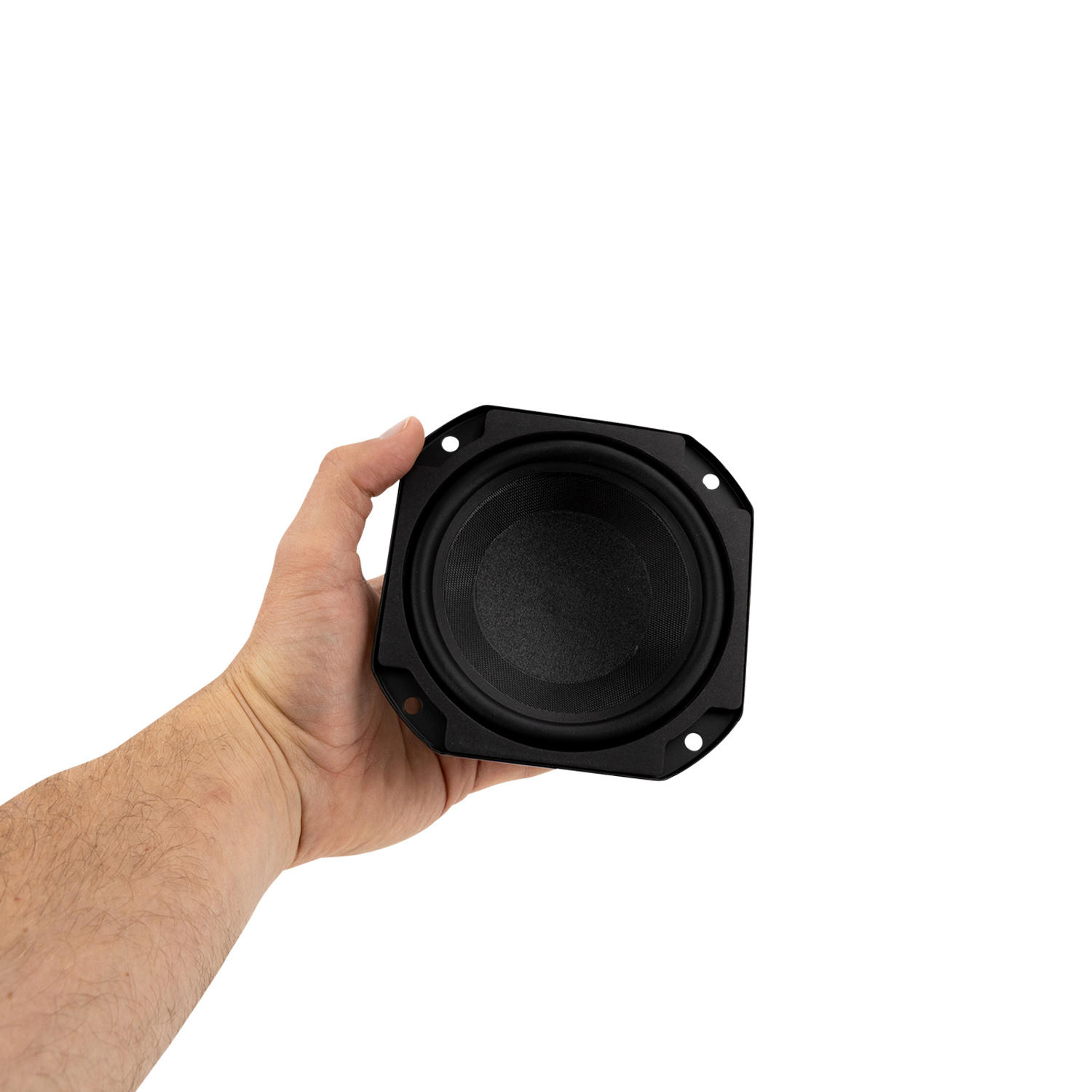

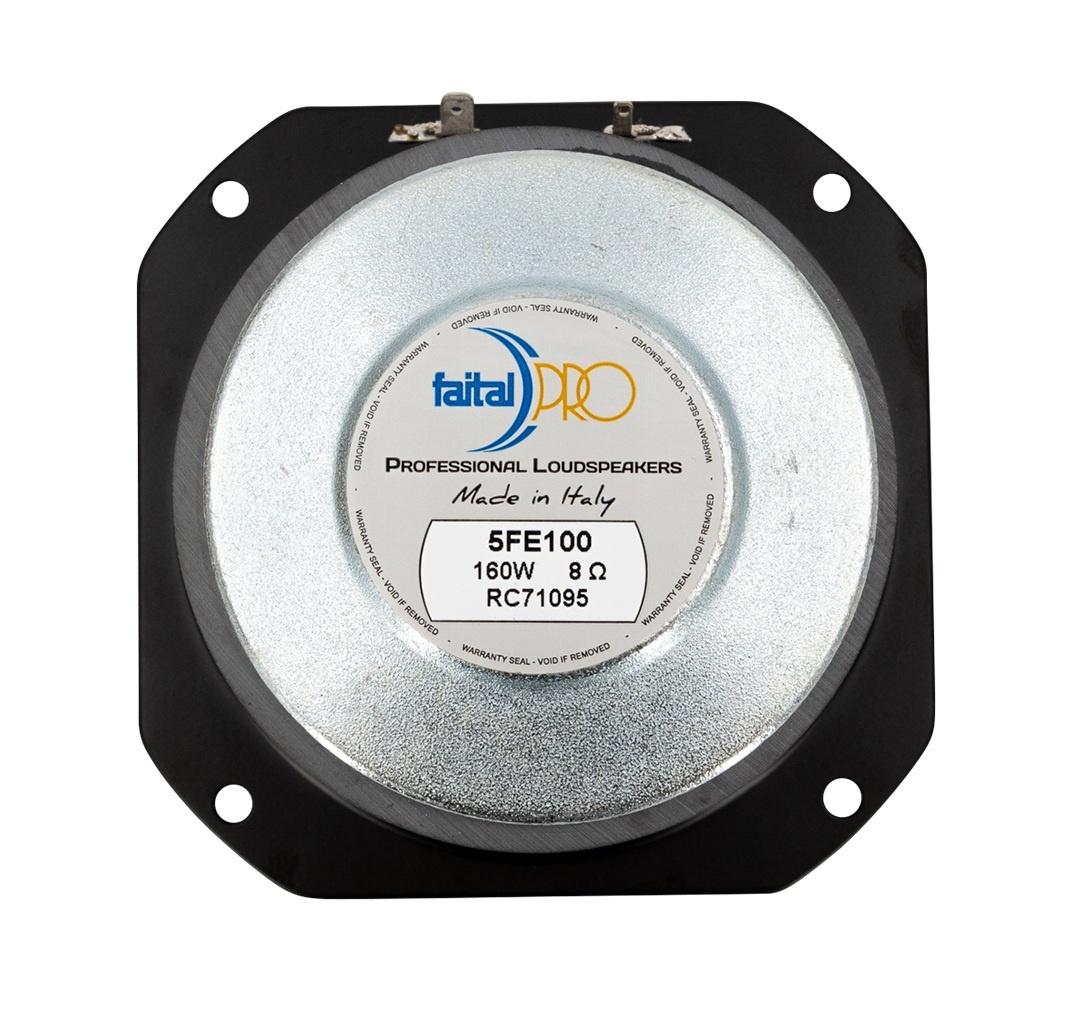

        5FE100-8F 5" Bass-midwoofer 8 Ohm

        FaitalPRO 5FE100-8F 5" Bass-midwoofer 8 Ohm

        €34,95

        Niet op voorraad

        Toevoegen aan winkelwagen

        FaitalPRO 5FE100-8F 5" Bass-midwoofer 8 Ohm

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: FaitalPRO
        Toon alle Bass-mid woofer
        5" | 8 Ω
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        € 28,88€ 34,95 Niet op voorraad
        • -5% Bestel 4 voor slechts € 33,20 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Snel weer op voorraad
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm
        5FE100-8F 5" Bass-midwoofer 8 Ohm

        Productomschrijving FaitalPRO 5FE100-8F Bass-midwoofer

        Compact and powerful, the FaitalPRO 5FE100 is a 5-inch professional midrange loudspeaker designed for high-performance audio systems. With its 80W AES power handling and smooth frequency response, it's an ideal choice for midrange applications in both portable and fixed installations.



        Highlights of the FaitalPRO 5FE100

        • 80W AES / 160W maximum power handling for reliable performance
        • 88 dB sensitivity with extended frequency response from 63 Hz to 6.3 kHz
        • Robust ferrite magnet with 32 mm copper voice coil and Kapton former
        • Steel basket with compact 71.5 mm mounting depth for versatile integration



        Product details FaitalPRO 5FE100

        FaitalPRO 5FE100 5" Professional Midrange Loudspeaker



        The FaitalPRO 5FE100 is engineered to deliver articulate and dynamic midrange reproduction in demanding sound reinforcement setups. Featuring an 8 Ohm impedance and a voice coil wound in copper on a Kapton former, the 5FE100 provides durability under load while maintaining clear sonic performance. The unit operates efficiently across a 63–6300 Hz frequency range, making it suitable for two-way or multi-way speaker systems in PA, stage monitoring, or custom cabinet designs.

        The 5FE100’s ferrite magnet system delivers a flux density of 1 Tesla, and its half-roll rubber surround ensures controlled excursion with low distortion. With an Xmax of 5.25 mm and maximum excursion of 9.5 mm, this driver offers impressive linearity and resilience. Its compact size, at just 71.5 mm in depth and 1.12 kg in weight, allows for flexible cabinet designs without compromising output. A perfect fit for audiophiles and professional builders aiming for tight midrange clarity in a small footprint.

        Toon meer

        Specificaties

        Artikelnummer
        5FE100-8F
        EAN
        0848864011035
        Woofer type
        Bass-Midwoofer
        Nominale diameter
        5''
        Belastbaarheid (RMS)
        80 Watts
        Belastbaarheid (max)
        160 Watts
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        88 dB
        Frequentierespons
        63 - 6.300 Hz
        Spreekspoeldiameter
        32 mm
        Gelijkstroomweerstand (Re)
        5.4 Ω
        Spreekspoelinductie (Le)
        0.53 mH
        Resonantiefrequentie (Fs)
        65 Hz
        Mechanische Q (Qms)
        8.2
        Elektrische Q (Qes)
        0.48
        Totale Q (Qts)
        0.45
        Bewegende massa (Mms)
        10.5 g
        Moving Mass Of Diaphragm (Mmd)
        9.6 g
        Compliantie van de ophanging (Cms)
        0.57 mm/N
        Effectief oppervlak (Sd)
        84 cm²
        Krachtsfactor (BL)
        6.9 N/A
        Equivalentvolume (Vas)
        57 Liters
        Maximale excursie (Xmax)
        5.25 mm
        Driver's Mechanical Losses (Rms)
        0.52 kg/s
        Spreekspoel draadmateriaal
        Cu
        Spreekspoel vormermateriaal
        Kapton
        Mand- /framemateriaal
        Steel
        Magneetmateriaal
        Ferrite
        Totale buitendiameter
        144.8 mm
        Totale diepte
        71.5 mm
        Montagegatdiameter
        114 mm
        Bolt Circle Diameter
        133 mm
        # Bevestigingsgaten
        4
        Diameter bevestigingsgaten
        5.3 mm
