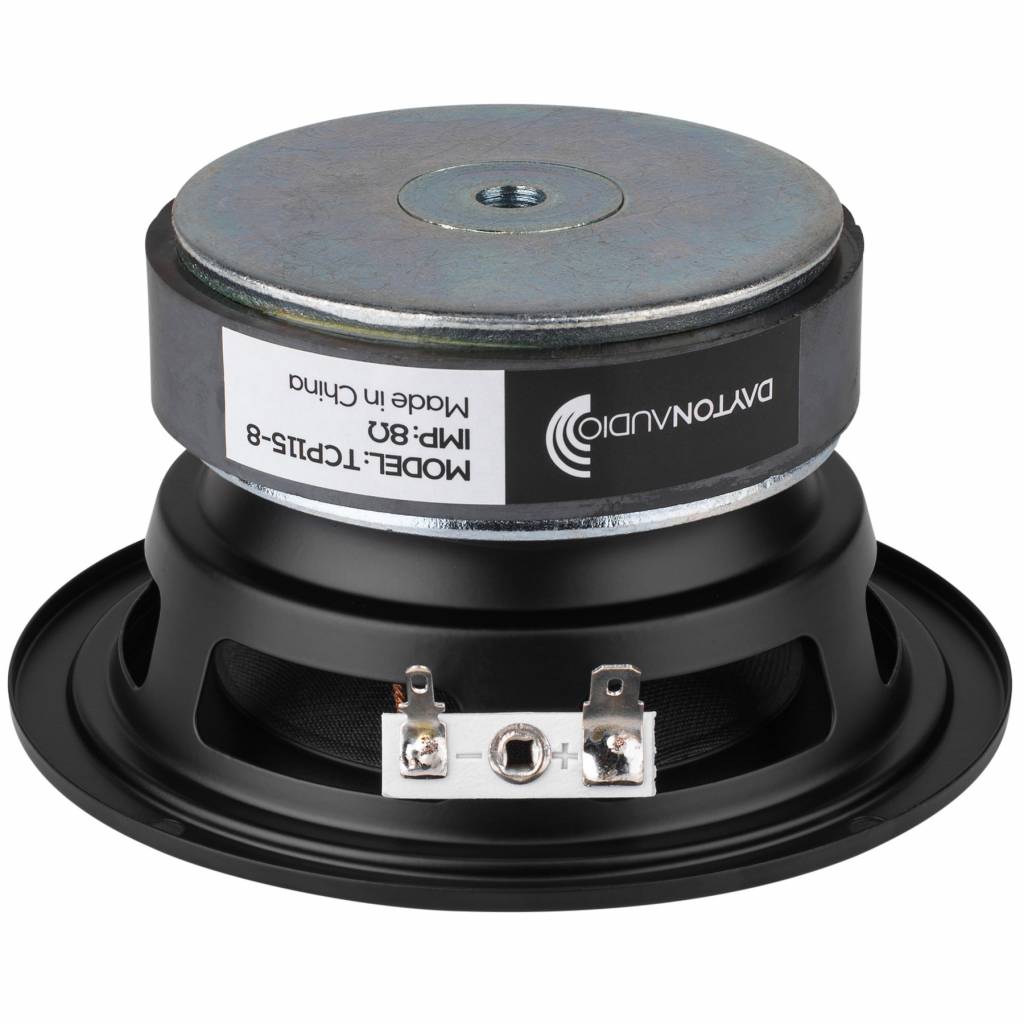

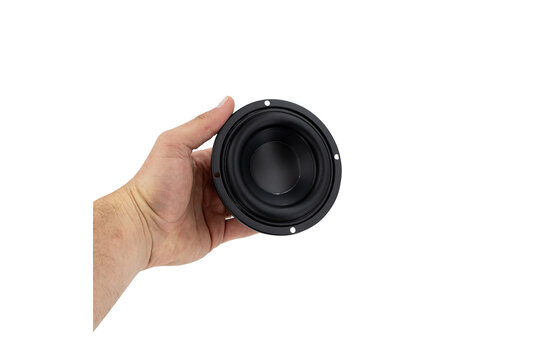

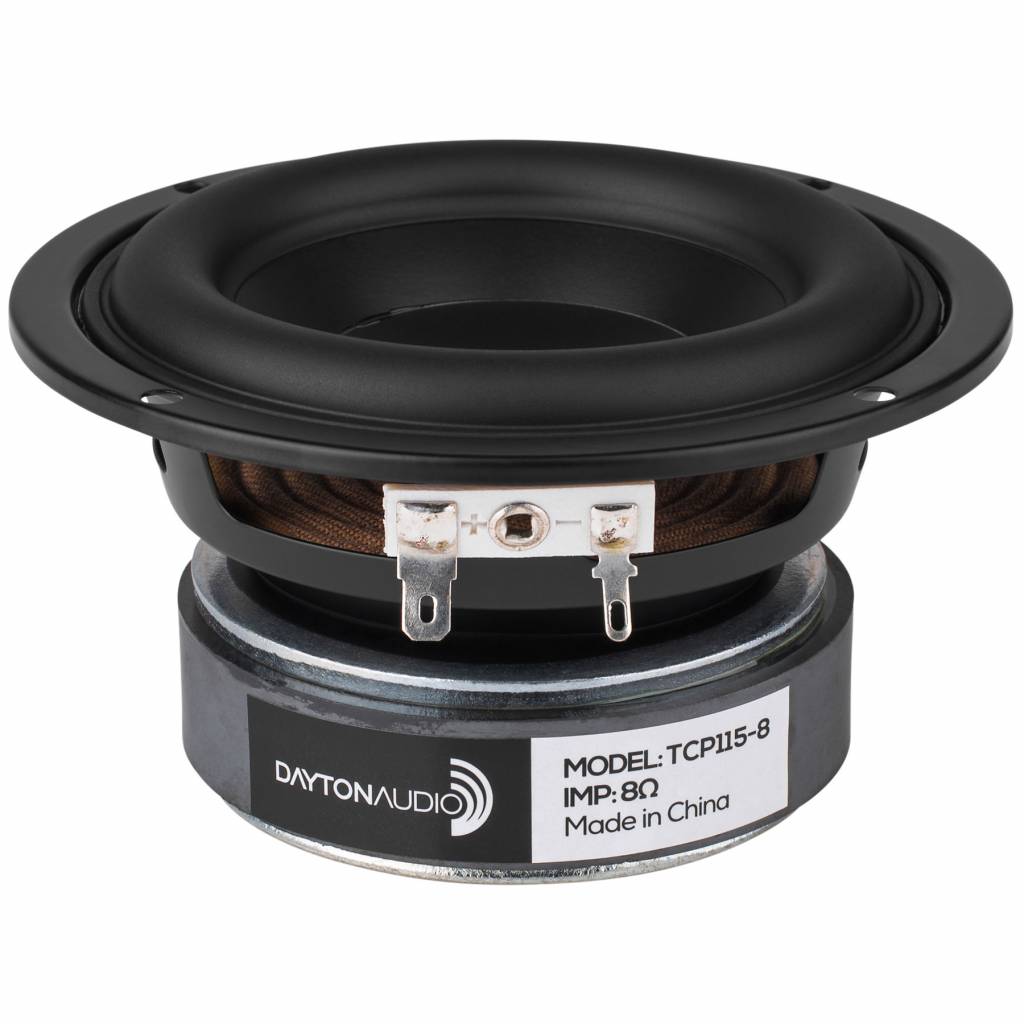

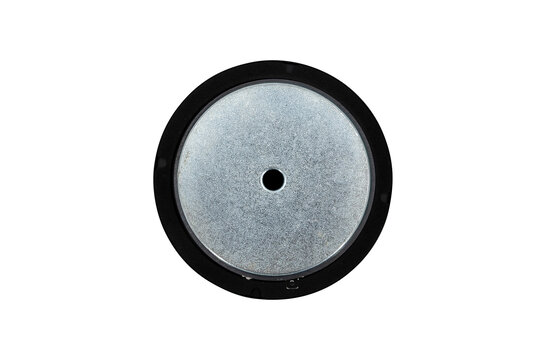

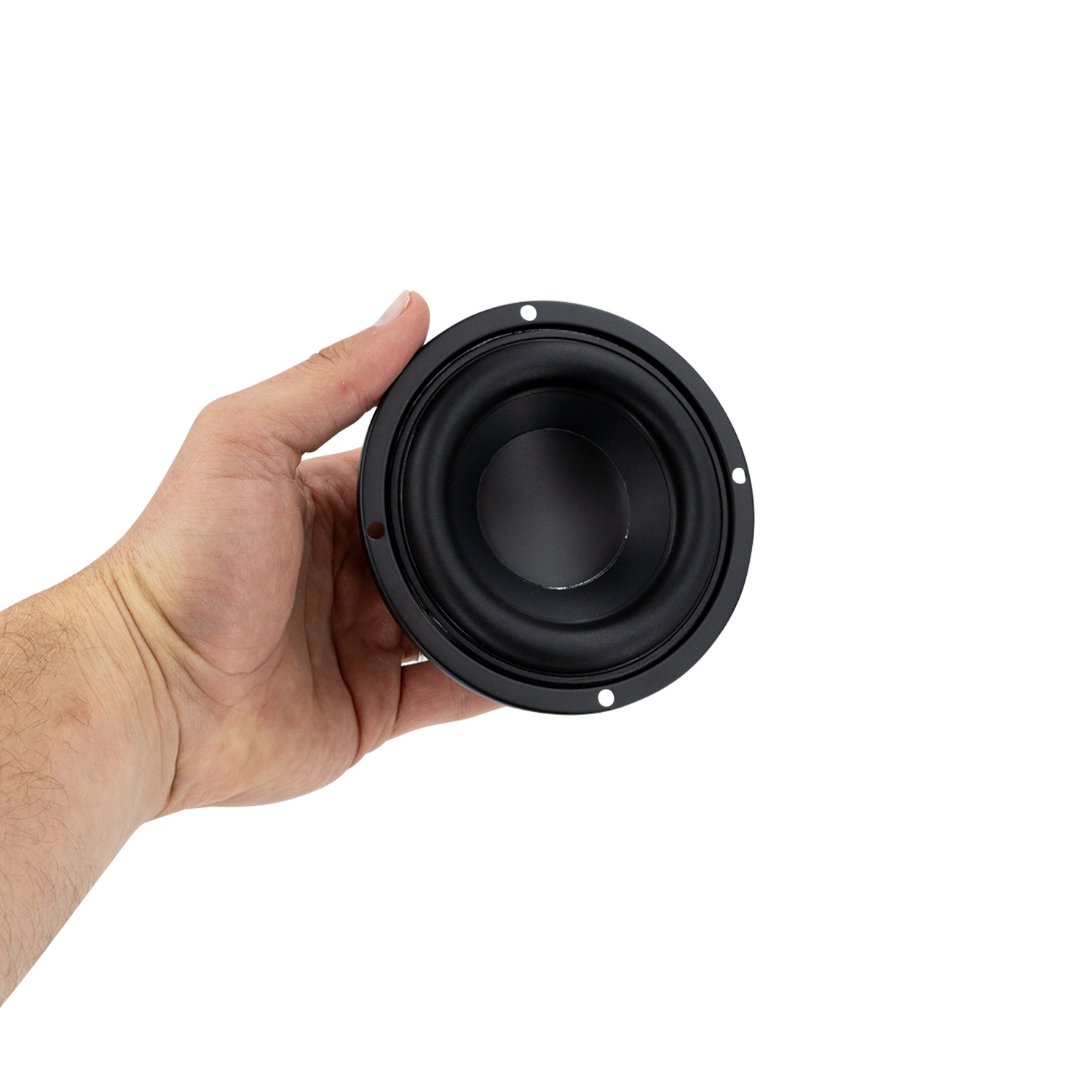

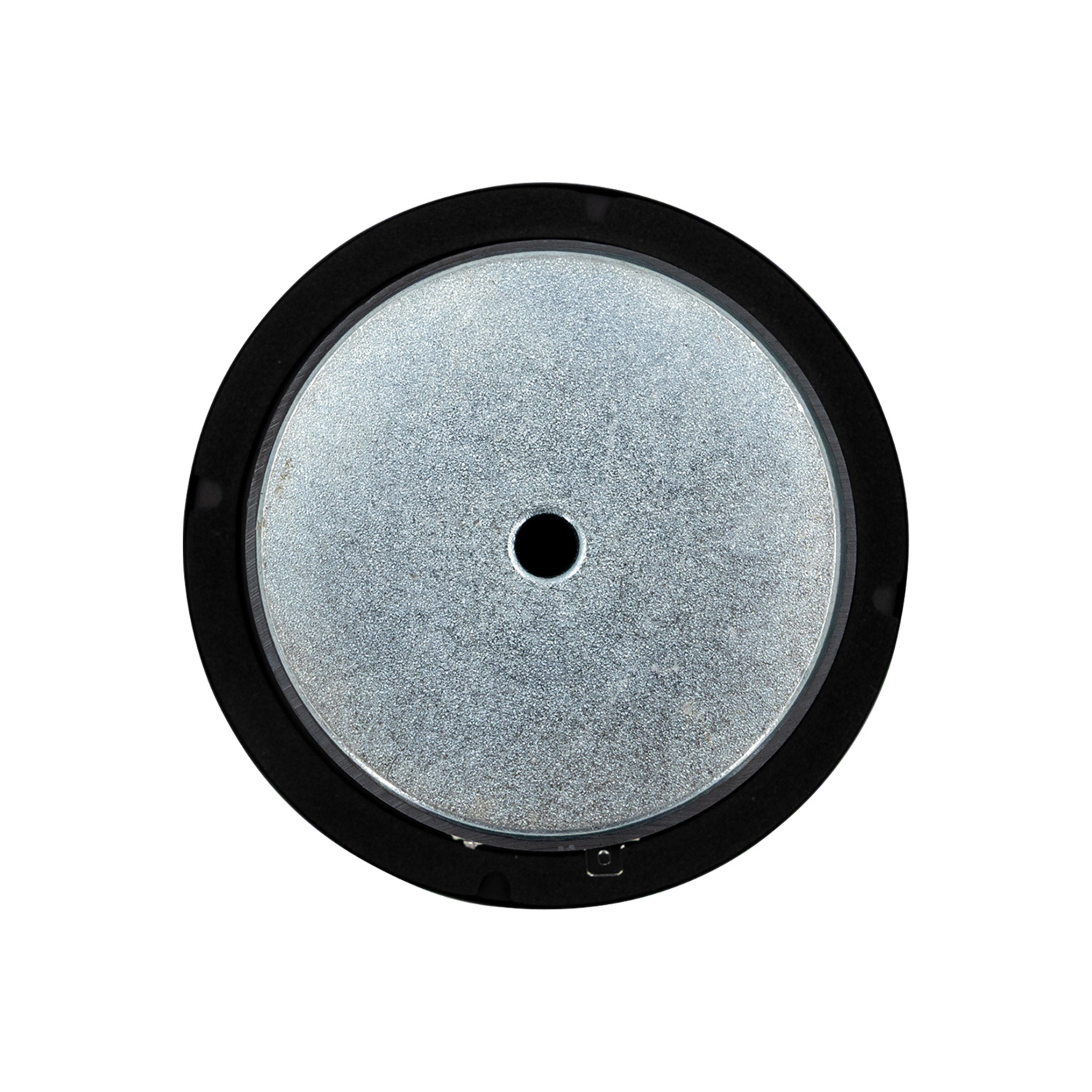

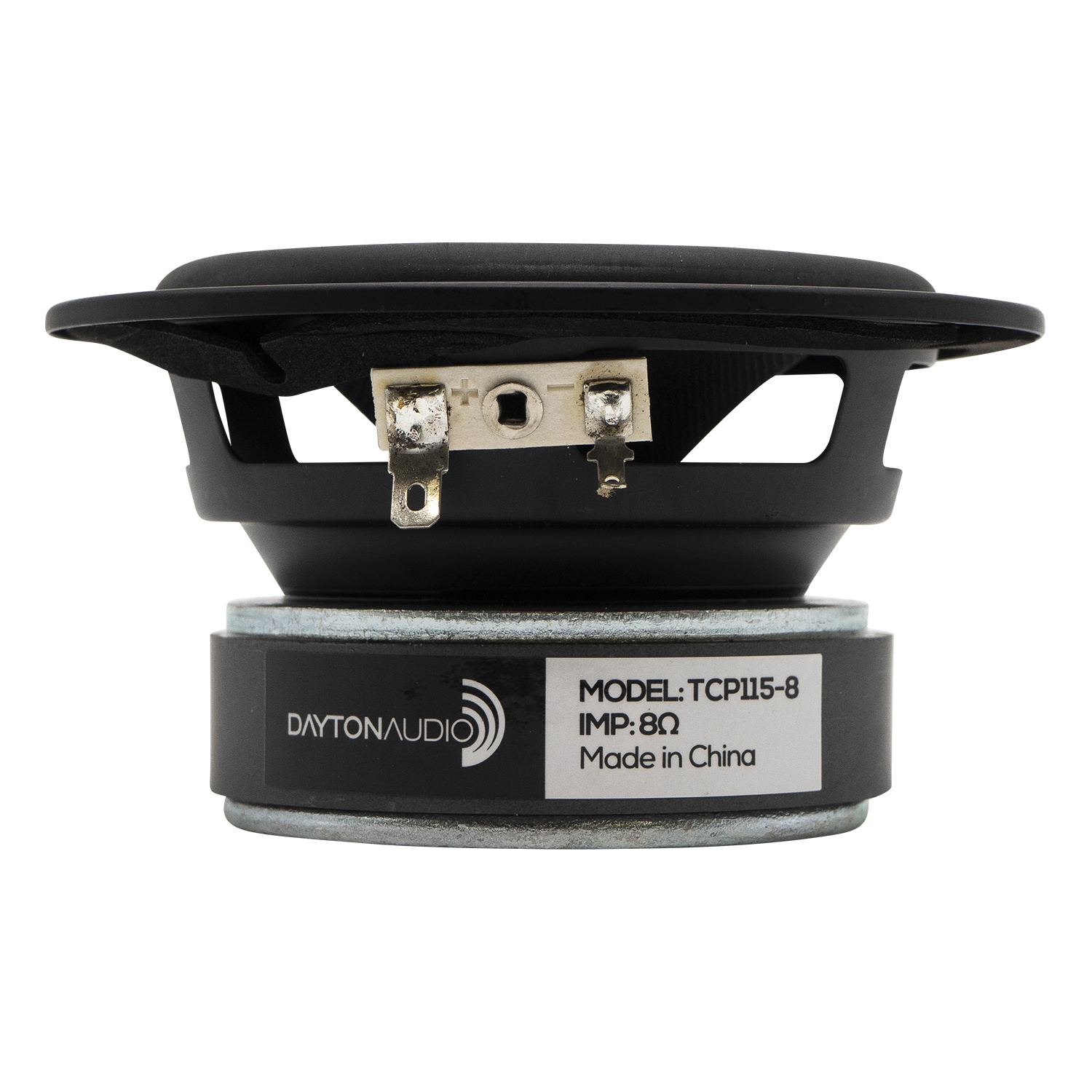

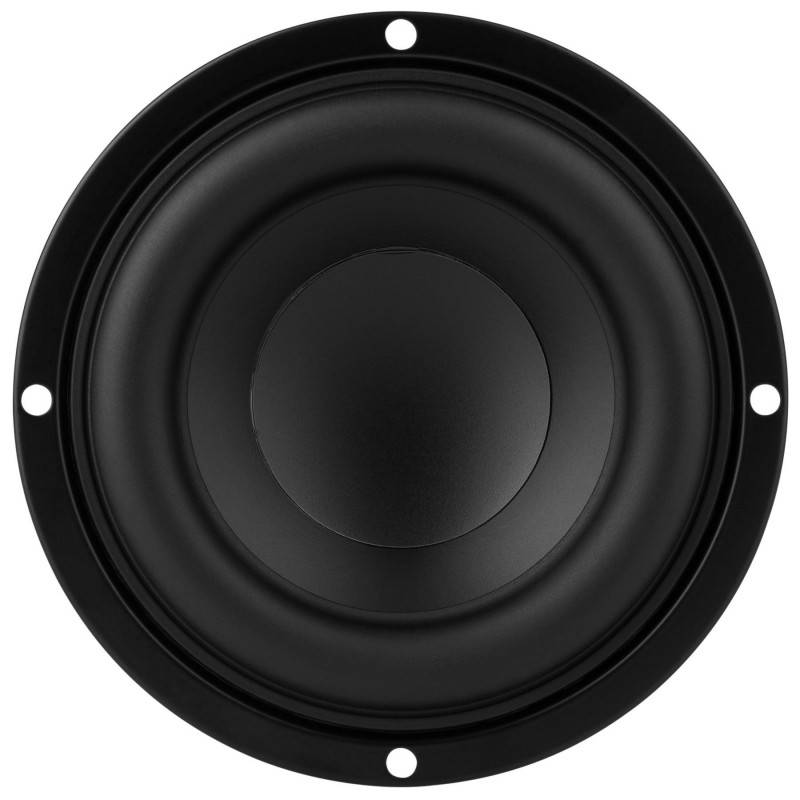

    Dayton Audio TCP115-8 4" Treated Paper Cone Woofer

    € 14,95 >10 Op voorraad: levertijd 1 werkdag
    With high excursion capabilities and low Fs, Dayton Audio's TCP115-8 can produce a surprising amount of bass for a 4" woofer. In addition to its low frequency performance, this driver also performs very well through the midrange, making this driver ideal... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €14,20 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    With high excursion capabilities and low Fs, Dayton Audio's TCP115-8 can produce a surprising amount of bass for a 4" woofer. In addition to its low frequency performance, this driver also performs very well through the midrange, making this driver ideal for use in smaller 2-way designs.



    Highlights

    • Powerful motor for efficiency and compact enclosure
    • 1" diameter 4-layer voice coil improves power handling and low frequency response
    • Aluminum former keeps voice coil cool for high power handling
    • Extended pole piece creates symmetrical magnetic field for lower distortion
    • Cosmetic low-profile mounting flange looks good without flush mountin



    Product details

    Dayton Audio TCP115-8 4" Treated Paper Cone Woofer



    The TCP115-8 combines a large motor, 1" 4-layer voice coil, vented pole, and a sizable rubber surround to make use of its 4 mm of Xmax. This combination of features makes it a very versatile driver which can be used as a bass driver in a small 2-way system, center channel, or even portable Bluetooth speaker designs.

    Specificaties

    Artikelnummer
    TCP115-8
    Woofer Series
    Specialty Drivers Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    4"
    Power Handling (RMS)
    40 Watts
    Power Handling (max)
    80 Watts
    Impedance
    8 ohms
    Sensitivity
    81.9 dB 2.83V/1m
    Frequency Response
    55 to 6,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    7.8 ohms
    Voice Coil Inductance (Le)
    1.9 mH
    Resonant Frequency (Fs)
    59.2 Hz
    Mechanical Q (Qms)
    2.3
    Electromagnetic Q (Qes)
    0.54
    Total Q (Qts)
    0.43
    Diaphragm Mass Inc. Airload (Mms)
    10.16g
    Mechanical Compliance of Suspension (Cms)
    0.71 mm/N
    Surface Area of Cone (Sd)
    50 cm²
    BL Product (BL)
    7.4 Tm
    Compliance Equivalent Volume (Vas)
    0.09 ft.³
    Maximum Linear Excursion (Xmax)
    4 mm
    Cone / Diaphragm Material
    Treated Paper
    Surround Material
    Rubber
    Voice Coil Wire Material
    CCA
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    4.57"
    Overall Depth
    2.32"
    Baffle Cutout Diameter
    3.77"
    Bolt Circle Diameter
    4.25"
    # Mounting Holes
    4
    Sealed Volume
    0.03 ft.³
    Sealed F3
    116Hz
    Vented Volume
    0.10 ft.³
    Vented F3
    60 Hz
