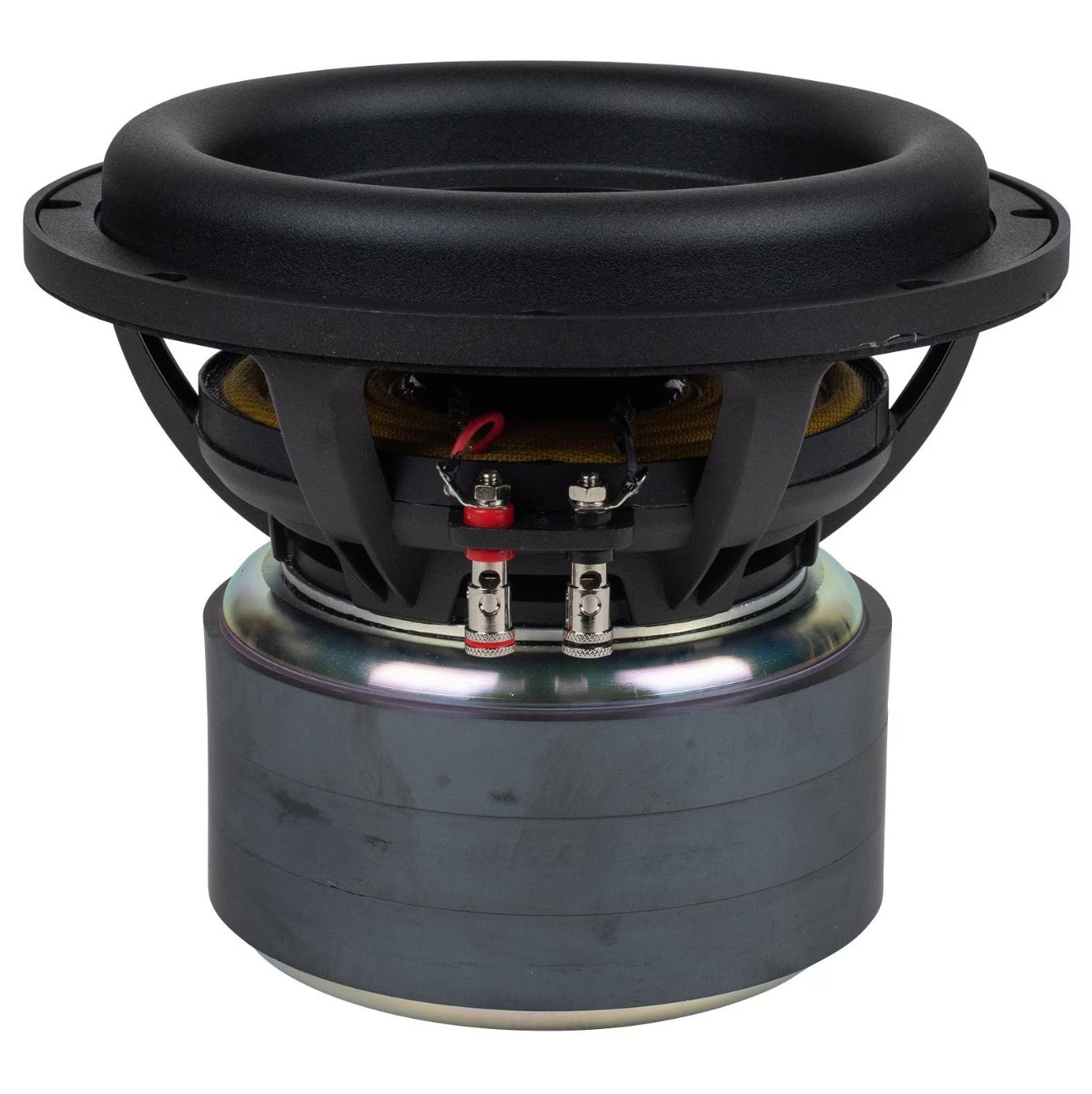

        Dayton Audio SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil

        €189,95

        7 verwacht op 19-12-2025

        Toevoegen aan winkelwagen

        Dayton Audio SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Dayton Audio
        Toon alle Nieuwe producten
        8" | 2+2 Ω
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        € 156,98€ 189,95 Niet op voorraad7 verwacht op 19-12-2025
        • -5% Bestel 4 voor slechts € 180,45 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Snel weer op voorraad
        • Vijf jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil
        SS8-22 Signature Series 8" DVC Subwoofer 2 ohms Per Coil

        Productomschrijving Dayton Audio Signature SS8-22 DVC Subwoofer

        The SS8-22 is a premium 8" Signature Series subwoofer featuring dual 2-ohm voice coils, engineered for powerful and precise low-frequency reproduction. Ideal for both home theater and car audio applications, this driver combines high excursion, robust construction, and low distortion performance into a compact format.



        Highlights of the SS8-22 Signature Series Subwoofer

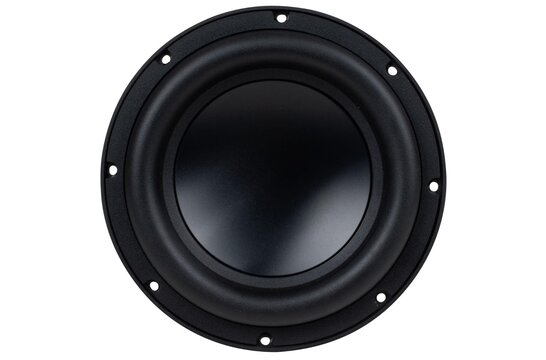

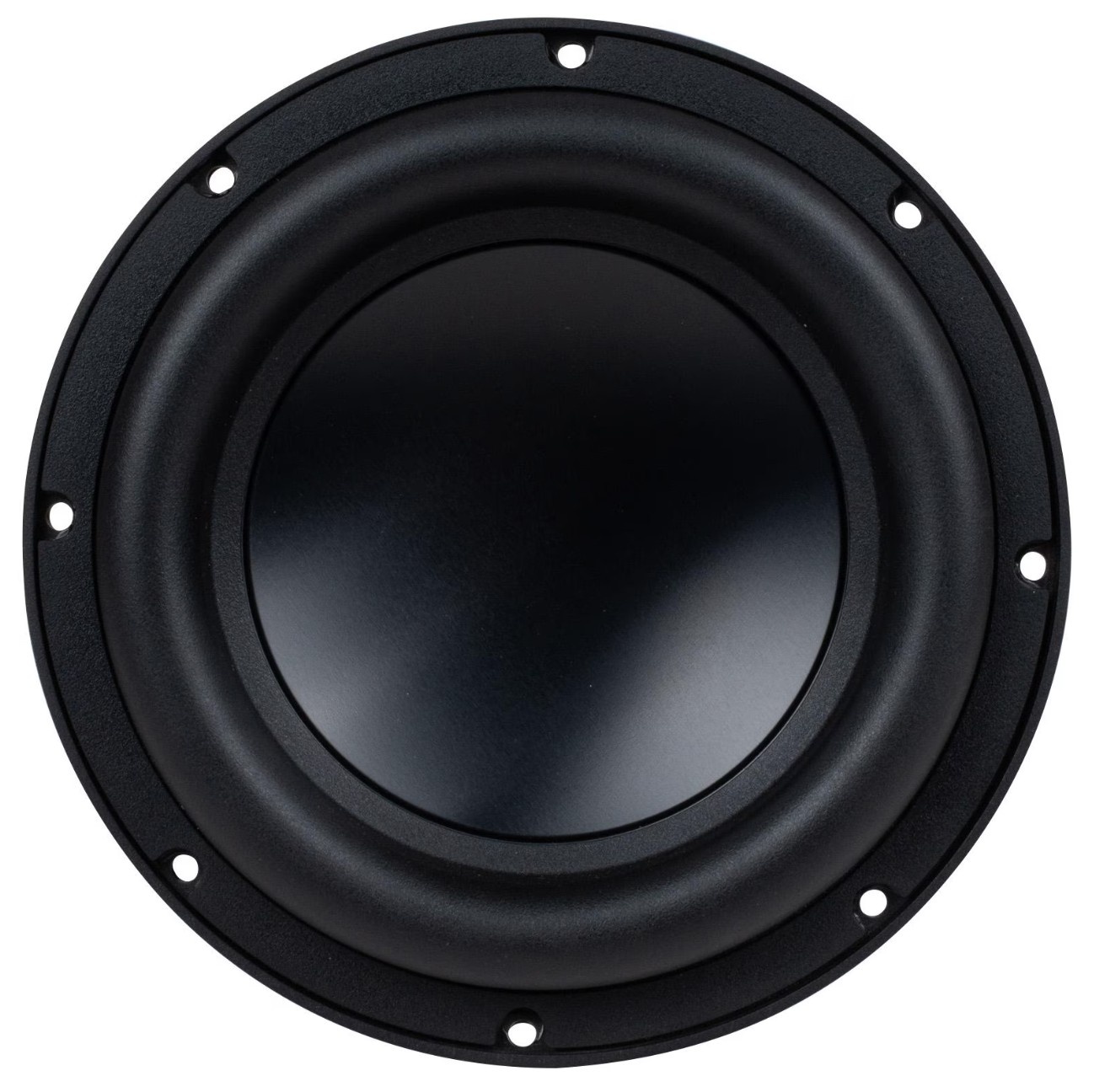

        • Rigid one-piece aluminum cone with rubber surround for durability and accuracy
        • Dual 2-ohm voice coils and 500W RMS power handling for versatile system integration

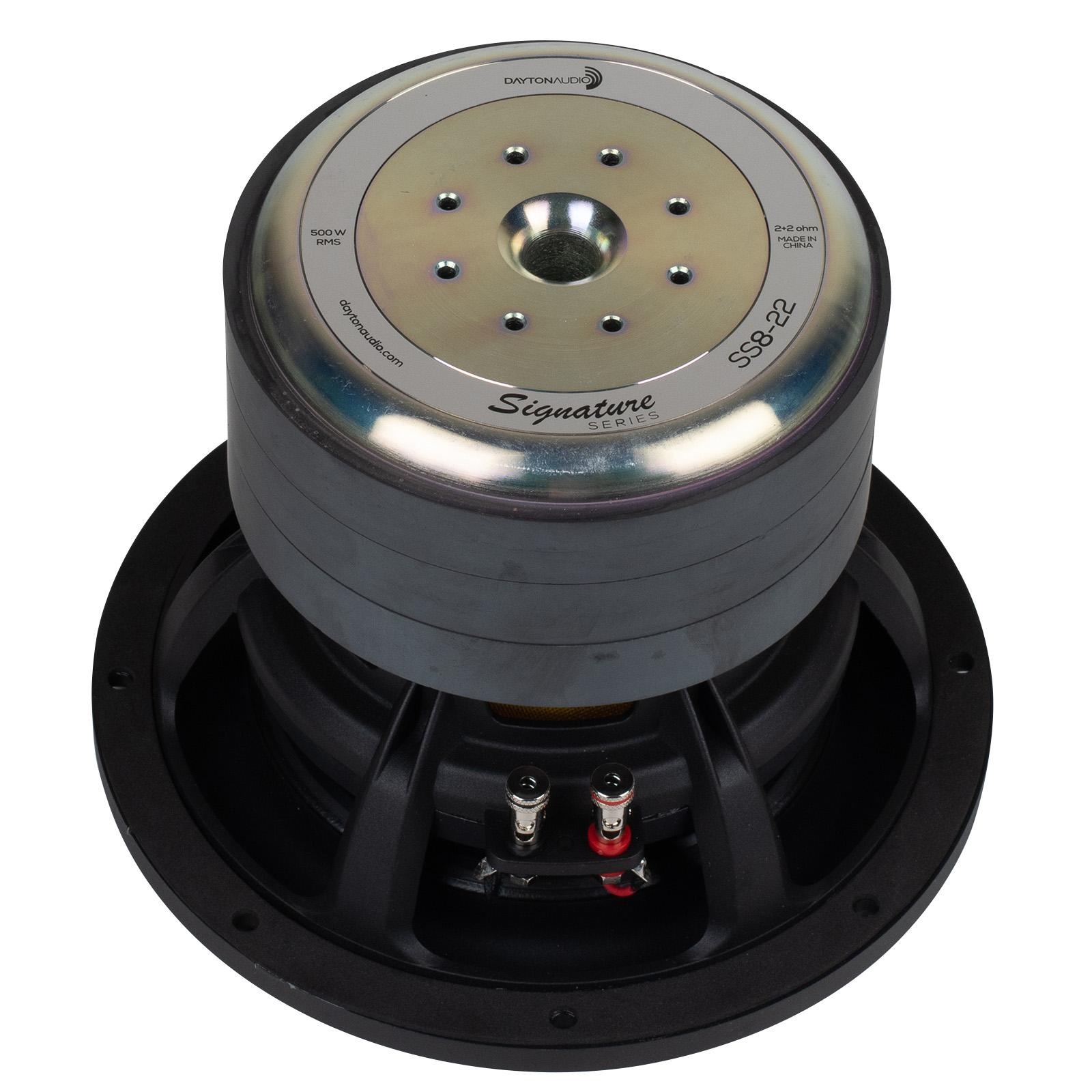

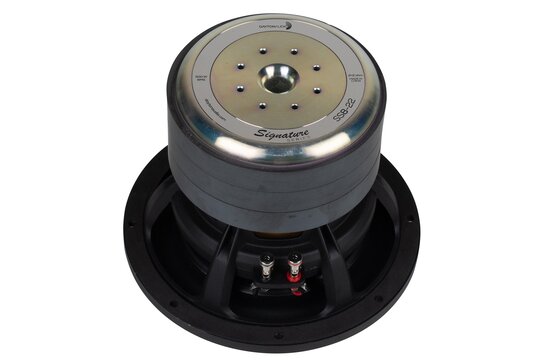

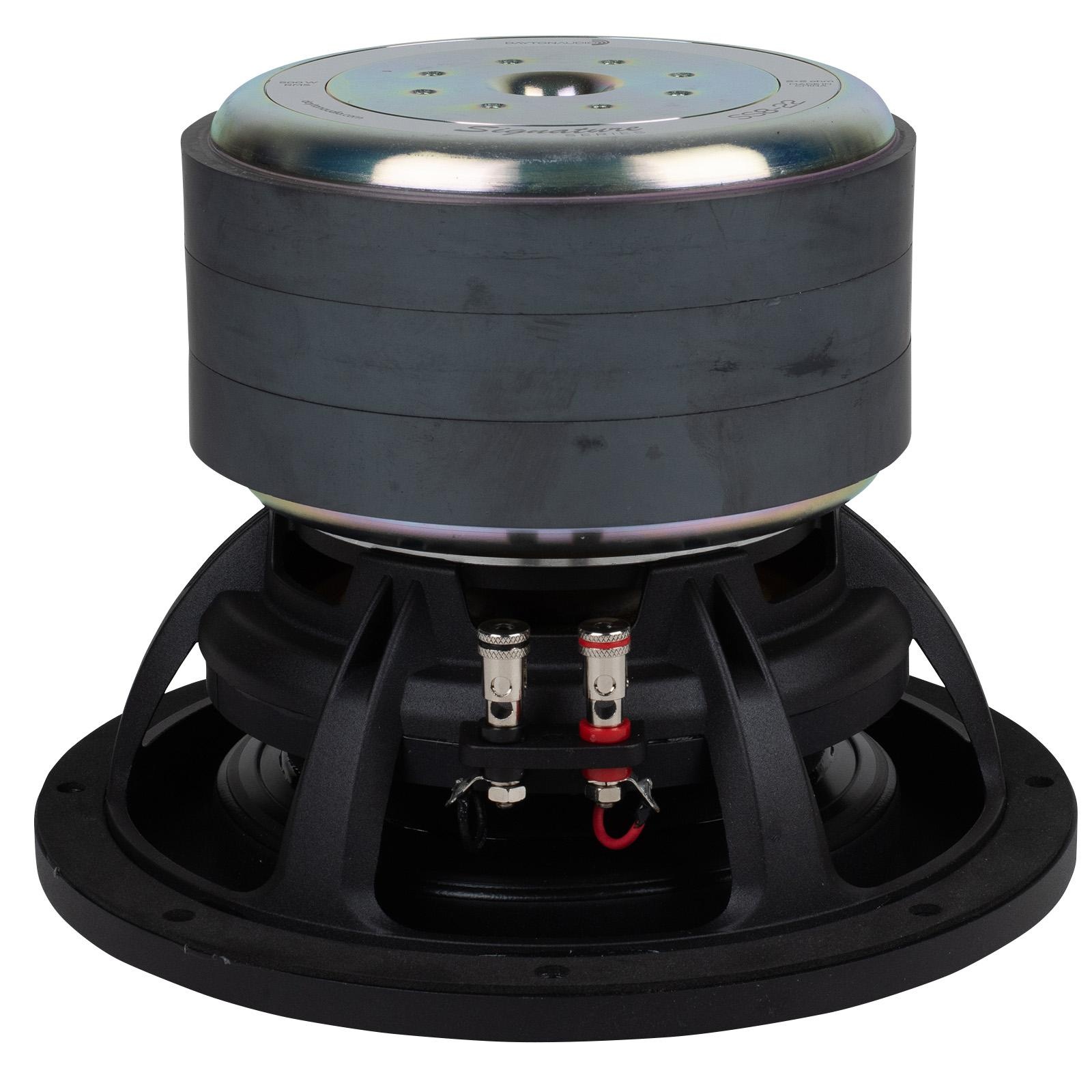

        • Triple magnet motor structure and dual spiders for high excursion and linearity
        • Extensive venting design improves voice coil cooling and reduces compression



        Product details Dayton Audio SS8-22 Signature Series Subwoofer





        The SS8-22 8" subwoofer is part of the Signature Series, designed to deliver deep, clean bass in compact sealed or vented enclosures. With dual 2-ohm voice coils, the SS8-22 allows for flexible wiring options, ideal for high-output custom installations. It features a one-piece aluminum cone for improved rigidity and piston motion, paired with a compliant rubber surround that maintains durability under extreme excursion.



        Internally, the motor structure is equipped with a powerful triple-stacked magnet system and triple shorting paths to lower inductance and reduce distortion, ensuring clean and responsive bass. A long-stroke 2.5" 4-layer copper-clad aluminum voice coil (CCAW) delivers a high RMS power rating of 500 watts, and the driver’s Xmax of 17 mm allows it to produce significant output at very low frequencies.

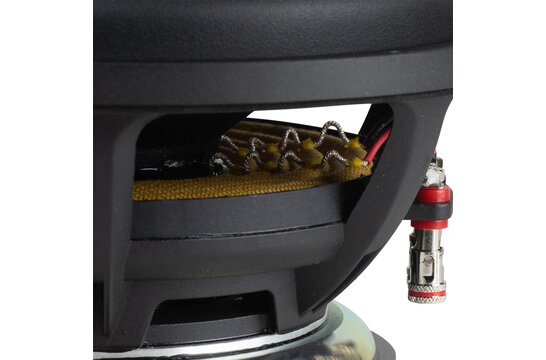

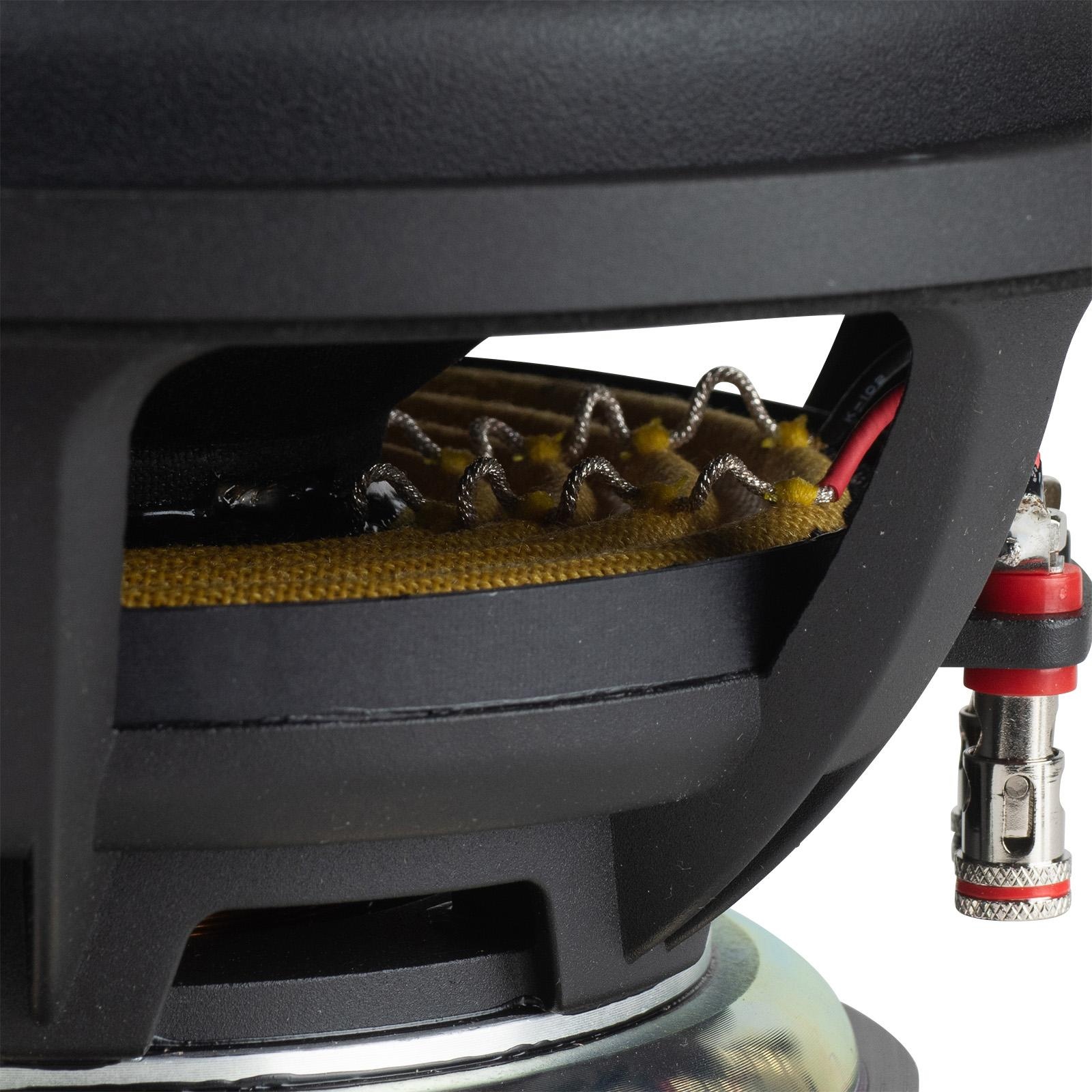

        The SS8-22 also features dual spiders for cone control and extensive venting to keep the voice coil cool during demanding use. With a sensitivity of 84.9 dB (2.83V/1m) and a usable frequency range of 20–500 Hz, this subwoofer is built to deliver authoritative bass for both music and cinematic content.

        Toon meer

        Specificaties

        Artikelnummer
        SS8-22
        EAN
        0848791011108
        Woofer series
        Dayton Audio Signature series
        Woofer type
        subwoofer
        Nominale diameter
        8"
        Belastbaarheid (RMS)
        500 Watts
        Belastbaarheid (max)
        1,000 watts
        Impedantie (Z)
        2 + 2 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        84.9 dB
        Frequentierespons
        20-500 Hz
        Spreekspoeldiameter
        63.5 mm
        Gelijkstroomweerstand (Re)
        4.4 ohms
        Spreekspoelinductie (Le)
        1.6 mH
        Resonantiefrequentie (Fs)
        38 Hz
        Mechanische Q (Qms)
        4.37
        Elektrische Q (Qes)
        0.50
        Totale Q (Qts)
        0.45
        Bewegende massa (Mms)
        101g
        Compliantie van de ophanging (Cms)
        0.17 mm/N
        Effectief oppervlak (Sd)
        200 cm²
        Maximaal verplaatst volume (Vd)
        325 cm³
        Krachtsfactor (BL)
        14.6 Tm
        Equivalentvolume (Vas)
        9.7 liters
        Maximale excursie (Xmax)
        17 mm
        Cone / Diaphragm Material
        aluminium
        Surroundmateriaal
        rubber
        Spreekspoel draadmateriaal
        CCA
        Spreekspoel vormermateriaal
        aluminium
        Dual Voice Coil
        Mand- /framemateriaal
        Cast Aluminum
        Magneetmateriaal
        Ferrite
        Totale buitendiameter
        214 mm
        Totale diepte
        157 mm
        Montagegatdiameter
        184.7 mm
        Bolt Circle Diameter
        200 mm
        # Bevestigingsgaten
        8
