      Dayton Audio SPA100-D 100 Watt Class-D Subwoofer Plaatversterker

      € 123,93€ 149,95 2 Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestelling 4 voor slechts € 142,45 per stuk
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf € 99 (NL & BE)
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      The Dayton Audio SPA100-D high-efficiency subwoofer plate amp packs big-amp features into a compact chassis that is ideal for installation into cabinets that can't accommodate bulky old-style amps.



      Highlights

      • 100W RMS Output @ 4 ohms
      • Switchable 6 dB @ 30 Hz bass boost
      • Class-D output stage for highly efficient, well defined output
      • Manual and Auto on/off modes for compatibility with any automated system
      • Variable gain, crossover point and switchable phase controls optimize room integration
      • Switchable 120/240V input voltage



      Product details

      Dayton Audio SPA100-D 100 Watt Class-D Subwoofer Plate Amplifier



      The Dayton Audio SPA100-D high-efficiency subwoofer plate amp packs big-amp features into a compact chassis that is ideal for installation into cabinets that can't accommodate bulky old-style amps. A Class-D topology makes it small, but with the same output capability as a traditional amplifier topology. We've included everything that you need to connect the amp to your system and get maximum performance!



      Class-D Excellence



      The efficient class-D design keeps size and weight to a minimum while
      providing maximum power to your driver. SPA-D Amplifiers are perfect
      for subwoofer duty due to their high efficiency and low noise volume at
      lower frequencies making amplification selection easier than ever.

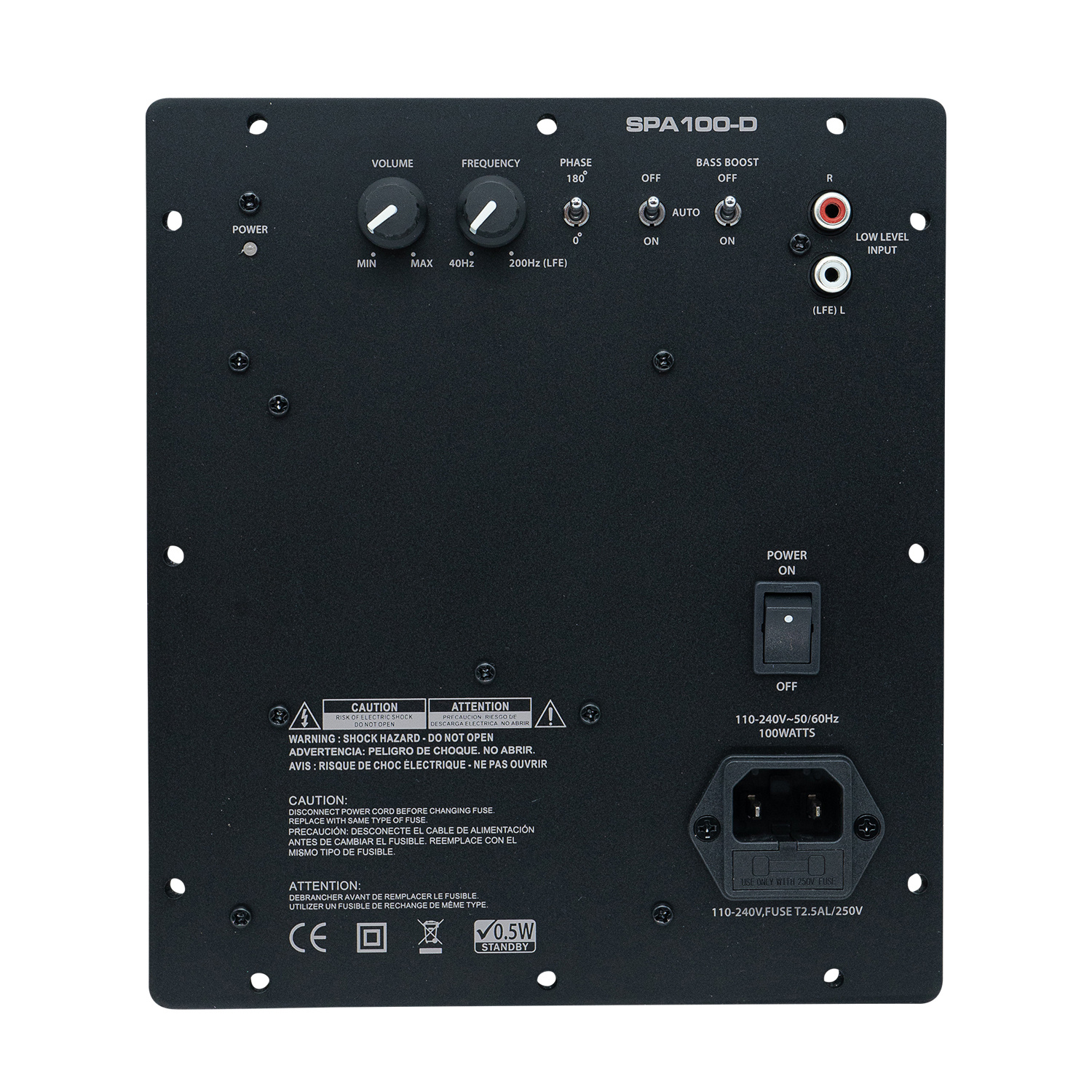

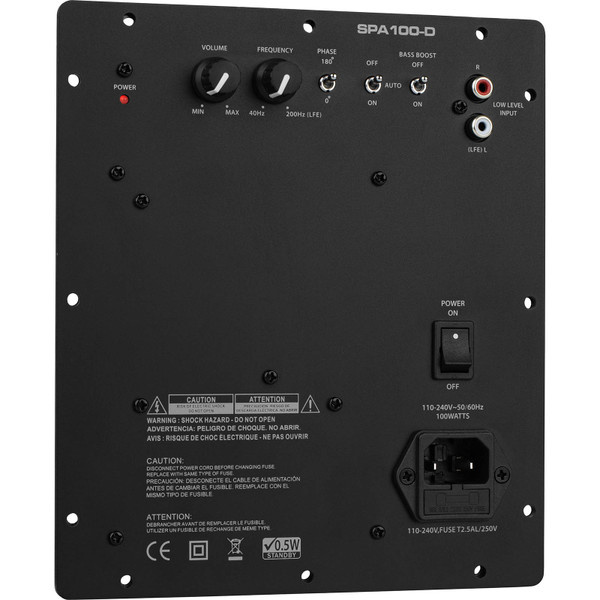

      Connectivity

      1. Power Input - This unit features an IEC Type power jack

      2. Low-Level Inputs (Left/Right) - RCA Style jacks that will accept standard line level inputs from a pre-amp level source.

      3. Output Lead for Subwoofer Driver - This rear mounted output lead connects the amplifier to the subwoofer driver

      4. Power/Clipping LED - This LED indicator will display the current status of the amplifier.

      5. Volume (Gain) - This control will match the amplifier's input sensitivity to the output of the pre-amp source.

      6. Frequency (Low-pass crossover) - This sets the highest frequency the subwoofer will reproduce and has a range between 40-200Hz with a slope of 18dB/Oct.

      7. Phase - This two-position switch helps to compensate for differences between the acoustical and electrical characteristics between the subwoofer and main speakers.

      8. Auto Turn On/Off - When the "auto" position is selected the amp is in standby mode until an input signal is detected.

      9. Bass Boost - This allows the user to add a 6dB boost to the response centered at 30Hz.

      10. Main Power Switch - Main power disconnect.

      Specificaties

      Artikelnummer
      SPA100-D
      Nominaal vermogen
      100W
      Minimale belasting
      4 ohms
      Signaal-ruisverhouding (SNR)
      90 dB
      Vervorming
      <1%
      Versterkerklasse
      Class-D
      Frequentierespons
      20 - 200Hz
      Ingangsgevoeligheid
      180 mV
      Voedingsvereisten
      115 - 230 VAC

      Toon meer
