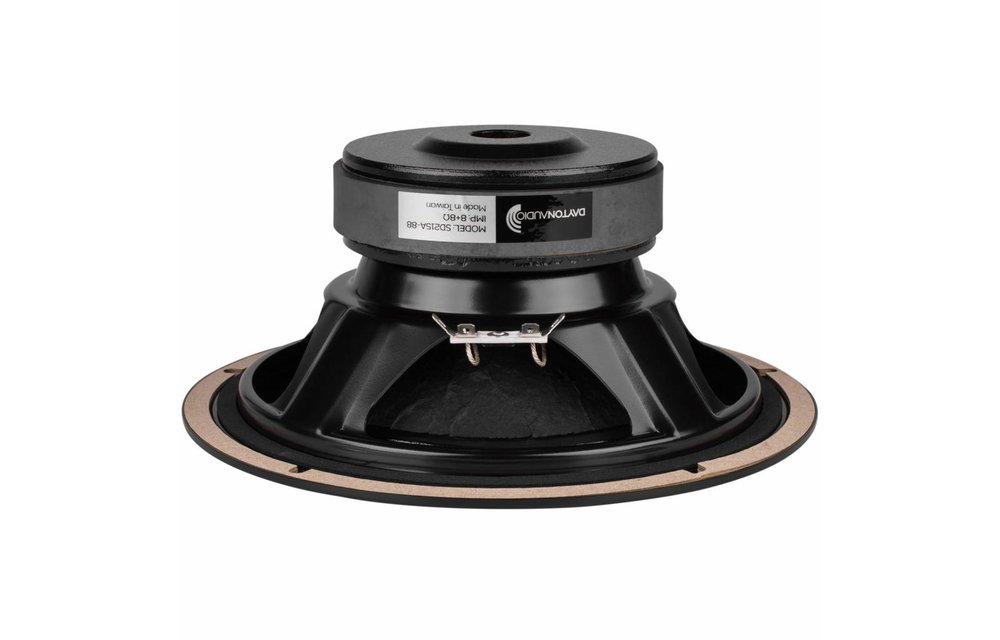

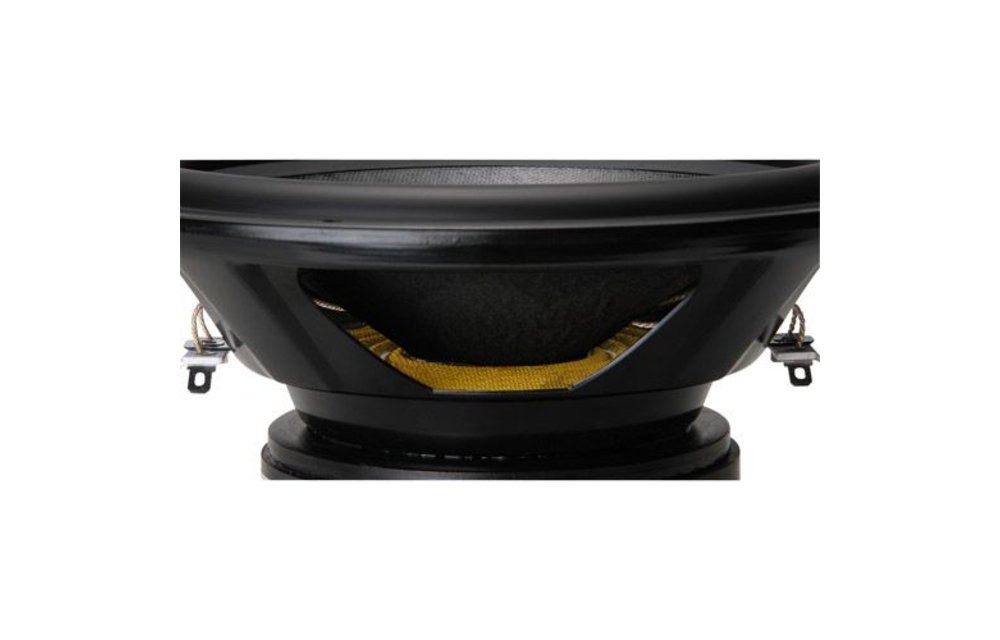

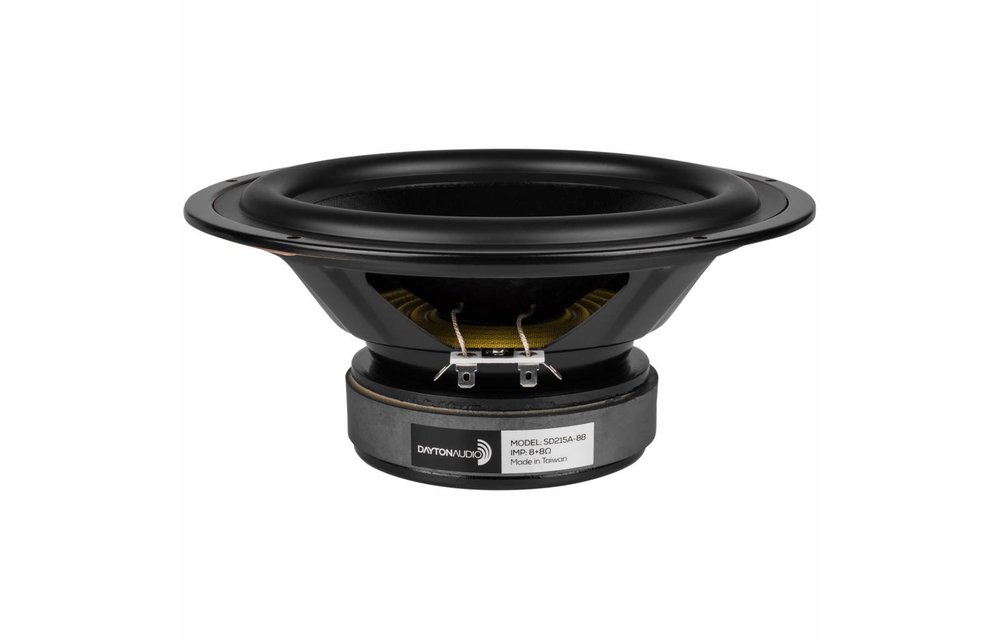

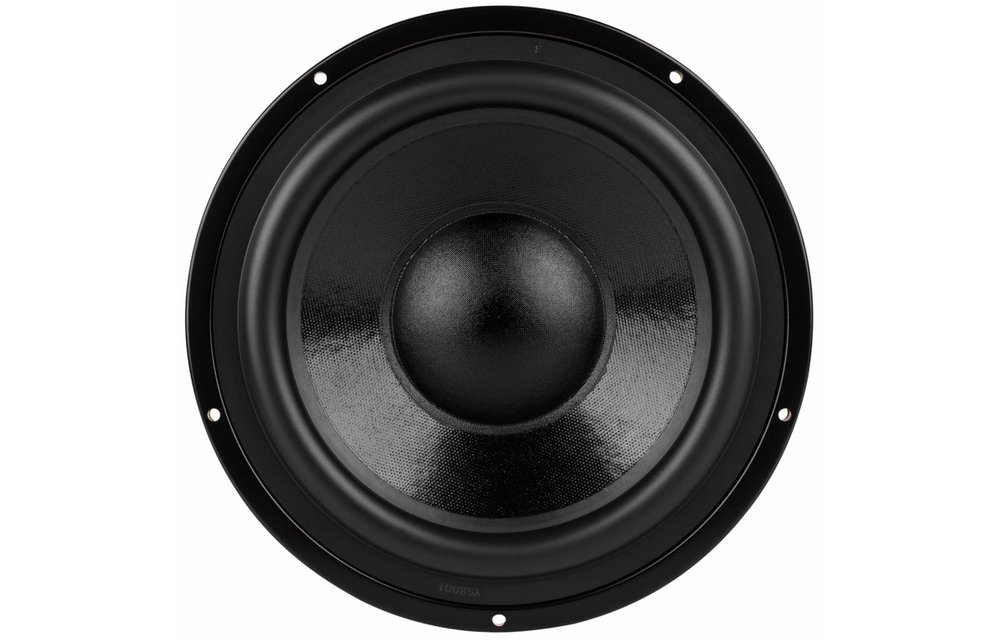

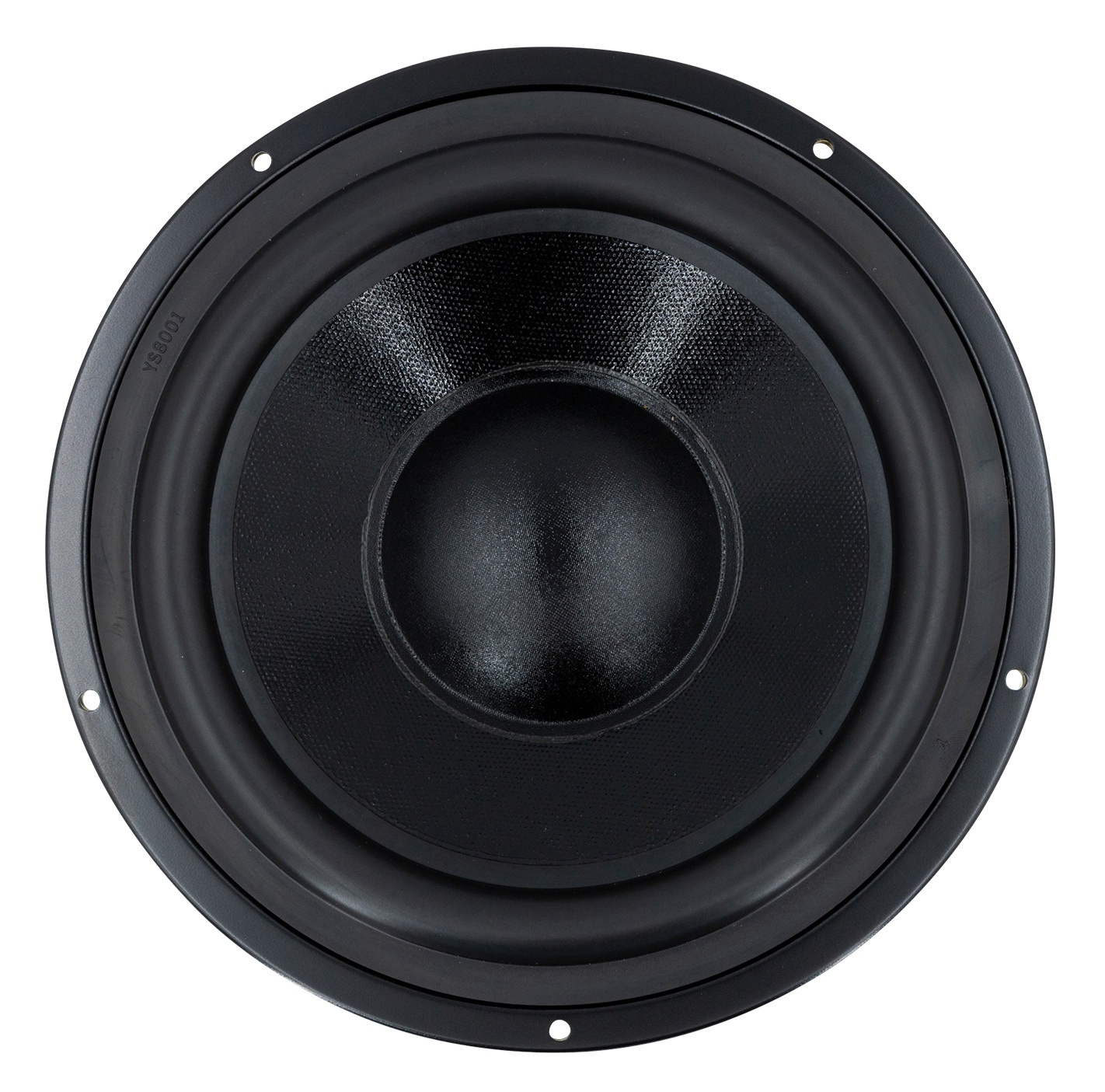

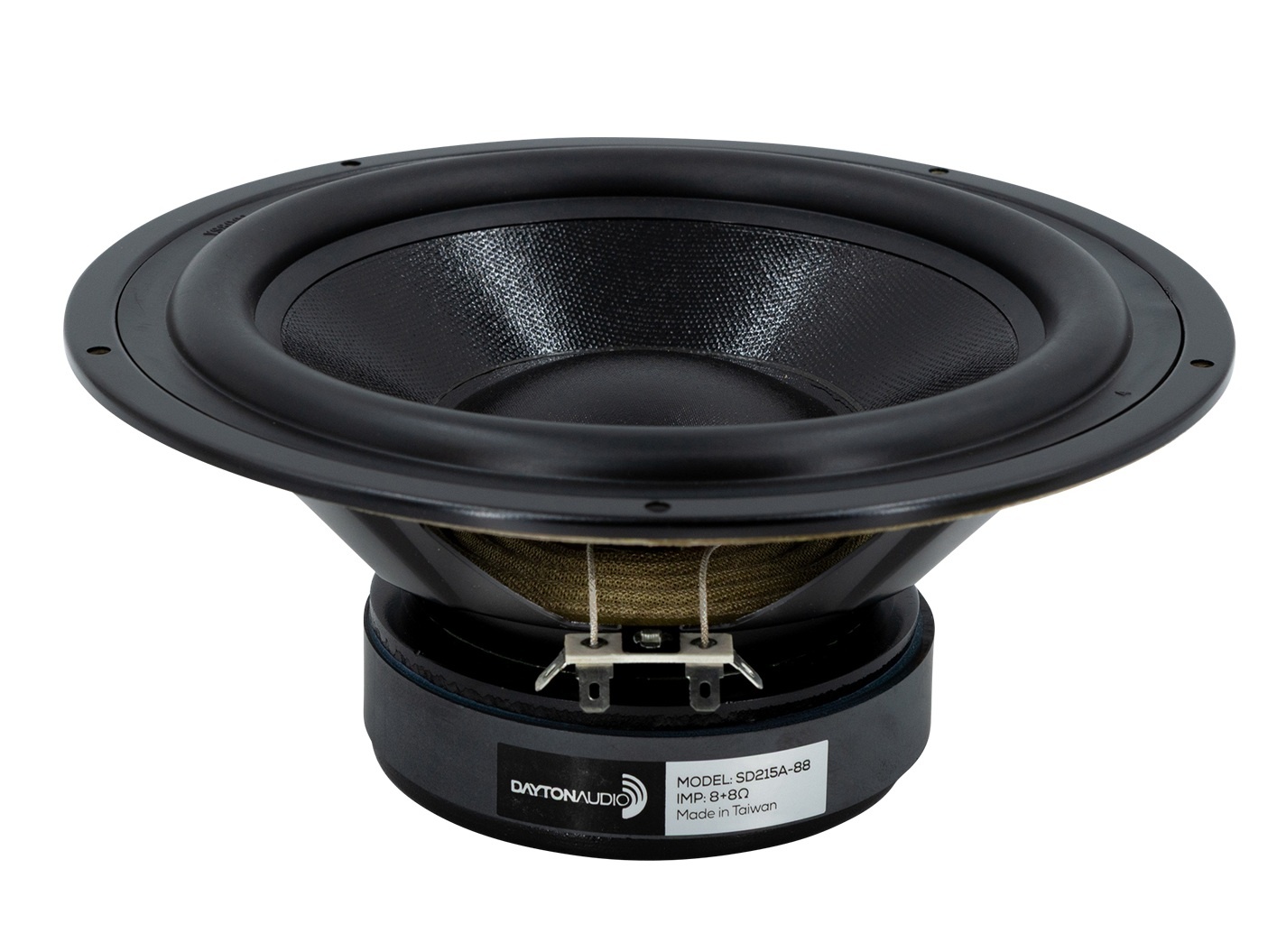

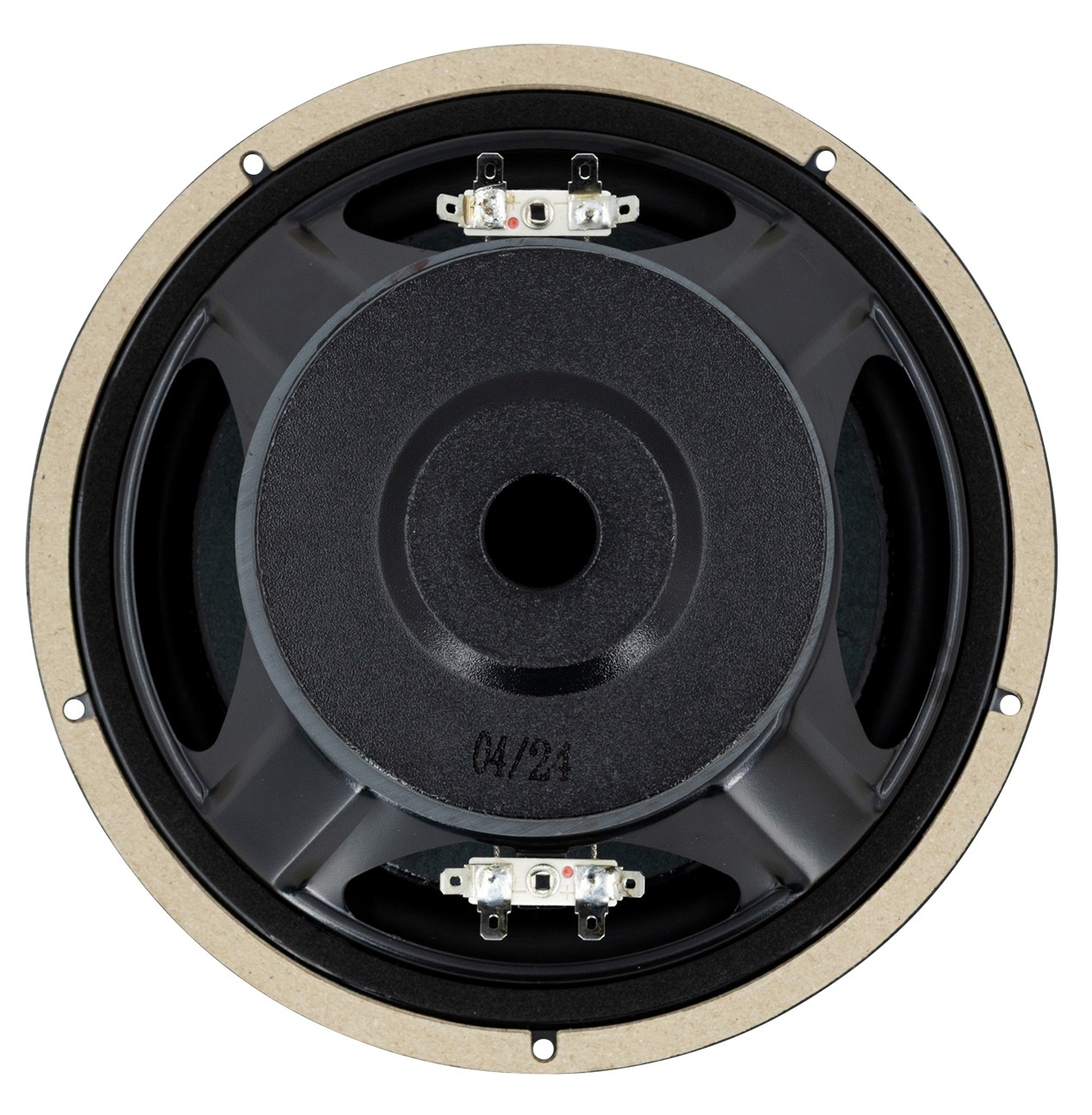

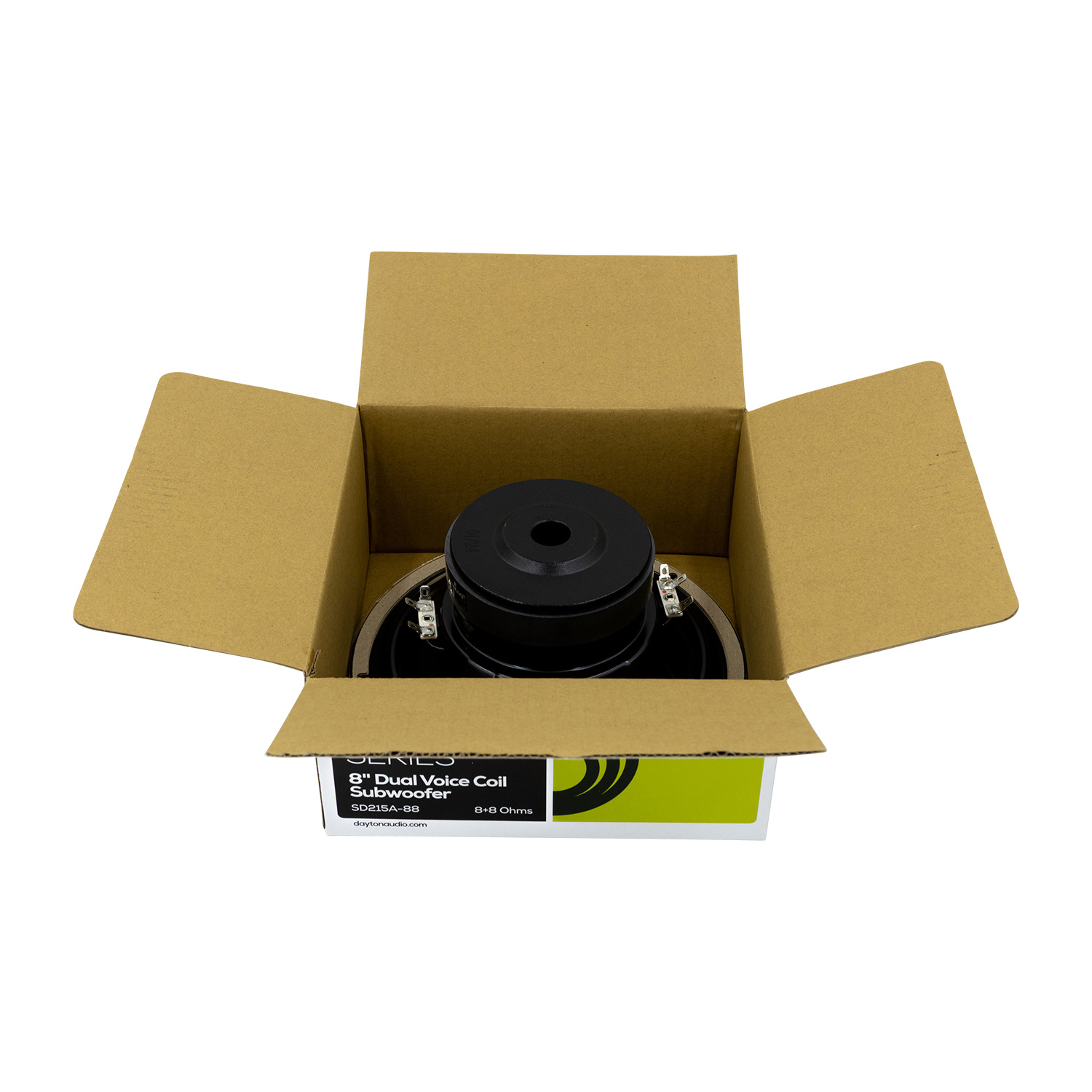

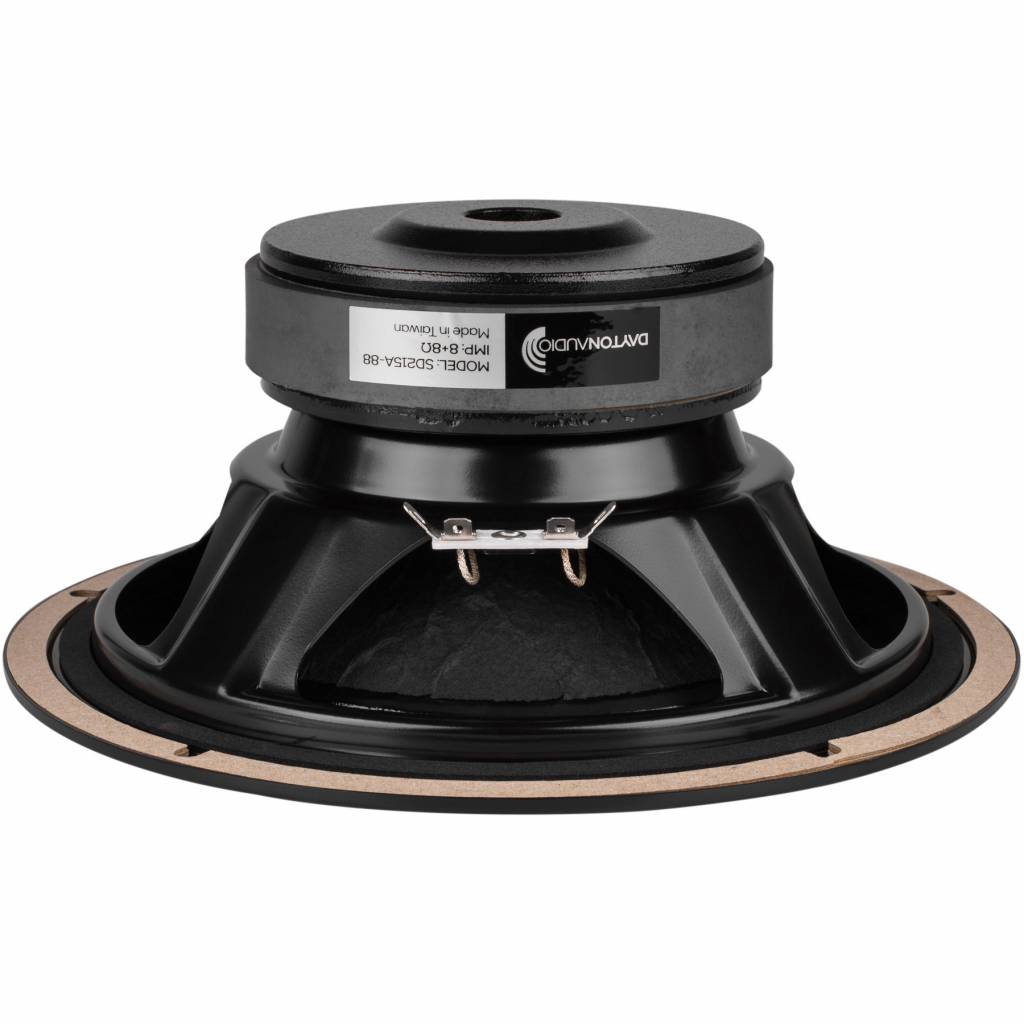

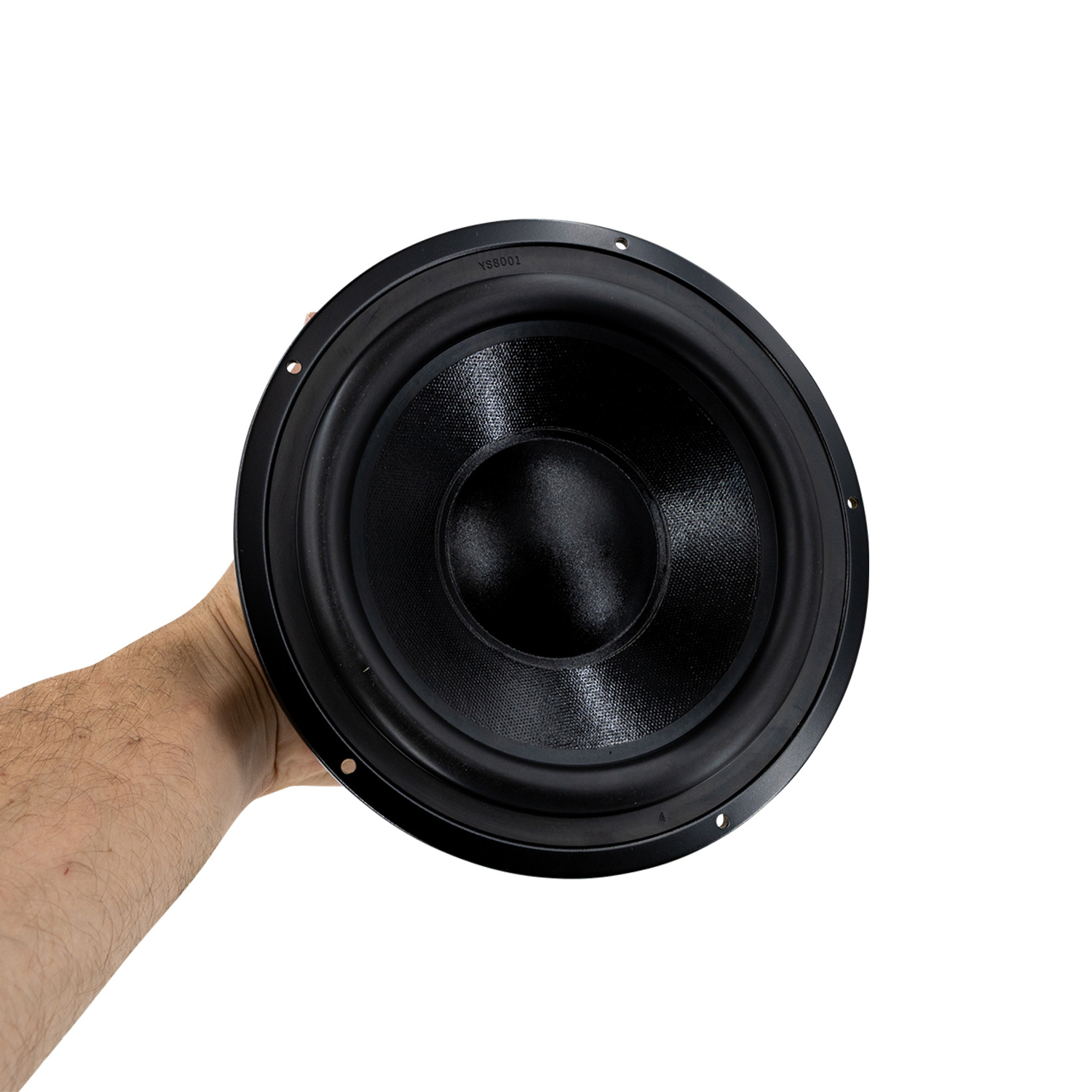

    Dayton Audio SD215A-88 8" DVC Subwoofer

    € 49,95 Niet op voorraad: 3-6 weken levertijd
    The Dayton Audio SD215A-88 8" subwoofer speaker is one of the best bang-for-the-buck low frequency drivers available today.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €47,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Dayton Audio SD215A-88 8" subwoofer speaker is one of the best bang-for-the-buck low frequency drivers available today.



    Highlights

    • Works equally well in sealed or vented enclosures
    • Attractive gasket-less design
    • Long-life rubber surround for years of reliable service
    • Excellent bottom octave performance



    Product details

    Dayton Audio SD215A-88 8" DVC Subwoofer

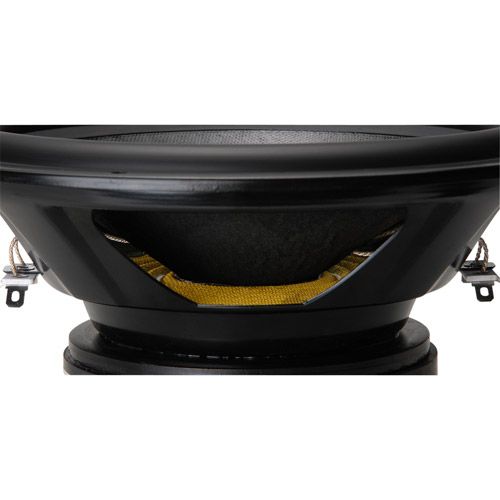

    The Dayton Audio SD215A-88 8" subwoofer speaker is one of the best bang-for-the-buck low frequency drivers available today. Dayton Audio DVC Series woofers were designed to offer the maximum performance-per-dollar. The speakers feature poly coated paper cones, wide rubber surrounds, large dual 8 ohm voice coils, vented pole pieces, and bumped back plates. Their healthy Xmax, long-throw construction, and dual voice coils make them perfect for any economical yet high-performing subwoofer speaker system.

    Specificaties

    Artikelnummer
    SD215A-88
    Woofer Series
    DVC Series
    Woofer Type
    Subwoofer
    Nominal Diameter
    8"
    Power Handling (RMS)
    80 watts
    Power Handling (max)
    160 watts
    Impedance
    8+8 ohms
    Sensitivity
    85.9 dB @ 1W/1m
    Frequency Response
    31 - 2,500 Hz
    Voice Coil Diameter
    38.5 mm
    DC Resistance (Re)
    3.20 ohms
    Voice Coil Inductance (Le)
    1.16 mH
    Resonant Frequency (Fs)
    31.0 Hz
    Mechanical Q (Qms)
    3.10
    Electromagnetic Q (Qes)
    0.45
    Total Q (Qts)
    0.39
    Diaphragm Mass Inc. Airload (Mms)
    42.40 g
    Mechanical Compliance of Suspension (Cms)
    0.62 mm/N
    Surface Area of Cone (Sd)
    208.7 cm²
    Volume of Displacement (Vd)
    125.2 cm³
    BL Product (BL)
    7.70 Tm
    Compliance Equivalent Volume (Vas)
    38.2 liters
    Maximum Linear Excursion (Xmax)
    6.0 mm
    Cone / Diaphragm Material
    Coated Paper
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Dual Voice Coil
    Yes
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    216 mm
    Overall Depth
    95 mm
    Baffle Cutout Diameter
    180 mm
    # Mounting Holes
    5
    Sealed Volume
    0.33 ft.³
    Sealed F3
    68 Hz
    Vented Volume
    0.95 ft.³
    Vented F3
    38 Hz
