    Dayton Audio RSS460HO-4 18" Reference HO Subwoofer 4 ohm

    € 355,33€ 429,95 8 Op voorraad: levertijd 1 werkdag
    The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €408,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.



    Highlights

    • Extensively vented motor eliminates compression and allows quiet excursion
    • Extra-thick black anodized aluminum cone for maximum rigidity
    • Triple shorting ring motor for ultra-low distortion
    • 4-layer coil for high power handling
    • Optimized parameters for relatively small enclosures
    • Highest quality materials throughout for long-lasting performance



    Product details

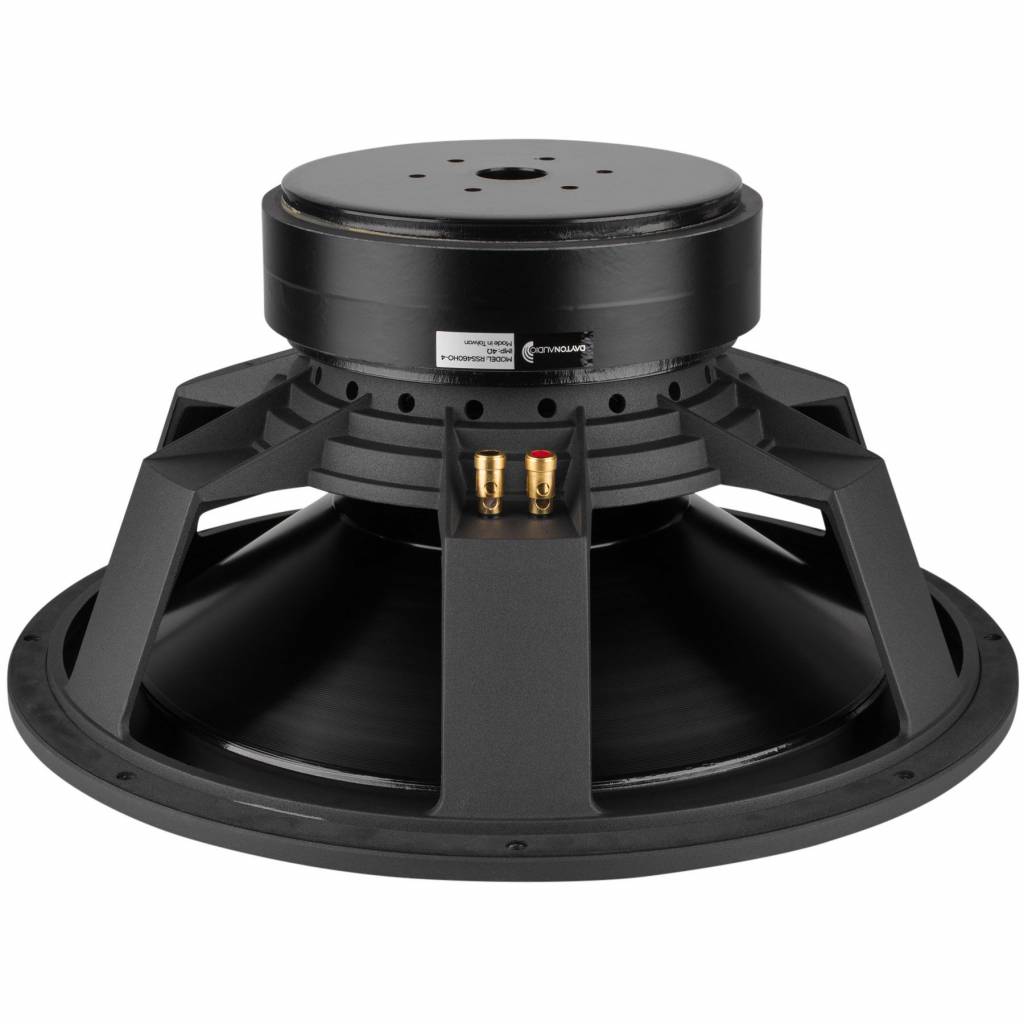

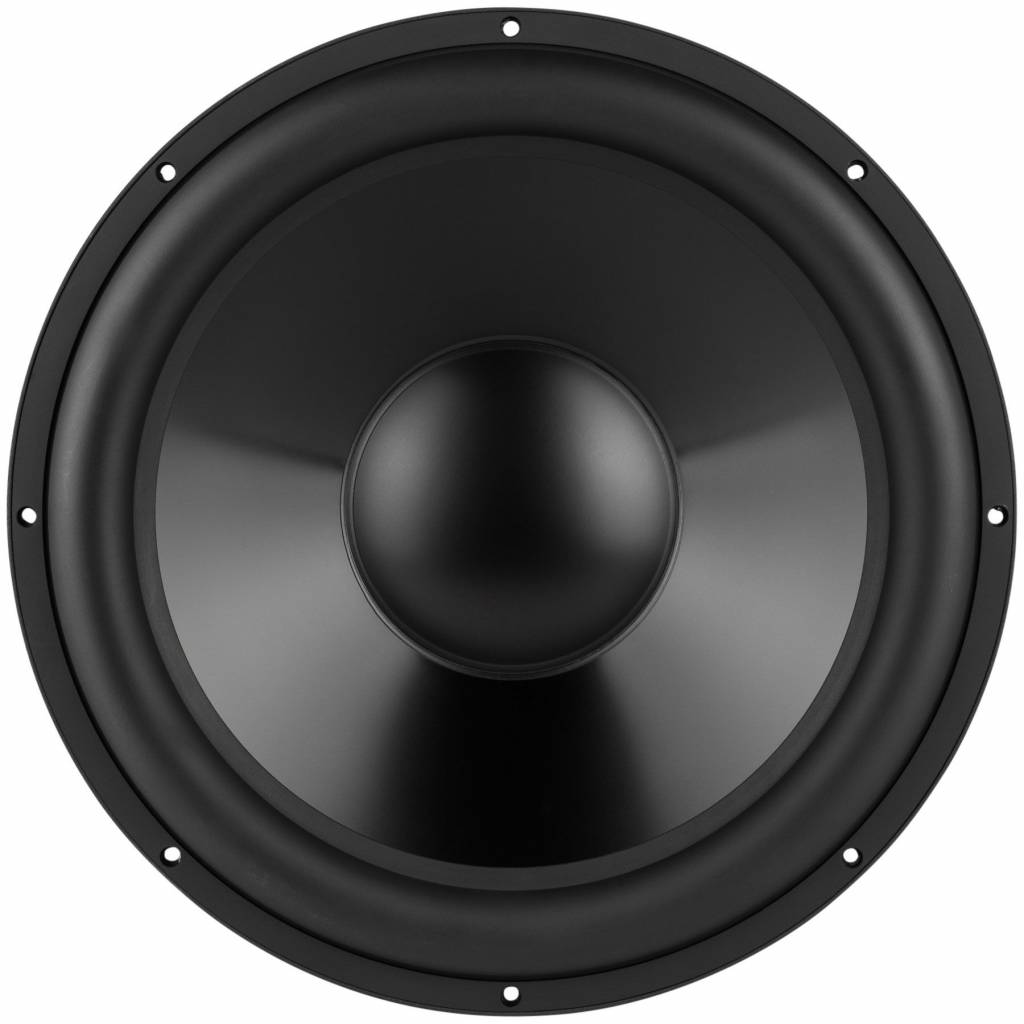

    Dayton Audio RSS460HO-4 18" Reference HO Subwoofer 4 ohm



    The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.



    Specificaties

    Artikelnummer
    RSS460HO-4
    Woofer Series
    Reference Series
    Woofer Type
    Subwoofer
    Nominal Diameter
    18"
    Power Handling (RMS)
    900 watts
    Power Handling (max)
    1800 watts
    Impedance
    4 ohms
    Sensitivity
    93 dB @ 2.83V/1m
    Frequency Response
    20 - 500 Hz
    Voice Coil Diameter
    76.2 mm
    DC Resistance (Re)
    3.2 ohms
    Voice Coil Inductance (Le)
    2.24 mH @ 1 kHz
    Resonant Frequency (Fs)
    18.8 Hz
    Mechanical Q (Qms)
    4.05
    Electromagnetic Q (Qes)
    0.35
    Total Q (Qts)
    0.32
    Diaphragm Mass Inc. Airload (Mms)
    499g
    Mechanical Compliance of Suspension (Cms)
    0.14 mm/N
    Surface Area of Cone (Sd)
    1,164.0 cm²
    Volume of Displacement (Vd)
    1,484.1 cm³
    BL Product (BL)
    23.4 Tm
    Compliance Equivalent Volume (Vas)
    272 liters
    Maximum Linear Excursion (Xmax)
    12.75 mm
    Cone / Diaphragm Material
    Black Anodized Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    461.5 mm
    Overall Depth
    227 mm
    Baffle Cutout Diameter
    424 mm
    # Mounting Holes
    8
    Sealed Volume
    3.04 ft.³
    Sealed F3
    40 Hz
    Vented Volume
    7.5 ft.³
    Vented F3
    23 Hz
