    Dayton Audio RSS390HO-4 15" Reference HO Subwoofer 4 Ohm

    € 269,95 >10 Op voorraad: levertijd 1 werkdag
    Dayton Audio's Reference Series RSS390HO-4 15" subwoofers make solid, tight, low-distortion bass performance a reality for automotive speaker applications and compact, equalized home audio installations.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €256,45 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Dayton Audio's Reference Series RSS390HO-4 15" subwoofers make solid, tight, low-distortion bass performance a reality for automotive speaker applications and compact, equalized home audio installations.



    Highlights

    • Extensively vented motor eliminates compression and allows quiet excursion
    • Lightweight black anodized aluminum cone for rigidity and lower moving mass
    • Triple shorting ring motor for ultra-low distortion
    • 2-layer coil for reduced back EMF
    • Suitable for sealed or vented enclosures
    • Highest quality materials throughout for long-lasting performance



    Product details

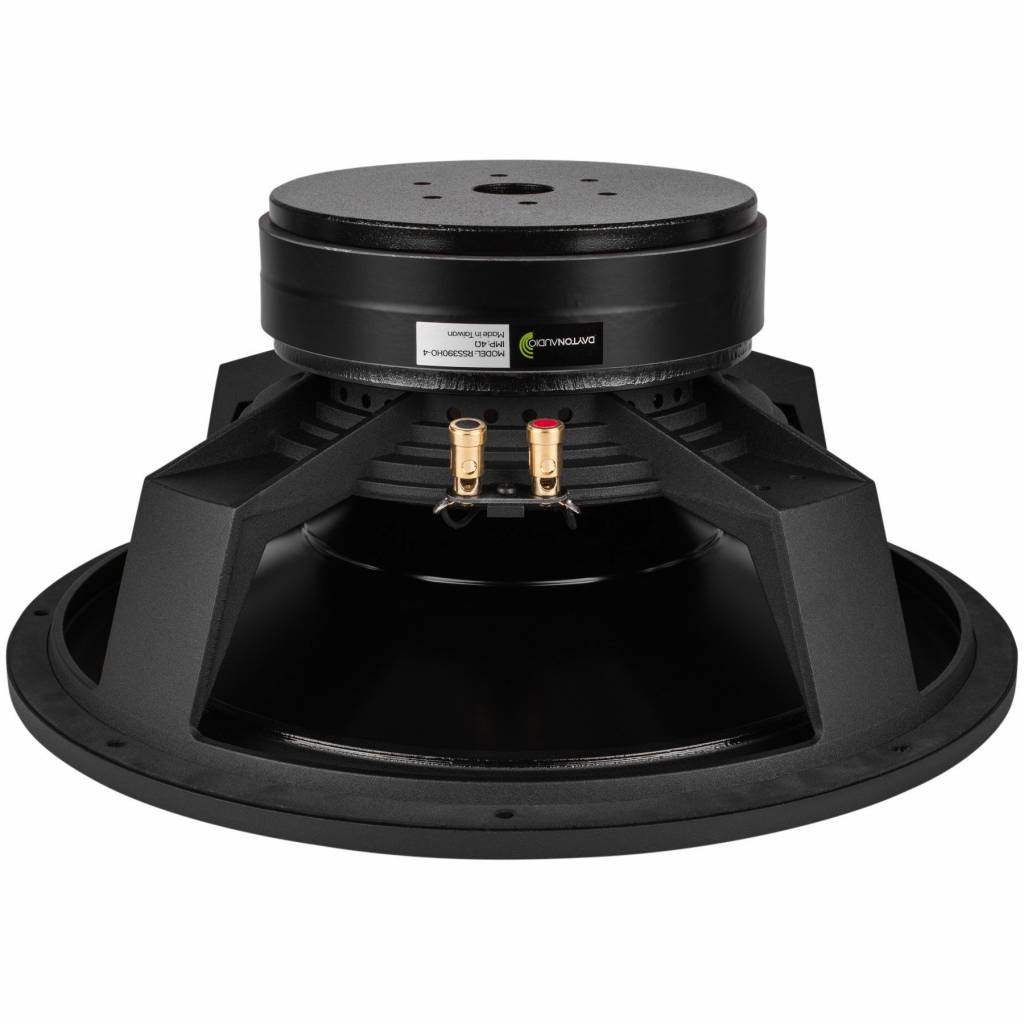

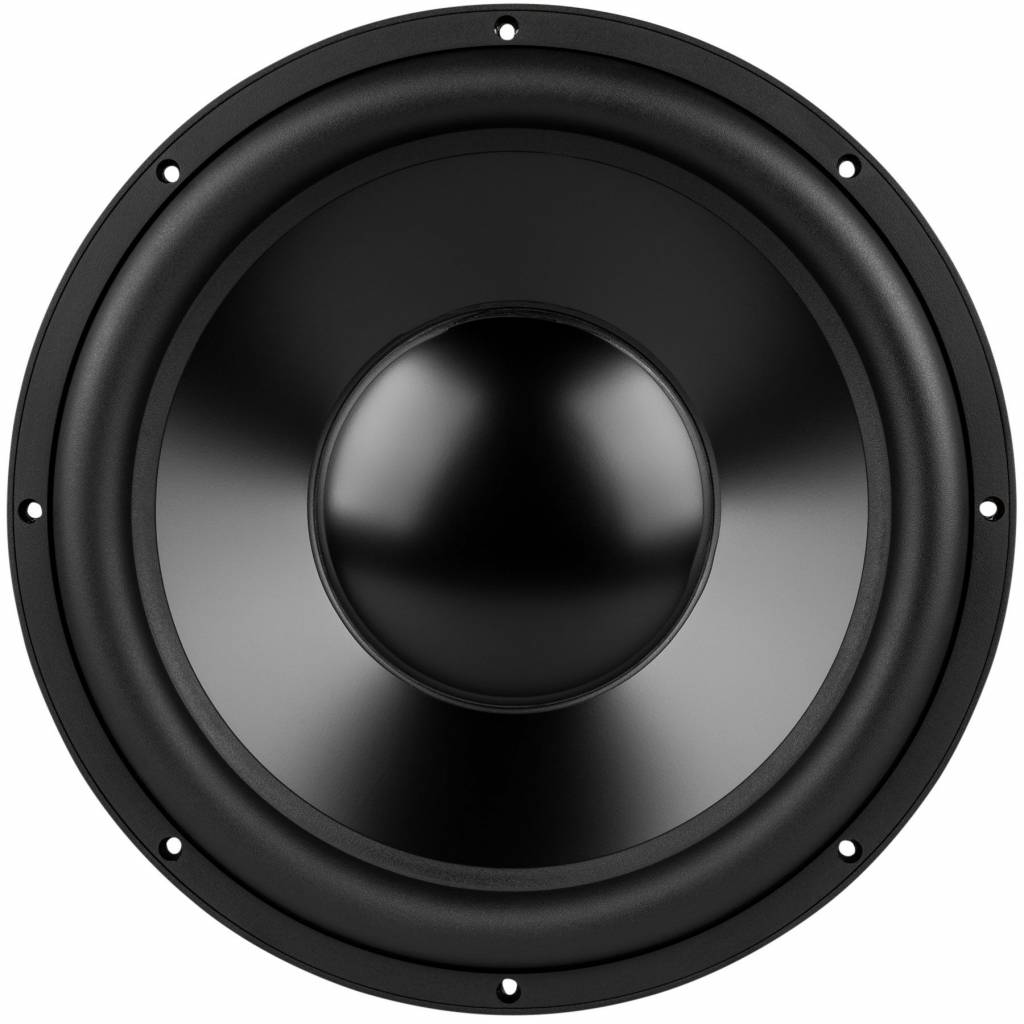

    Dayton Audio RSS390HO-4 15" Reference HO Subwoofer 4 Ohm



    The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure.



    A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high output version for automotive applications or for equalized high-power home subwoofer speaker systems.

    Specificaties

    Artikelnummer
    RSS390HO-4
    Woofer Series
    Reference Series
    Woofer Type
    Subwoofer
    Nominal Diameter
    15"
    Power Handling (RMS)
    800 watts
    Power Handling (max)
    1600 watts
    Impedance
    4 ohms
    Sensitivity
    92.8 dB @ 2.83V/1m
    Frequency Response
    21 - 600 Hz
    Voice Coil Diameter
    64 mm
    Magnet Weight
    150 oz.
    DC Resistance (Re)
    3.2 ohms
    Voice Coil Inductance (Le)
    1.79 mH @ 1 kHz
    Resonant Frequency (Fs)
    21.5 Hz
    Mechanical Q (Qms)
    3.69
    Electromagnetic Q (Qes)
    0.35
    Total Q (Qts)
    0.32
    Diaphragm Mass Inc. Airload (Mms)
    319g
    Mechanical Compliance of Suspension (Cms)
    0.17 mm/N
    Surface Area of Cone (Sd)
    829.6 cm²
    Volume of Displacement (Vd)
    995.5 cm³
    BL Product (BL)
    19.8 Tm
    Compliance Equivalent Volume (Vas)
    168 liters
    Maximum Linear Excursion (Xmax)
    12.0 mm
    Cone / Diaphragm Material
    Black Anodized Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    388.4 mm
    Overall Depth
    178 mm
    Baffle Cutout Diameter
    355.8 mm
    # Mounting Holes
    8
    Sealed Volume
    1.58 ft.³
    Sealed F3
    50 Hz
    Vented Volume
    2.72 ft.³
    Vented F3
    30 Hz
