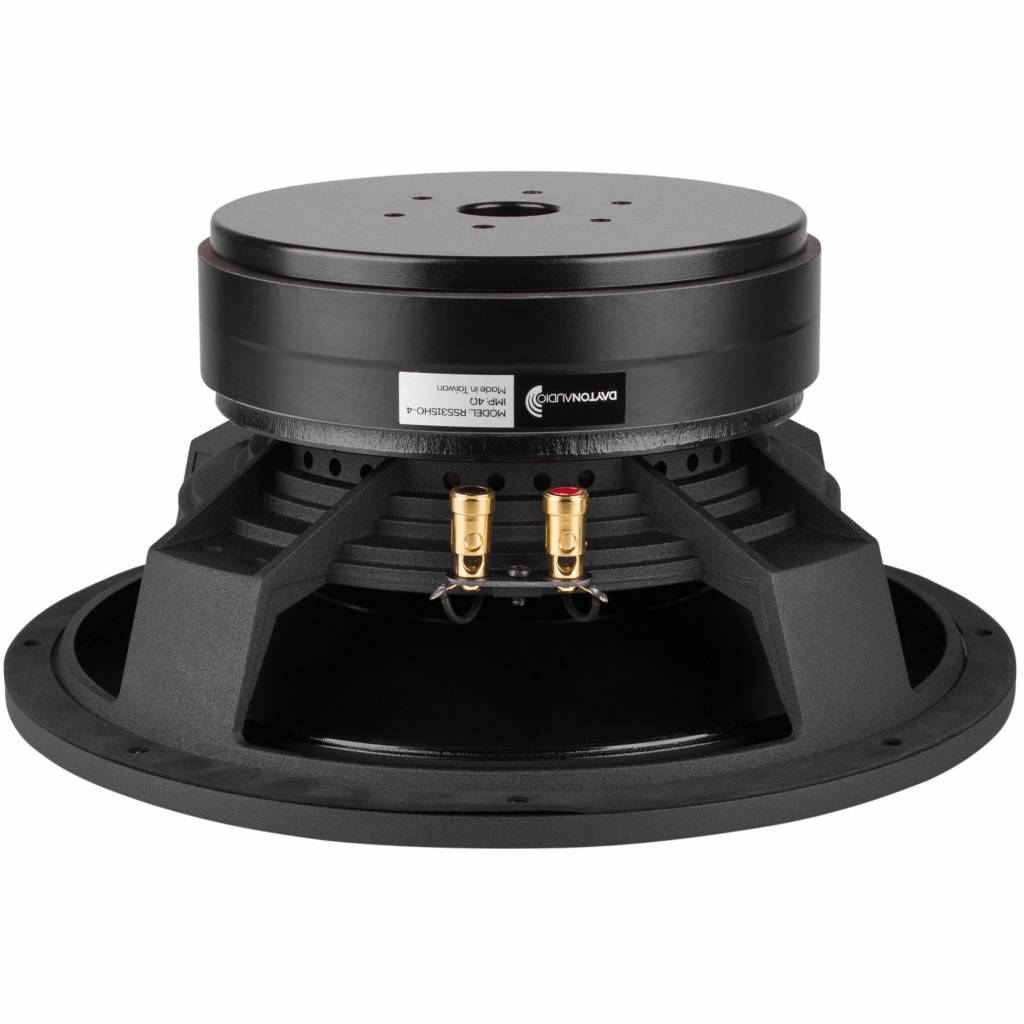

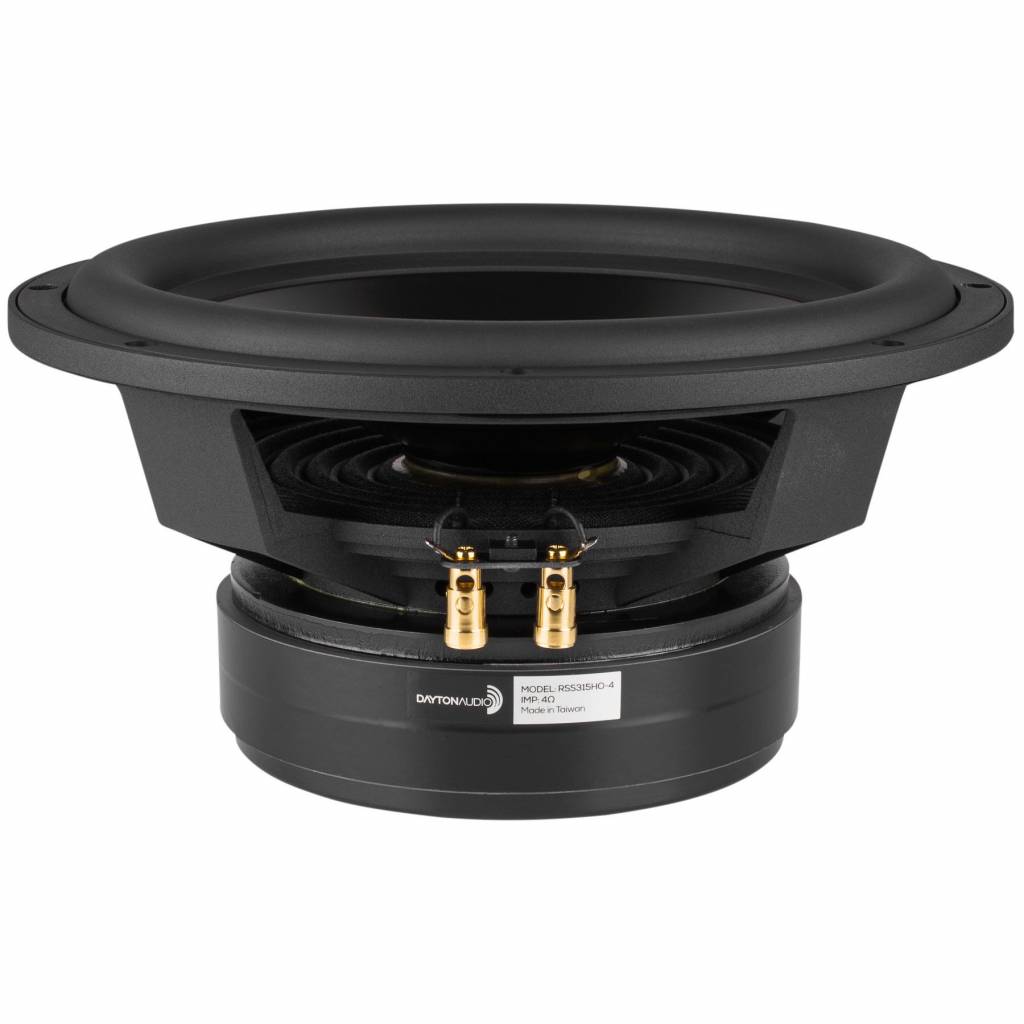

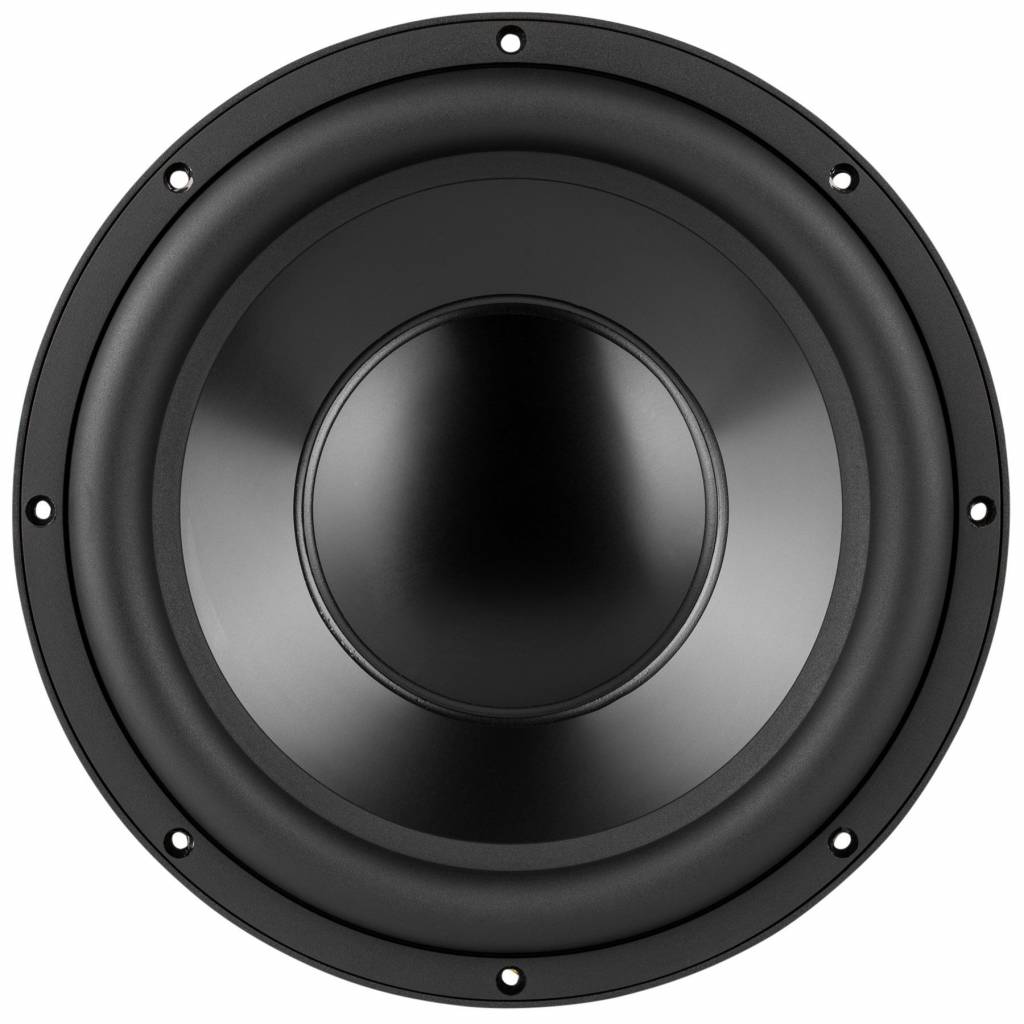

    Dayton Audio RSS315HO-4 12" Reference HO Subwoofer 4 Ohm

    € 194,17€ 234,95 2 Op voorraad: levertijd 1 werkdag
    The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €223,20 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.



    Highlights

    • Extensively vented motor eliminates compression and allows quiet excursion
    • Extra-thick black anodized aluminum cone for maximum rigidity
    • Triple shorting ring motor for ultra-low distortion
    • 4-layer coil for high power handling
    • Optimized parameters for small enclosures
    • Highest quality materials throughout for long-lasting performance



    Product details

    Dayton Audio RSS315HO-4 12" Reference HO Subwoofer 4 Ohm



    The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high output version for automotive applications or for equalized high-power home subwoofers.

    Specificaties

    Artikelnummer
    RSS315HO-4
    Woofer Series
    Reference Series
    Woofer Type
    Subwoofer
    Nominal Diameter
    12"
    Power Handling (RMS)
    700 watts
    Power Handling (max)
    1400 watts
    Impedance
    4+4 ohms
    Sensitivity
    84.6 dB @ 2.83V/1m
    Frequency Response
    20 - 500 Hz
    Voice Coil Diameter
    65.5 mm
    DC Resistance (Re)
    6.5 ohms
    Voice Coil Inductance (Le)
    3.17 mH @ 1 kHz
    Resonant Frequency (Fs)
    21.5 Hz
    Mechanical Q (Qms)
    3.70
    Electromagnetic Q (Qes)
    0.41
    Total Q (Qts)
    0.37
    Diaphragm Mass Inc. Airload (Mms)
    327.7
    Mechanical Compliance of Suspension (Cms)
    0.17 mm/N
    Surface Area of Cone (Sd)
    507.1 cm²
    Volume of Displacement (Vd)
    720.6 cm³
    BL Product (BL)
    26.5 Tm
    Compliance Equivalent Volume (Vas)
    61.3 liters
    Maximum Linear Excursion (Xmax)
    14.0 mm
    Cone / Diaphragm Material
    Black Anodized Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    314 mm
    Overall Depth
    146 mm
    Baffle Cutout Diameter
    282 mm
    # Mounting Holes
    8
    Sealed Volume
    0.33 ft.³
    Sealed F3
    66 Hz
    Vented Volume
    0.98 ft.³
    Vented F3
    36 Hz
