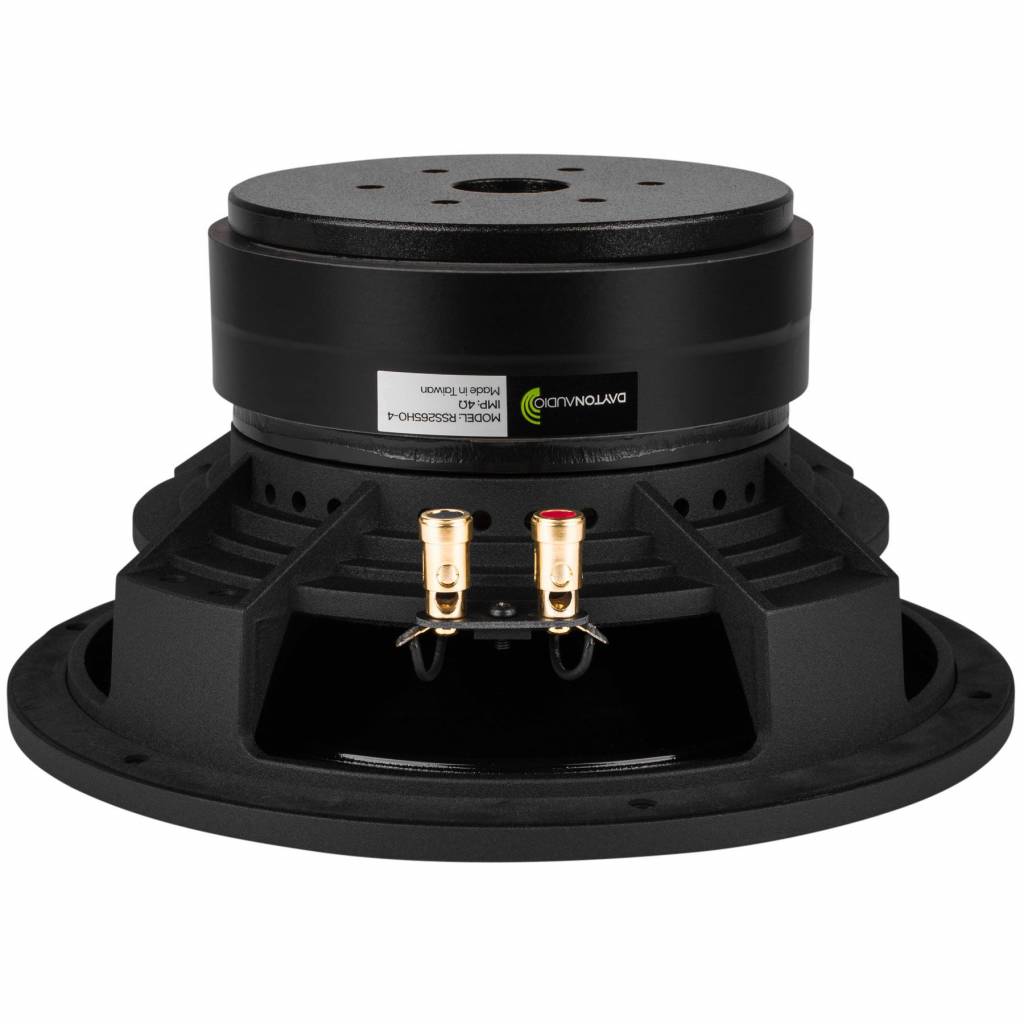

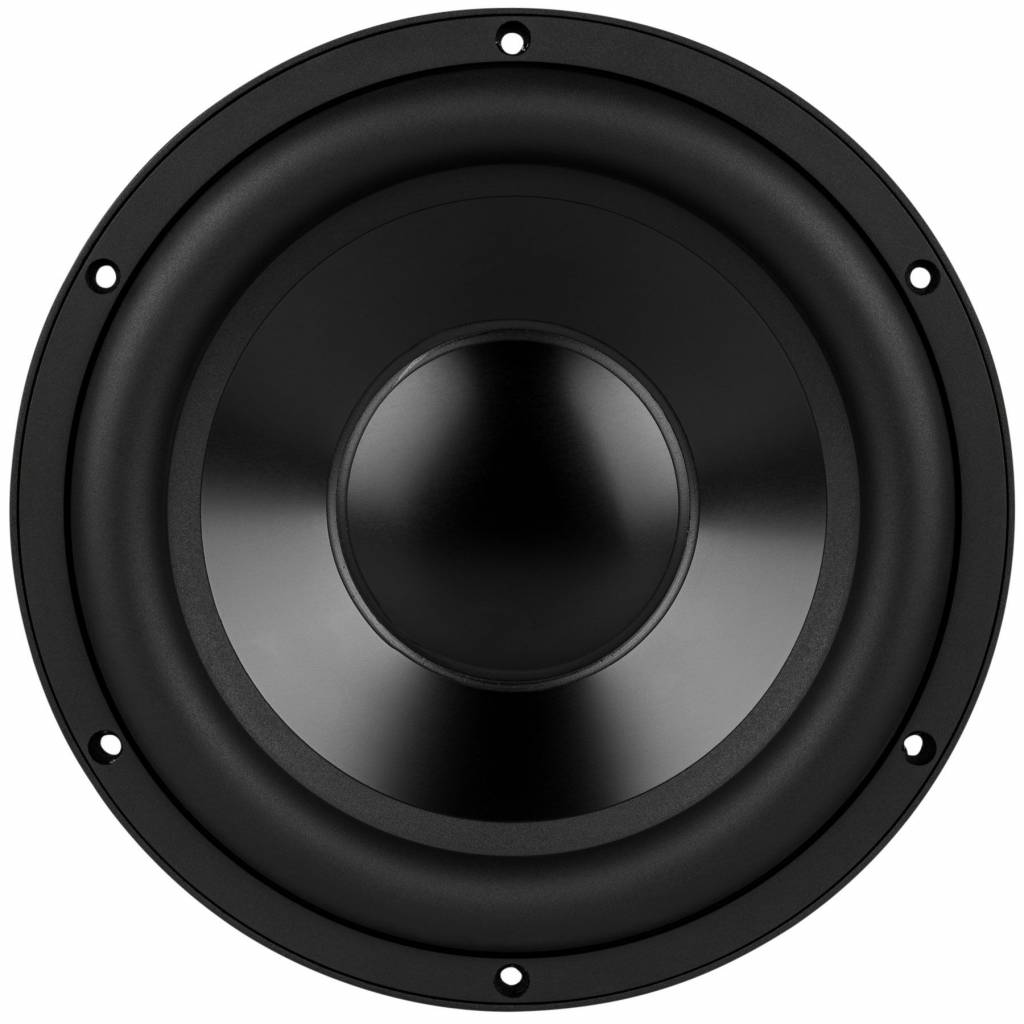

    Dayton Audio RSS265HO-4 10" Reference HO Subwoofer 4 Ohm

    € 173,51€ 209,95 >10 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €199,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Built for extreme performance in the smallest 10" subwoofer speaker enclosures, the Dayton Audio Reference Series RSS265HO-4 features an anodized aluminum cone, 4-layer voice coil, and optimized distortion-reducing magnet system.



    Highlights

    • Extensively vented motor eliminates compression and allows quiet excursion
    • Extra-thick black anodized aluminum cone for maximum rigidity
    • Triple shorting ring motor for ultra-low distortion
    • 4-layer coil for high power handling
    • Optimized parameters for small enclosures
    • Highest quality materials throughout for long-lasting performance



    Product details

    Dayton Audio RSS265HO-4 10" Reference HO Subwoofer 4 Ohm



    As with the rest of the Reference Series, the main focus of the Dayton Audio RSS265HO-4 10" subwoofer is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this 10" driver a unique, high-end look. Choose the high output version for automotive applications or for equalized high-power home subwoofer speaker systems.

    Specificaties

    Artikelnummer
    RSS265HO-4
    Woofer series
    Reference Series
    Woofer type
    Subwoofer
    Nominale diameter
    10"
    Belastbaarheid (RMS)
    600 Watts
    Belastbaarheid (max)
    1200 Watts
    Impedantie (Z)
    4 ohms
    Gevoeligheid
    87.2 dB 2.83V/1m
    Frequentierespons
    24 to 600 Hz
    Spreekspoeldiameter
    2.52"
    Gewicht magneet
    100 oz.
    Gelijkstroomweerstand (Re)
    3.50 ohms
    Spreekspoelinductie (Le)
    1.74 mH
    Resonantiefrequentie (Fs)
    26.9 Hz
    Mechanische Q (Qms)
    4.02
    Elektrische Q (Qes)
    0.39
    Totale Q (Qts)
    0.35
    Bewegende massa (Mms)
    201g
    Compliantie van de ophanging (Cms)
    0.17 mm/N
    Effectief oppervlak (Sd)
    349.7 cm²
    Krachtsfactor (BL)
    17.6 Tm
    Equivalentvolume (Vas)
    1.04 ft.³
    Maximale excursie (Xmax)
    12.3 mm
    Cone / Diaphragm Material
    Aluminum
    Surroundmateriaal
    Rubber
    Spreekspoel draadmateriaal
    Copper
    Spreekspoel vormermateriaal
    Aluminum
    Mand- /framemateriaal
    Steel
    Magneetmateriaal
    Ferrite
    Totale buitendiameter
    10.47"
    Totale diepte
    5.37"
    Montagegatdiameter
    9.25"
    # Bevestigingsgaten
    6
    Gesloten volume
    0.44 ft.³
    Gesloten F3
    61 Hz
    Gepoort volume
    0.53 ft.³
    Gepoort F3
    39 Hz

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Great driver! Build it into a large 103Liter box tuned at 20.5 Hertz and it delivers very flat and distortion free sound down to ~19 Hertz.
    It WILL go down to 15 hertz, all be it with less volume due to the high pass filter as it would cause over excursion of the driver. (14mm max).

    Obviously, at such frequencies I do get strong standing waves in some locations. This can't be helped since my room is relatively small. Treating your room and/or using multiple subwoofers would help alleviate this problem.

    Driving it with max 150Watts RMS.
    All though I doubt I would use more then 60 watts in most cases.
    Due to the low tuning and big box it won't give you amazing SPL levels with this setup. But For my 4 by 4 room at 105 DB @ 1 meter it's plenty!

    I also tried using it sealed in a smaller box of about 45 Liters. This also works great but my 150Watt amp lacks a little bit in power for this setup.

    So if you are going to be using it sealed, I would suggest getting at amplifier that can deliver a bit more beef.

    All in all, great driver.
    Door Lenn M. on 6 September 2018
