        RSS265-PR Passive Radiator

        RSS265-PR Passive Radiator


        Dayton Audio RSS265-PR Passive Radiator

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        4 sterren
        3 sterren
        2 sterren
        1 ster
        Bekijk alle reviews
        € 115,66€ 139,95 10+ Op voorraad
        • -5% Bestel 4 voor slechts € 132,95 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, dinsdag bezorgd
        • Vijf jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

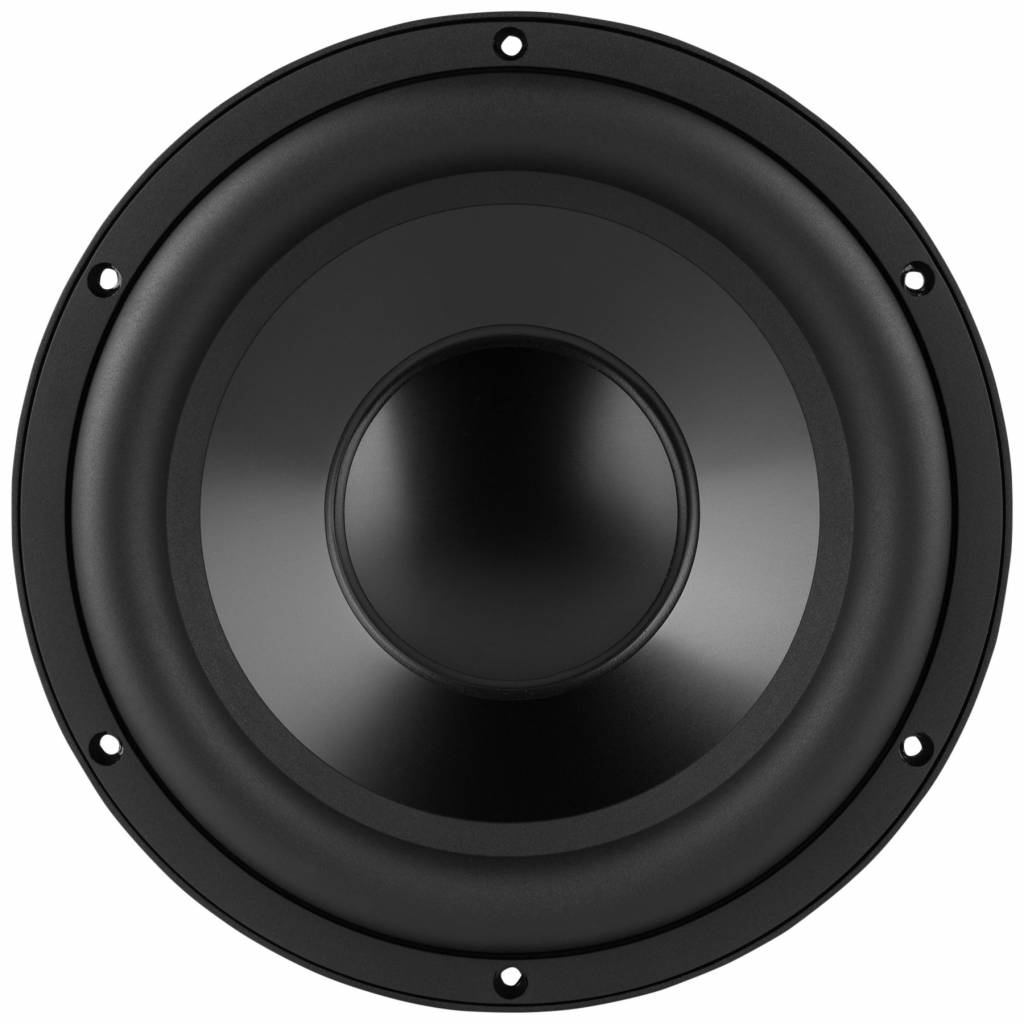

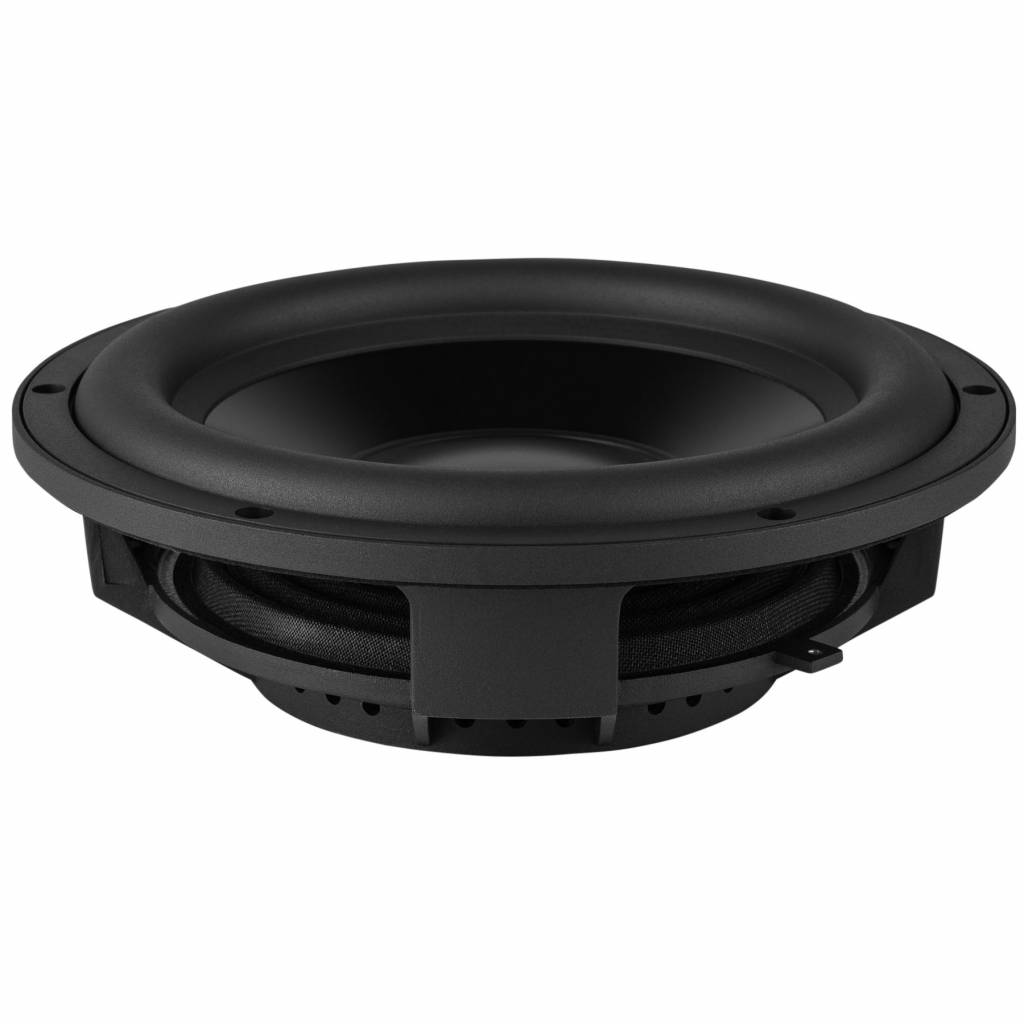

        Dayton Audio's RSS265-PR 10" passive radiator is the ideal choice for tuning small enclosures lower than possible with a conventional port. With a thick aluminum cone, cast frame, rubber surround, and incredible excursion capabilities (48 mm peak to peak) this radiator is perfect for today's high excursion subwoofers.



        • SMS™ (Sandwich Mass System) permits greater linearity by minimizing angular torque
        • Durable yet compliant suspension provides substantial linear travel and mechanical stability
        • Rigid cast aluminum frame with thick black anodized aluminum cone

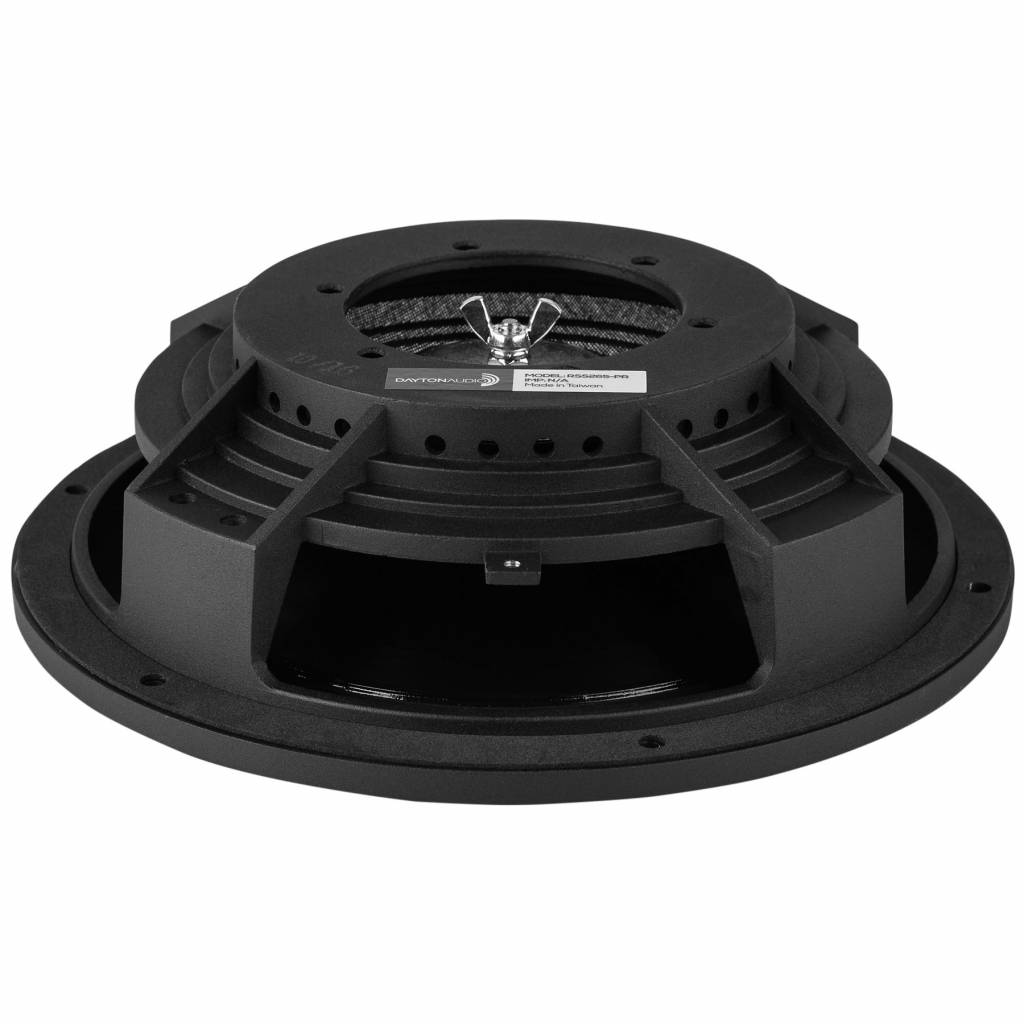

        • Threaded rod with lock nut for easy adjustment of tuning frequency
        • Includes five 75 gram weighted disks for simple tuning adjustment
        • Cosmetically identical to the popular Reference Series subwoofer lines


        Product details

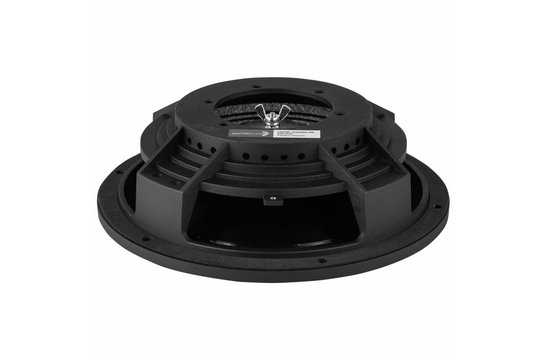

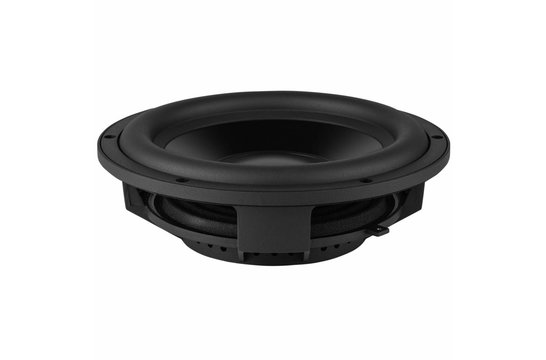

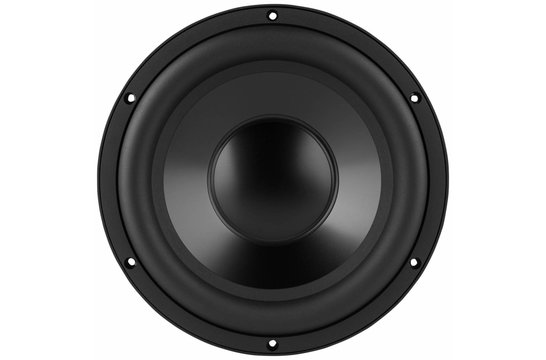

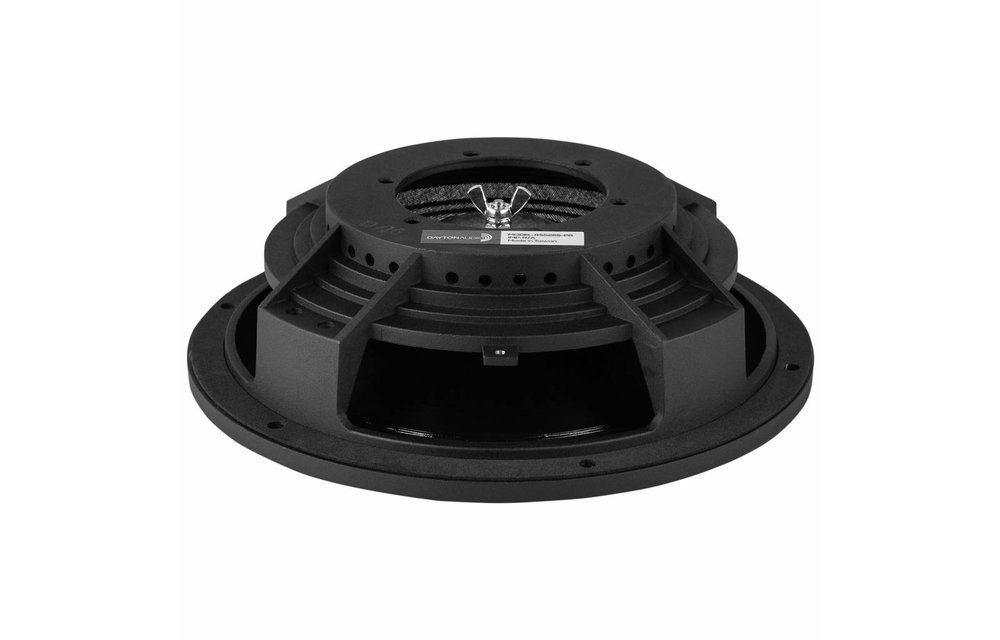

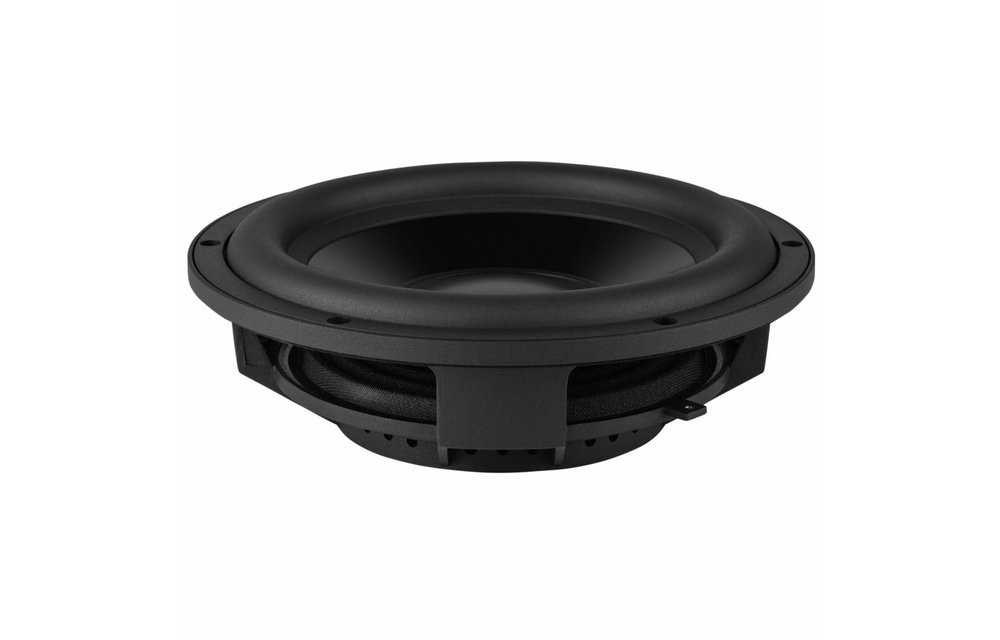

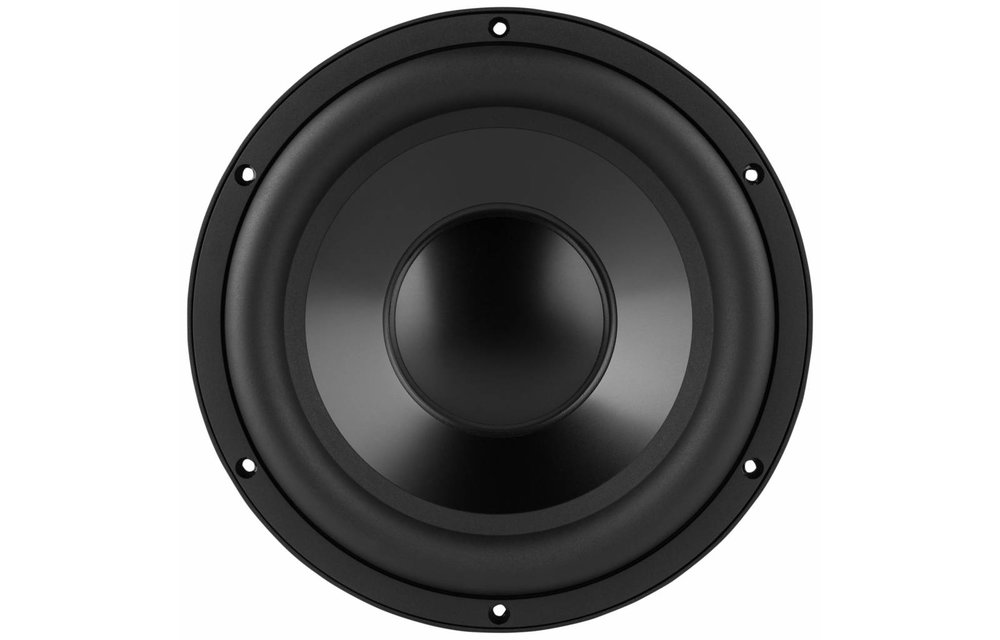

        Dayton Audio RSS265-PR 10" Aluminum Cone Passive Radiator


        We are proud to offer our customers the complete line of Dayton Audio Reference Series passive radiators. These high quality, well-engineered passive radiators are carefully constructed using the same rigid anodized aluminum cone and cast frame as Dayton Audio's world renowned Reference Series subwoofers, making them visually identical and a perfect match to the very popular line of drivers.


        Each passive radiator employs the unique SMS™ (Sandwiched Mass Structure) design which keeps the majority of the mass centered between the surround and spider providing greater linearity by minimizing angular torque. These passives are also tunable using the included weights with the bolt-on mass adjustment assembly, making them easily integrated into virtually any subwoofer design.

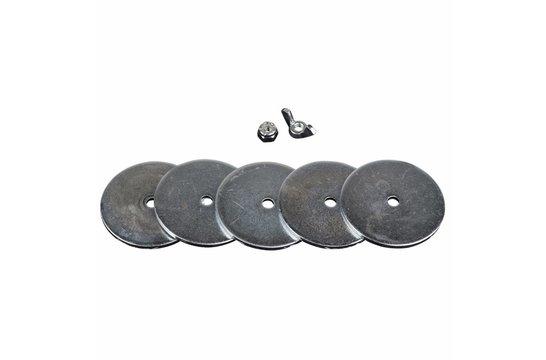

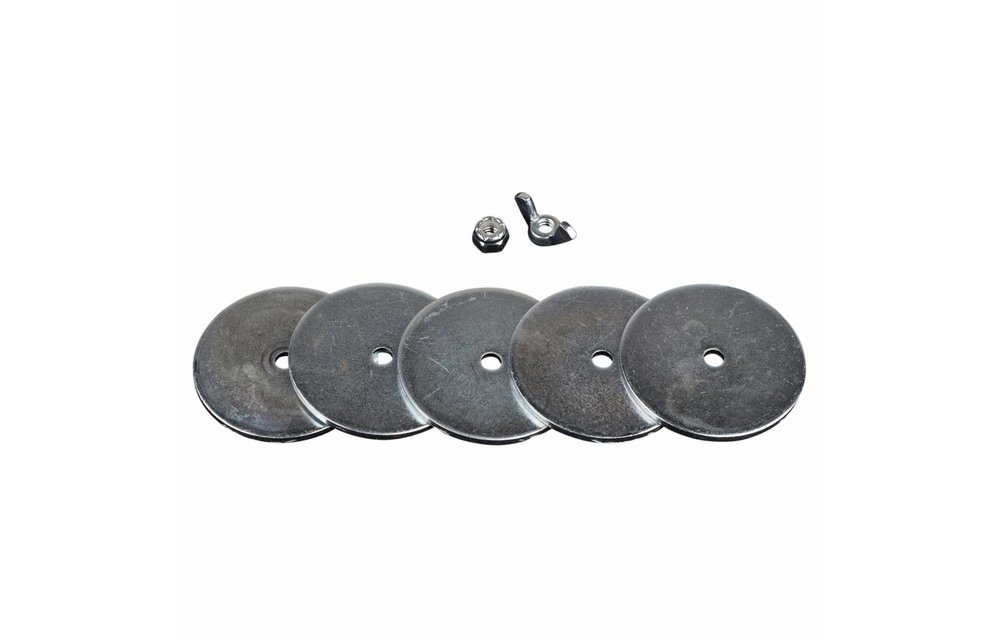

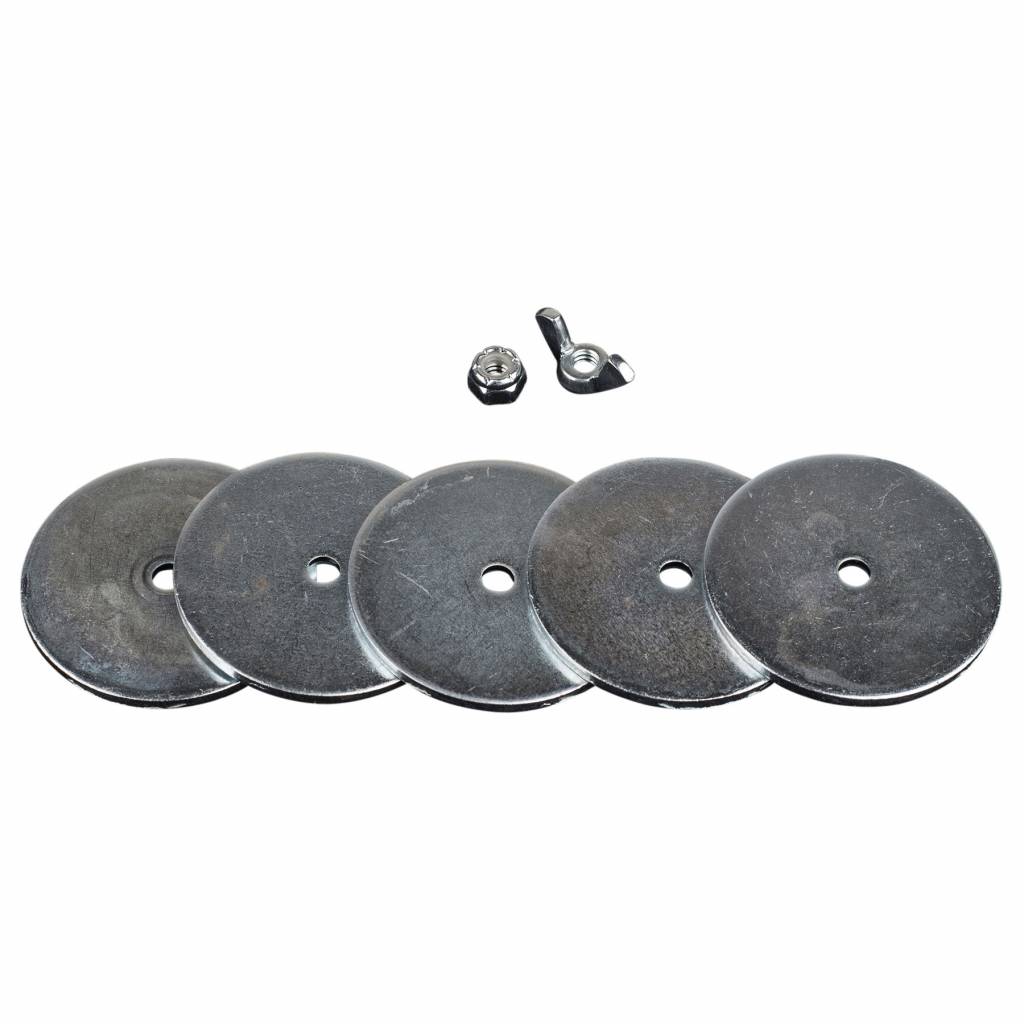

        The RSS265-PR 10" passive radiator includes:

        (1) Passive radiator
        (5) 75 gram disk weights
        (1) wing nut (for tuning)
        (1) lock nut (for final assembly)


        Specifications: • Fs: 19.6 Hz • Vas: 2.11 cu. ft. (59.7 liters) • Qms: 4.92 • Cms: 0.33 mm/N • Mms: 200g • Rms: 11.02 kg/s • Sd: 356.3 sq. cm. • Xmech: 24 mm • Dimensions: Overall diameter: 10.47", Cutout diameter: 9.25", Depth: 3.03".


        Note: Parameters above are for the passive only with no additional mass added. Parameters with additional mass added are listed in the table below.

        Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
        To calculate Vd: Sd x Xmax = Vd

        Toon meer


        Woofer series
        Reference Series
        Woofer type
        Passive Radiator
        Nominale diameter
        Resonantiefrequentie (Fs)
        19.6 Hz
        Mechanische Q (Qms)
        Bewegende massa (Mms)
        Compliantie van de ophanging (Cms)
        0.33 mm/N
        Effectief oppervlak (Sd)
        356.3 cm²
        Maximaal verplaatst volume (Vd)
        855.1 cm³
        Equivalentvolume (Vas)
        59.7 liters
        Maximale excursie (Xmax)
        24 mm
        Driver's Mechanical Losses (Rms)
        11.02 kg/s
        Totale buitendiameter
        266 mm
        Totale diepte
        77 mm
        235 mm
        # Bevestigingsgaten

        Toon meer
