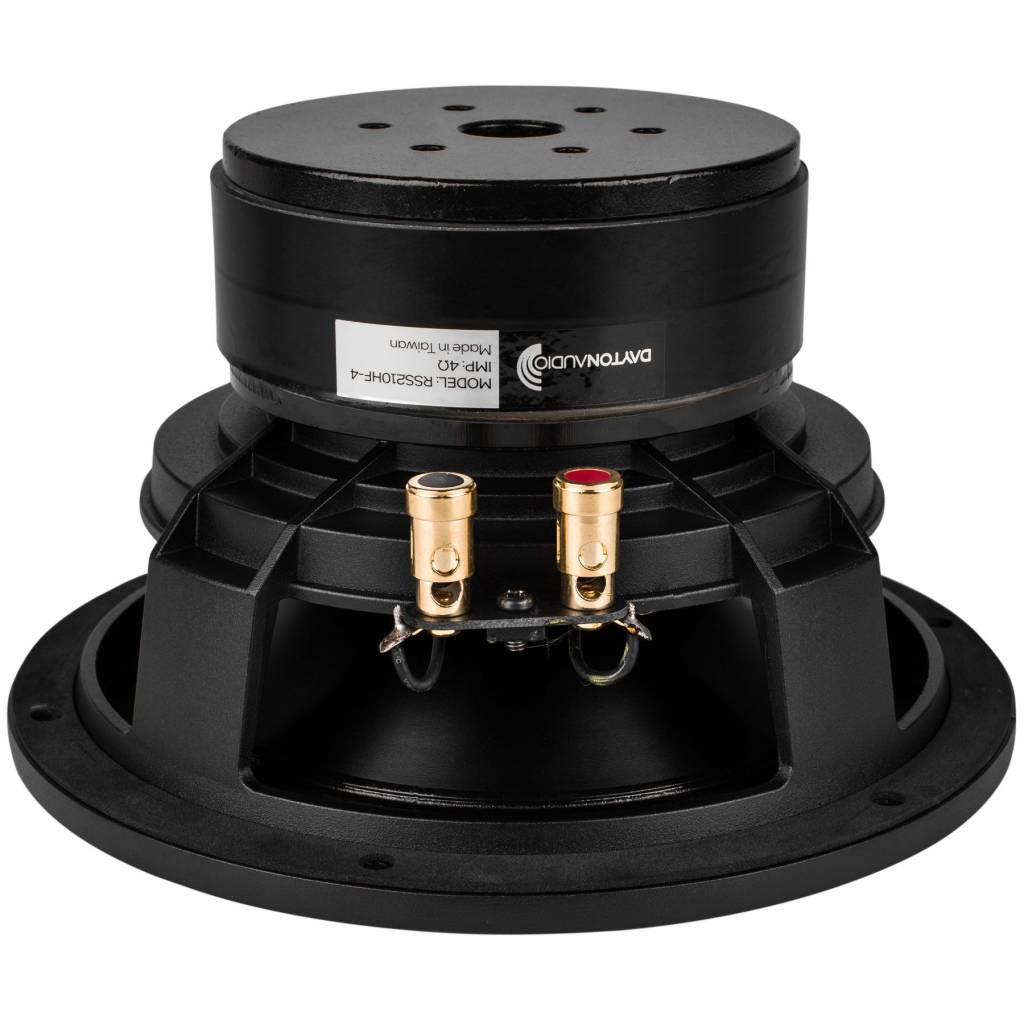

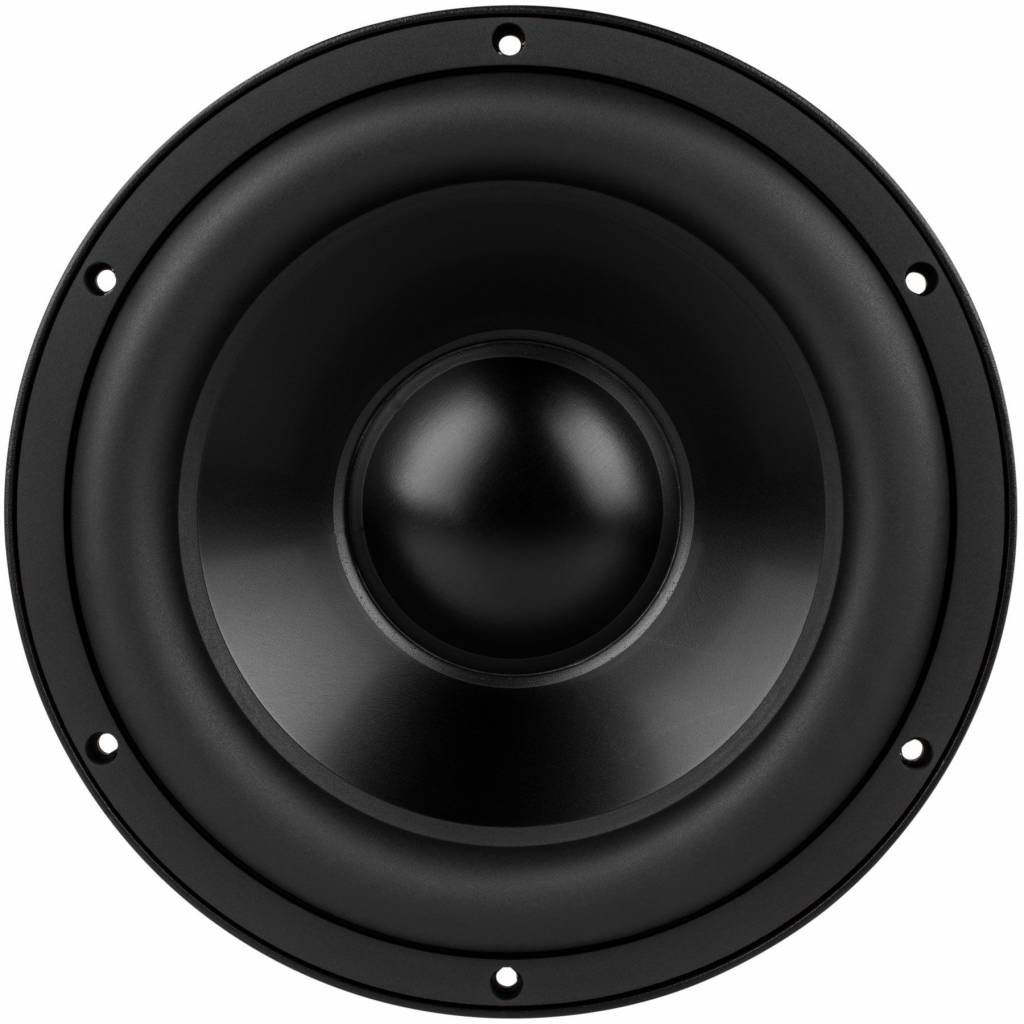

    Dayton Audio RSS210HF-4 8" Reference HF Subwoofer 4 Ohm

    € 136,45 >10 Op voorraad: levertijd 1 werkdag
    The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €129,63 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.



    Highlights

    • Extensively vented motor eliminates compression and allows quiet excursion
    • Lightweight black anodized aluminum cone for rigidity and lower moving mass
    • Suitable for sealed or vented enclosures
    • Triple shorting ring motor for ultra-low distortion
    • 2-layer coil for reduced back EMF
    • Highest quality materials throughout for long-lasting performance



    Product details

    Dayton Audio RSS210HF-4 8" Reference HF Subwoofer 4 Ohm



    The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.

    Specificaties

    Artikelnummer
    RSS210HF-4
    Woofer Series
    Reference Series
    Woofer Type
    Subwoofer
    Nominal Diameter
    8"
    Power Handling (RMS)
    280 watts
    Power Handling (max)
    560 watts
    Impedance
    4 ohms
    Sensitivity
    85.6 dB @ 2.83V/1m
    Frequency Response
    27 - 1,000 Hz
    Voice Coil Diameter
    51 mm
    Magnet Weight
    50 oz.
    DC Resistance (Re)
    3.1 ohms
    Voice Coil Inductance (Le)
    0.7 mH @ 1 kHz
    Resonant Frequency (Fs)
    29.6 Hz
    Mechanical Q (Qms)
    3.25
    Electromagnetic Q (Qes)
    0.69
    Total Q (Qts)
    0.57
    Diaphragm Mass Inc. Airload (Mms)
    78.4g
    Mechanical Compliance of Suspension (Cms)
    0.37 mm/N
    Surface Area of Cone (Sd)
    219.0 cm²
    Volume of Displacement (Vd)
    197.1 cm³
    BL Product (BL)
    8.12 Tm
    Compliance Equivalent Volume (Vas)
    23.7 liters
    Maximum Linear Excursion (Xmax)
    9.0 mm
    Cone / Diaphragm Material
    Black Anodized Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    213 mm
    Overall Depth
    124 mm
    Baffle Cutout Diameter
    185 mm
    # Mounting Holes
    6
    Sealed Volume
    0.55 ft.³
    Sealed F3
    48 Hz
    Vented Volume
    1.76 ft.³
    Vented F3
    24 Hz
