- Artikelnummer

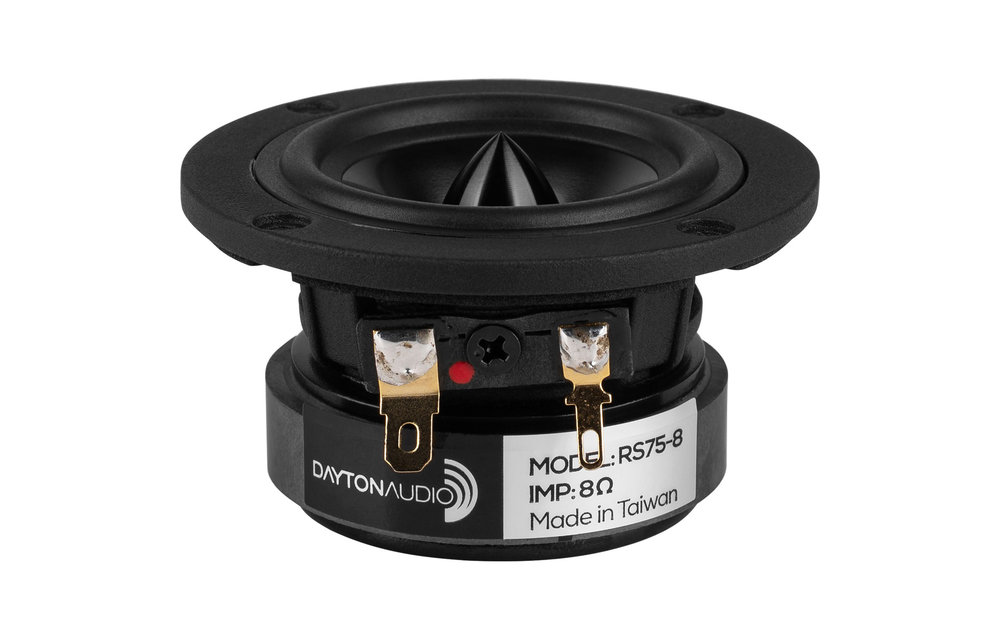

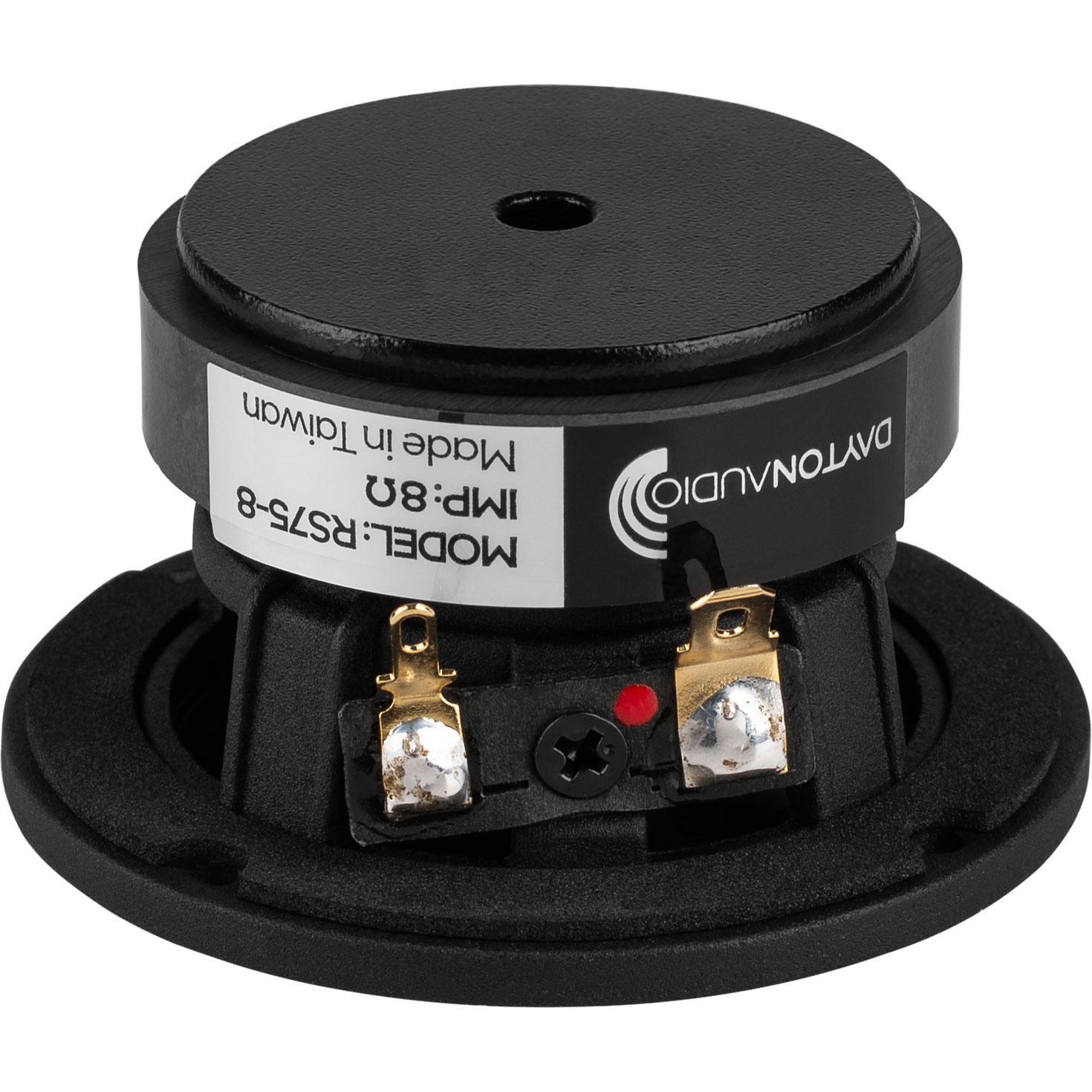

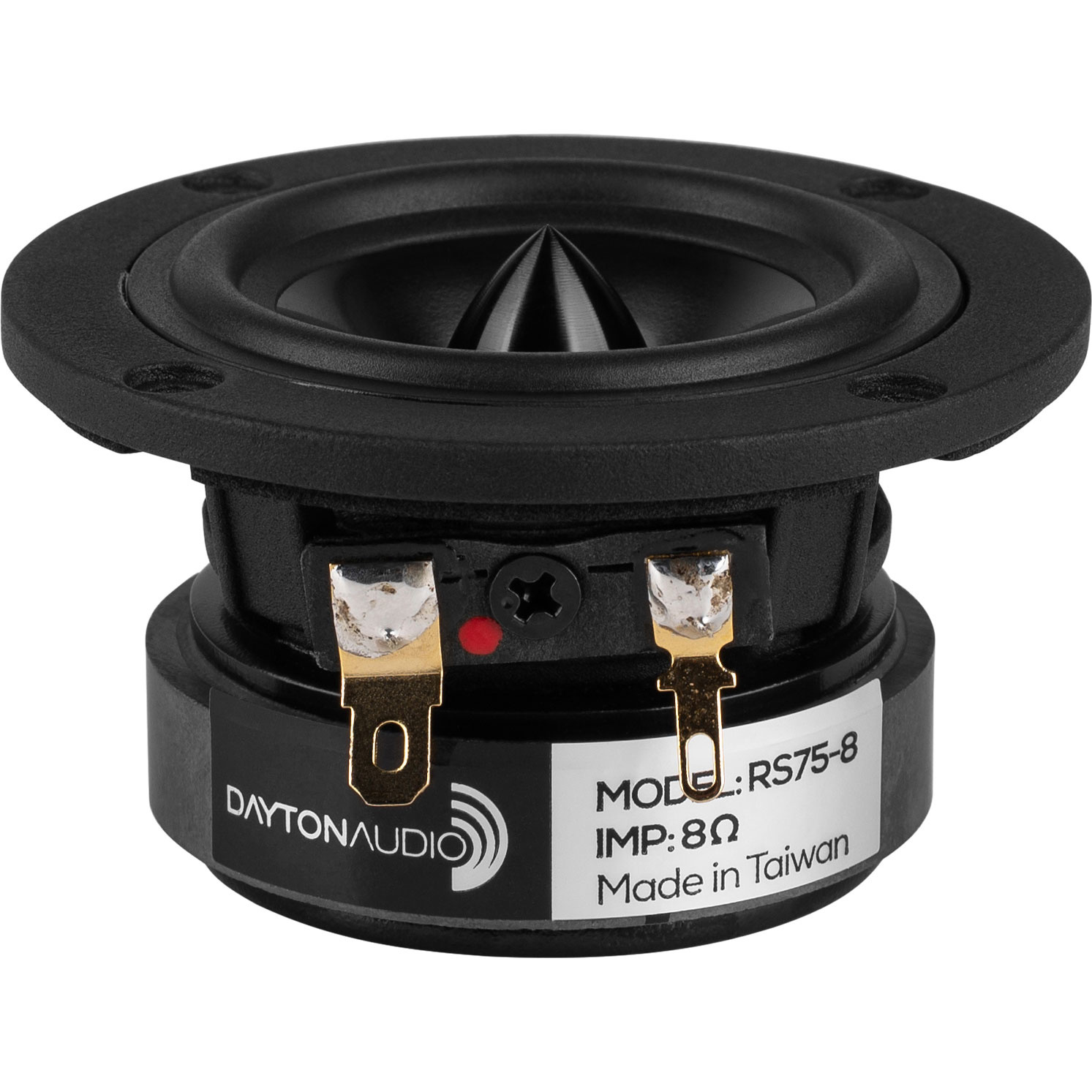

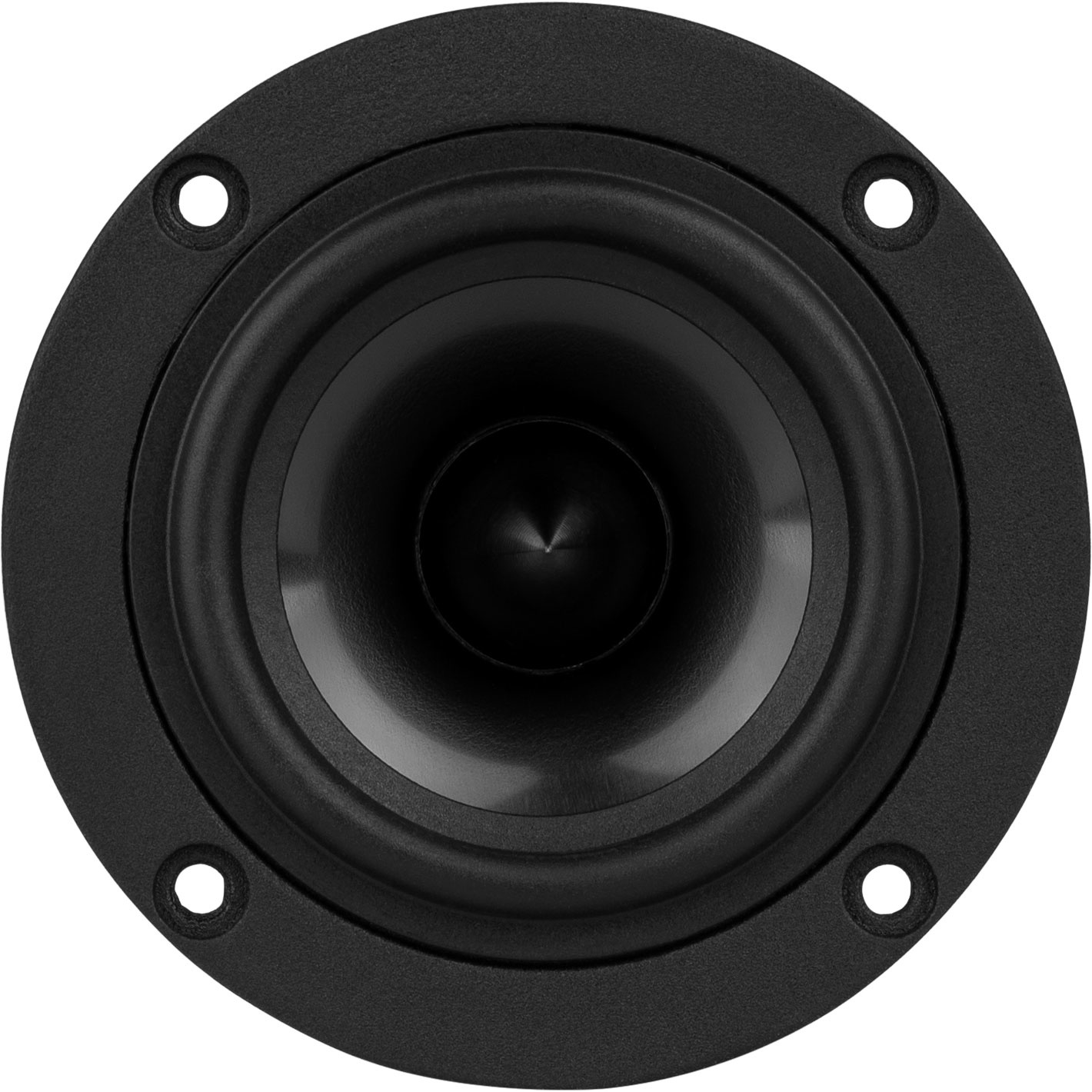

- RS75-8
- Woofer Series
- Reference Series
- Woofer Type
- Full-Range
- Nominal Diameter
- 3"
- Power Handling (RMS)
- 15 Watts
- Power Handling (max)
- 30 Watts
- Impedance
- 8 ohms
- Sensitivity
- 80.5 dB 2.83V/1m
- Frequency Response
- 160 to 20,000 Hz
- Voice Coil Diameter
- 0.60"
- DC Resistance (Re)
- 6.2 ohms
- Voice Coil Inductance (Le)
- 0.32 mH
- Resonant Frequency (Fs)
- 185 Hz
- Mechanical Q (Qms)
- 5.12
- Electromagnetic Q (Qes)
- 1.35
- Total Q (Qts)
- 1.07
- Diaphragm Mass Inc. Airload (Mms)
- 1.23g
- Mechanical Compliance of Suspension (Cms)
- 0.60 mm/N
- Surface Area of Cone (Sd)
- 12 cm²
- BL Product (BL)
- 2.55 Tm
- Compliance Equivalent Volume (Vas)
- 0.004 ft.³
- Maximum Linear Excursion (Xmax)
- 1.3 mm
- Cone / Diaphragm Material
- Aluminum
- Surround Material
- Rubber
- Voice Coil Wire Material
- Copper
- Voice Coil Former
- Aluminum
- Basket / Frame Material
- Cast Aluminum
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 2.83"
- Overall Depth
- 1.52"
- Baffle Cutout Diameter
- 2.13"
- Bolt Circle Diameter
- 2.52"
- # Mounting Holes
- 4
- Sealed Volume
- 0.017 ft.³
- Sealed F3
- 170 Hz
- Vented Volume
- 0.029 ft.³
- Vented F3
- 0.029 ft.³
