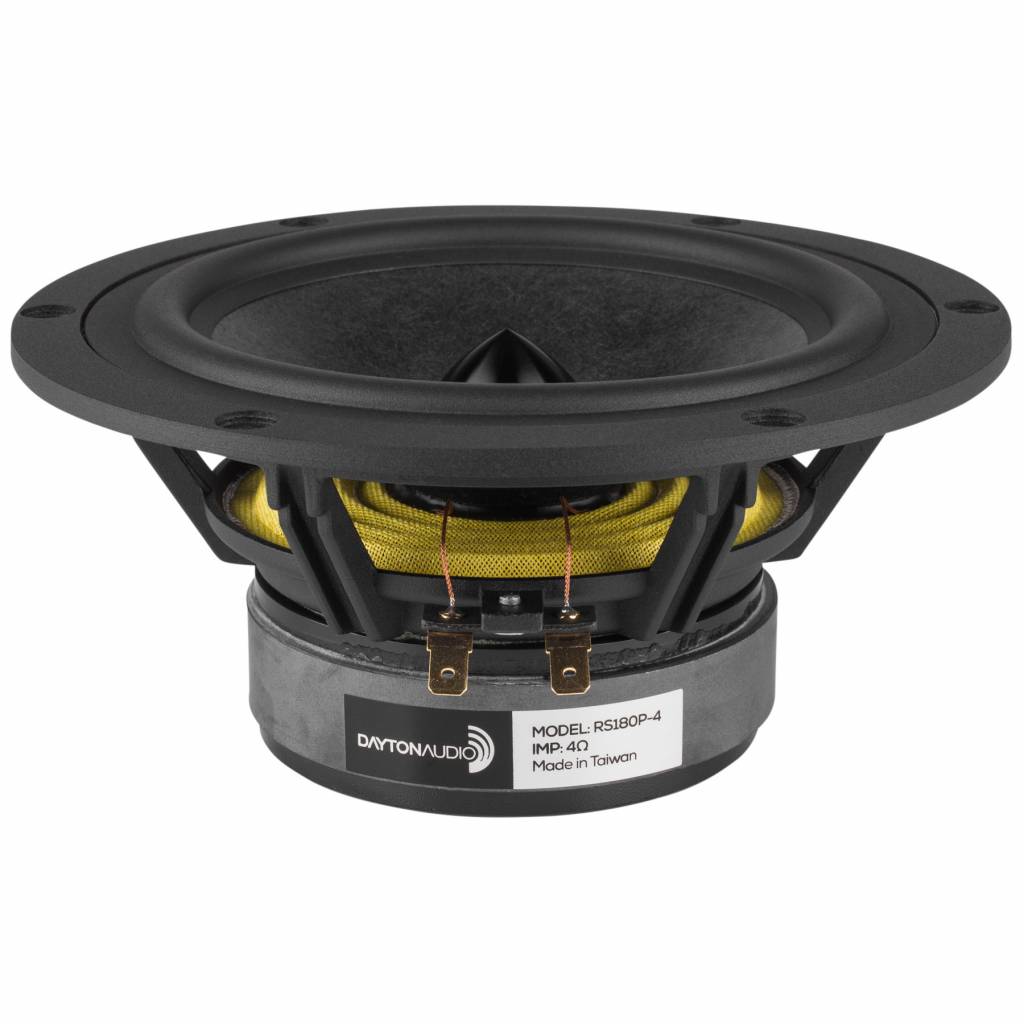

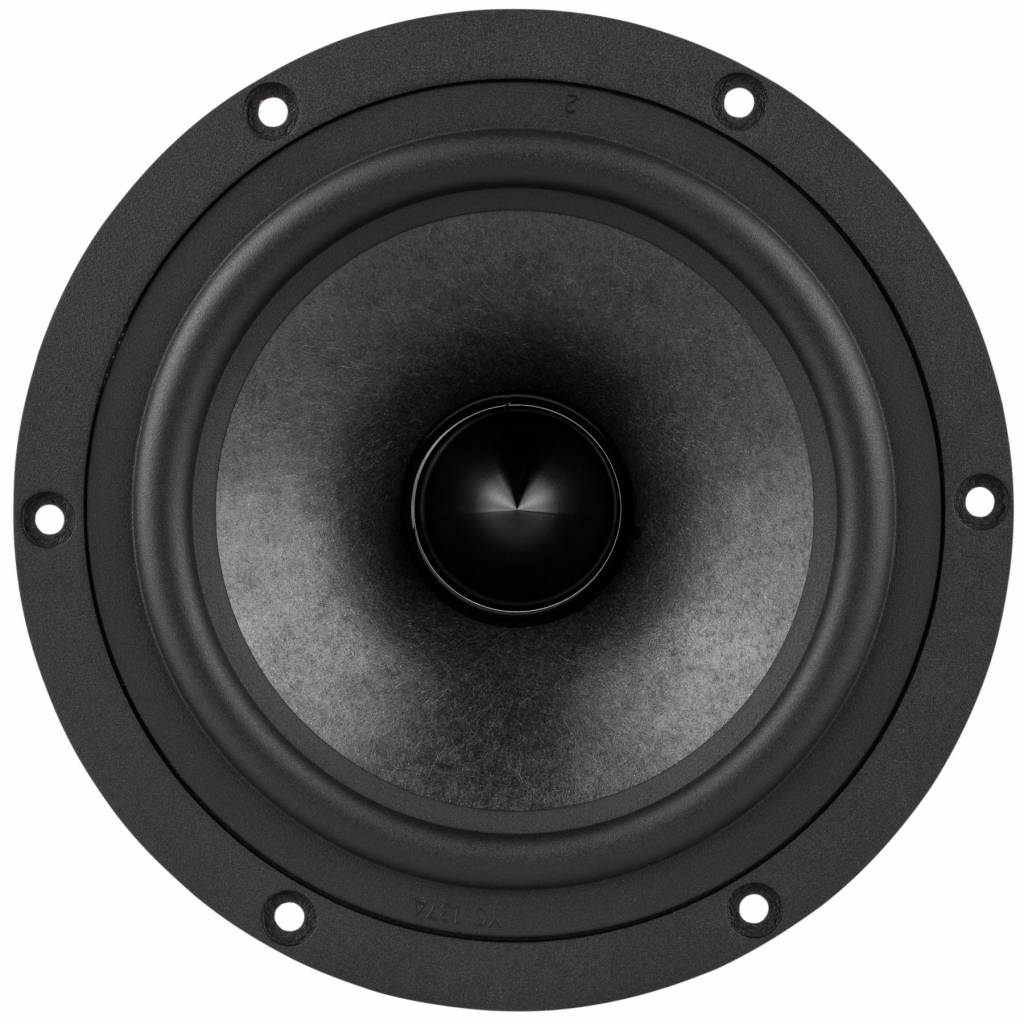

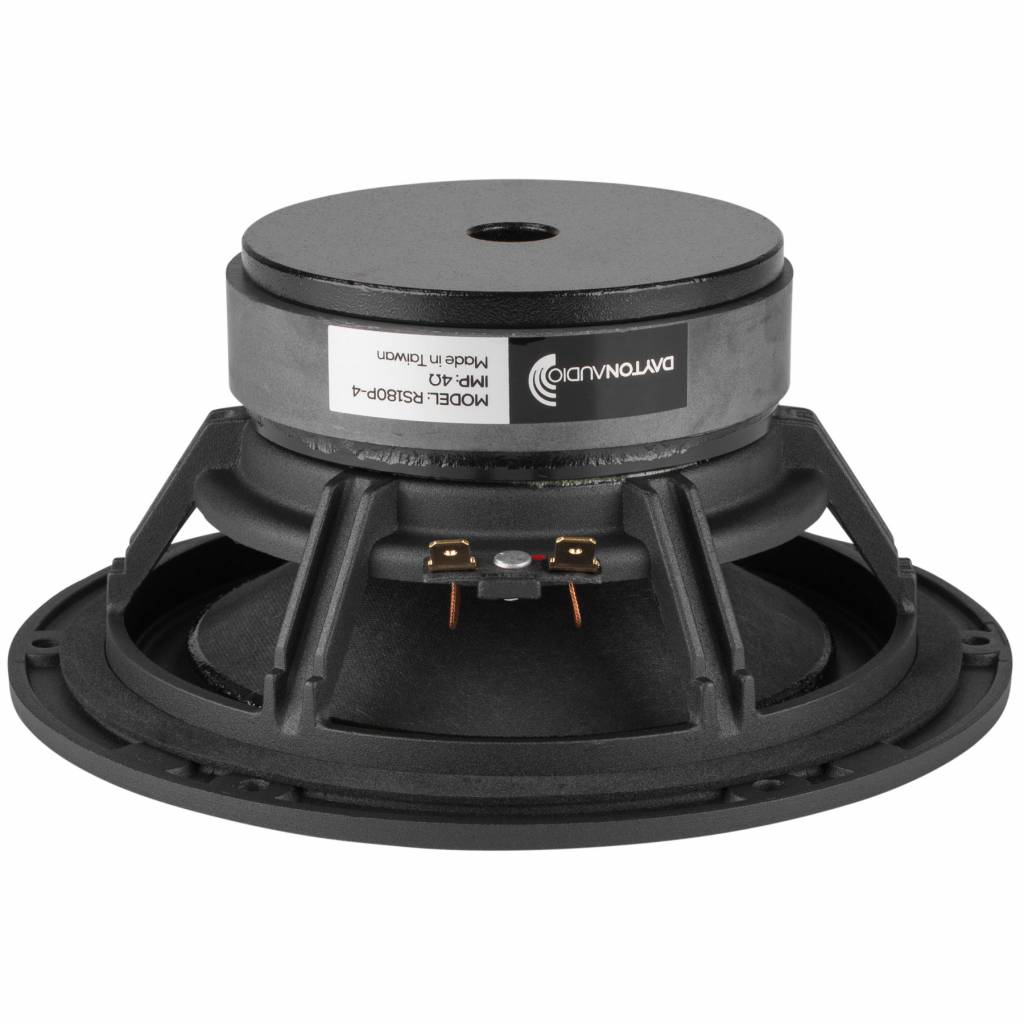

      Dayton Audio Reference RS180P-4 Bass-midwoofer

      € 67,73€ 81,95 10+ Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestelling 4 voor slechts € 77,85 per stuk
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf € 99 (NL & BE)
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.



      Highlights

      • Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
      • Perfect as a woofer, midwoofer, or dedicated midrange driver
      • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
      • 6 mm of Xmax and 88.2 dB sensitivity



      Product details

      Dayton Audio RS180P-4 7" Reference Paper Woofer 4 Ohm



      The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.



      Specificaties

      Artikelnummer
      RS180P-4
      Woofer series
      Reference Series
      Woofer type
      Midwoofer
      Nominale diameter
      7"
      Belastbaarheid (RMS)
      60 watts
      Belastbaarheid (max)
      90 watts
      Impedantie (Z)
      4 ohms
      Gevoeligheid
      90.8 dB @ 2.83V/1m
      Frequentierespons
      35 - 8,000 Hz
      Spreekspoeldiameter
      38.5 mm
      Gelijkstroomweerstand (Re)
      3.1 ohms
      Spreekspoelinductie (Le)
      0.47 mH @ 1 kHz
      Resonantiefrequentie (Fs)
      37.7 Hz
      Mechanische Q (Qms)
      1.98
      Elektrische Q (Qes)
      0.48
      Totale Q (Qts)
      0.39
      Bewegende massa (Mms)
      14.8g
      Compliantie van de ophanging (Cms)
      1.21 mm/N
      Effectief oppervlak (Sd)
      126.7 cm²
      Maximaal verplaatst volume (Vd)
      76.02 cm³
      Krachtsfactor (BL)
      4.67 Tm
      Equivalentvolume (Vas)
      27.3 liters
      Maximale excursie (Xmax)
      6 mm
      Cone / Diaphragm Material
      Paper / Kevlar Cone
      Surroundmateriaal
      Rubber
      Mand- /framemateriaal
      Cast Aluminum
      Magneetmateriaal
      Ferrite
      Totale buitendiameter
      180.5 mm
      Totale diepte
      81 mm
      Montagegatdiameter
      146 mm
      # Bevestigingsgaten
      6
      Gesloten volume
      0.27 ft.³
      Gesloten F3
      78 Hz
      Gepoort volume
      0.64 ft.³
      Gepoort F3
      42 Hz

      Toon meer

      Reviews

      5 from 5Based on 5 reviews
      Schrijf een review
      5 van 5
      I have bought four RS180p 4ohm (paper) for my system, It is a 5 ways-system with separate amplifier for each range. The earth of the system is a couple of Spica Tc 50 (1991) in which I use only the original 6” woofer for midrange frequencies between 400-4000 Hz. Beyond that ranges I use for the high three Emit Infinity, while in the very deep bass, 20-50 Hz, there is a couple of Mirage subwoofers with 12” unit. For each channel I use 2 Dayton's for further reduce distorsion and further increase dynamic answer on mid-low bass (drum, piano, bass). Result: superior body, air and sense of reality to the whole 3D stage. Each Dayton RS180p is put in a Wharfedale Diamond 8.2 box in place of the original 6" mid-woofer. Therefore is driven by a separate amplifier (60 watt) having kept away also the original tweeter. Dimensions of the box are almost ok (10 litres bass reflex) and then the 2 Dayton's give 60+60 for each channel. The result is a very, very low distorsion and a superior readiness to transients with a deeper liquid scene 3D, natural sound, especially with vocals, classic orchestra and country west coast as well.
      Door Ugo Gaetano S. on 27 Februari 2021
      5 van 5
      Soundimports it's an guarantee
      Door Marian C. on 21 Juli 2020
