    Dayton Audio RS150-8 6" Reference Woofer

    € 49,95 6 Op voorraad: levertijd 1 werkdag
    Dayton Audio Reference Series RS150-8 6" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €47,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Dayton Audio Reference Series RS150-8 6" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.



    Highlights

    • One of the lowest distortion, highest resolution driver series available
    • Low-distortion high-excursion motor system with two short-circuit paths
    • Compliant suspension and rigid black anodized aluminum cone for strong bass performance

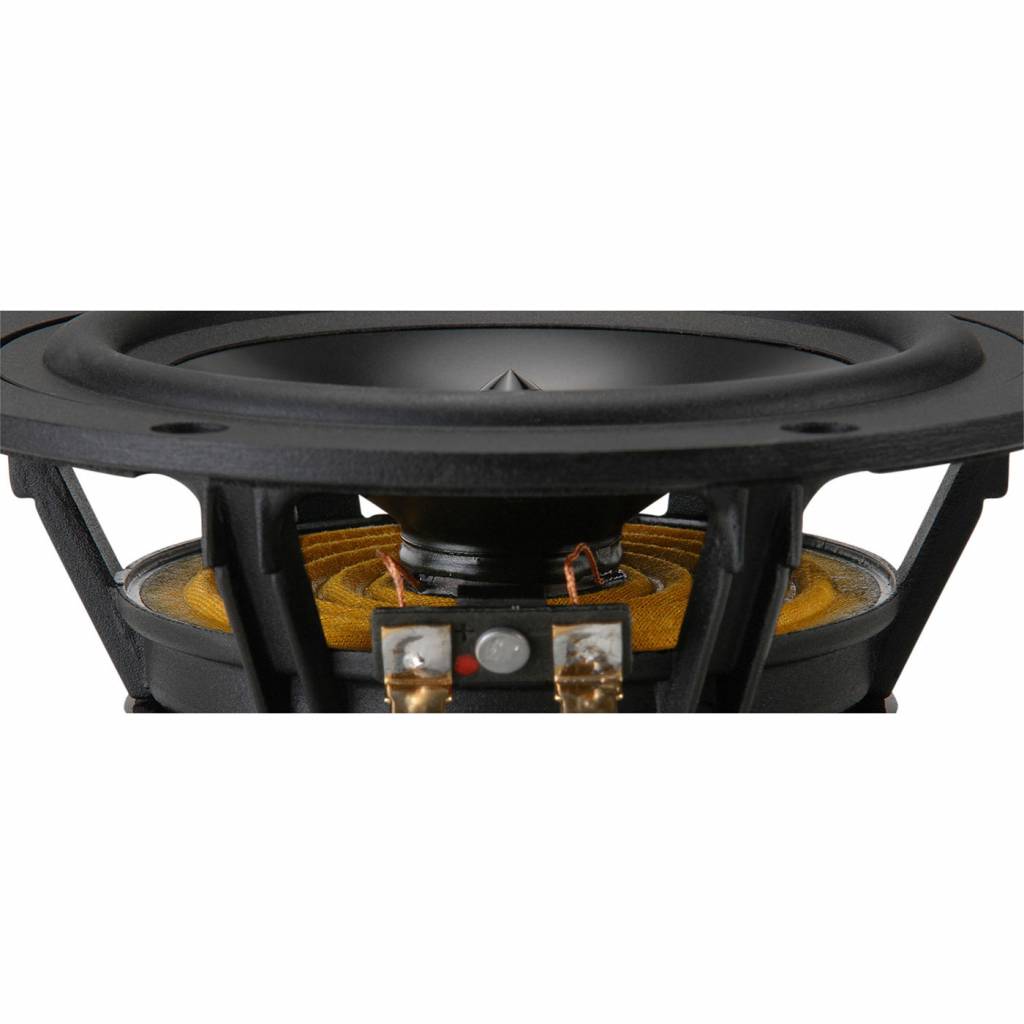

    • Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug
    • Designed and engineered in the USA



    Product details

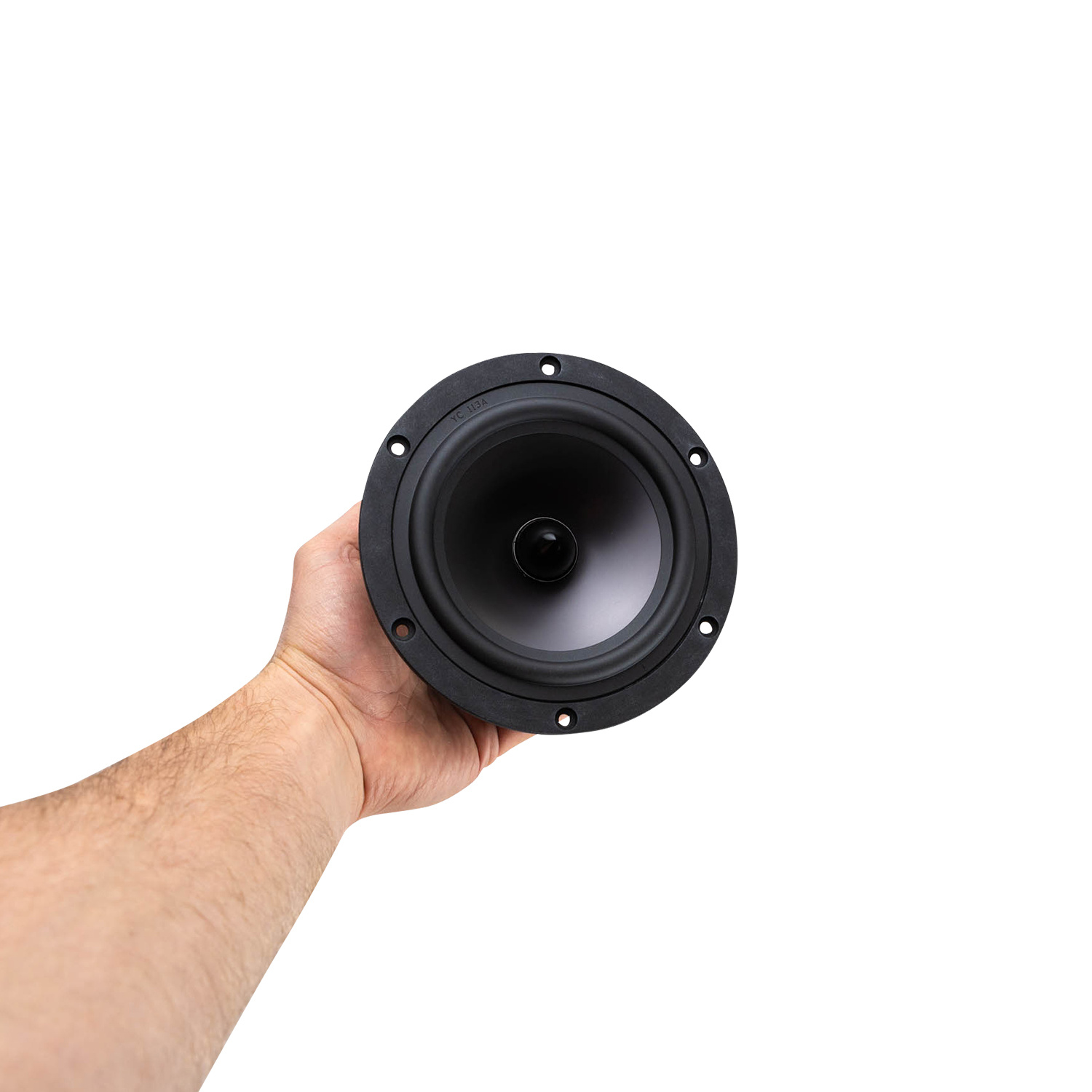

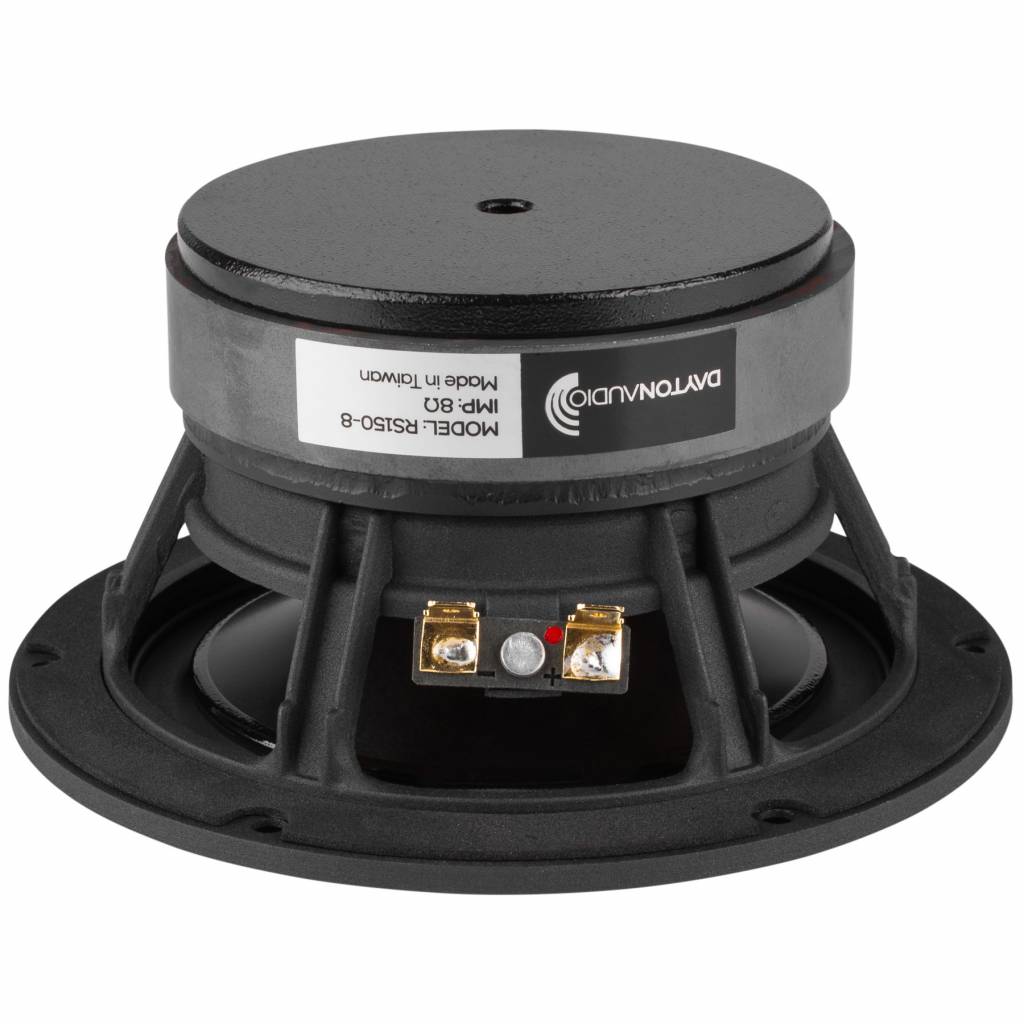

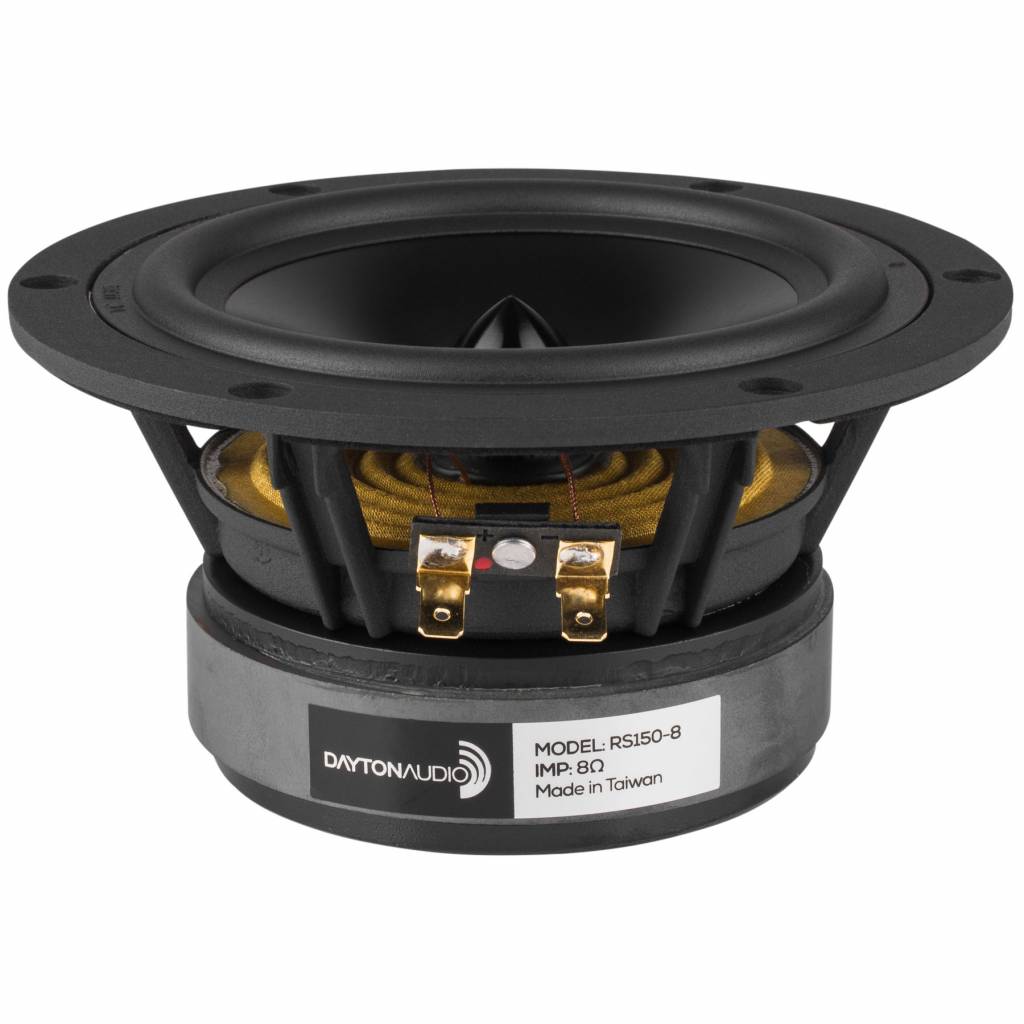

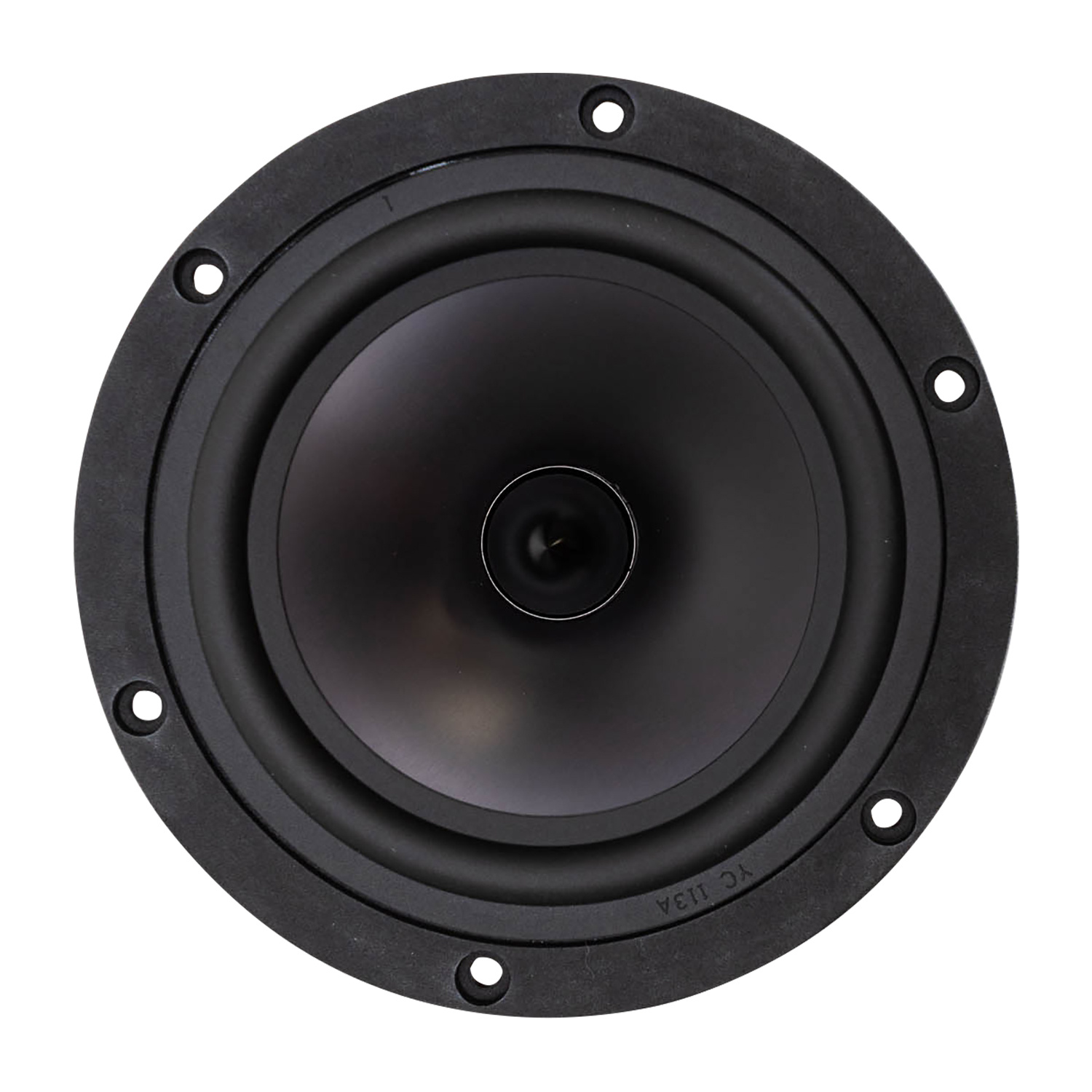

    Dayton Audio RS150-8 6" Reference Woofer



    The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS150-8 6" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

    Specificaties

    Artikelnummer
    RS150-8
    Woofer Series
    Reference Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    6"
    Power Handling (RMS)
    40 watts
    Power Handling (max)
    80 watts
    Impedance
    8 ohms
    Sensitivity
    88.7 dB @ 2.83V/1m
    Frequency Response
    47 - 4,200 Hz
    Voice Coil Diameter
    25 mm
    DC Resistance (Re)
    6.3 ohms
    Voice Coil Inductance (Le)
    0.55 mH @ 1 kHz
    Resonant Frequency (Fs)
    47.8 Hz
    Mechanical Q (Qms)
    1.66
    Electromagnetic Q (Qes)
    0.43
    Total Q (Qts)
    0.34
    Diaphragm Mass Inc. Airload (Mms)
    7.4g
    Mechanical Compliance of Suspension (Cms)
    1.63 mm/N
    Surface Area of Cone (Sd)
    85 cm²
    Volume of Displacement (Vd)
    34.0 cm³
    BL Product (BL)
    5.59 Tm
    Compliance Equivalent Volume (Vas)
    16.6 liters
    Maximum Linear Excursion (Xmax)
    4.0 mm
    Cone / Diaphragm Material
    Black Anodized Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    150 mm
    Overall Depth
    73.5 mm
    Baffle Cutout Diameter
    121.5 mm
    # Mounting Holes
    6
    Sealed Volume
    0.14 ft.³
    Sealed F3
    102 Hz
    Vented Volume
    0.41 ft.³
    Vented F3
    56 Hz
