    Dayton Audio RS125T-8 5" Reference Woofer Truncated Frame

    € 44,95 >10 Op voorraad: levertijd 1 werkdag
    Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €42,70 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.



    Highlights

    • Truncated cast frame, great for line arrays and MTM speaker designs
    • Long-excursion motor and suspension for strong bass performance
    • Advanced low-distortion motor design
    • Distortion-reducing copper ring in magnetic gap
    • Lightweight black anodized aluminum cone
    • Designed and engineered in the U.S.A.



    Product details

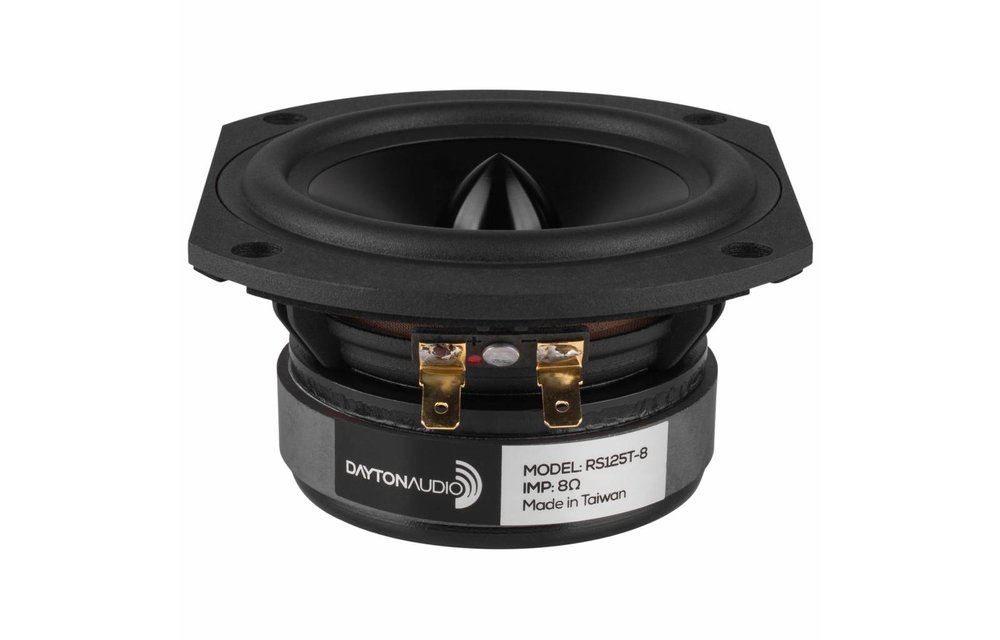

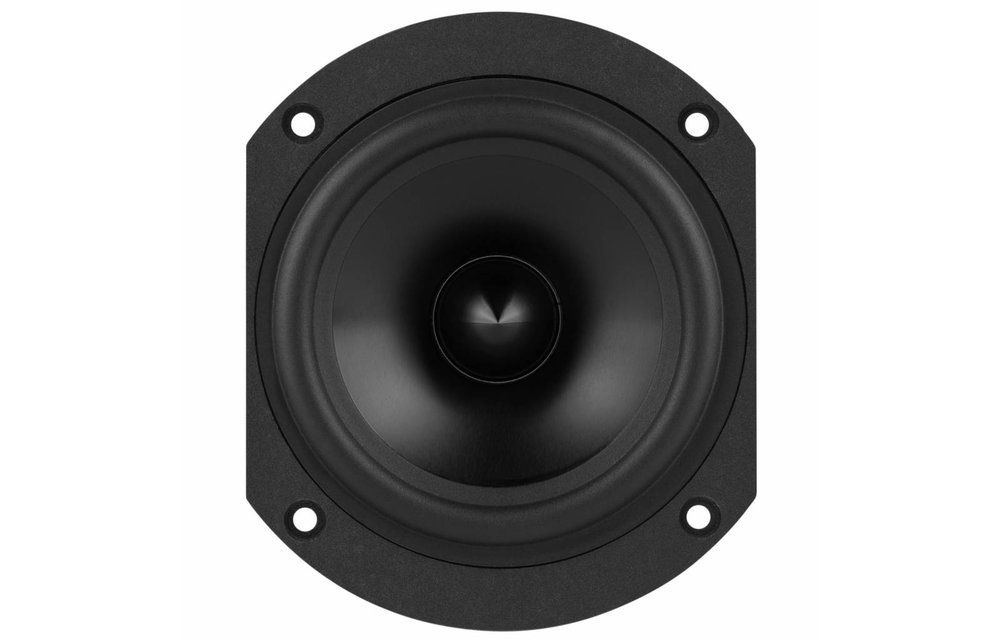

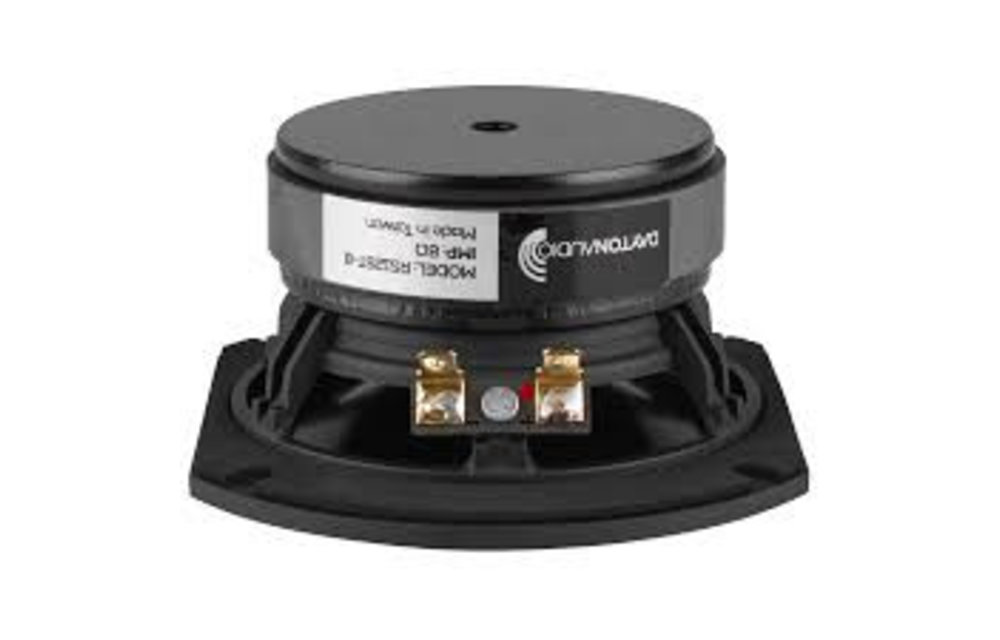

    Dayton Audio RS125T-8 5" Reference Woofer Truncated Frame



    The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty cast frame, low-loss rubber surround, solid aluminum phase plug, distortion-reducing magnetic gap copper ring, rubber magnet boot, and gold terminals.

    Specificaties

    Artikelnummer
    RS125T-8
    Woofer Series
    Reference Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    5"
    Power Handling (RMS)
    30 watts
    Power Handling (max)
    60 watts
    Impedance
    8 ohms
    Sensitivity
    86.9 dB @ 2.83V/1m
    Frequency Response
    75 - 9,200 Hz
    Voice Coil Diameter
    25 mm
    DC Resistance (Re)
    6.4 ohms
    Voice Coil Inductance (Le)
    0.58 mH @ 1 kHz
    Resonant Frequency (Fs)
    76 Hz
    Mechanical Q (Qms)
    2.62
    Electromagnetic Q (Qes)
    0.61
    Total Q (Qts)
    0.50
    Diaphragm Mass Inc. Airload (Mms)
    5.1g
    Mechanical Compliance of Suspension (Cms)
    0.87 mm/N
    Surface Area of Cone (Sd)
    54.1 cm²
    Volume of Displacement (Vd)
    15.1 cm³
    BL Product (BL)
    5.04 Tm
    Compliance Equivalent Volume (Vas)
    3.56 liters
    Maximum Linear Excursion (Xmax)
    2.8 mm
    Cone / Diaphragm Material
    Black Anodized Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    125.5 mm
    Overall Depth
    55 mm
    Baffle Cutout Diameter
    94 mm
    # Mounting Holes
    4
    Sealed Volume
    0.06 ft.³
    Sealed F3
    136 Hz
    Vented Volume
    0.18 ft.³
    Vented F3
    70 Hz
