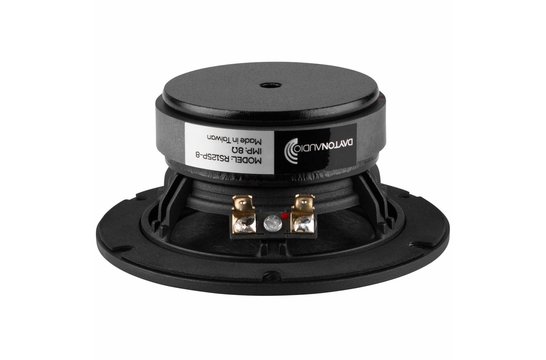

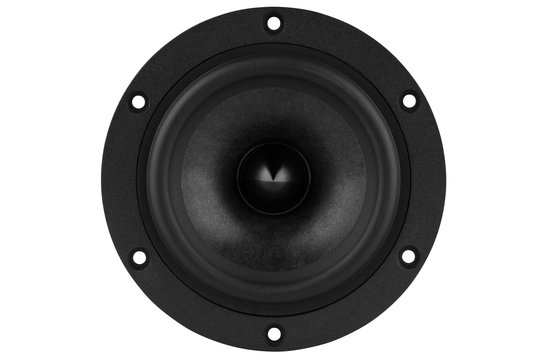

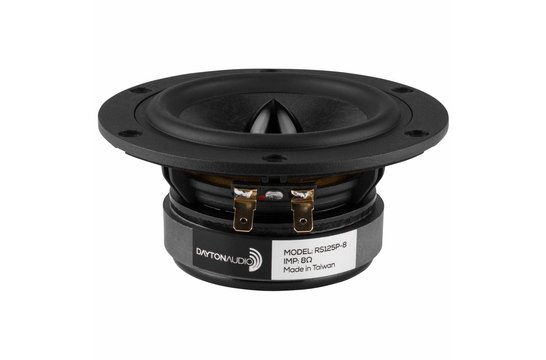

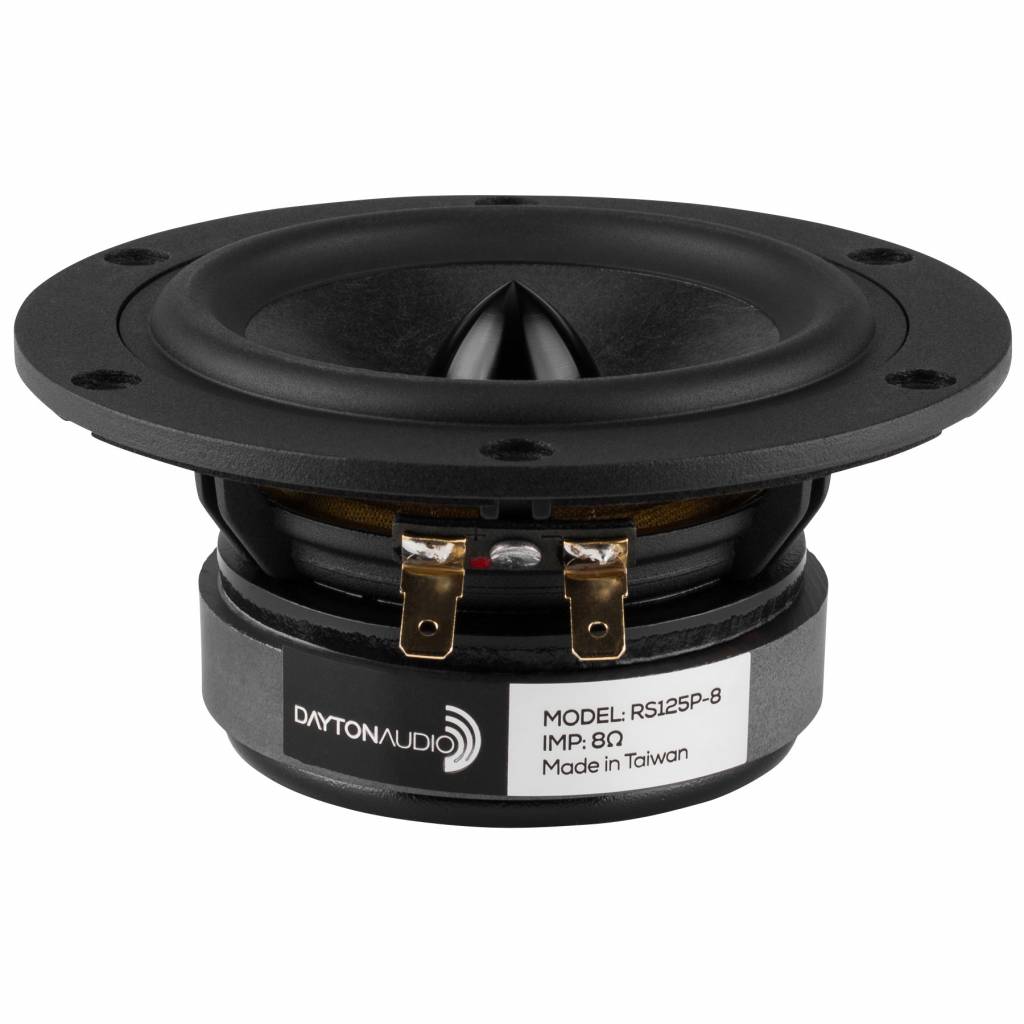

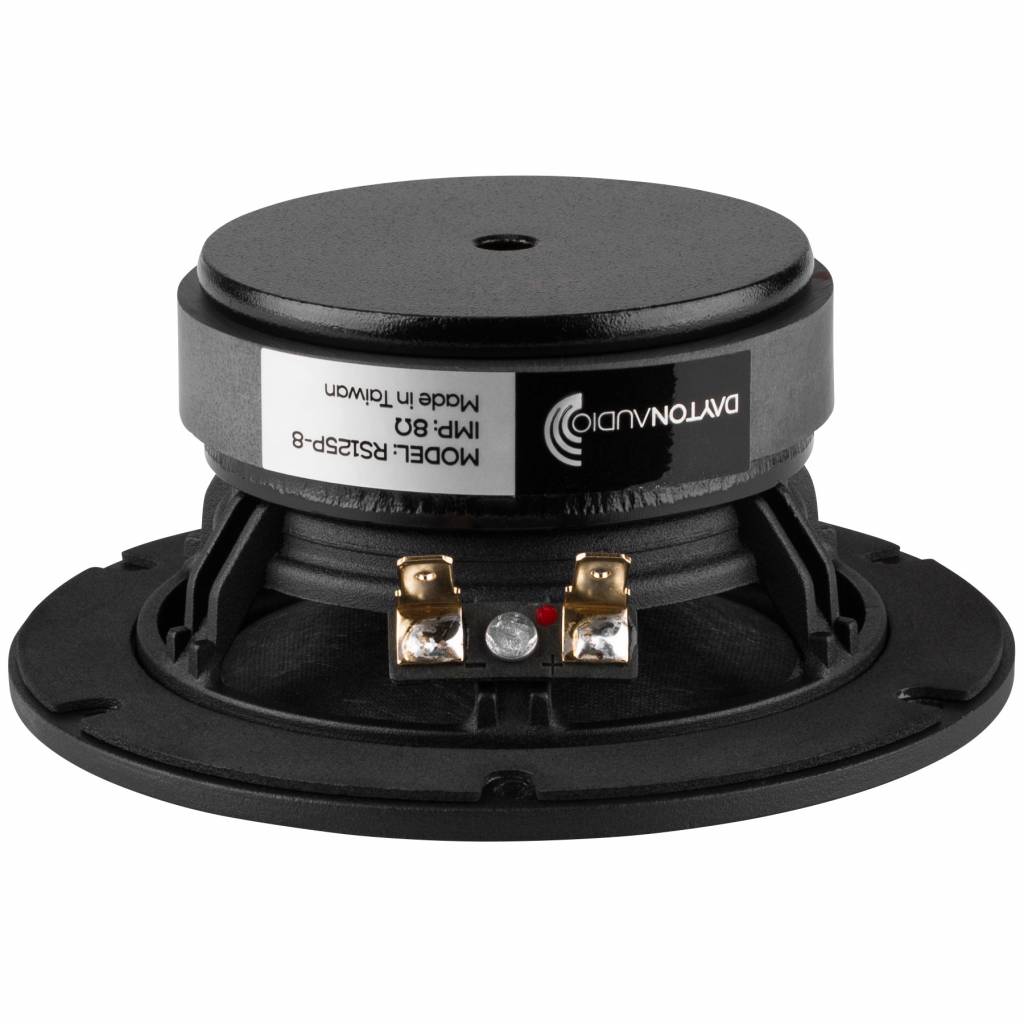

    Dayton Audio RS125P-8 5" Reference Paper Woofer 8 Ohm

    € 44,95 2 Op voorraad: levertijd 1 werkdag
    Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €42,70 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.



    Highlights

    • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
    • Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
    • Perfect for use as a woofer, midwoofer, or dedicated midrange driver
    • 4 mm of Xmax and 85.8 dB sensitivity



    Product details

    Dayton Audio RS125P-8 5" Reference Paper Woofer 8 Ohm



    The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

    Specificaties

    Artikelnummer
    RS125P-8
    Woofer Series
    Reference Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    5"
    Power Handling (RMS)
    30 watts
    Power Handling (max)
    45 watts
    Impedance
    8 ohms
    Sensitivity
    87.1 dB @ 2.83V/1m
    Frequency Response
    70 - 10,000 Hz
    Voice Coil Diameter
    25 mm
    DC Resistance (Re)
    6.2 ohms
    Voice Coil Inductance (Le)
    0.62 mH @ 1 kHz
    Resonant Frequency (Fs)
    70 Hz
    Mechanical Q (Qms)
    2.56
    Electromagnetic Q (Qes)
    0.53
    Total Q (Qts)
    0.44
    Diaphragm Mass Inc. Airload (Mms)
    5.1g
    Mechanical Compliance of Suspension (Cms)
    1.02 mm/N
    Surface Area of Cone (Sd)
    52.8 cm²
    Volume of Displacement (Vd)
    21.1 cm³
    BL Product (BL)
    5.08 Tm
    Compliance Equivalent Volume (Vas)
    3.98 liters
    Maximum Linear Excursion (Xmax)
    4 mm
    Cone / Diaphragm Material
    Paper / Kevlar Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    125.5 mm
    Overall Depth
    55 mm
    Baffle Cutout Diameter
    94 mm
    # Mounting Holes
    6
    Sealed Volume
    0.05 ft.³
    Sealed F3
    146 Hz
    Vented Volume
    0.13 ft.³
    Vented F3
    77 Hz

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Voor mid weergave nog geen betere gehoord wel veel duurdere die minder klonken.
    Door Gerald V. on 27 Januari 2018
