Dayton Audio QS204W-4 speakers feature an innovative and modern "quadrant" shape that lets you create arrays of multiple speakers for ultra-wide sound dispersion. The robust, reliable design is 70 volt and 100 volt enabled for commercial audio systems, and weather-resistant for outdoor placement.
- Quadrant quarter-arc form factor permits circular arraying
- 70V / 100V transformer built in for distributed applications
- Dual 4" woofers and 1" treated dome tweeter provide punch and articulation
- Durable white ABS enclosure and metal grill resist the elements
- Clean, modern styling complements any installation

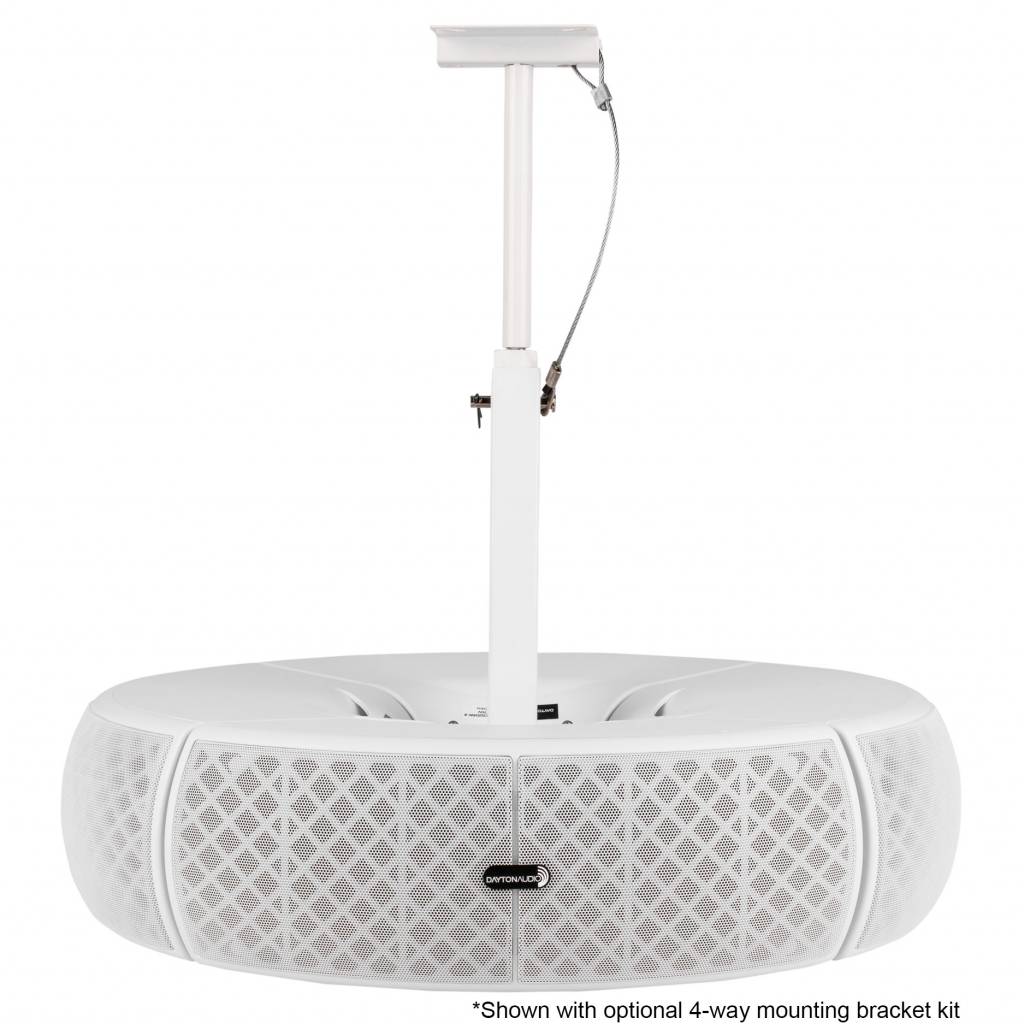

- Optional 4-way mounting bracket kit creates a 360 degree ring of sound when used with two pairs of QS204W-4
Dayton Audio QS204W-4 Quadrant 70V / 100V Indoor/Outdoor Speaker Pair with 4 Ohm Bypass – White

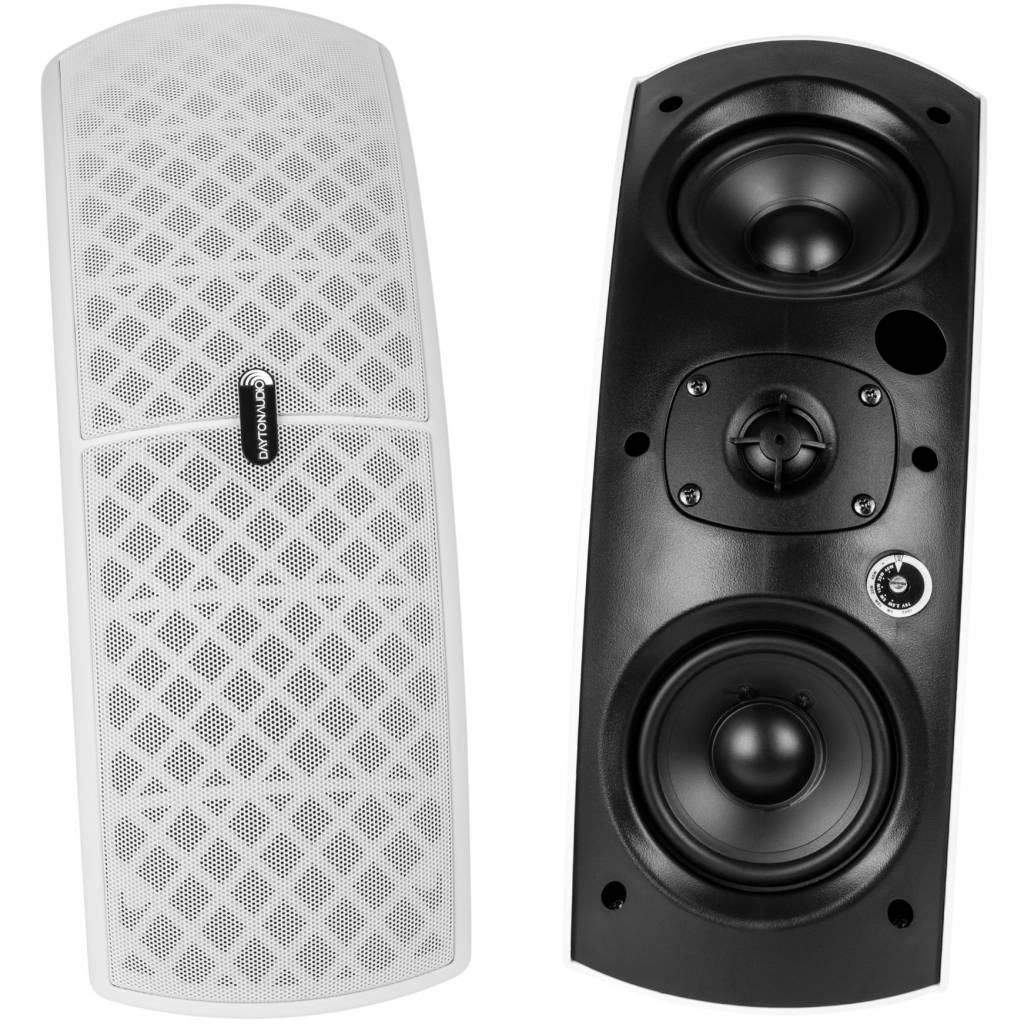

Great sound goes full circle with the sleek, modern design of the Dayton Audio QS204W-4 "Quadrant Speaker." Developed for commercial applications requiring high performance and high style, the QS204W-4 speaker allows virtually endless possibilities for mounting and installation via its clever multi-angle mounting bracket. Thanks to the expertly tuned acoustic package of dual 4" poly-cone woofers and 1" treated dome tweeter angled for superior dispersion over a wide area, the QS204W-4 delivers punch, presence, and clarity normally associated with high-fidelity loudspeakers for the home.

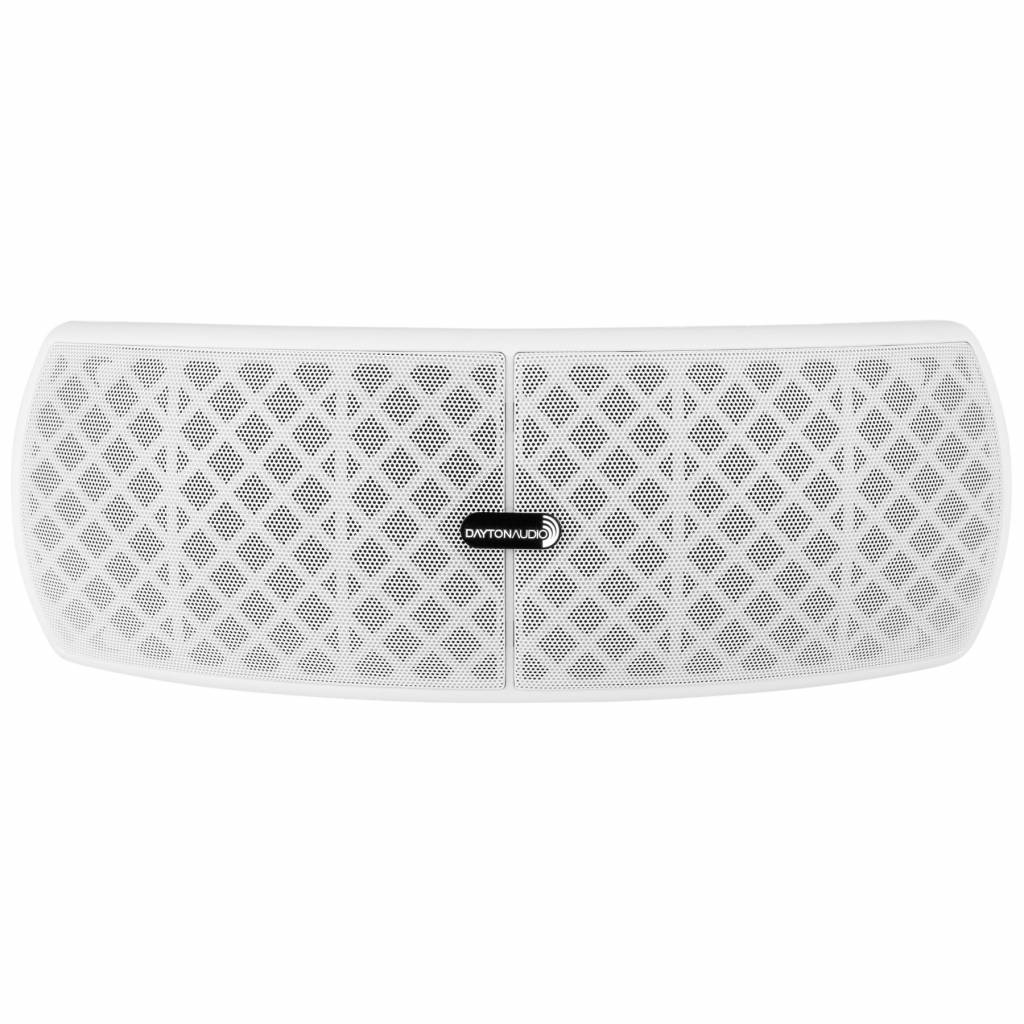

The sturdy enclosure of the QS204W-4 is made from weather-inert and UV-resistant ABS plastic, with integrated aluminum grill to prevent pest ingress or foreign object damage. A concealed structural matrix behind the grill material prevents denting from impacts. An internal 70V / 100V transformer makes these speakers fully distributed-application ready, and a convenient front-mounted selector switch behind the removable grill makes it easy to set the right audio level, or to select 4 ohm operation for use with stereo receivers and multi-room amplifications.

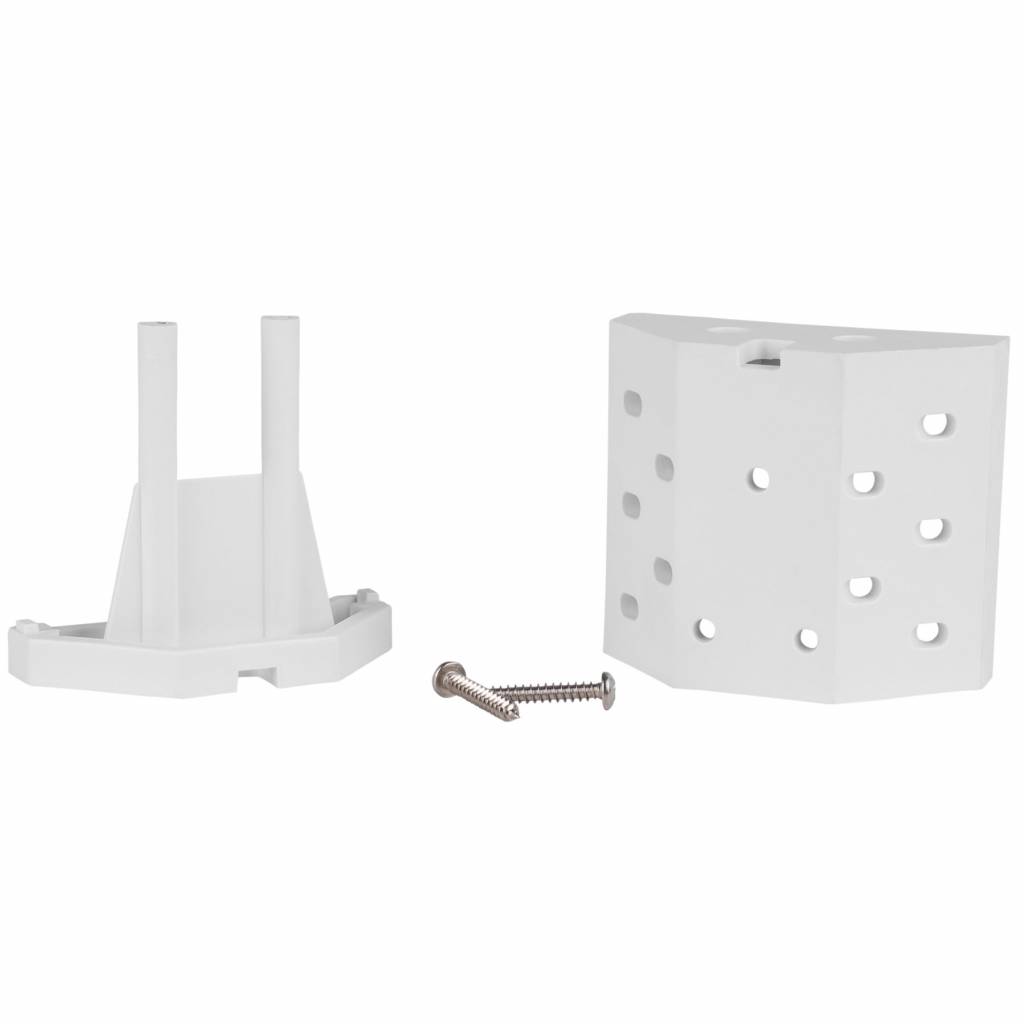

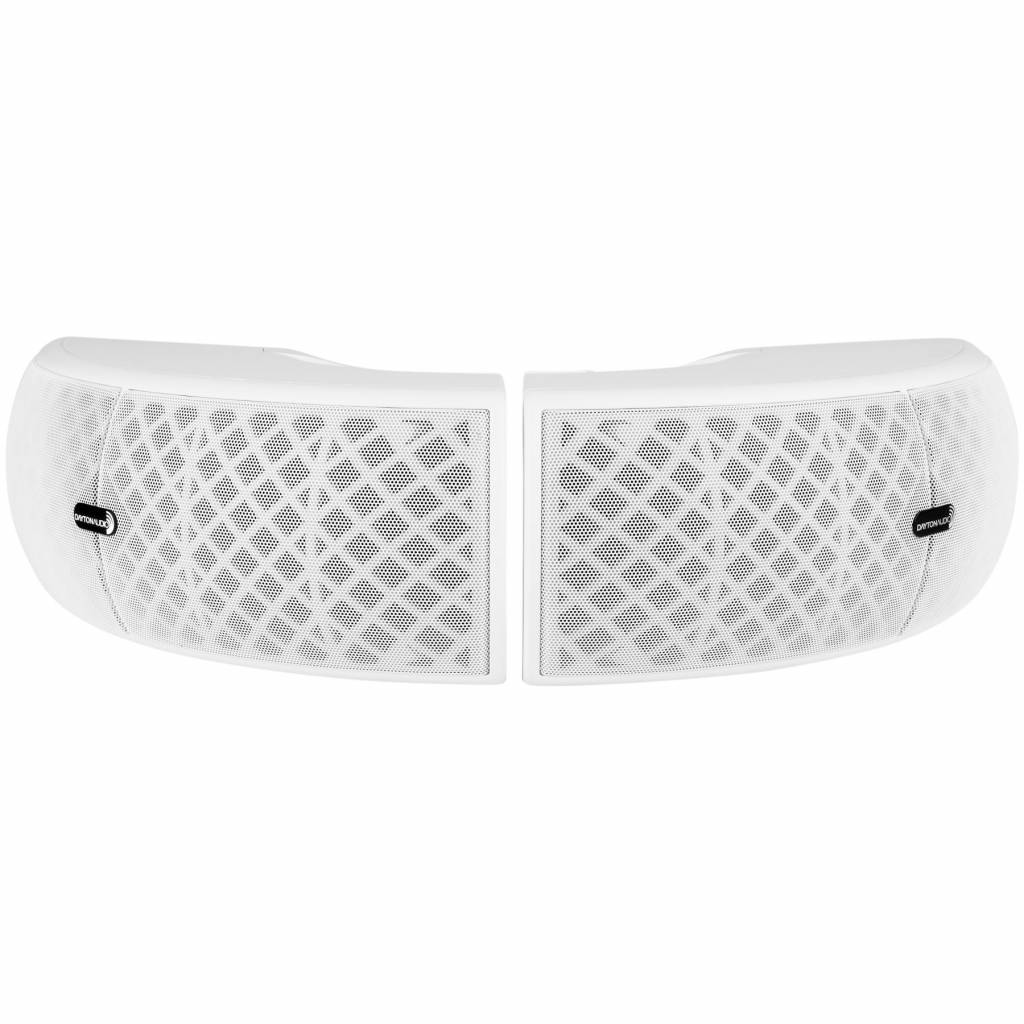

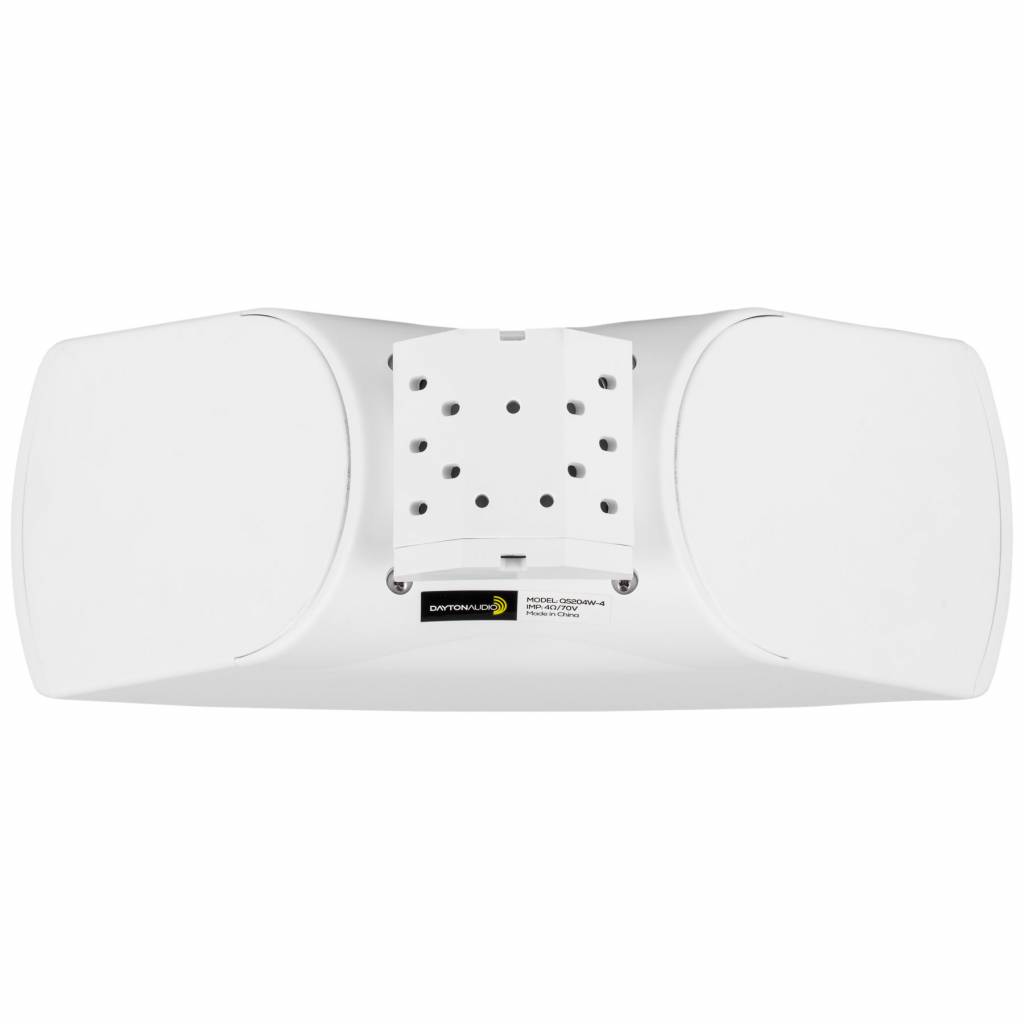

The included multi-angle mounting brackets permit mounting one, two, or three QS204W-4 speakers at 90 degree intervals in either vertical or horizontal orientation, for true application flexibility. Mount two units together on a wall to create 180 degree coverage, or install a single unit vertically in the corner between a wall and a ceiling for a stylish "sconce" appearance and wide dispersion. Using the optional QS204PB 4-way pole mounting bracket, you can even create a 360 degree ring of quality sound in an open space.
Specifications: • Woofer: dual 4" mineral-filled polypropylene • Tweeter: 1" treated silk dome • Frequency response: 70 - 20,000 Hz • Impedance: 70V with 4 ohm bypass • 100V taps: 40, 20, 10, 5 watts • 70V taps: 40, 20, 10, 5, 2.5 watts • Power handling: 40 watts RMS/75 watts peak • SPL: 87 dB 1W/1m • Ingress protection rating: IP51 • Color: white • Dimensions (H x W x D): 5.4" x 15.2" x 10.3" • Weight: 7.5 lbs. (3.4 kg).
Note: Do not select the 4 ohm transformer tap when the QS204W-4 is used as part of a 70V / 100V distributed audio system. Damage to the loudspeaker or amplifier may result.
4 ohm, 70V, 100V
Indoor / Outdoor, Water Resistant
Dual Woofer (MTM)
