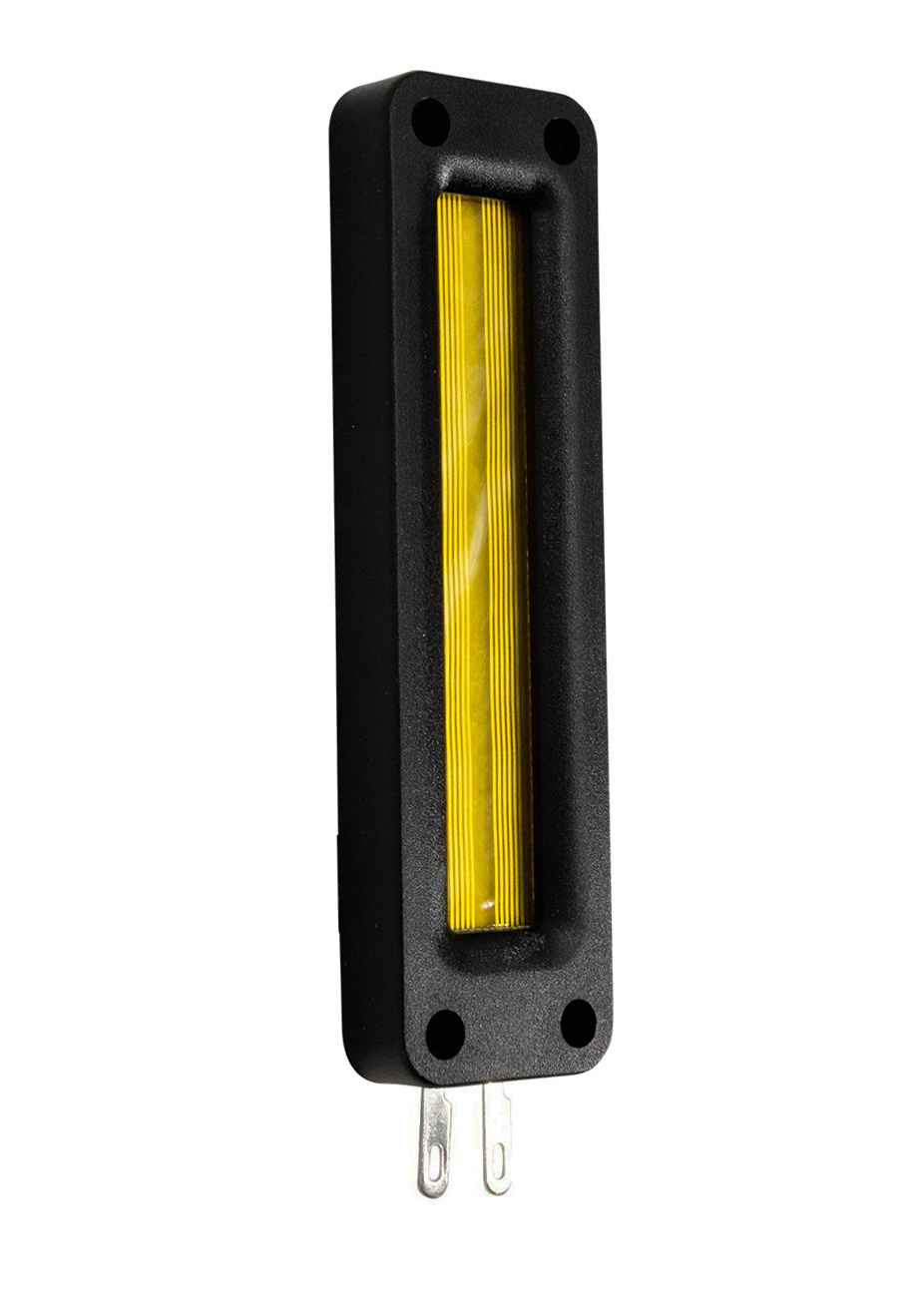

        PTMini-6 Planar Tweeter 6 Ohm

        PTMini-6 Planar Tweeter 6 Ohm


        Dayton Audio PTMini-6 Planar Tweeter 6 Ohm

        14 reviews
        5 van 5
        14 reviews
        5 sterren
        4 sterren
        3 sterren
        2 sterren
        1 ster
        Bekijk alle reviews
        € 12,36€ 14,95 10+ Op voorraad
        • -5% Bestel 4 voor slechts € 14,20 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen bezorgd
        • Vijf jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!


        The Dayton Audio PTMini-6 is a miniature planar tweeter that is big on performance and sound quality! With 6 ohm impedance and incredibly small size this is an excellent choice for car audio or home use.



        • Compact planar ribbon tweeter driver
        • High output and exceptional treble definition
        • Surface or flush mount installation
        • Potent neodymium magnetic design
        • Supports 4,000 Hz crossover, 12 dB/octave


        Product details

        Dayton Audio PTMini-6 Planar Tweeter 6 Ohm


        The clarity, definition, and transparency of a planar tweeter is unmatched by almost any other type of tweeter. Now Dayton Audio lets you build planar technology into more compact projects with the PTMini-6 planar tweeter! The surface-mount housing design can also be flush-mounted for a world of possible uses, such as a car A-pillar tweeter, a supertweeter for a full-range driver, a rear-mounted ambience tweeter, a conventional forward-facing tweeter configuration, or even a line array!


        The membrane of a planar tweeter is an almost weightless ribbon of heat-resistant Kapton material and an etched aluminum conductor, enabling the performance of aluminum ribbon tweeters without the losses inherent in the transformer of a conventional ribbon tweeter. The result is a tweeter that is incredibly fast, dynamic, and smooth sounding with imperceptible distortion and excellent power handling. A crossover cut-off frequency of 4,000 Hz or higher is recommended with a 12 dB/octave filter slope.

        Toon meer


        Tweeter type
        Planar ribbon tweeter
        Tweeter serie
        Planar Series
        Belastbaarheid (RMS)
        15 Watts
        Impedantie (Z)
        6 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        91.5 dB
        2,900 to 25,000 Hz
        Resonantiefrequentie (Fs)
        4461 Hz
        Gelijstroomweerstand (Re)
        5.90 ohms
        Totale Q (Qts)
        Totale buitendiameter
        3.27" x 0.91"
        Element: 2.375" x 0.375"

        Toon meer

        4 van 5
        Door Alessandro on 26 November 2023
        3 van 5
        Door Christian on 22 November 2023
        Toon meer
